Description

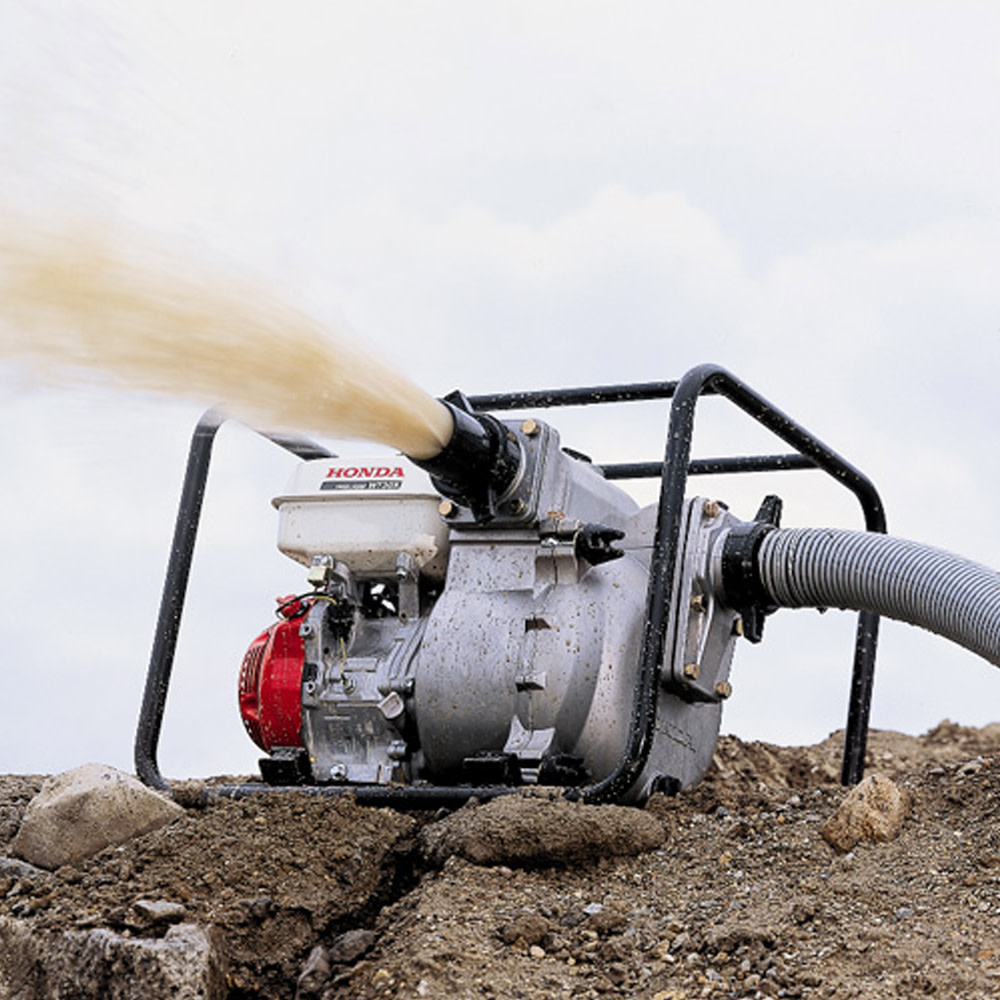

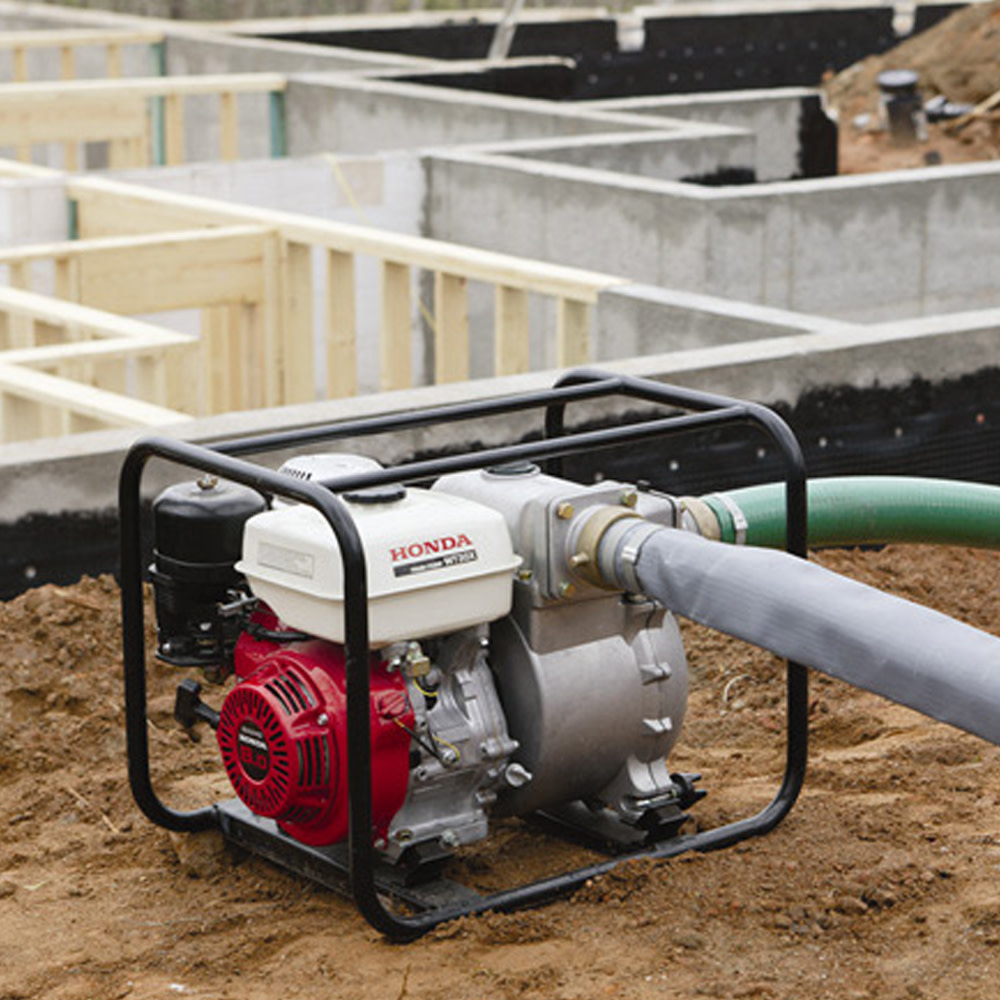

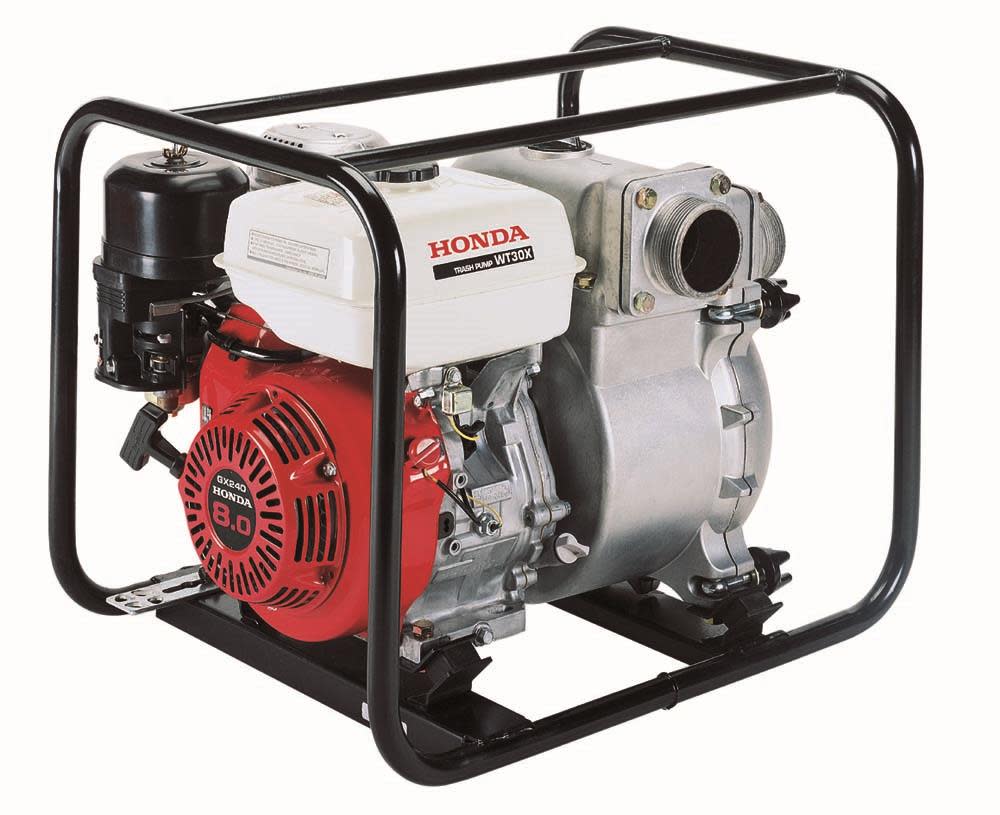

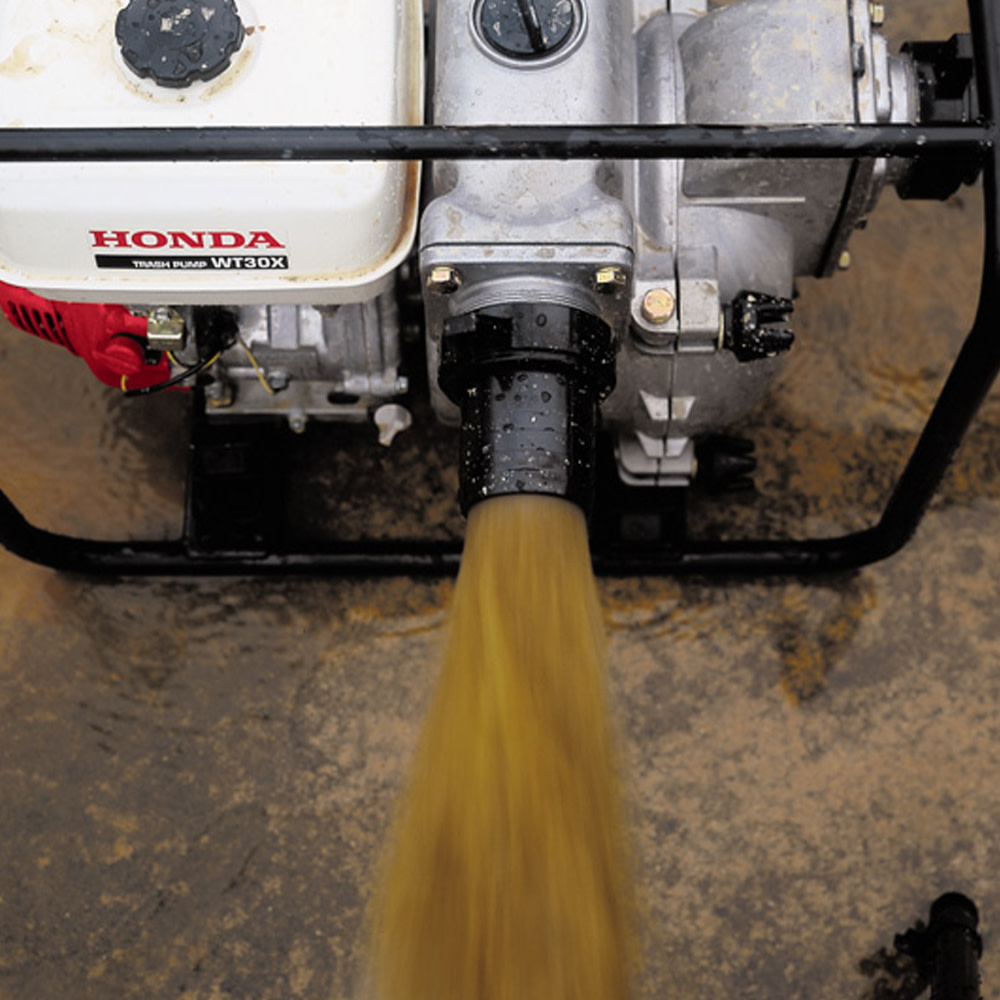

WT Series 3 In Construction/Trash Pump
ACME Tools is a Honda Authorized Dealer. Honda trash pumps are specially designed for job sites and applications where high volume trash water capacity is required. Honda WT series pumps offer highly desired features including our legendary, easy-starting and reliable OHV commercial-grade engine, rugged full frame protection, quick release clean-out and durable silicone carbide mechanical seals. Other Honda WT features include a unique conical impeller for improved priming and durability, replaceable stainless steel wear plate for extended life and a convenient multi-tool for on-site pump servicing and clean-out.
Features
Easy starting Honda OHV commercial engine
319 gal/min capacity
Solid handling capability up to 1-1/16 In.
Quick clean out port
Cast iron volute and impeller
Heavy-duty 3 In. construction trash pump
Easy service wear plate
Protected by Honda Oil Alert®
Silicon carbide mechanical seal
Specifications
Acme Tools Brand Name
HONDA
Acme Tools Part Number
WT30XK3A
Assembled Weight (lbs)
132
California Proposition 65 Warning Required
Yes
Country of Origin
Thailand
ETL Listed
No
Fitting 1 Gender
Male
Gallons Per Hour (gal)
19140
Height (in)
20.3
Horsepower (hp)
8
Housing Material
Silicone Carbide
Impeller Material
Conical Cast Iron
Internal Supplier Part #
WT30XK3A
Internet Product Code (IPC)
37F4DAE8A30
Length (in)
26
Manufacturer Warranty
3 year residential/commercial warranty
Materials Handled
High solid content, clear water, slimy water, muck water, silt water, fast seepage, manholes, cofferdams, and quarries.
Maximum Pumping Height (Ft.)
89
Outlet Connection
3″ NPT
Package Contents
Pump, Strainer, and Manual
Package Weight
139
Package Weight (lbs)
139
Pump Construction
Cast Iron
Pump Inlet (in)
3
Pump Switch Type
Vertical
Shut Off PSI
39
Switch Type
Turn Power Switch On/Off
UL Listed
No
Water Flow
319 gal/min
Width (in)
19.5
