Description

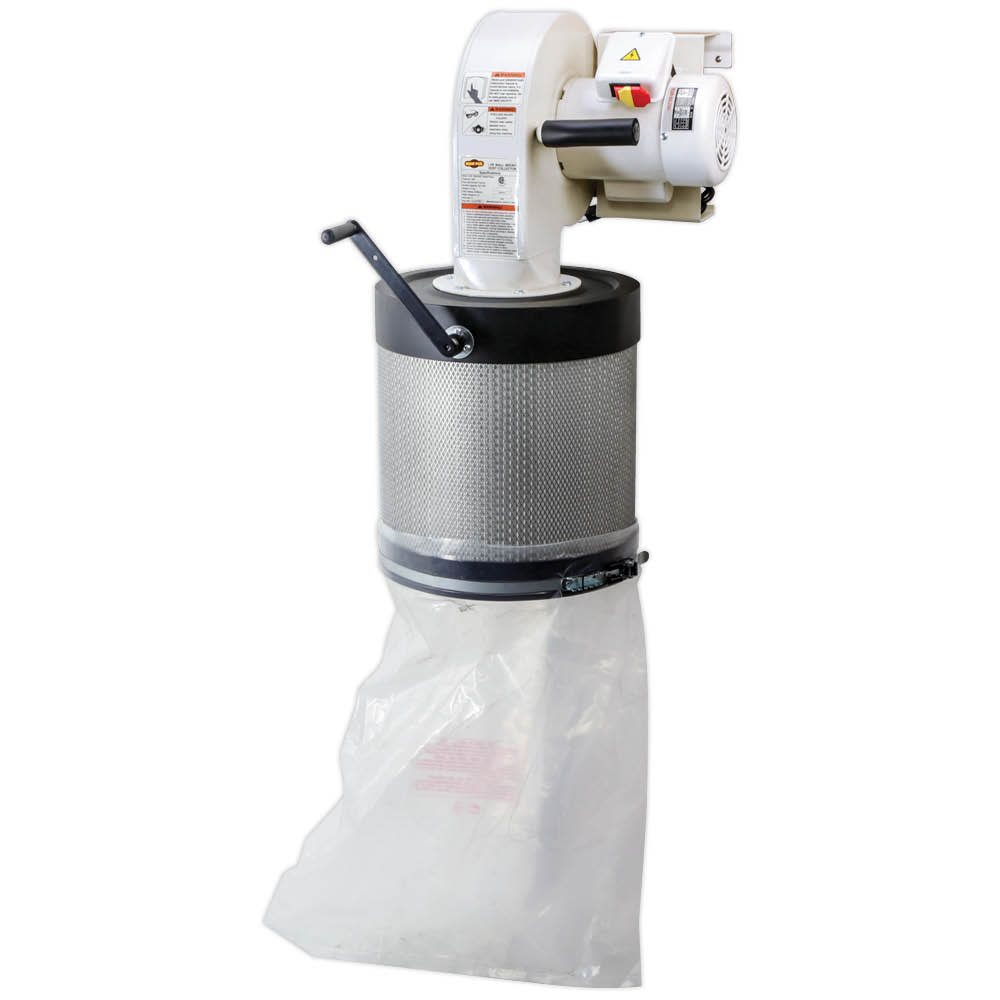

Wall-Mount Dust Collector with Canister Filter

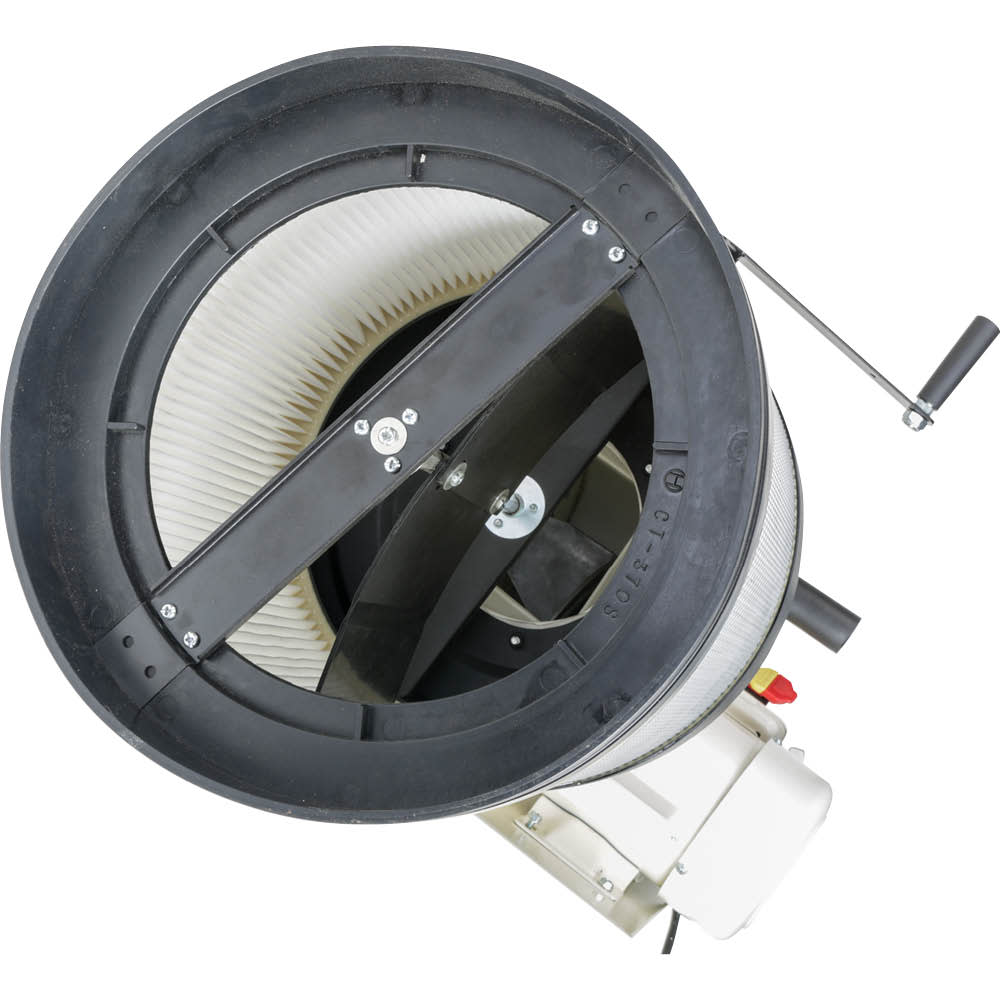

Nothing beats the convenience of this wall-mounted Dust Collector and the efficiency of the large surface area, pleated filter with internal paddle brushes. Whenever efficiency is being diminished due to dust cake, just a couple of turns of the handle rotates the paddle brushes against the inside of the filter to drop the fine dust cake into the plastic collection bag. It’s as easy as that!
Features
Motor: 1 HP, 120V/240V (prewired 120V), 7A/3.5A
Air suction capacity: 537 CFM
Static pressure: 7.2″
Filter rating 1 micron
Bag capacity: 1.5 cubic feet
Intake hole size: 4″
Impeller: 10″ balanced cast aluminum radial fin
Canister filter size (diameter x length): 15″ x 16-3/16″
Height with bag inflated: 46″
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1844
Assembled Weight (lbs)
62
California Proposition 65 Warning Required
Yes
Country of Origin
Taiwan
Decibel Rating (dB)
77-79
Horsepower (hp)
1
Package Contents
Dust Collector
Package Depth
20.50
Package Height
16.50
Package Weight
63
Package Weight (lbs)
63
