Description

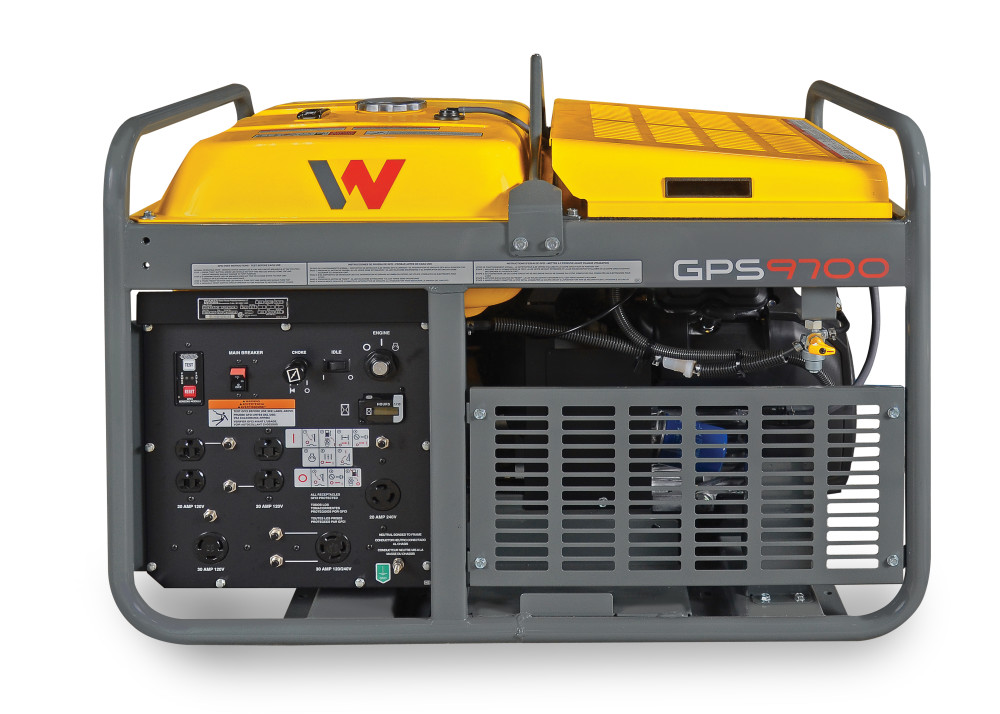

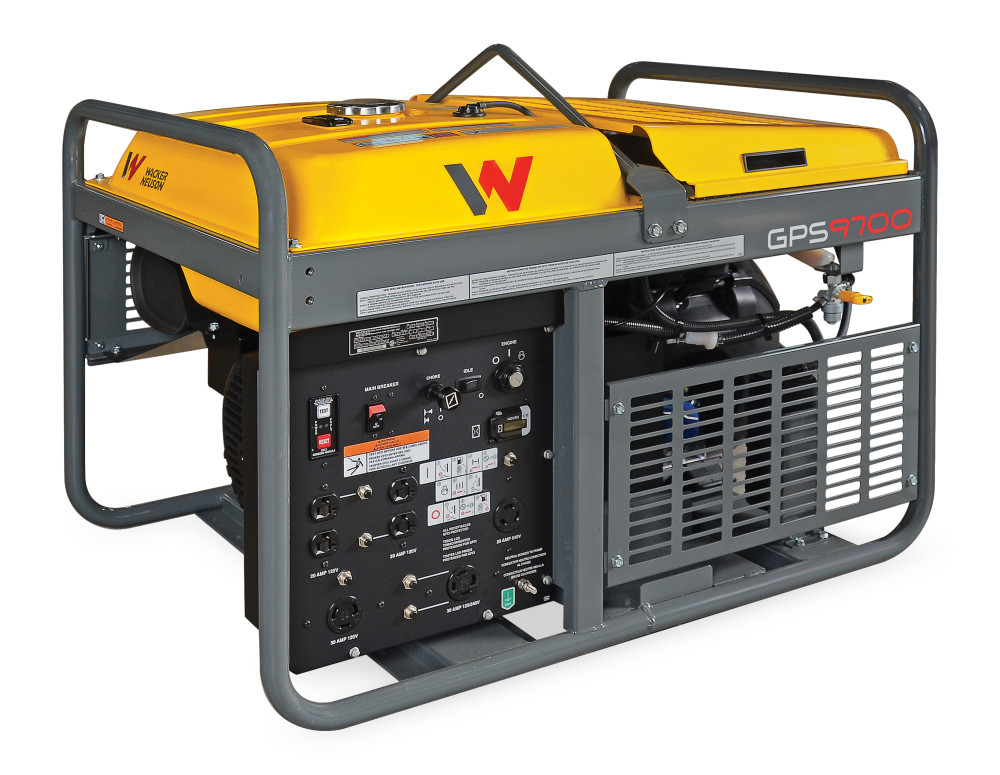

Wacker GPS9700A Generator
9700W, Honda GX630, includes wheel kit (not shown)
Features
Lightweight, portable generator for construction and rental applications
Industry-leading Honda engine
Best-in-class tool starting and voltage regulation due to step-start technology with AVR (automatic voltage regulation) and separate excitation winding
Auto-idle control with time delay system reduces fuel consumption, noise and wear
Premium impact protection with full wrap-around frame, dual cross-member support, high impact polyethylene fuel tank and heavy duty shock mount.
Central GFCI (neutral bonded to ground) sensor system eliminates outlet failures and personal protection
Fully compliant with EPA and CSA evaporative emissions regulations
Specifications
Acme Tools Brand Name
WACKER NEUSON
Acme Tools Part Number
5100042221
Alternator Type
Portable Generator
Assembled Depth (in)
36.4
Assembled Height (in)
25
Assembled Weight (lbs)
419
Assembled Width (in)
26.2
Automatic Idle Control
Yes
Automatic Transfer Switch Included
No
Automatic Voltage Regulation
Yes
Battery Charger With Cables
N/A
California Proposition 65 Warning Required
Yes
CARB Compliant
Yes
Color/Finish
Yellow
Control Panel
Yes
Cordless / Corded
Cordless
Country of Origin
Japan
Current Range (A)
75-120/37.5-240
Engine
Honda
Engine Design
Air Cooled
Engine Displacement (cc)
42
Engine Series
GX
ETL Listed
Exempt
Fuel Gauge
Yes
Height (in)
25
Horsepower (hp)
20.8
Low Oil Shut Down
Yes
Osha Required GFCI Outlets
Yes
Output Receptacles
2 duplex (120v 20a) 1 twist lock (120v 30a) 1 twist lock (240v 20a) 1 twist lock (120/240v 30a)
Overload Protection
s-726ae8d9-3bd7-4c4f-94fd-f28a6d506563
Package Contents
Unit and Operators manual
Package Depth
44.1
Package Height
29.2
Package Weight
420
Package Weight (lbs)
420
Portable Generator Starting Type
Electric
Rated Wattage
9000
Run Time @ 1/2 Load (hrs/tank)
11
Sound Decibels (dB)
80
Surged Wattage
9700
Towable
No
UL Listed
Exempt
Voltage Rating
120/240
Wheel Design
Solid
Wheel Kit Included
Yes
