Description

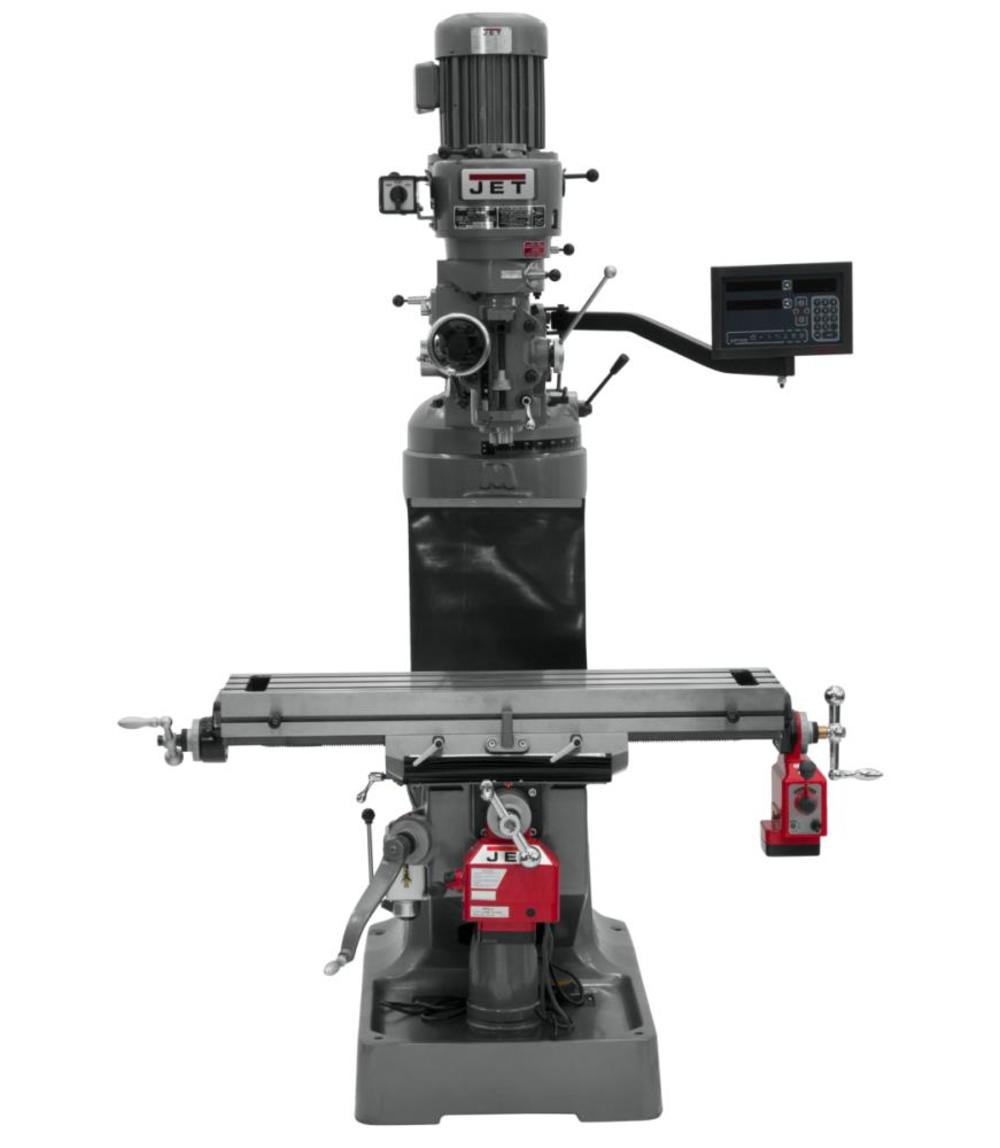

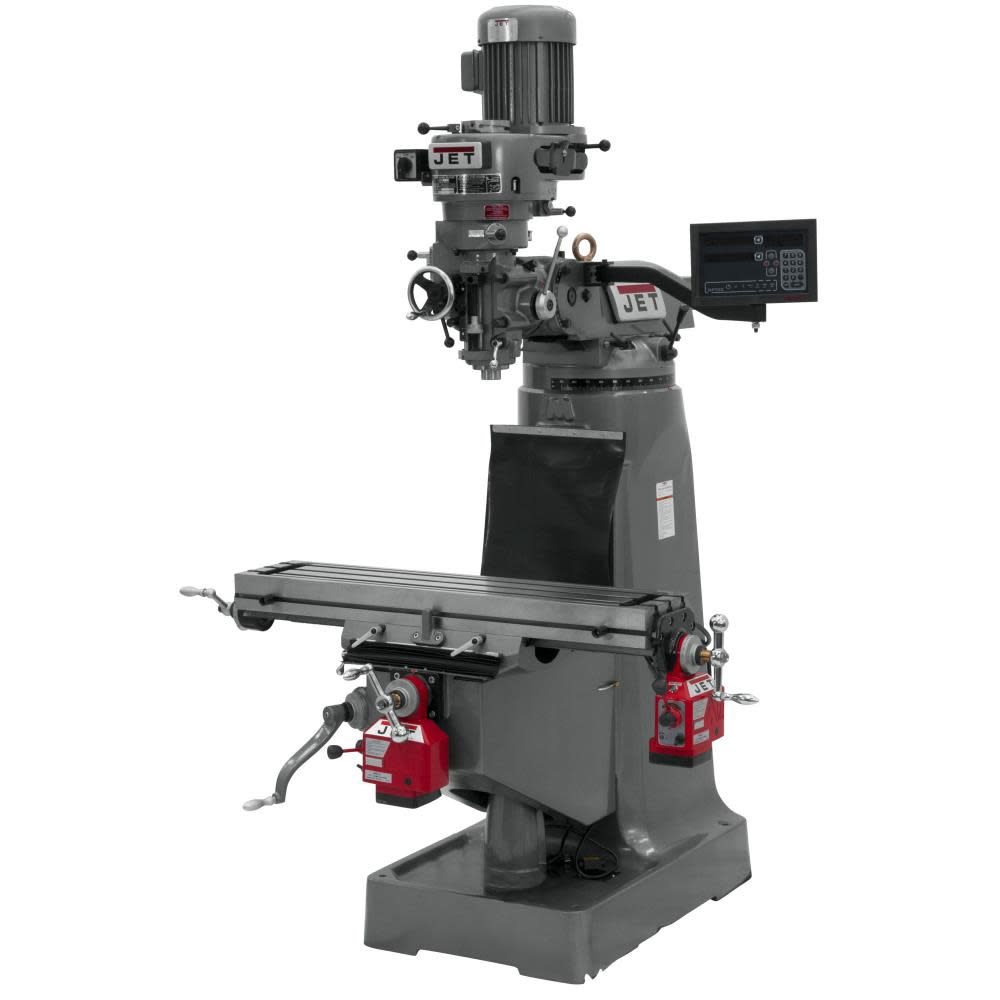

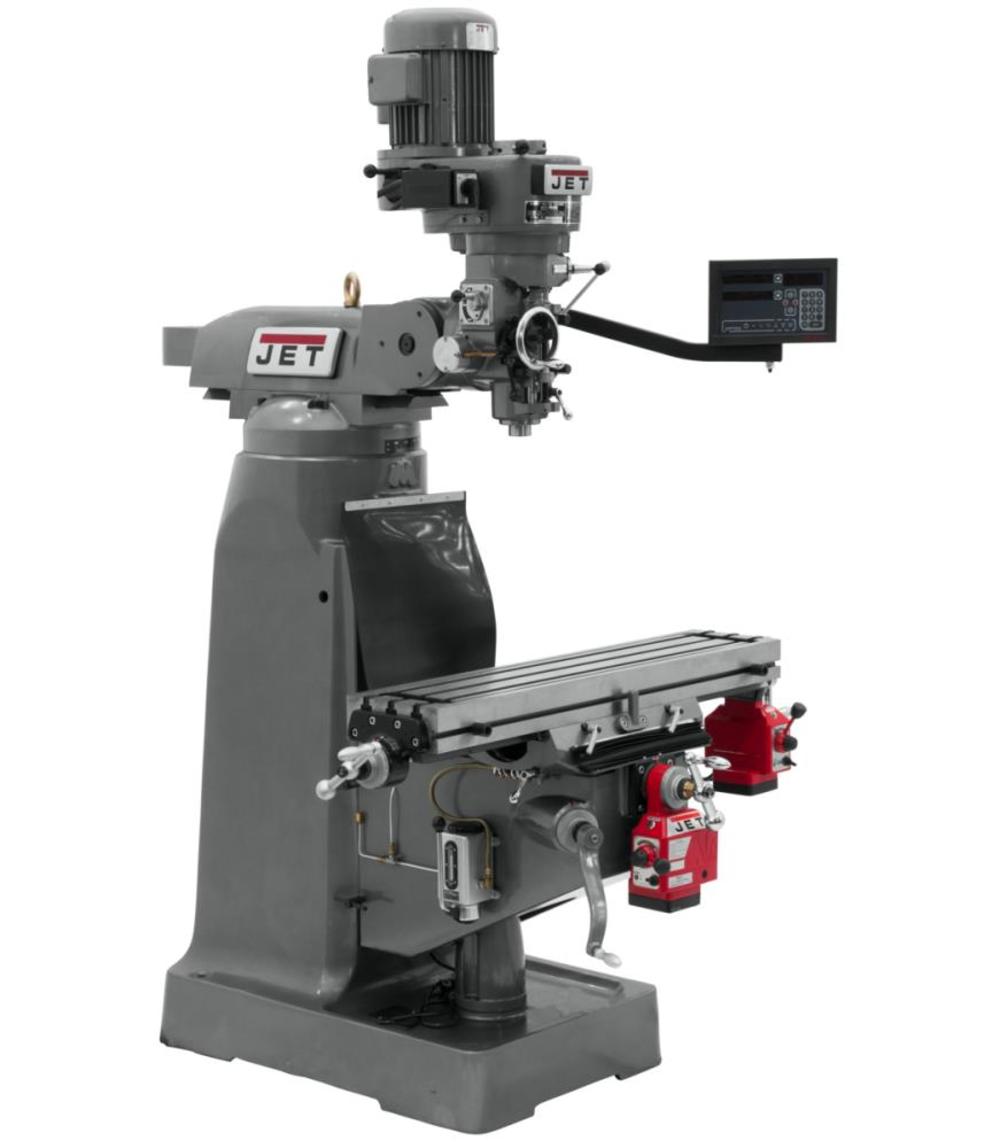

Vertical Milling Machine JTM-1 9X42 MILL W/DP700M DRO & X-Y
Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you’ve come to expect, all backed by the industry-leading JET Two Year Warranty
Features
Certified Meehanite® Castings
Chrome lead screws on X and Y axis
Large diameter quill is chromed
High precision Class 7 spindle bearings
Spindle head is internally cooled
Satin chrome finished dials
Heavy duty splined motor drive
One piece quill pinion and shaft
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
691189
Assembled Weight (lbs)
2200
California Proposition 65 Warning Required
Yes
Chuck Capacity
.5
Chuck Style
Keyless
Color / Finish
See Image
Column Turret Diameter (in)
0
Country of Origin
Taiwan
CSA Certified
No
Digital Display
Yes
ETL Listed
No
Head Tilt (Front Or Back)
45
Head Tilt (Left Or Right)
90
Height (in)
82.0
Includes Hold Down Foot
No
Internal Supplier Part #
691189
Internet Product Code (IPC)
4000125DD0B
Knee Bearing Length (in)
0
Knee Width (in)
0
Length (in)
82.0
Manufacturer Warranty
2 Year
Material
Cast Iron
Motor RPM
1720
Motor Size
#N/A
Number of T-Slots
3
Package Weight
2200.0
Package Weight (lbs)
2200
Quill Diameter
3.375
Quill Feed
0
Quill Travel
0
Ram Swivel
0
Ram Travel
13.375
Ram/Turret Bearing Length (in)
0
Saddle Length (in)
0
Spindle Nose To Table
0
Spindle Taper
R-8
Spindle To Column
4.5
Stand Included
Yes
Switch Type
Push Button
T-Slot Center Distance
2.5
T-Slot Width (in)
0.625
Table Bearing Length
0
Table Load Capacity
550
Table Material
Cast Iron
Table Tilt Range (Deg)
0
UL Listed
No
Unit of Measurement
Inch
Variable Speed
Yes
Voltage
230 Volts
Weight (lbs)
2200.0
Width (in)
64.0
Work Light
No
X Axis, Longitudinal (in)
0.0
Y Axis, Cross (in)
0.0
Z Axis, Knee (in)
0
