Description

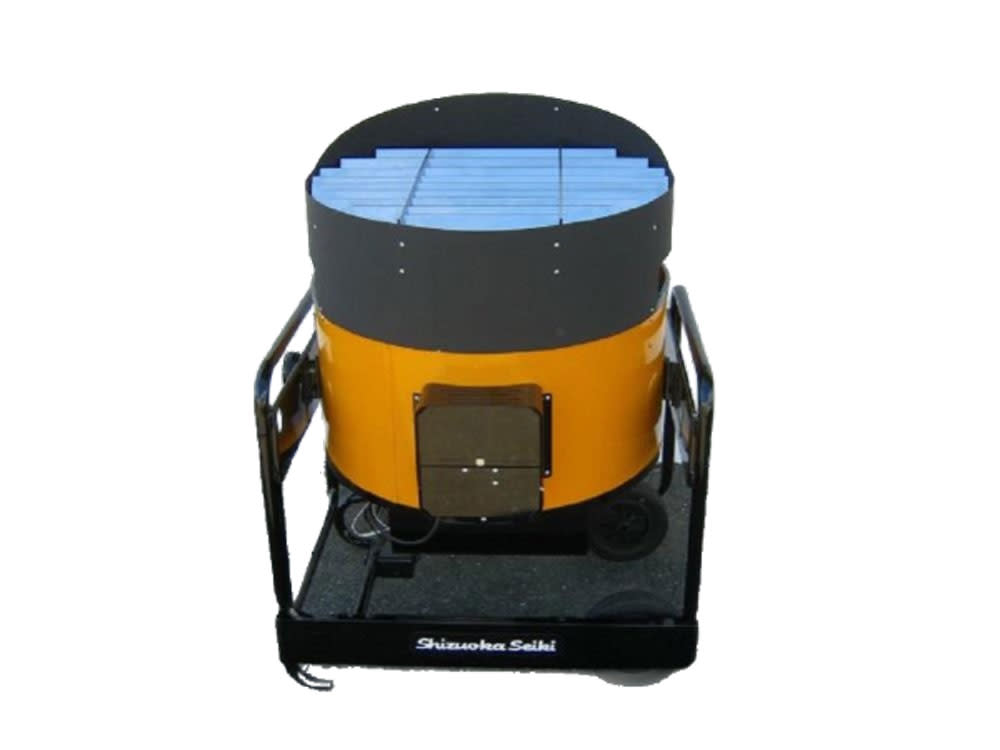

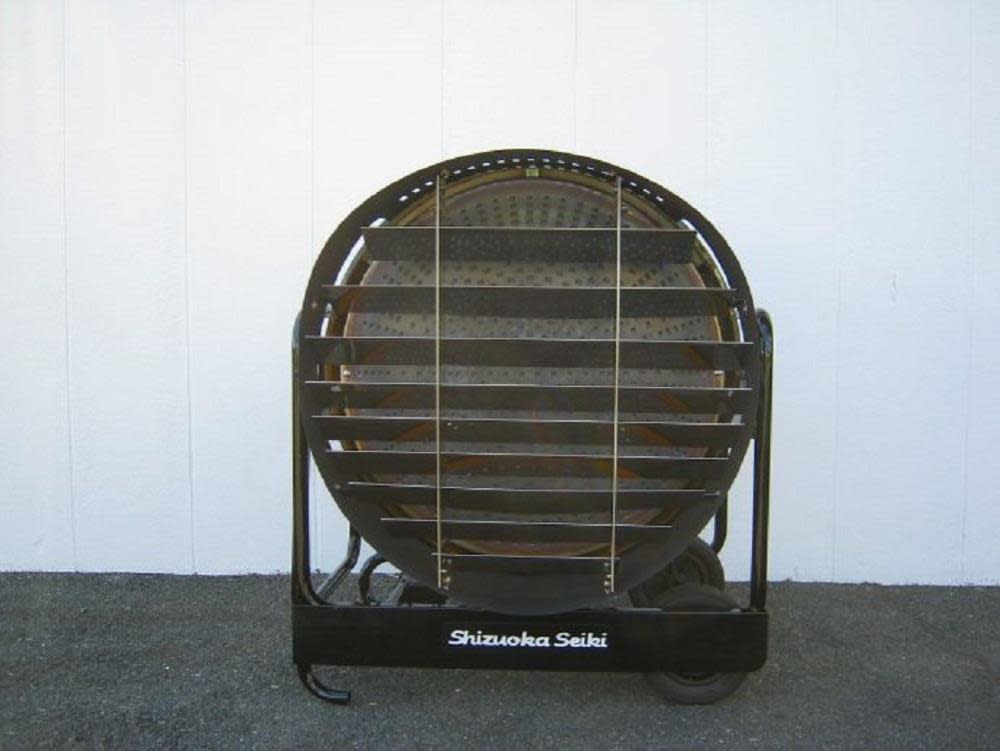

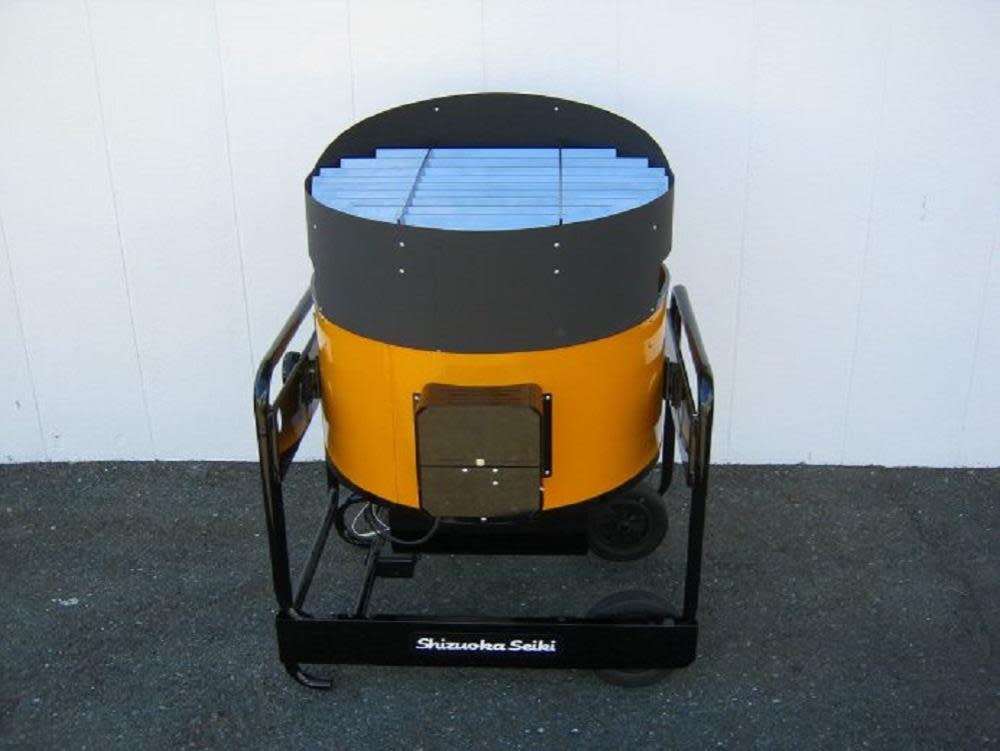

VAL6 GP5 Infrared Radiant 144k BTU Propane Heater
The GN5/GP5 (natural gas/propane) is the newest model produced for the Val6 series. It incorporates a gas burner into our infrared heater technology as it utilizes a premixed combustion burner that creates a blue flame due to premixing the fuel gas and air in advance. This means virtually silent operation and clean combustion.
Features
Clean combustion – the efficiency of our premixed gas combustion system means the gas VAL6 produces less than 1 ppm of carbon monoxide – 10-20 times less than typical torpedo-style heaters.
Quiet operation – the premixed gas combustion allows VAL6 GN5 and GP5 to minimize operation noise, coming in at about 60 dB as compared with a typical forced air heater, at 75 dB, or more
Adjustable angle – the vertical angle of the radiation disk is adjustable up to 90 degrees
Tip over detection
Specifications
Accessories Included
No
Acme Tools Brand Name
VAL 6
Acme Tools Part Number
GP5
Adjustable Thermostat
No
Assembled Weight (lbs)
108
BTU Heat Rating
144000
California Proposition 65 Warning Required
Yes
Color
Yellow
Color / Finish
Yellow and Black
Country of Origin
Japan
Depth (in)
30.3
Efficiency (%)
0
Electricity Required
No
ETL Listed
No
Fuel Rate (lbs/h)
6.6
Heater Controls
Pushbutton
Heater Design
Flat Panel
Heater Type
Radiant
Height (in)
35.3
Ignition Source
Manual
Indoor / Outdoor
Indoor/Outdoor
Internal Supplier Part #
GP5
Internet Product Code (IPC)
23E24712EF2
Manufacturer Warranty
2 Year Limited Manufacturer Warranty. See Owner’s Manual for Details.
Material
Steel
Maximum Hours Of Operation
0
Package Contents
Propane heater, hose and owner’s manual
Package Weight
125
Package Weight (lbs)
125
Tip-Over Safety Switch
Yes
UL Listed
No
Wall Mount
No
Wheeled
Yes
Wheels
Yes
Width (in)
31.7
