Description
TS 500i 14In 72.2cc EFI CutQuick Saw TS 500i 14In 72.2cc EFI CutQuick Saw

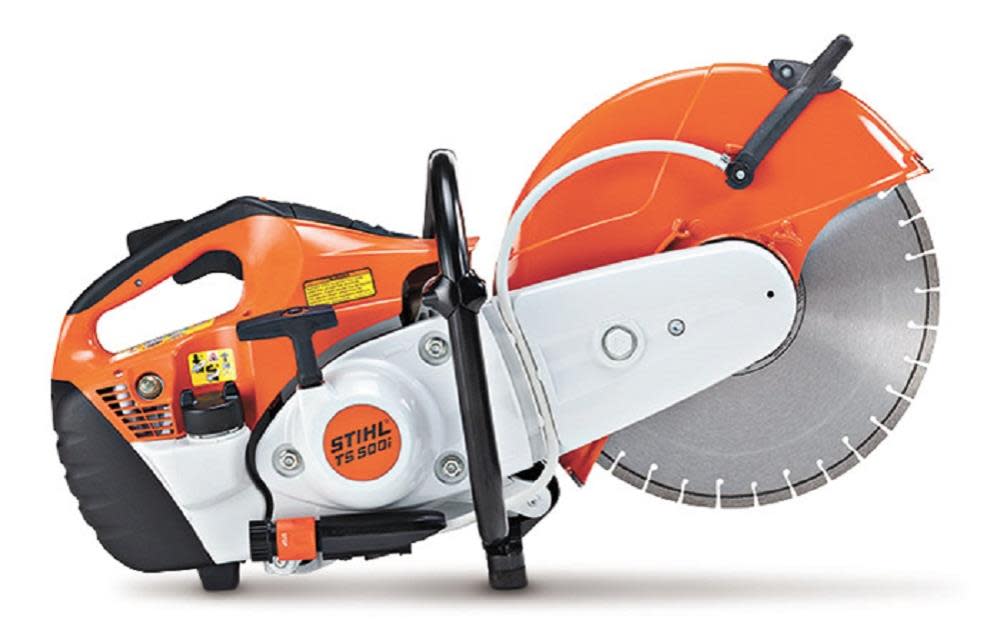

Abrasive cutting just got more cutting edge. STIHL introduces another industry first with the TS 500i STIHL Cutquik® Cut-off Machine the first handheld outdoor power tool to offer an electronically controlled fuel-injection system. This system increases power and performance over 15% while remaining lightweight and well-balanced. The fuel injection system makes starting easier and more reliable by eliminating the choke. Just set the switch to on, prime and pull. Note: abrasive wheel included. Diamond wheel (shown) sold separately.
Features
The decompression valve reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope.
Electronic water control allows the operator to easily adjust the flow of water while cutting and stops the water flow when the machine is at idle.
The X2 air filtration system revolutionizes the Cut-off Machine industry by allowing air filters to last up to a year, based on cutting conditions
With consistent, semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings.
The fuel injection system makes starting easier and more reliable by eliminating the choke- just set the switch to on, prime and pull.
The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.

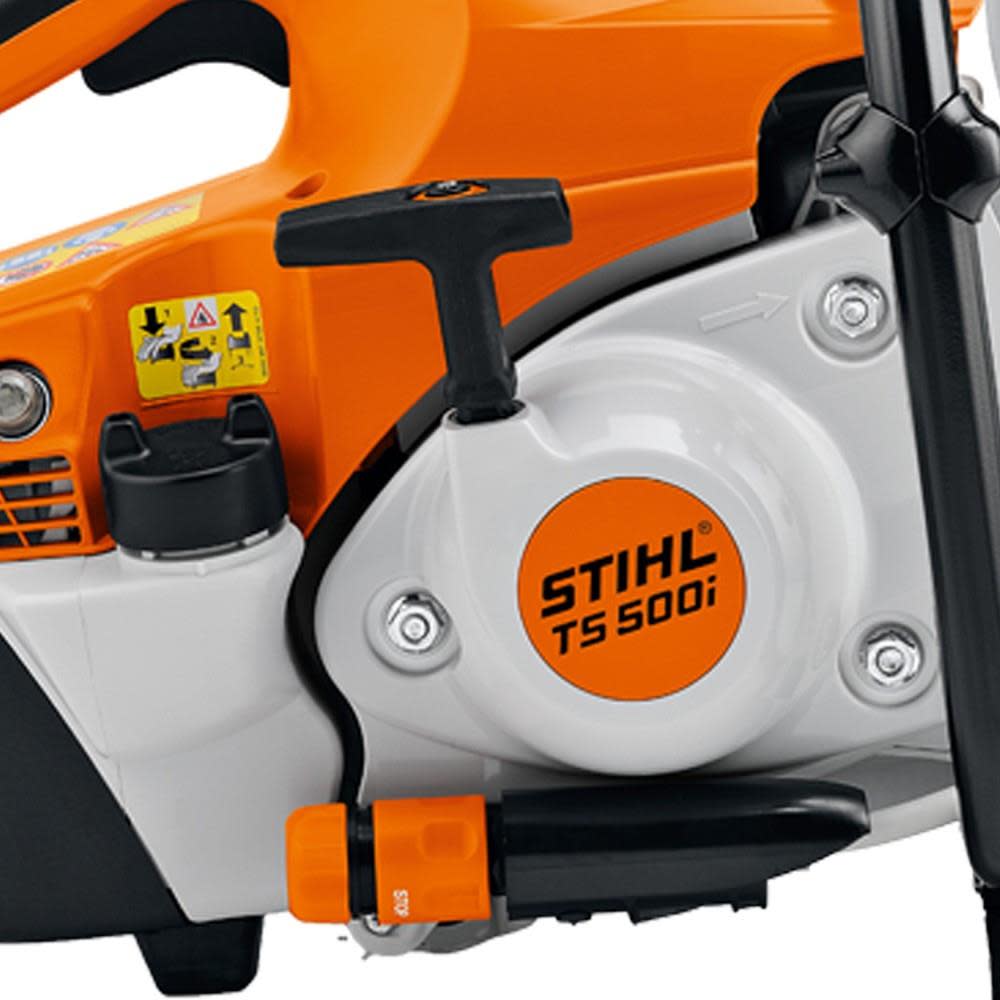

The Elastostart™ starter GRIP noticeably reduces the sudden peak forces (compression) normally felt during cranking.
Specifications
Acme Tools Brand Name
STIHL
Acme Tools Part Number
4250 011 2811 US
Arbor Size (in)
0.867
Assembled Weight (lbs)
22.5
California Proposition 65 Warning Required
Yes
Capacity
Fuel: 24.5 Oz
Case Included
No
Color / Finish
white, orange, black
Country of Origin
Austria
Engine Displacement (cc)
72.2
ETL Listed
No
Fuel Capacity (fl oz)
24.5
Horsepower (hp)
5.2
Housing Material
high-tech polymer
Internal Supplier Part #
TS500i
Internet Product Code (IPC)
3366BE8DD0E
Manufacturer Warranty
3 Month Professional Use Warranty against Manufacturing Defects.
Maximum RPM
9000
Net Tool Weight (lbs)
22.5
Package Contents
Cut-off machine, abrasive wheel, owners manual included. Diamond wheel sold separately.
Package Weight
25
Package Weight (lbs)
25
Power Source
Gasoline
Size
0.867 in
Spindle Lock
Yes
UL Listed
Yes
