Description
Tempest General Ventilation Fan Single Speed Electric Powered
Due to the applications in which they are needed, Tempest fans feature some of highest CFM (Cubic Feet Per Minute) measurements possible in a mid-size mobile unit; the PAL-30 is no exception. The blades are designed specifically for the 1HP motor the fan uses to allow for the greatest performance possible.
Features
Heavy Duty Roll Cage Frame: The Tempest PAL-30 features the most robust, solid welded frame of any mid size mobile fan around. Industrial equipment is exposed to bumps, scrapes and slams on a regular basis, that’s why we’ve taken the time to design and manufacture the strongest frame possible. Every frame joint is welded rather than bolted for increased strength. This fan is built to take anything thrown at it from every direction
High Cfm Output: Due to the applications in which they are needed, Tempest fans feature some of highest Cfm (Cubic Feet Per Minute) measurements possible in a mid-size mobile unit; the PAL-30 is no exception. The blades are designed specifically for the 1 HP motor the fan uses to allow for the greatest performance possible

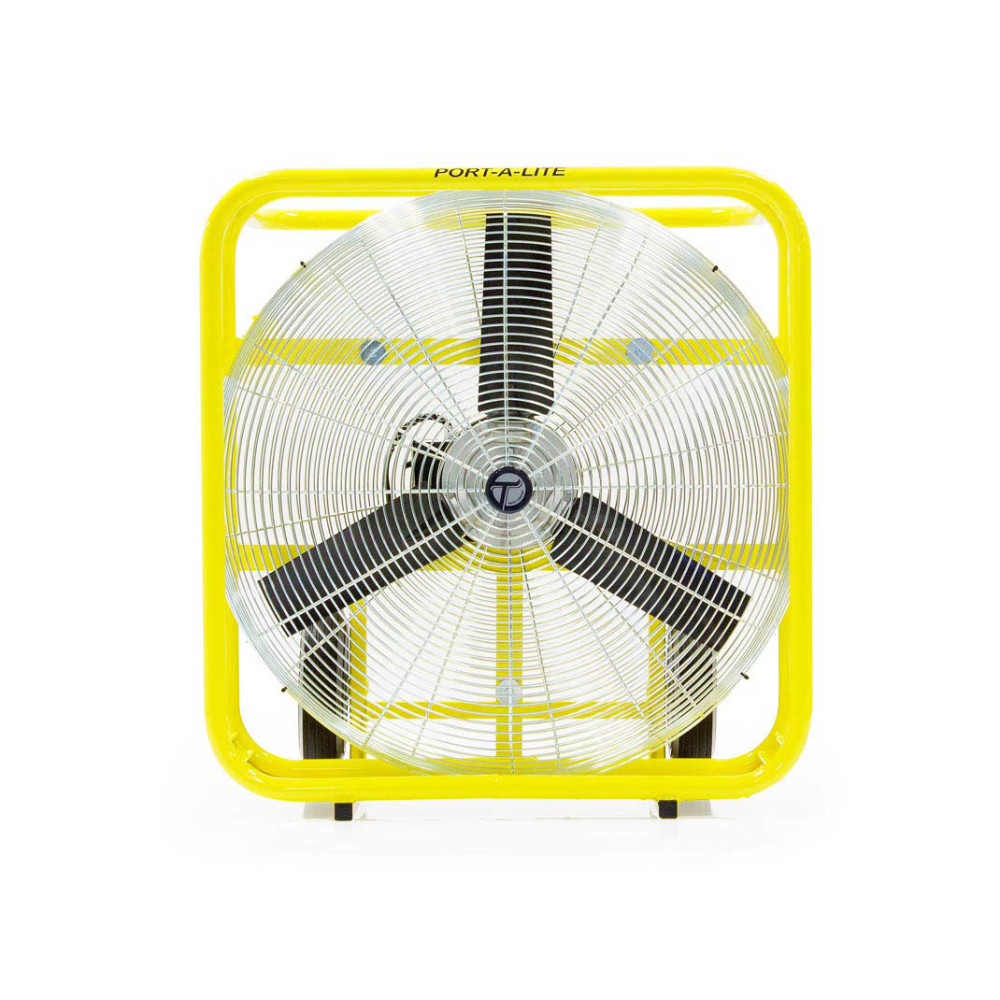

Three (3) Blade 30 In. Propeller: The PAL-30 is one of the few Tempest fans to feature a propeller blade design as opposed to the more common impeller. This three blade propeller, paired with the open zinc-plated clear chromate finish grille guard delivers high Cfm in a broad air pattern. This defining characteristic makes it perfect for general warehouse/industrial cooling and ventilation
Open Grille Guard: The PAL-30’s propeller blades require an open grille to operate as designed. This durable zinc-plated wire guard with numerous welded tie points for increased strength offers the very best in protection for both the user and the fan. Small enough to keep foreign objects out of the direct path of the blades, yet large enough to provide maximum air movement, our open grille guard is exactly what’s needed for industry leading safety and performance in the same package

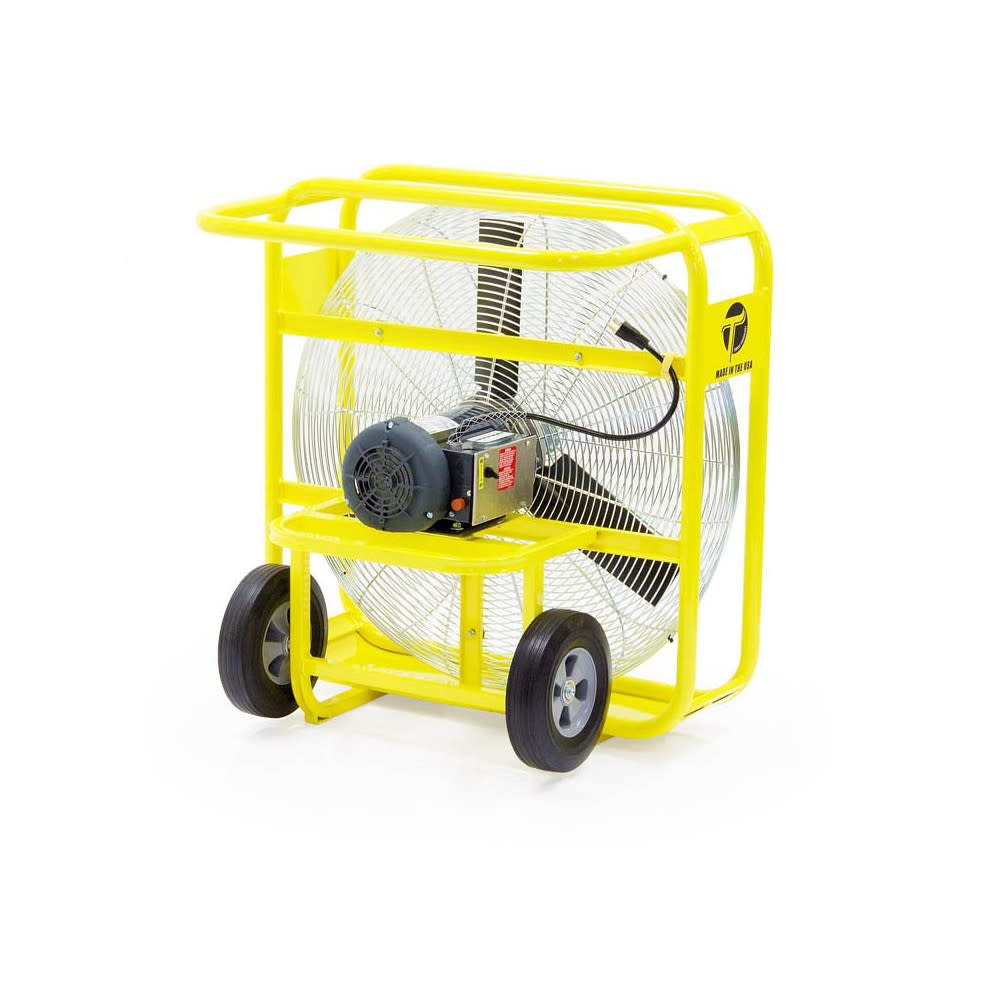

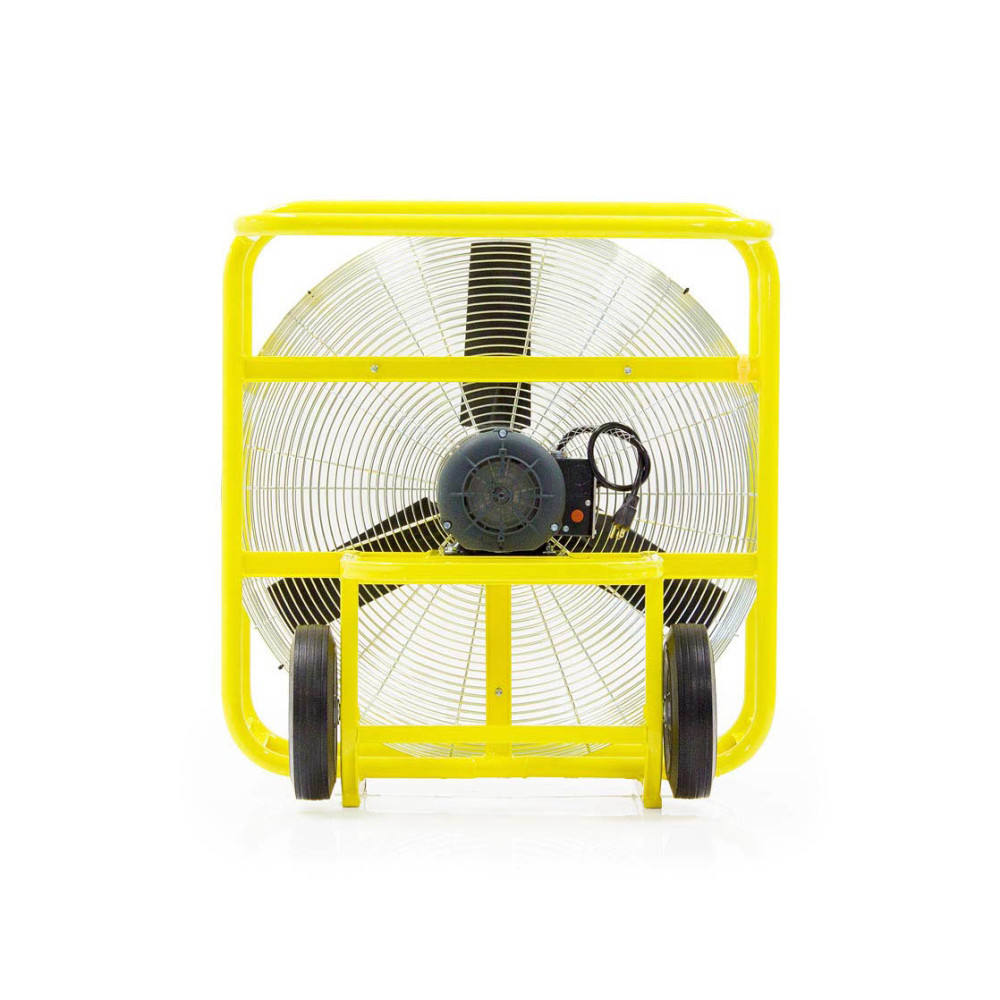

Single Speed Or Variable Speed Motor: The PAL-30 comes standard with a single speed electric TEFC motor with an output of 1.5HP or the option of being equipped with a 2HP variable speed motor. This specific motors are both matched perfectly with the fan blade’s size and pitch to produce the most effective air movement possible
Large 10 In. Rubber Wheels: These specific wheels will never go flat and are large enough to roll over almost anything you’ll run into: Rocks, mud, pipe, glass; you name it. Where ever you need this fan, you’ll be able to get it there quickly and safely
UL & CE Compliant Safety Grille: Every Tempest fan grille is manufactured to meet UL & CE safety requirements. These specific standards and measurements ensure that foreign objects won’t make their way into contact with the fan’s blades
Specifications
Acme Tools Brand Name
TEMPEST
Acme Tools Part Number
PAL30
Assembled Weight (lbs)
133
Blade Size (in)
30
Brand / Model Compatibility
GFCI Compatible
Color
Yellow
Color/Finish
Yellow
Cordless / Corded
Corded
Country of Origin
United States
Fan Size (in)
30
Material
Powder-Coated Steel Frame
Overall Depth (in)
22
Package Contents
General Ventilation Fan
Package Depth
22
Package Height
35.50
Package Weight
1
Power Source
Electric
Speeds
1
Voltage
120/230
