Description

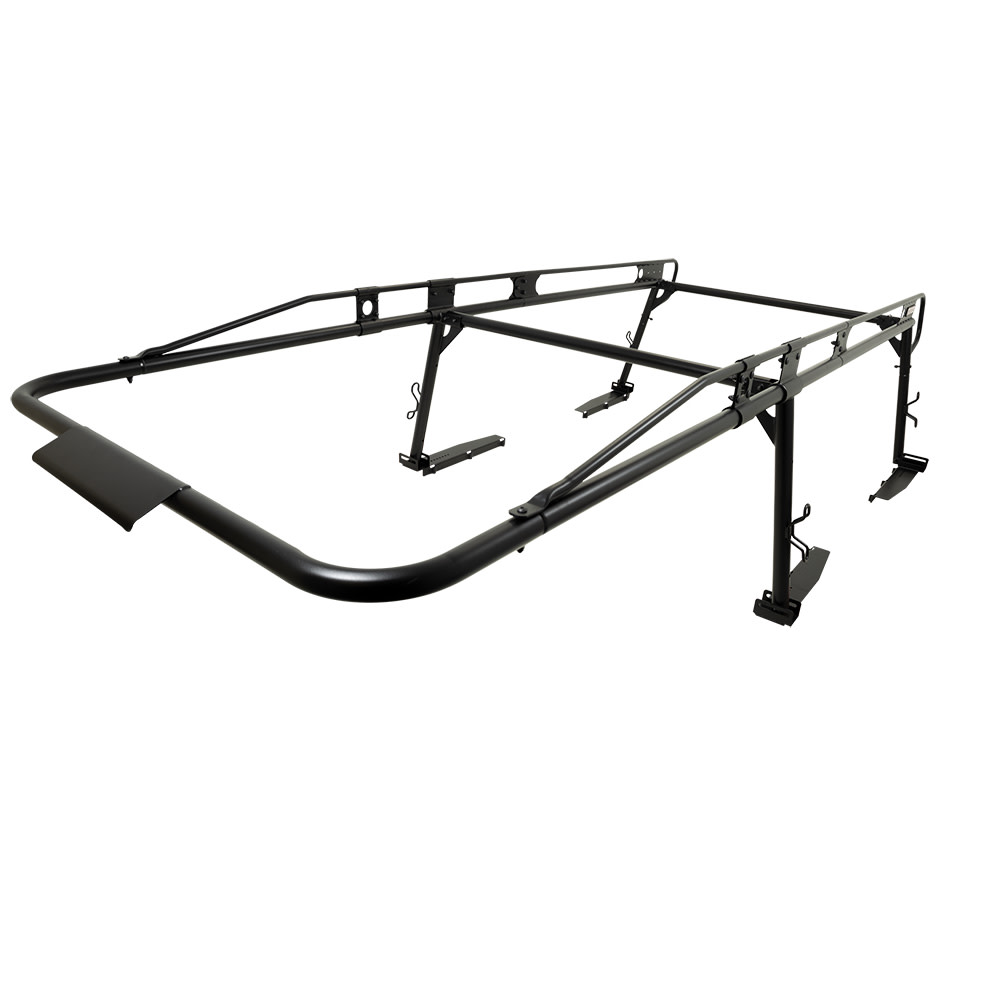

Steel Truck Rack for Full Size Truck Beds, 1700lb

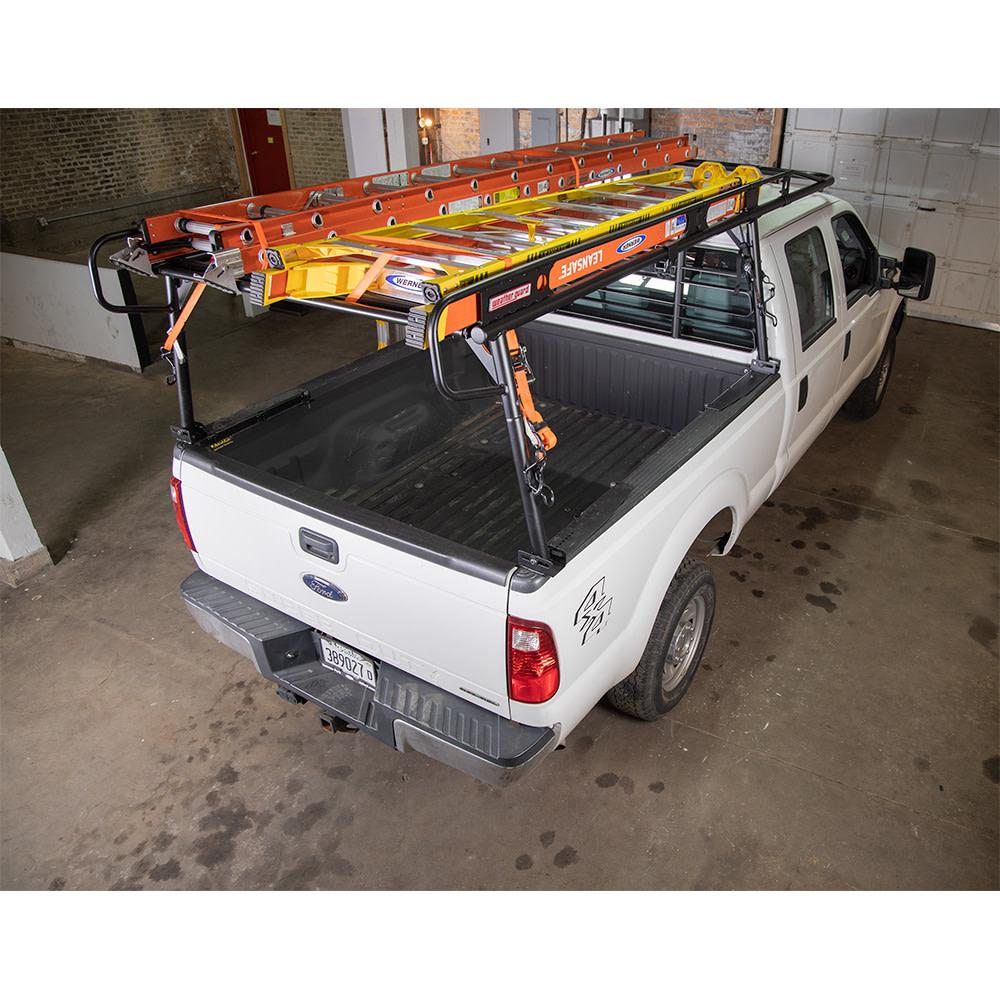

The Model 1175-52-02 Steel Truck Rack for full-size truck beds securely installs to the bed rail with no drilling required. The 1700lb rated rack is ideal for carrying ladders or other work materials to the jobsite and back.
Features
The new Weather Guard steel truck rack offers universal fit for 250/2500 and larger series full size trucks
Load capacity of 1,700lb., evenly distributed

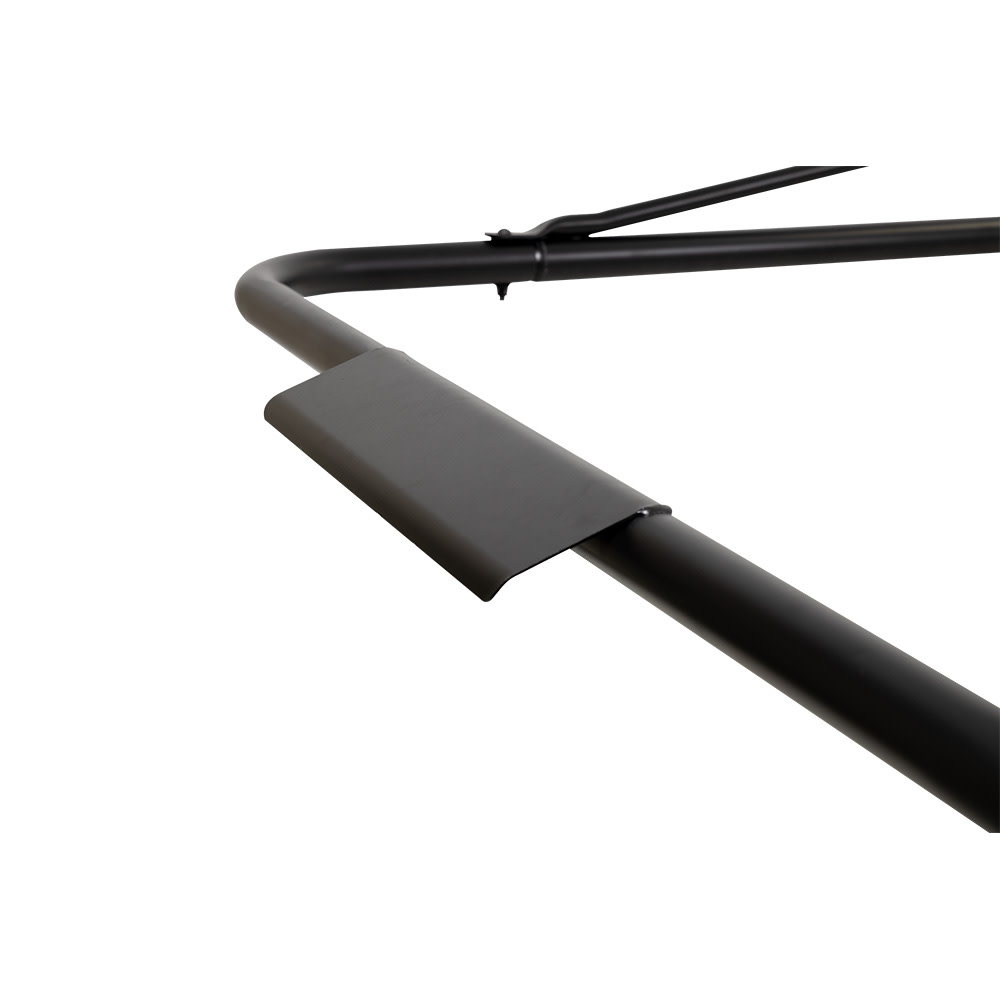

The rack includes a welded airfoil to help deflect wind

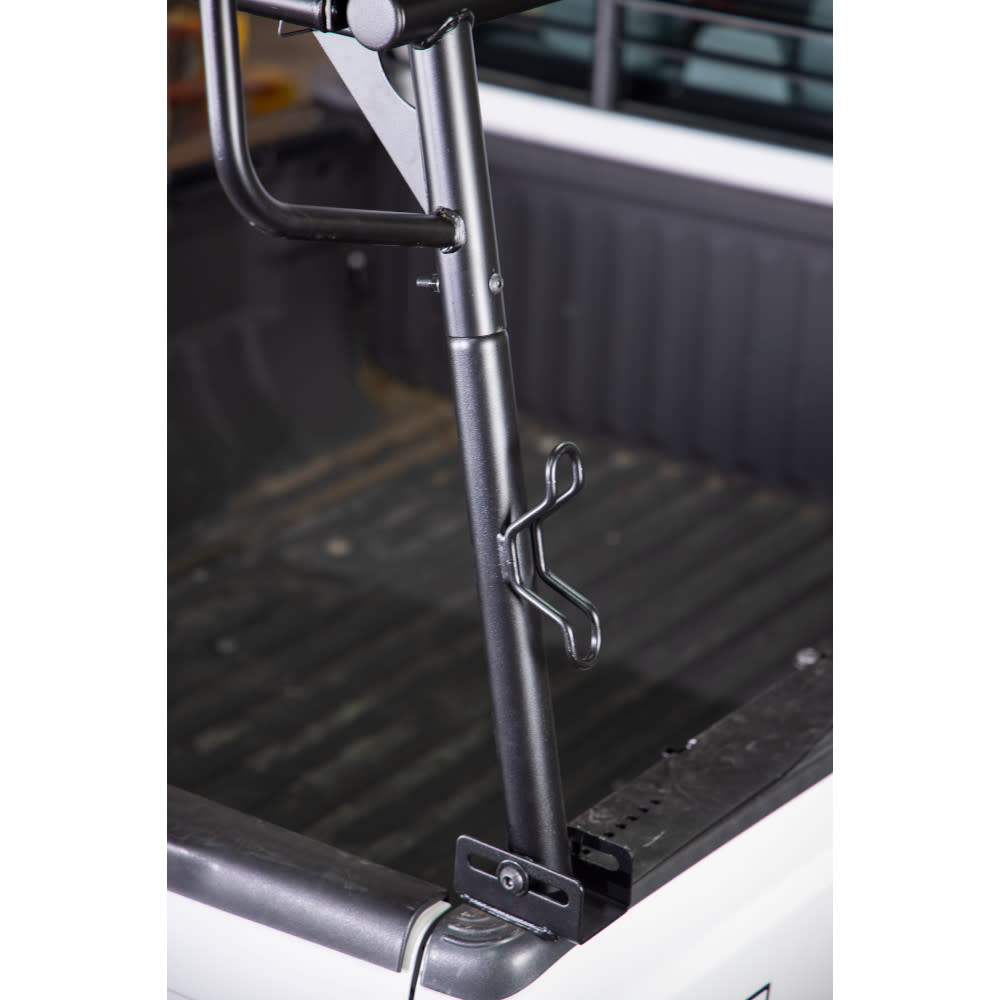

The steel truck rack front legs adjust to accommodate bed length
Each rack comes with a no-drill installation kit for 2016 and newer Chevy/GMC trucks which utilize the rear stake pockets for a no drill mount
The rack comes with a tie-down loop on each leg for securing materials to the rack
Included with each rack is protective tape to help prevent damage to ladders when in motion
The rear of the truck rack has handle bars that make it easier to get on and off the truck
Removable pins on rear cross member allows you to quickly take off the rear cross member for loading large materials
Specifications
Acme Tools Brand Name
WEATHER GUARD
Acme Tools Part Number
1175-52-02
Assembled Depth (in)
154.08
Assembled Height (in)
34.9
Assembled Weight (lbs)
217.5
Assembled Width (in)
76.51
Attachment Method
Mounted
Brand / Model Compatibility
Universal fit for 250/2500 and larger series full size trucks
California Proposition 65 Warning Required
Yes
Color
Black
Color/Finish
Black
Country of Origin
China
Estimated Installation Time (min)
60
Hardware Included
Yes
Height (in)
34.9
Installation Hardware Included
Yes
Load Weight Capacity (lbs)
1700
Material
Steel
Maximum Load (lbs)
1700
Mounting Method
Installs to the bed rail
Package Contents
Rack, no-drill installation kit, tie-down loops, protective tape
Package Depth
154.08
Package Height
34.9
Package Weight
6
Rust Resistant
Yes
Vehicle Category
Truck
