Description

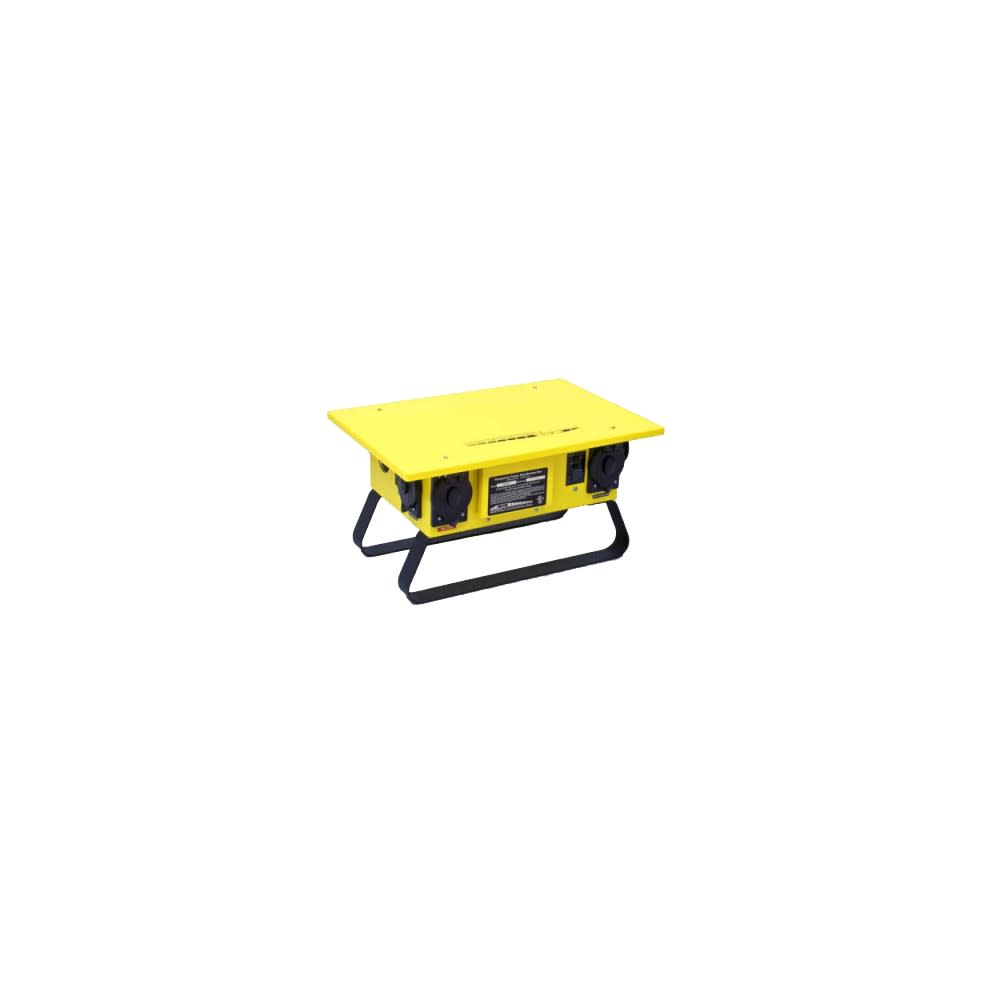

Southwire Temporary Power Box CEP 125V/250V 50A 1 Phase 6 Outlet GFCI
CEP’s Portable power distribution centers (temp power boxes) have been engineered utilizing the latest in GFCI technology, providing the user with the highest level of electrical safety. These power distribution centers are protected by a GFCI module giving the user not only ground fault protection, but also open neutral and reverse phasing protection. They are listed to UL1640 standards for portable power distribution and designed to stand up to the toughest of jobsite conditions. Each unit has been carefully assembled to provide the ultimate in electrical safety as well as meeting current OSHA standards.
Features
16 Ga Steel or stainless steel construction
Heavy-duty impact/flame resistant
GFCI Protection – open neutral, reverse phasing & 240V shut-off with indicator light
Rugged, wrap-around frame option adds extra durability
GFCI meets UL 943 requirements with 4-6mA trip level, <25 milliseconds trip time
50A 125/250V 3 Pole 4 wire

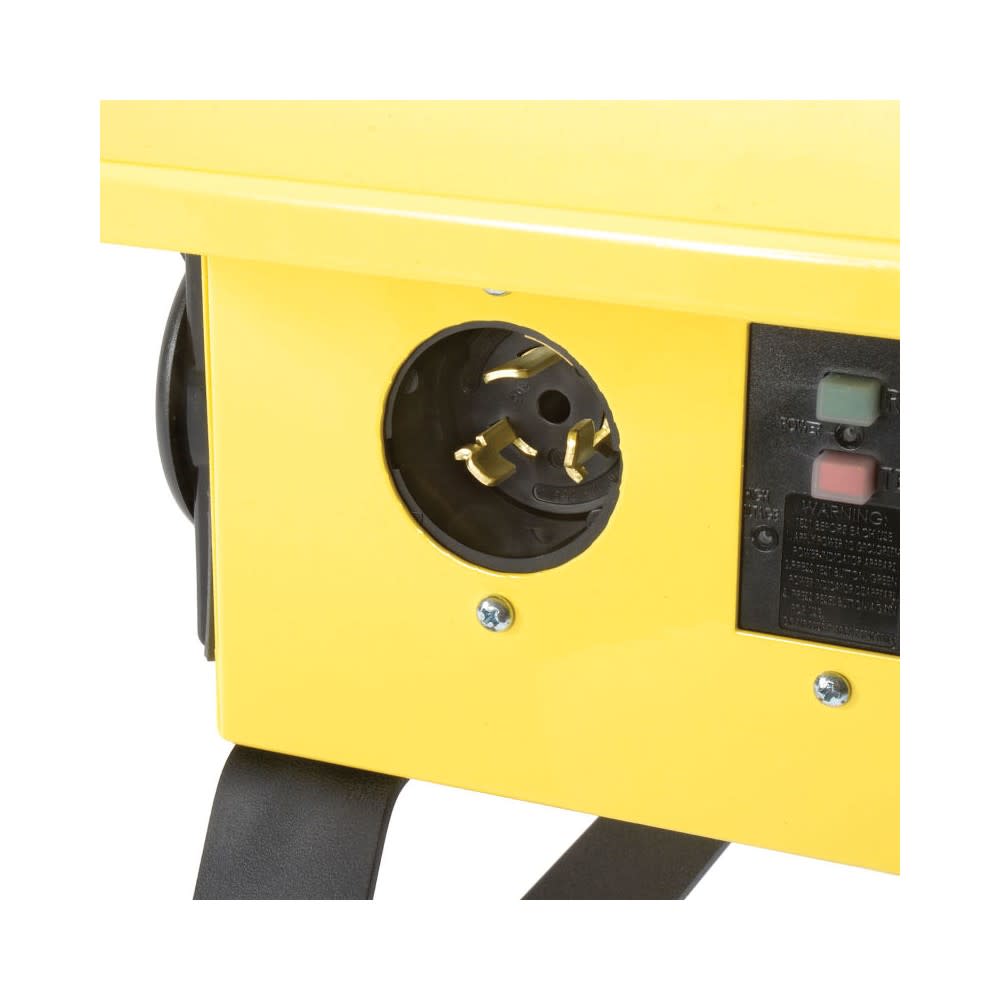

Power inlet CS6375, power outlet CS6369
Specifications
Acme Tools Brand Name
SOUTHWIRE
Acme Tools Part Number
6506GU
Assembled Weight (lbs)
29
Color/Finish
Yellow
Country of Origin
United States
Material
16 Ga Steel/Stainless Steel
Maximum Amperage (A)
50
Package Contents
6-Outlet Power Box
Package Depth
14.5
Package Height
11
Package Weight
29
