Sonance Sonamp 12-50 Digital Amplifier

Sonance Sonamp 12-50 Digital Amplifier – 93092

Sonance, the inventor of the distributed audio amplifier category, introduces the next generation of cutting edge amplifier technology. Once again pushing the envelope with class-leading performance, rock-solid stability, and ease of installation, the Sonamp Digital Amplifier line appeals to the most discerning ear. With enough flexiblity to meet the demands of custom installations of all types & the perfect compliment to the rest of the Sonance speaker line. The Sonamp Digital Amplifiers build on the legacy of innovation, performance and reliability that Sonance amplifiers are known for.

Features:

• Powerful, audiophile grade Class-D power supply. Rated at 8 ohms, 4 ohms & stable into 2 ohms
• Compact form factor allows for space savings in the equipment rack with ample power to the speakers
• Convection cooled, fanless design allows for direct stacking with no air gap for even greater power density
• Bridgeable channels for applications when even more power is required
• Class-D design is 93% efficient for maximum power output with minimal power usage

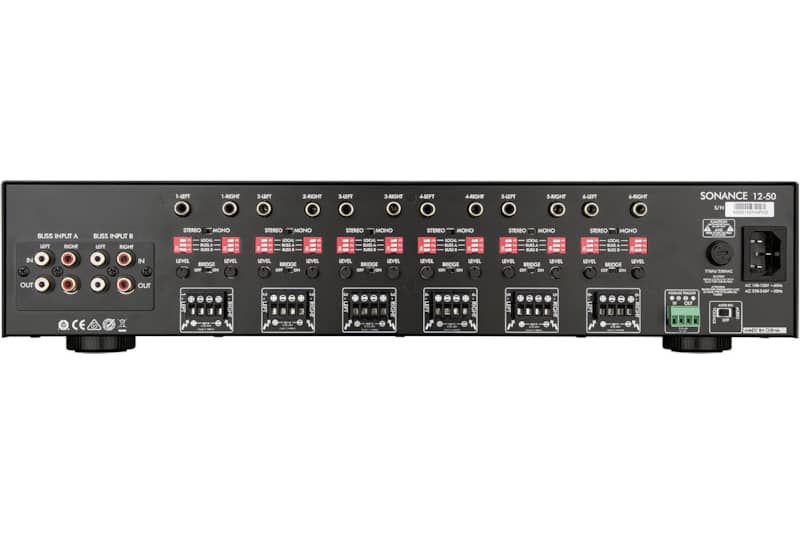

• Full array of input/output connectivity for maximum installation flexibility: line inputs, loop outputs, audio & voltage triggers, (2) Buss input/output, independent volume control per channel
• Terminal blocks will accept up to 12AWG speaker cable for longer runs & higher performance
• Certified to worldwide safety standards (TUV, RCM, CE). Meets FCC standards
• Rack ears and removable feet included

Specifications:

• Number of Channels: 12 (6 stereo pairs)
• Power Output (RMS)

  • RMS per channel @ 8 ohms: 50 Watts (12 channels driven)
  • RMS per channel @ 4 ohms: 50 Watts (12 channels driven)
  • RMS per channel Bridged @ 8 ohms: 100 Watts
• Frequency Response: 5Hz – 50kHz, bandwidth limited
• Total Harmonic Distortion (THD)

  • (1kHz) @ 8 ohms: 0.05%
  • (1kHz) @ 4 ohms: 0.1%
• AC Voltage: 100-120V@60Hz, 220-240V@50Hz
• AC Fuse: 10A (T10AL ~ 250V)
• Rack Space Requirement: 2U

Approximate Dimensions:

• With Feet (W x H x D): 17-1/4″ x 3-7/8″ x 16-13/16″
• With Rack Ears (W x H x D): 19″ x 3-1/2″ x 16-13/16″

Approximate Weight:

• Shipping: 20 lbs

Warranty Information:

• Manufacturer Warranty (authorized online retailer): 2 Year Limited Warranty
