Description
Smart Pull

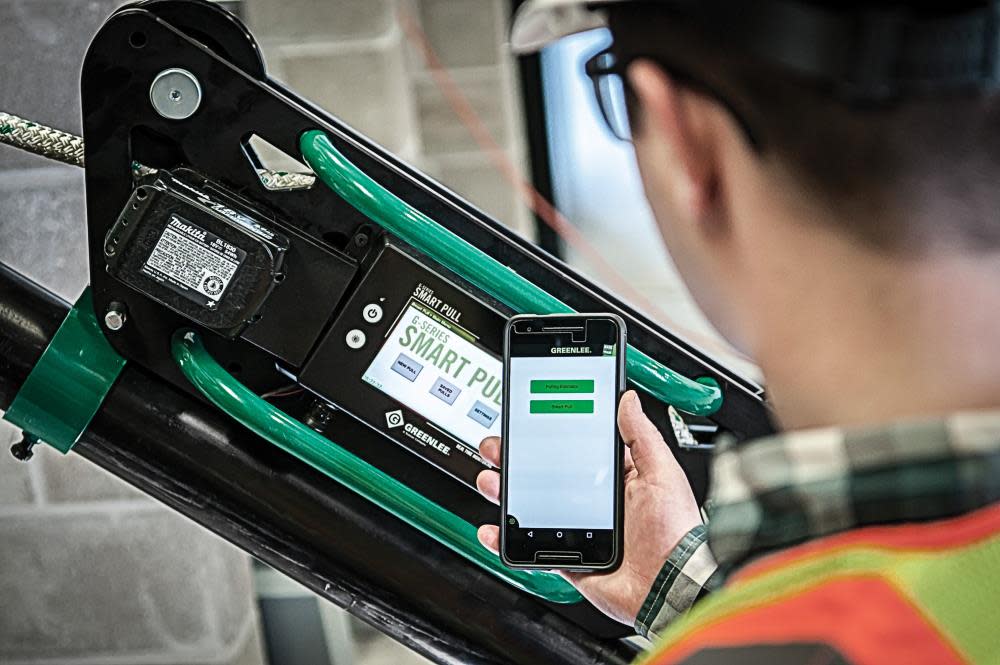

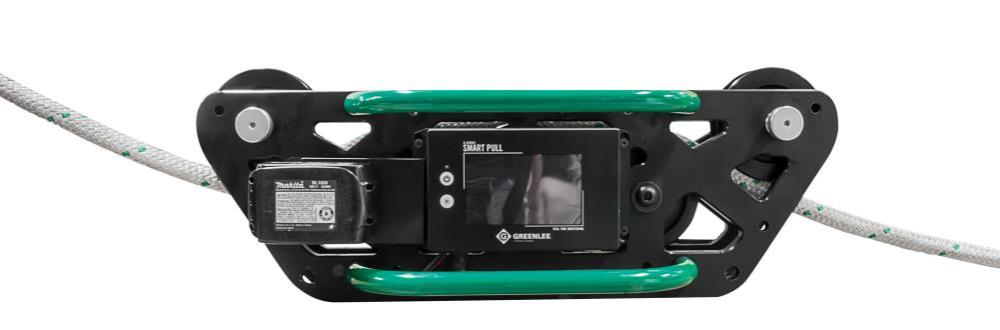

The G-Series Smart Pull offers faster, safer and easier pulls, measuring pulling force, distance and speed.
Features
Faster: instant early warning alerts allows contractor to take timely action, avoiding rework.
Safer: reduce liability by recording information with accuracy ensuring a healthy pull and peace of mind for the contractor.
Easier: monitor force, speed and distance through the entire pull using wireless technology
Pulling force : up to 10,000 lbs. (44.48kN)
On board memory : 128MB
Pulling rope : up to 7/8 In. diameter double braided rope
Power supply : up to 5AH Makita battery
Voltage rating : 18 V
Specifications
Acme Tools Brand Name
GREENLEE
Acme Tools Part Number
FG01
Actuation Type
Non-motorized
Application
Used for measuring pulling force, distance and speed during cable pull
Assembled Weight (lbs)
34.2
California Proposition 65 Warning Required
Yes
Color / Finish
Black/Green
Country of Origin
United States
Internal Supplier Part #
52075695
Internet Product Code (IPC)
8056C0A2698
Length (in)
25.5
Manufacturer Warranty
Greenlee warrants their products will be free of defects in materials and workmanship.
Material
Steel
Package Quantity
4
Package Weight
52.2
Package Weight (lbs)
52.2
