Description

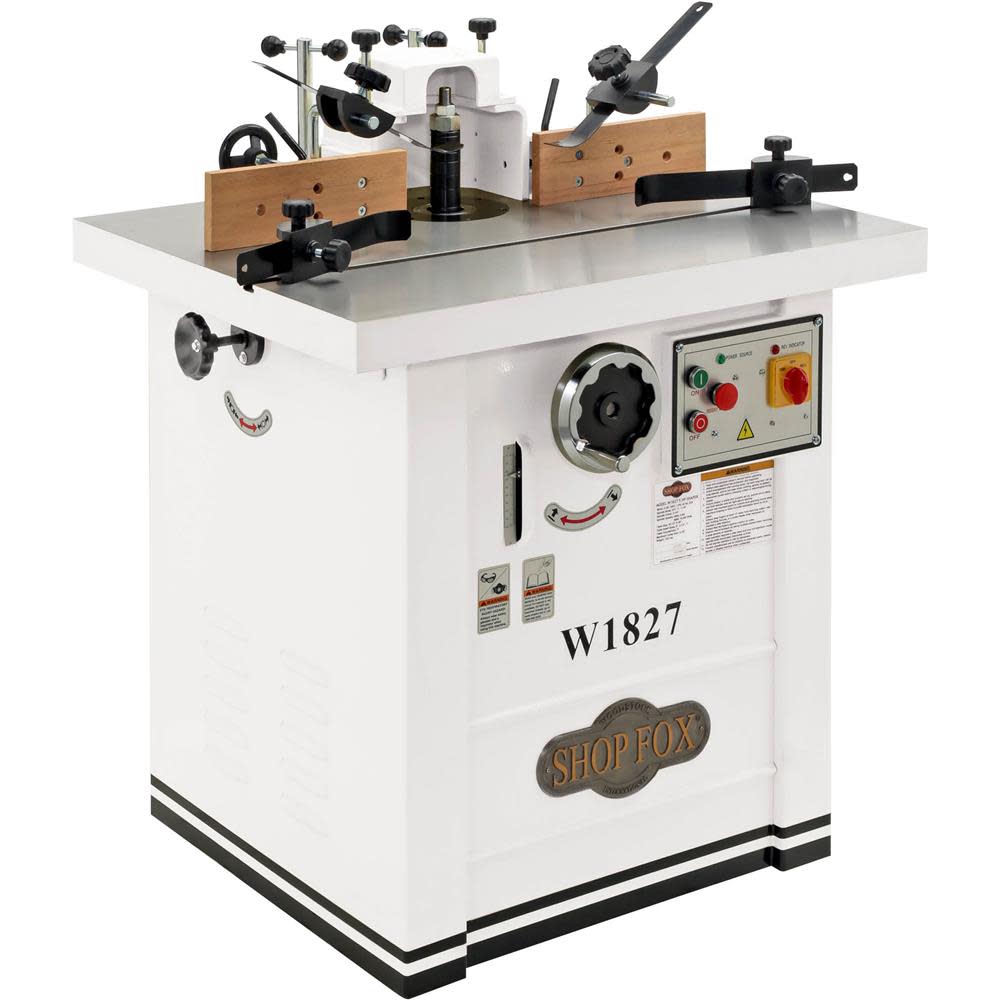

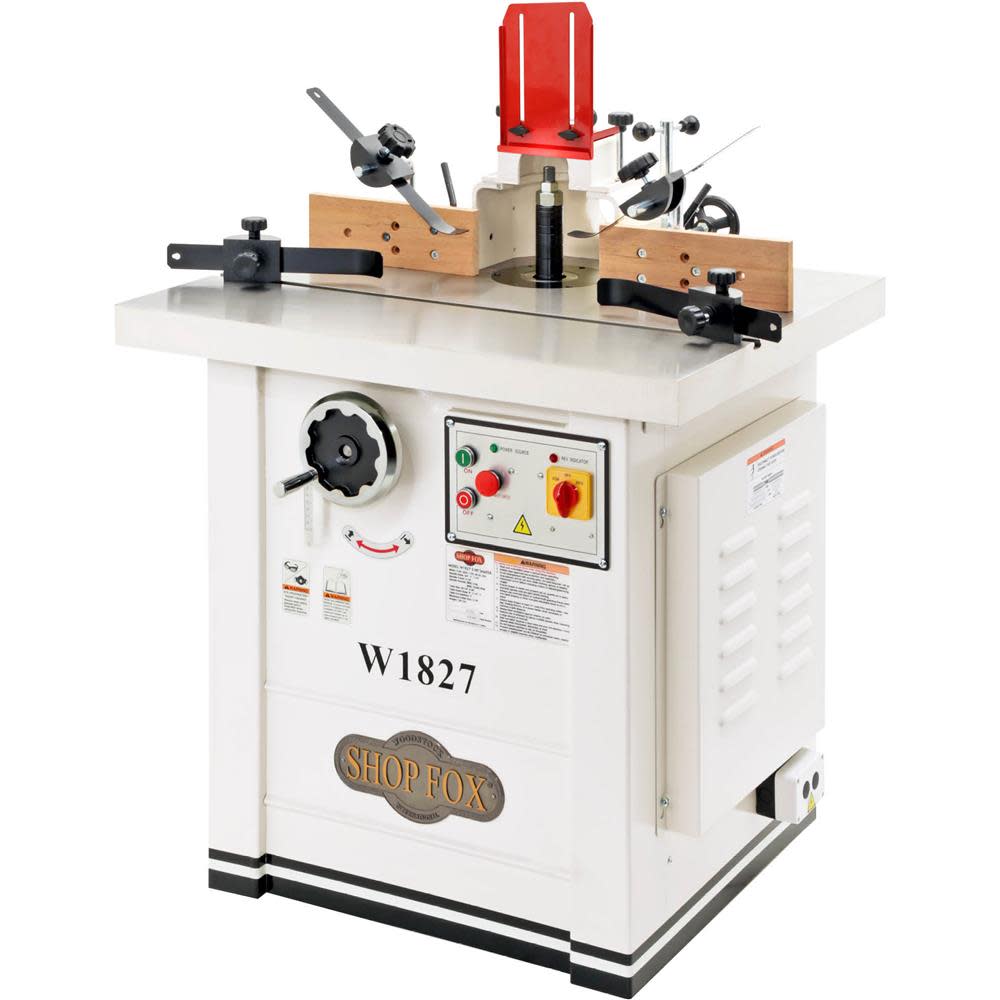

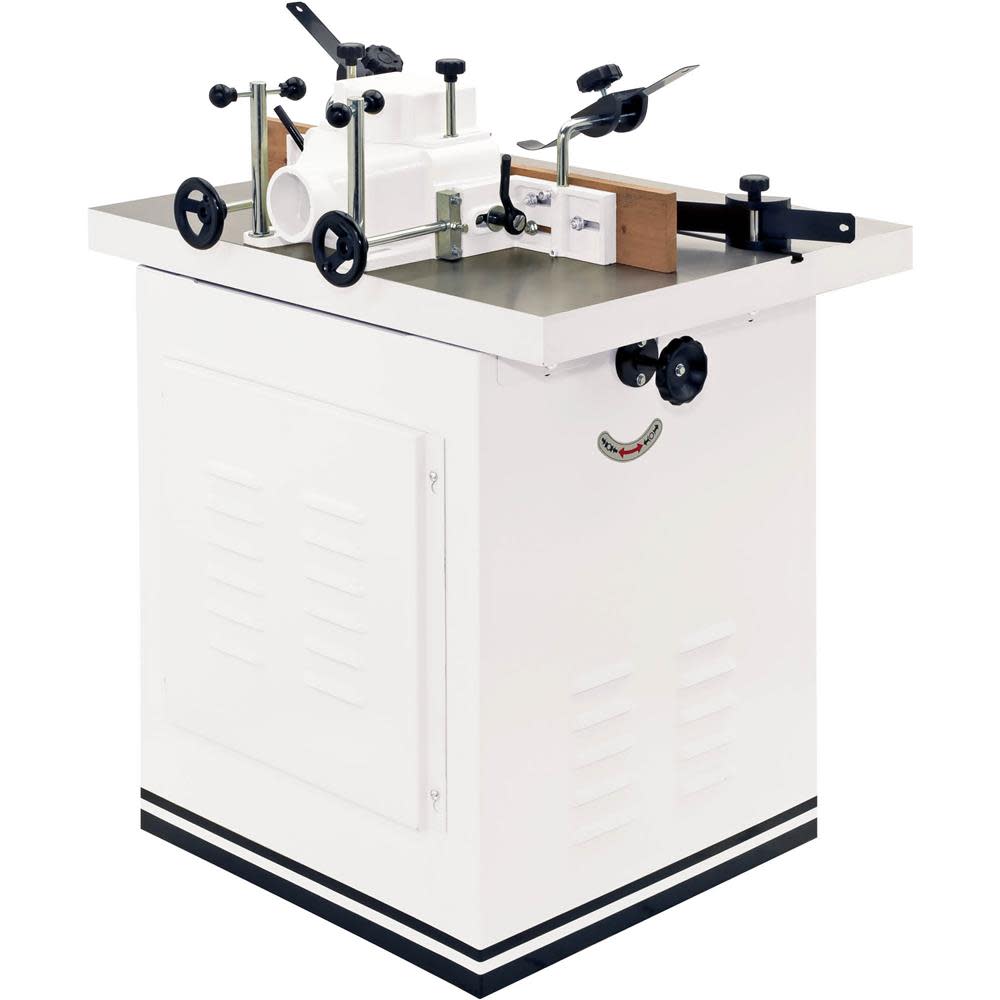

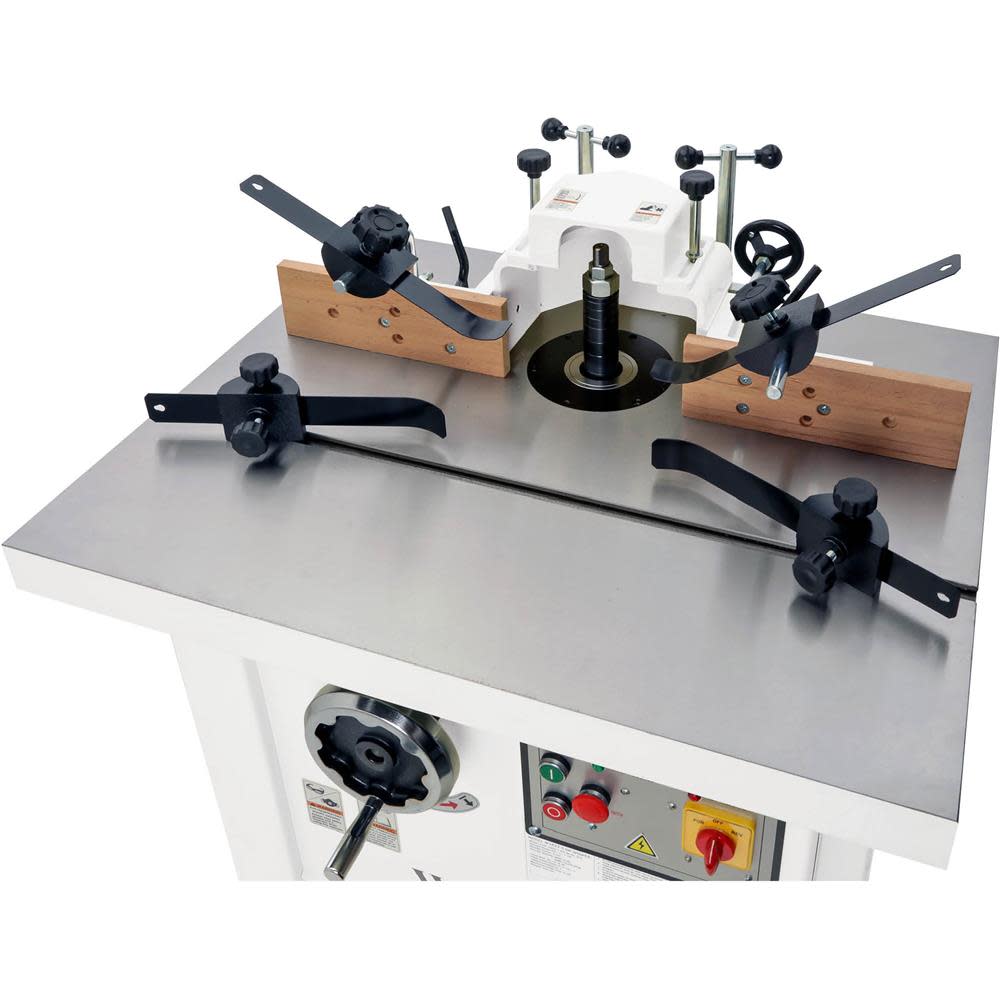

Shop Fox Spindle Shaper 220V 5HP 1 Phase
This 5HP Spindle shaper is sized to handle large raised-panel doors and extra-wide moulding profiles. With three included spindle sizes (3/4 In., 1 In., 1-1/4 In.) and four spindle speeds ranging from 3600 Rpm to 10000 Rpm, choosing the right shaper cutter for the job will never again be a problem. The long spindle lengths also allow total flexibility for running tall cutters or stacking multiple cutters and spacers. Its heavy cast-iron split adjustment fence lets you dial in just the right amount of offset for edge profiling, and the heavy cast-iron table and stable base are made for the toughest jobs. This Shaper is made for production!
Features

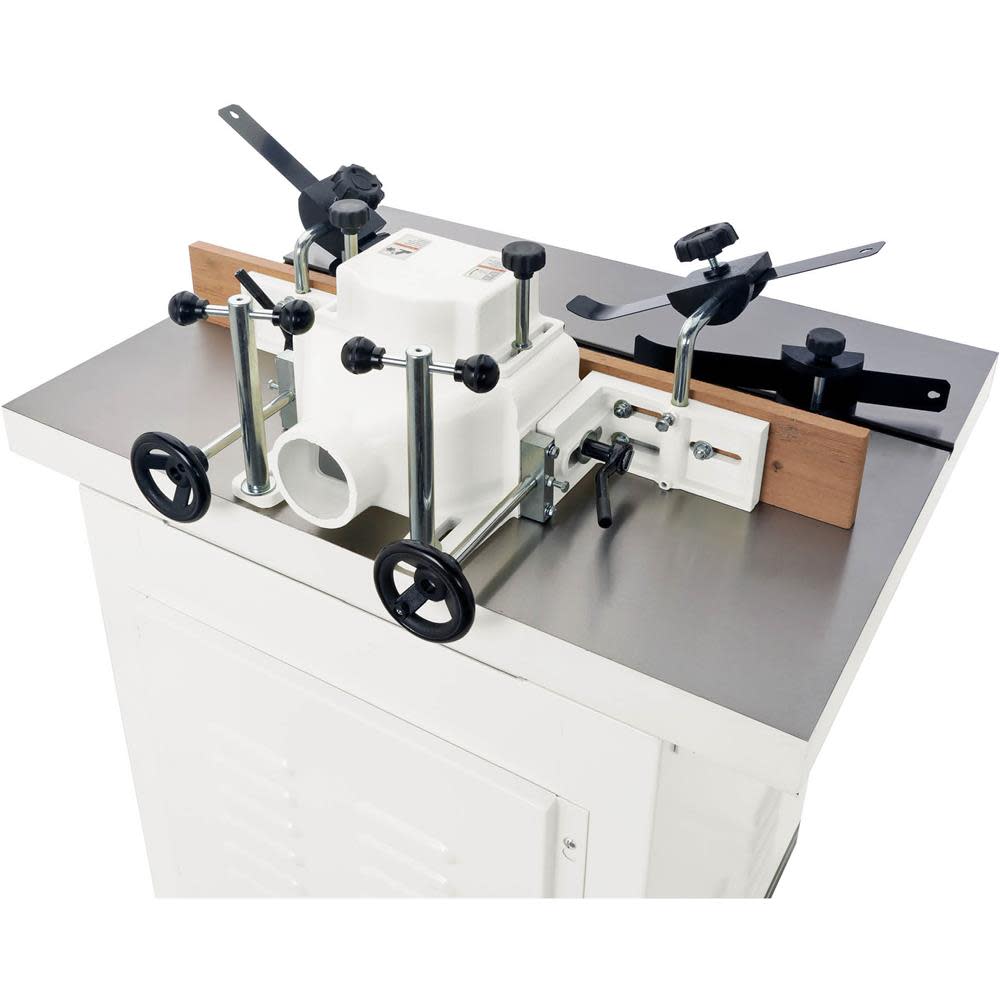

Fence: Cast-Iron, independently adjustable

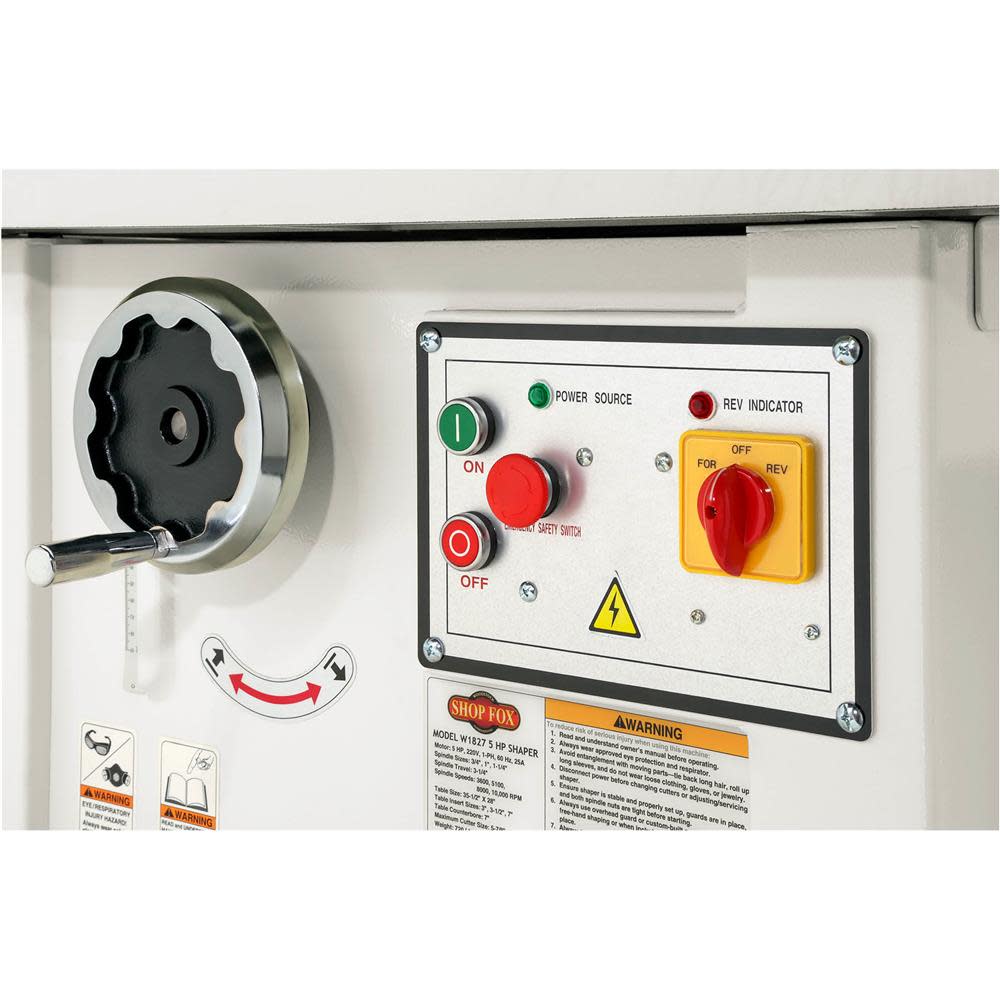

Switch: Push button controls with magnetic safety switch and thermal overload protection
One 4 In. dust port
Micro-Adjustable fence

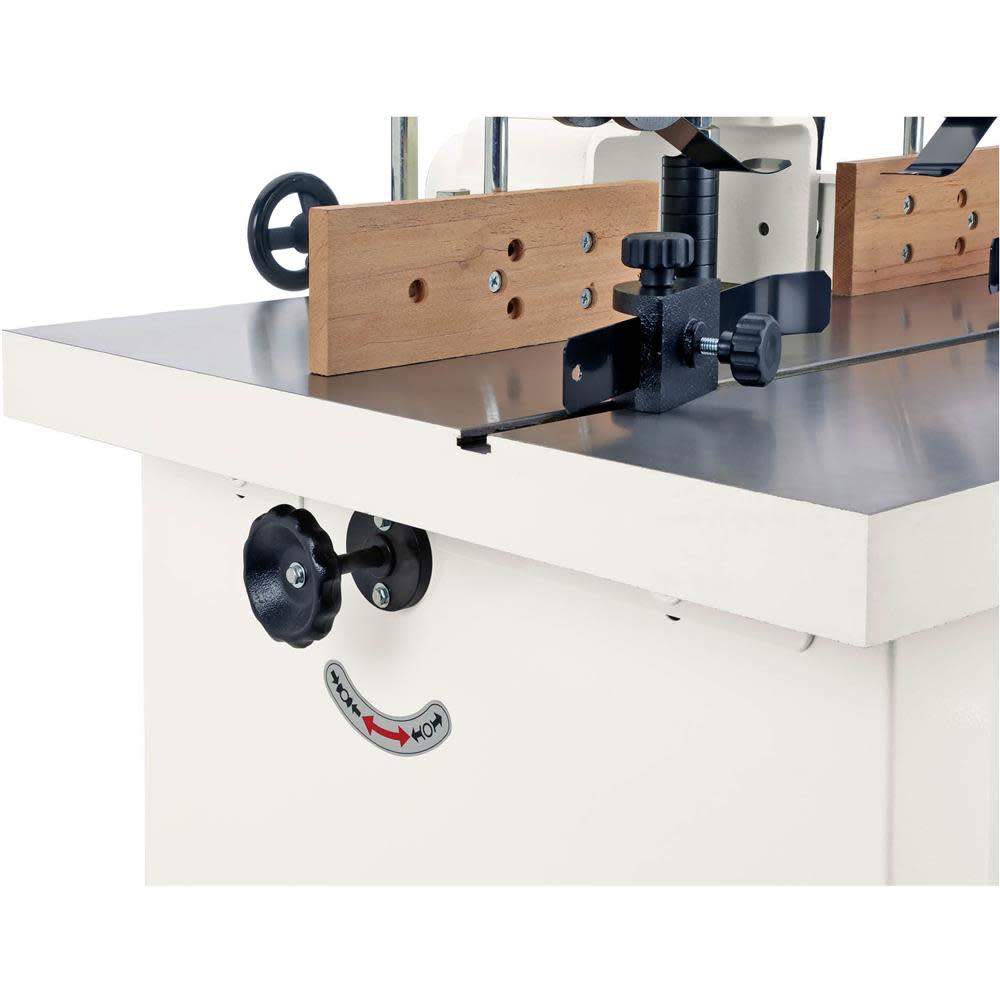

Spindle height scale
Spindle spacers and nuts, hold-down assemblies and table inserts
Fwd/Rev spindle rotation switch
4 Spring steel hold‐down assemblies
Spindle height scale in inches and metric
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1827
Amperage (A)
25
Assembled Weight (lbs)
615
California Proposition 65 Warning Required
Yes
Country of Origin
Taiwan
Dust Collection
Yes
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Fence Type
Micro-Adjustable
Horsepower (hp)
5
Micro Adjust Fence
Yes
Package Contents
Shaper, (2) Wood Fence, (3) Spindle with (8) Spacer and (2) Nut, Assorted Wrench
Package Depth
40
Package Height
43
Package Weight
616
Package Weight (lbs)
616
Phase
Single Phase
Spindle Speed High (rpm)
10000
Spindle Speed Low (rpm)
3600
Switch Type
Control Panel with Magnetic Switch Protection
Table Height From Floor (In)
34.75
Table Length (in)
35.5
Table Material
Cast Iron
Table Width (in)
28
