Description

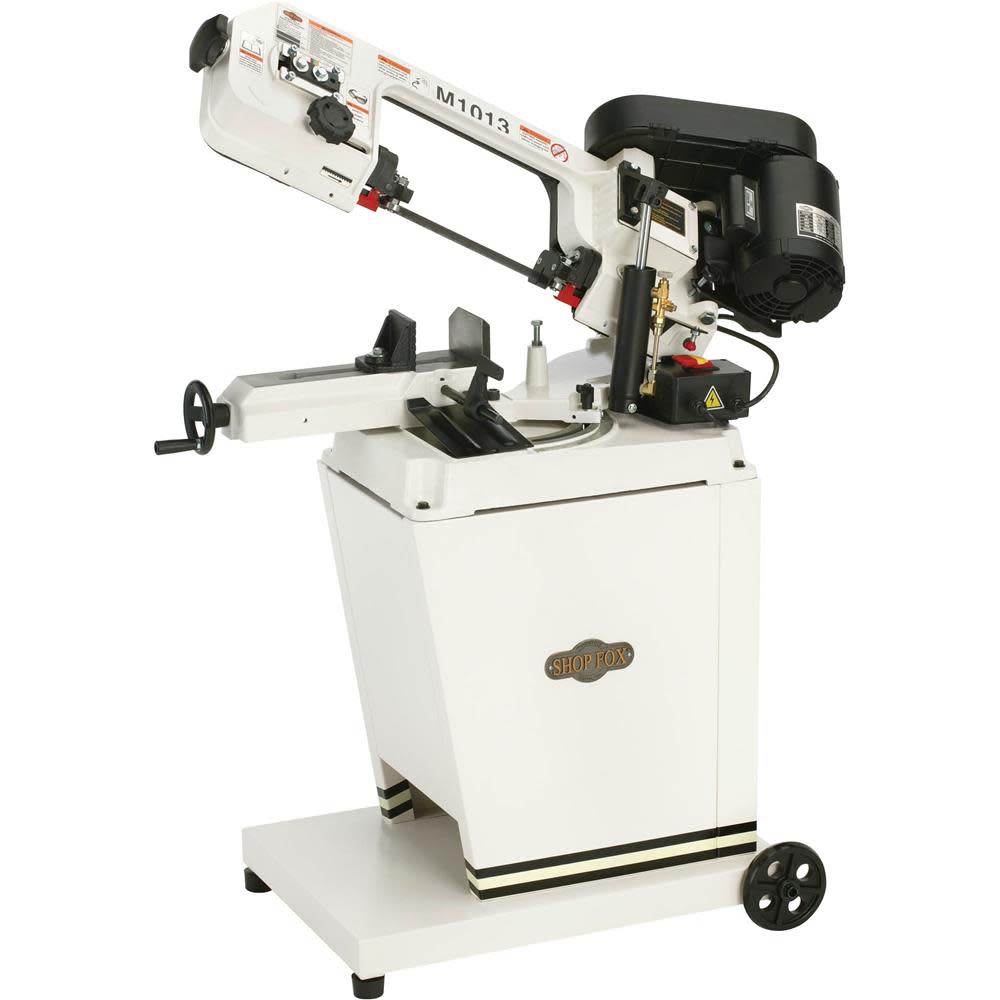

Shop Fox Metal Cutting Bandsaw 110/220V 1/2HP 1 Phase

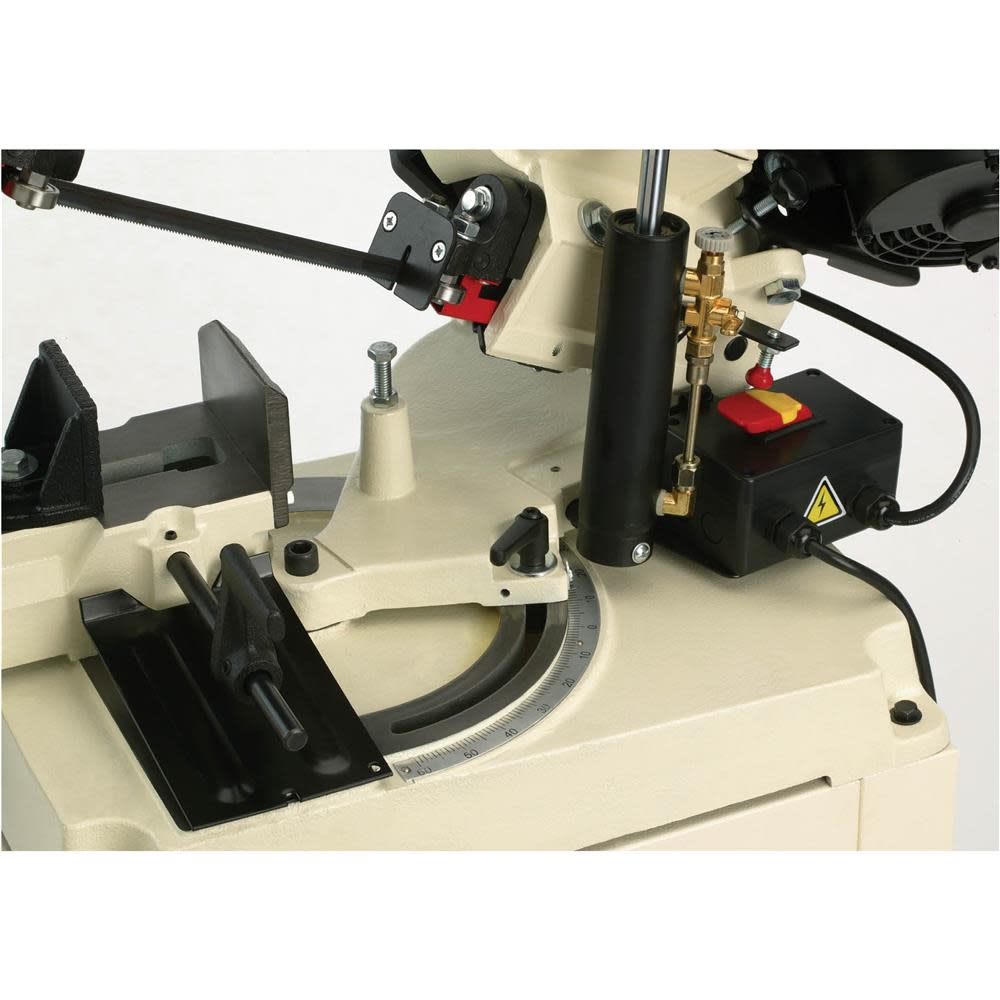

A bandsaw is a must for any metal shop. The M1013 has three speeds, an automatic shut-off, ball-bearing blade guides, and many more important performance features. As an added bonus, it has a swiveling headstock, so there is no fussing with establishing the cut angle at the vise! Just set the workpiece length, swivel the headstock to an angle between -45 to +60 Deg, and make the cut. All ball-bearing drive wheel and blade guides.
Features
Control panel conveniently located
Adjustable hydraulic downfeed
Blade included
Quick release vise for rapid change‐out of workpiece
All ball-bearing drive wheel and blade guides
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
M1013
Amperage (A)
9.4/4.5
Assembled Weight (lbs)
176
Band Saw Type
Stationary
Blade Guide Type
Bearings
California Proposition 65 Warning Required
Yes
Color/Finish
White
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
China
Cutting Capacity Height (in)
5
Diameter
1/2 in
Horsepower (hp)
0.5
Material
Cast Iron
Maximum Blade Length (In)
64.5
Maximum Blade Width (In)
0.5
Maximum Feet Per Minute
200
Maximum RPM
1725
Minimum Blade Length (in)
64.5
Minimum Blade Width (in)
0.5
Minimum Feet Per Minute
80
Motor Type
TEFC Capacitor‐Start Induction
Number of Wheels
2
Package Contents
Metal Cutting Bandsaw, Blade
Package Depth
42
Package Height
22
Package Weight
177
Package Weight (lbs)
177
Phase
1
Saw Type
Stationary
Table Length (in)
12
Table Material
Cast Iron
Table Width (in)
4.5
UL Listed
No
Variable Speed
No
Wheel Spoke Count
0
