Description

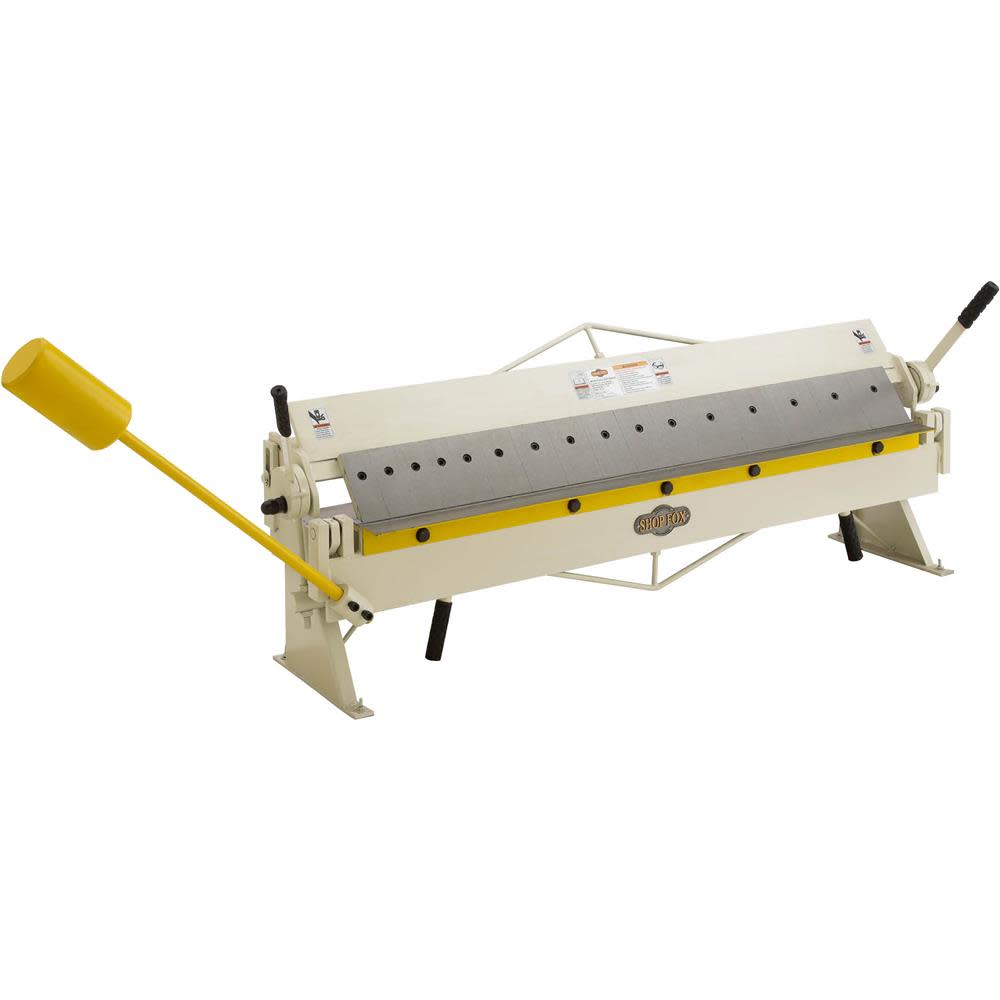

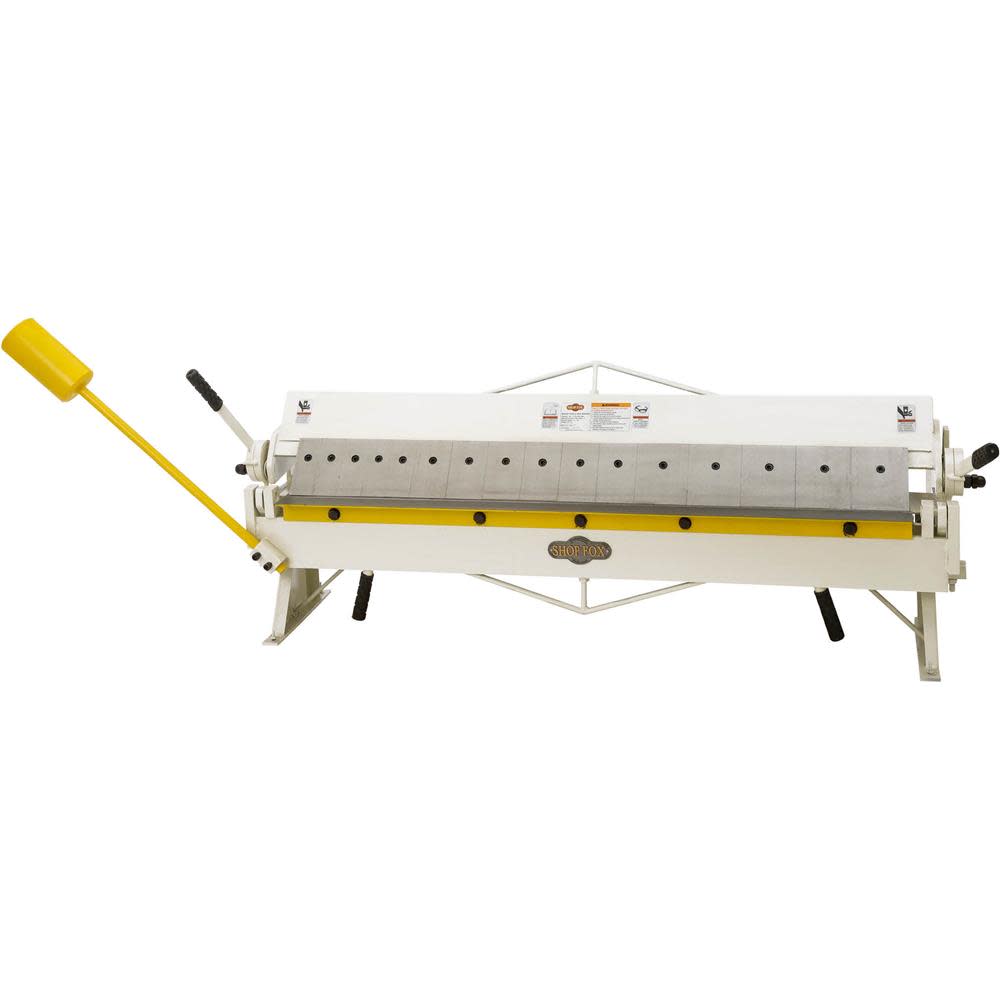

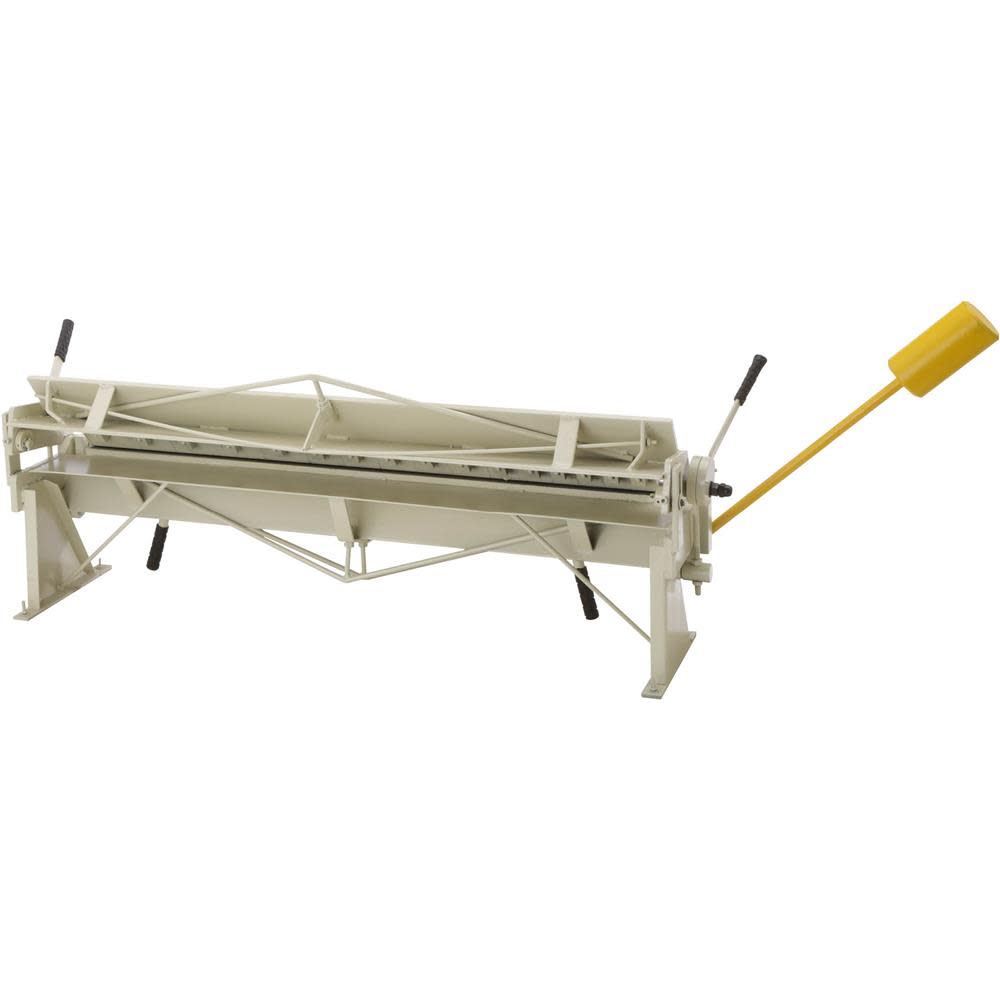

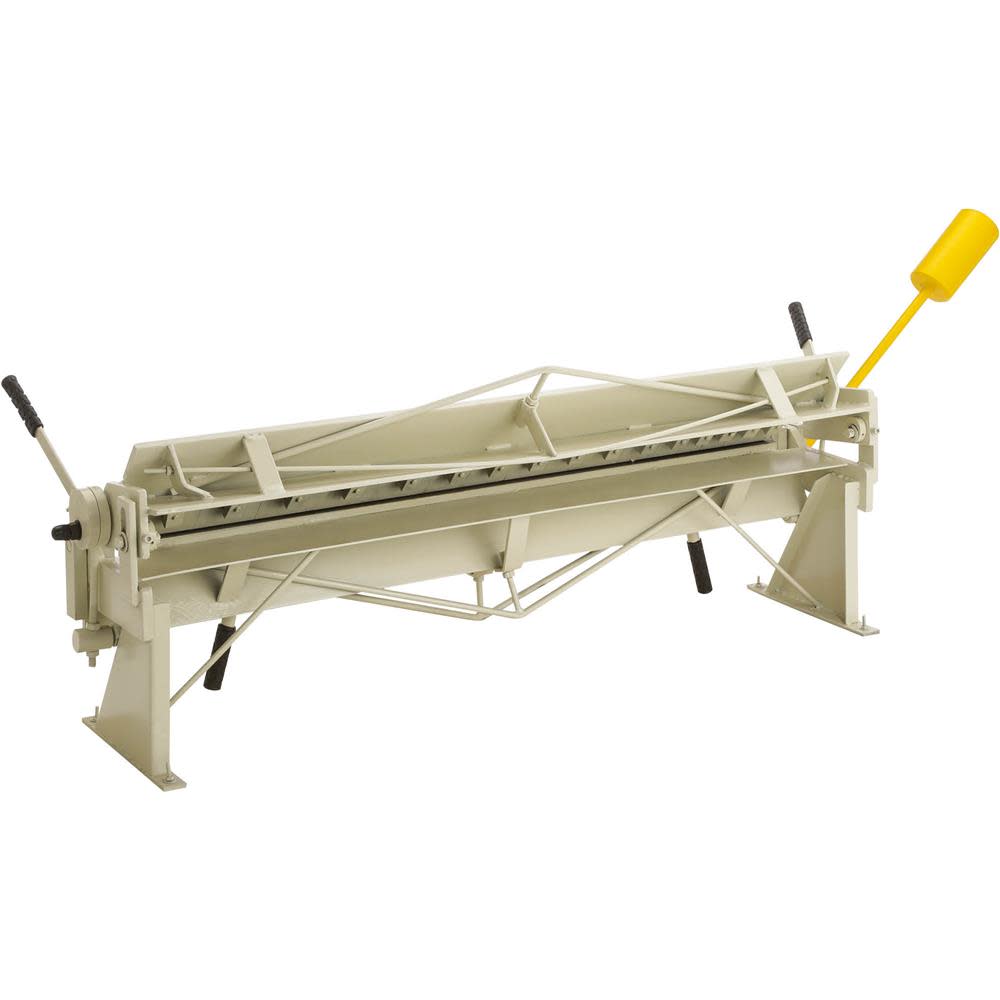

Shop Fox 48″ x 18 Ga Box/Pan Brake with 16 Box Fingers
The M1118 48 In. pan and box brake will take care of your heavy-duty box bending. It will easily set a full-width angle in 18 Ga mild steel up to 135 Deg; 16 Ga at half-width. This equipment has a minimum reverse bend of 7/16 In. and can set a maximum height of 2-1/2 In. pan/box brake sides. It comes with sixteen removable steel fingers for box forming and other special bending operations. The precision-ground fingers can be used individually or all at once. The adjustable brake handle is counterweighted for leverage.
Features

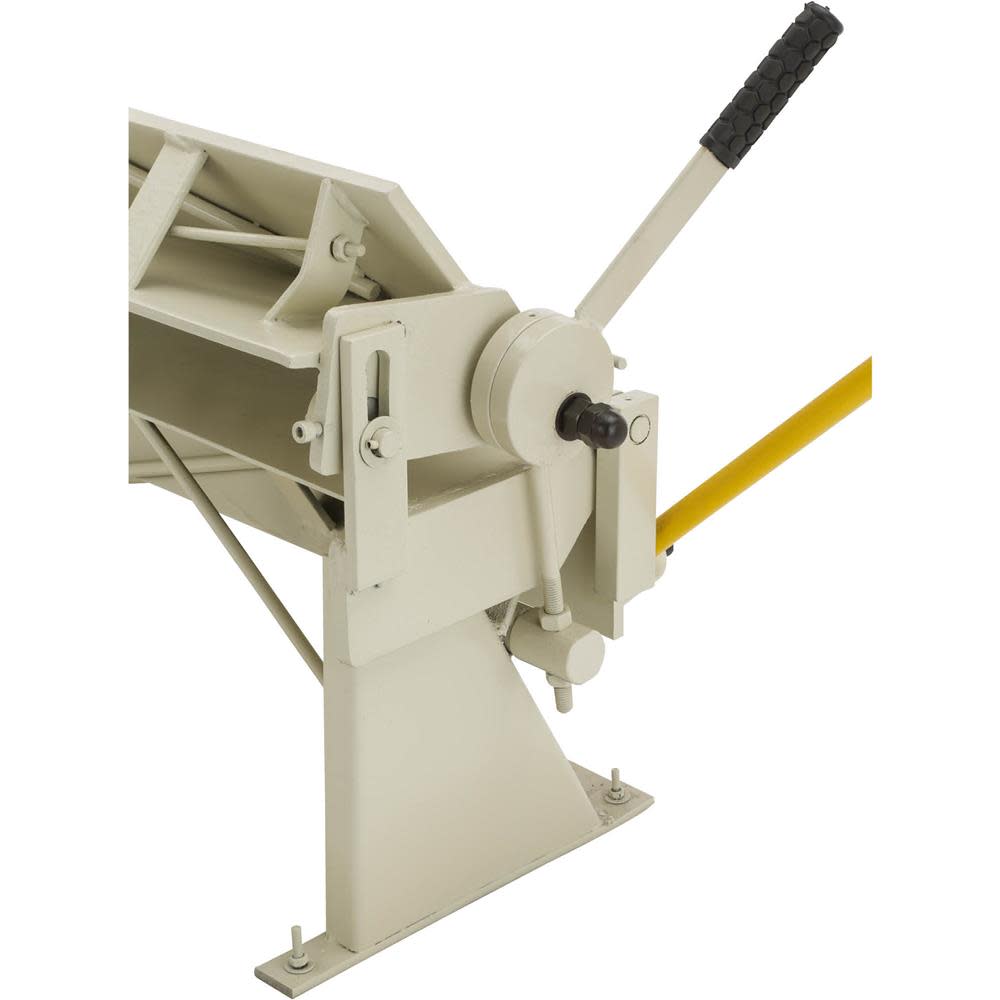

Bending leaf counterweighted for leverage

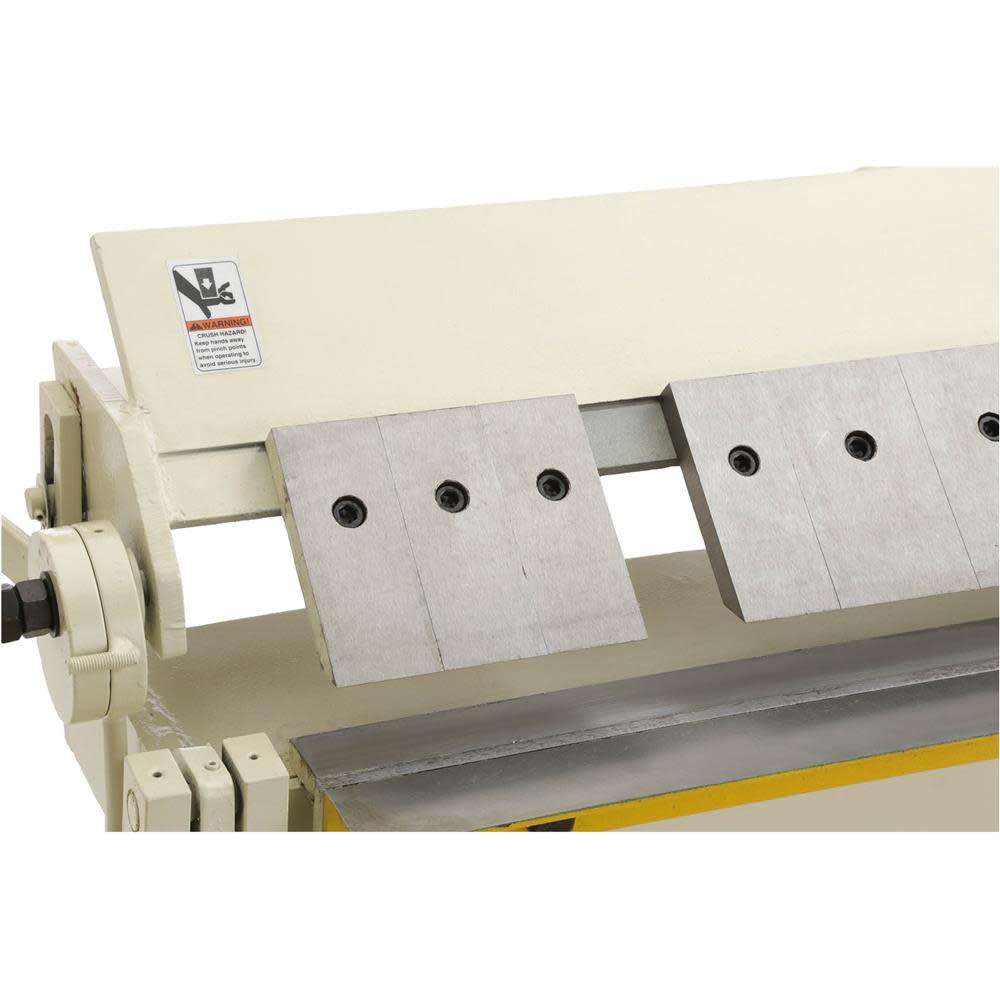

Precision‐Ground steel fingers with hardened edges
Sixteen adjustable/removable fingers
This equipment has a minimum reverse bend of 7/16 In. and can set a maximum height of 2-1/2 In. pan/box brake sides
Bending Capacity at Full Width: 18 Ga Mild Steel
Bending Capacity at Half Width: 16 Ga Mild Steel
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
M1118
Assembled Weight (lbs)
383
Color/Finish
White
Country of Origin
China
Gauge Capacity (ga)
18
Material
Metal
Number of Fingers
16
Package Depth
62
Package Height
26
Package Weight
383
