Description

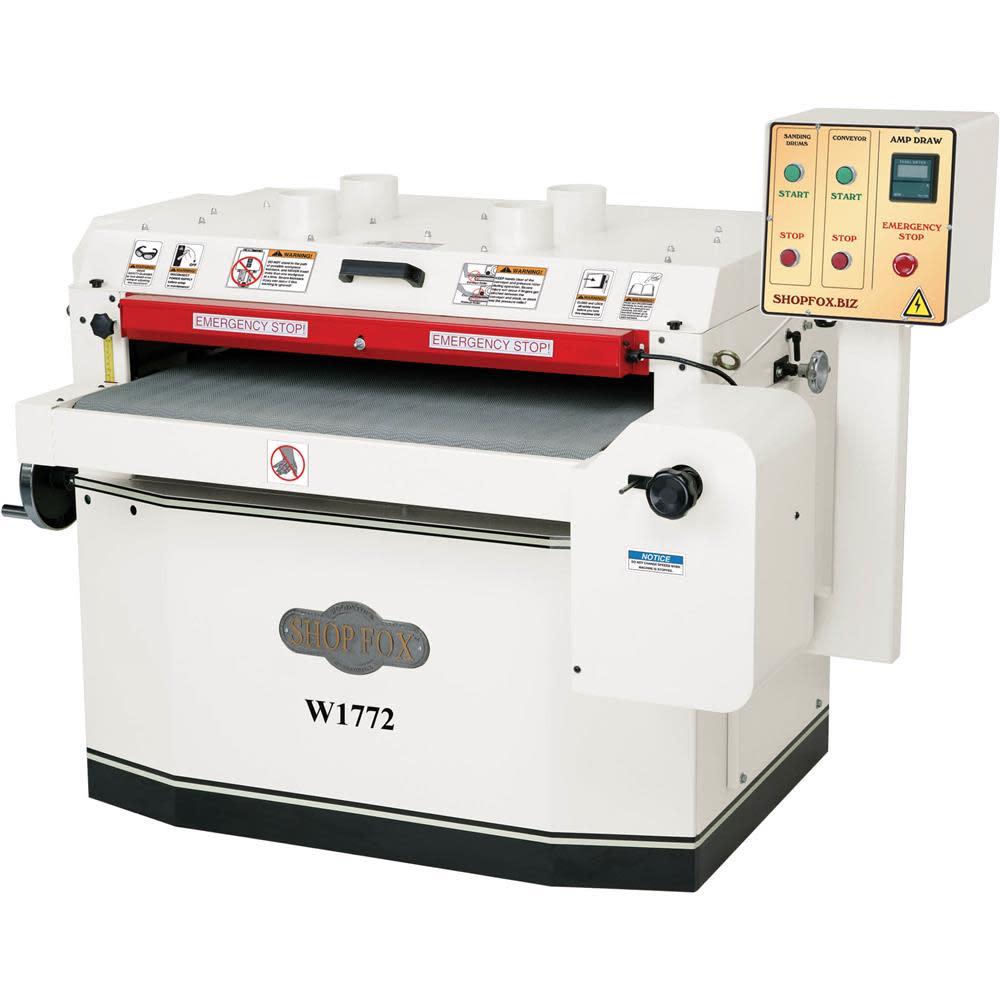

Shop Fox 37″ Drum Sander 240V 10HP 1 Phase
Designed for production shops, this 37 In. sander has what it takes to get those big jobs done-fast. Sand boards and panels up to 4 In. thick and 36-1/2 In. wide, using two different abrasive grits in the same pass with the dual 6 In. sanding drums. Feed speed is adjustable from 6 to 18 Fpm. The variable-speed knob conveyor adjustment and amp meter make it easy to monitor the sanding load to ensure maximum efficiency. Other great features include a hinged hood, emergency stop bar, pedestal-mounted controls, four 4 In. dust ports, and a 10HP, 240V, 1 Phase motor. Certified to CSA and UL standards.
Features
Industrial rubber conveyor belt
Easy access control panel with load meter

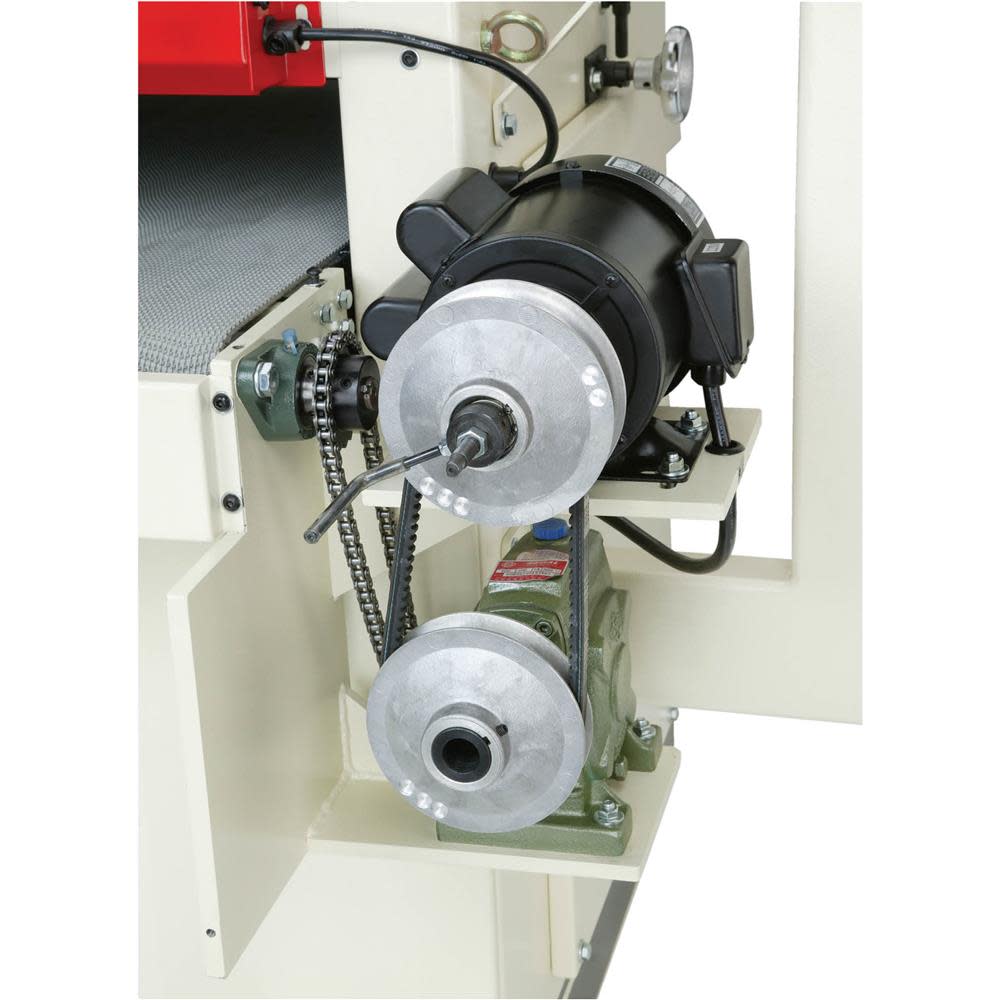

Variable speed conveyor

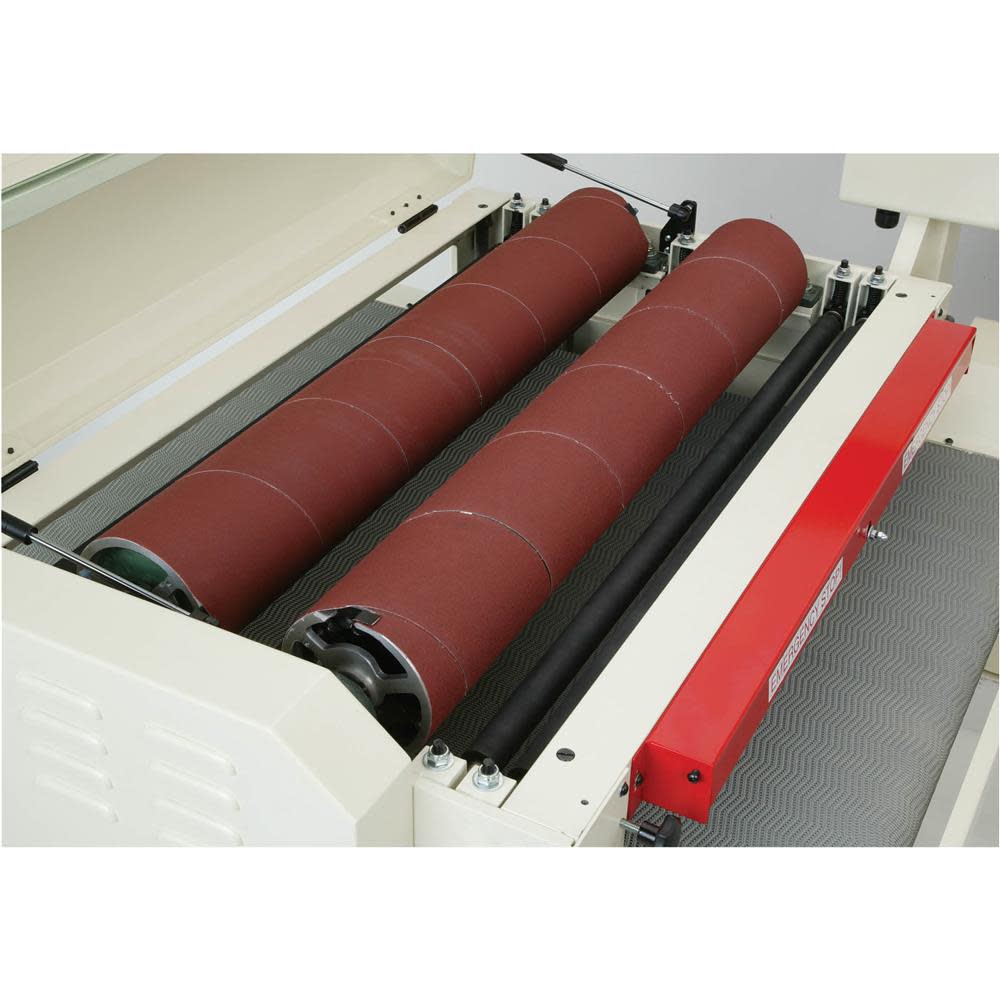

State of the art computer balanced drums
0.02 In. Table lift with 360 Deg handwheel turn
Advanced dust collection
Hinged hood with gas struts for easy drum access
Certified to CSA and UL standards
Specifications
Abrasive Wrap Size
N/A
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1772
Amperage (A)
44.5
Assembled Weight (lbs)
1379
Bench or Stationary
Stationary
Color/Finish
White
Conveyor Bed Material
Rubber
Conveyor Maximum Speed (Ft/Min)
18
Conveyor Motor Horsepower (hp)
1/3
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Drum Diameter (in)
6
Drum Material
Steel/Rubber
Dust Collection
Yes
Dust Collection Method
Dust Port
Horsepower (hp)
10
Housing Material
Steel
Material
Steel/Rubber
Maximum Drum Surface Speed (Ft/Min)
2800
Maximum Stock Thickness (in)
N/A
Maximum Stock Width (Single Pass) (in)
N/A
Minimum Stock Thickness (In)
N/A
Number of Drums
2
Number of Motors
1
Number of Wheels
0
Package Contents
Drum Sander
Package Depth
53
Package Height
49
Package Weight
1379
Sander Style
Drum
Sandpaper Type
Drum
UL Listed
Yes
Variable Speed
Yes
