Description

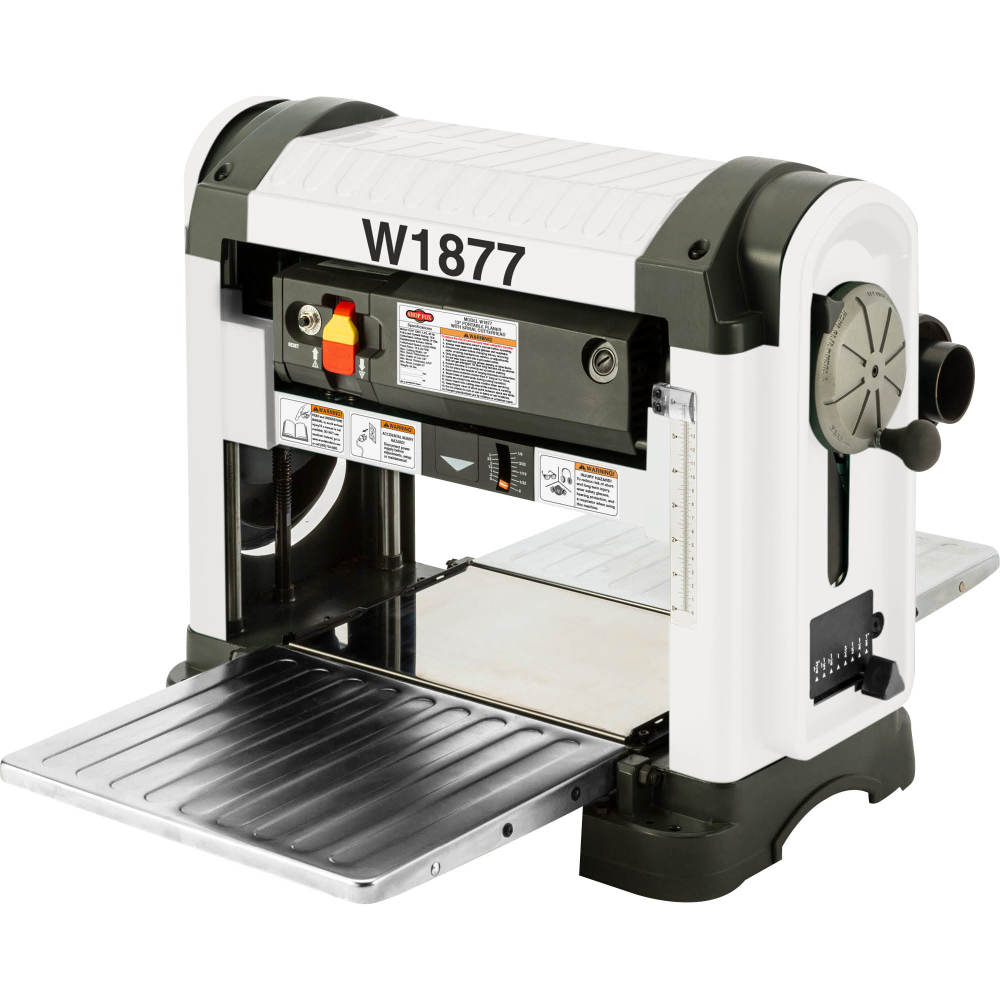

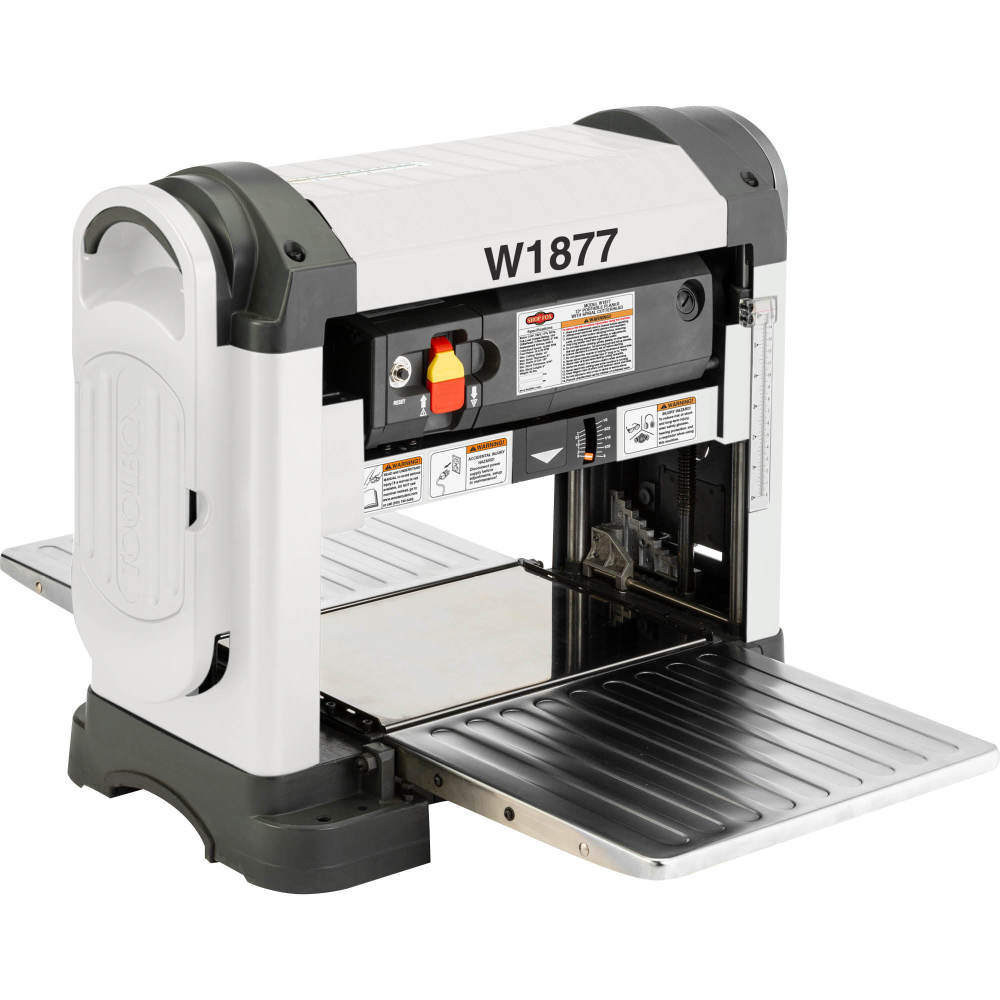

Shop Fox 13″ Portable Planer with Spiral-Style Cutterhead

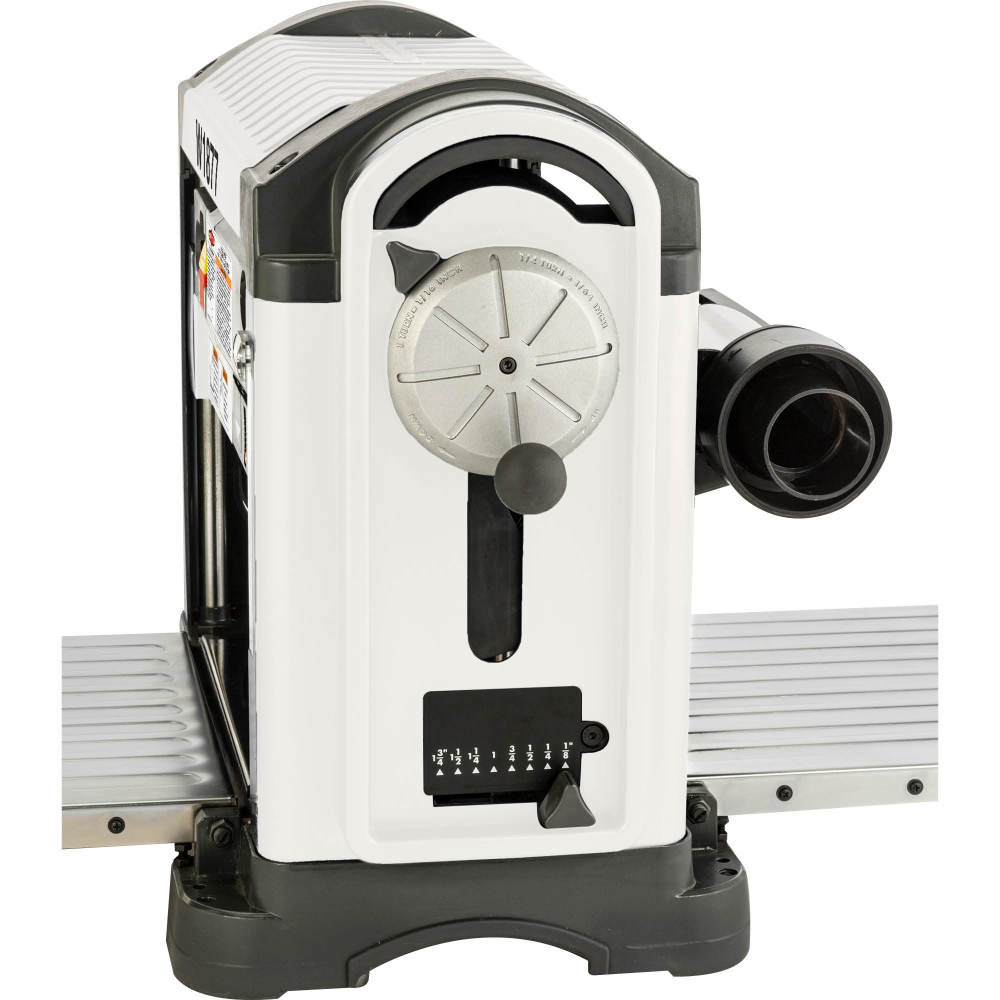

This amazing 13 in. portable planer features a unique repeat cut selector. This allows you to quickly set the cutterhead to 6 pre-set heights from 1/8 in. to 1-3/4 in. As well as convenient thickness scale located on the top of the machine for checking your planing progress. Everything you would expect from a high-end portable planer, such as a spiral-style cutterhead with carbide indexable inserts for smoother finishes, extension tables that fold up for storage and transport and a cutterhead height lock for consistent production work.
Features
Motor: 2 HP, 120-Volt, single-phase, 15 Amp
Maximum stock width: 13 in.
Maximum stock thickness: 6 in.
Maximum cutting depth: 1/8 in.
Cutterhead type: spiral-style with 26 two sided indexable inserts
Cutterhead speed: 10,000 RPM
Feed rate: 26 FPM
Table size with extensions: 13 in. x 33 -1/4 in.

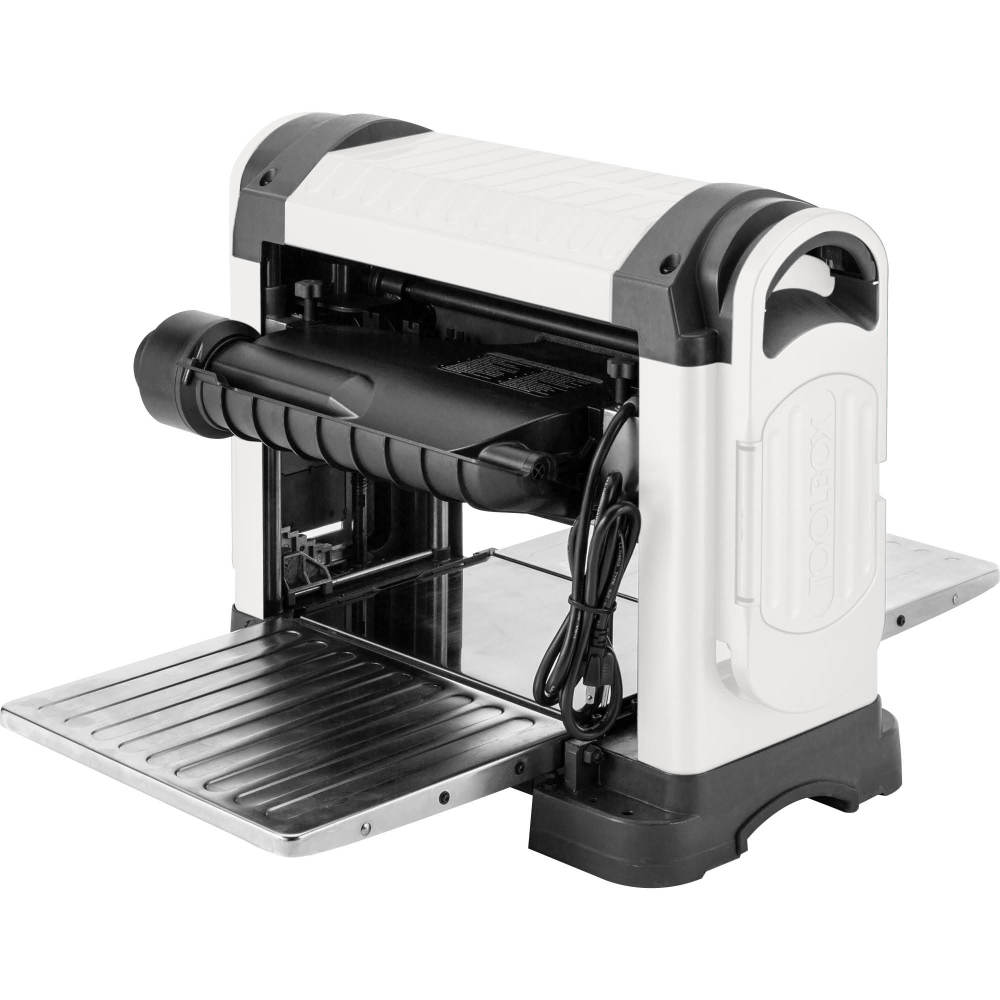

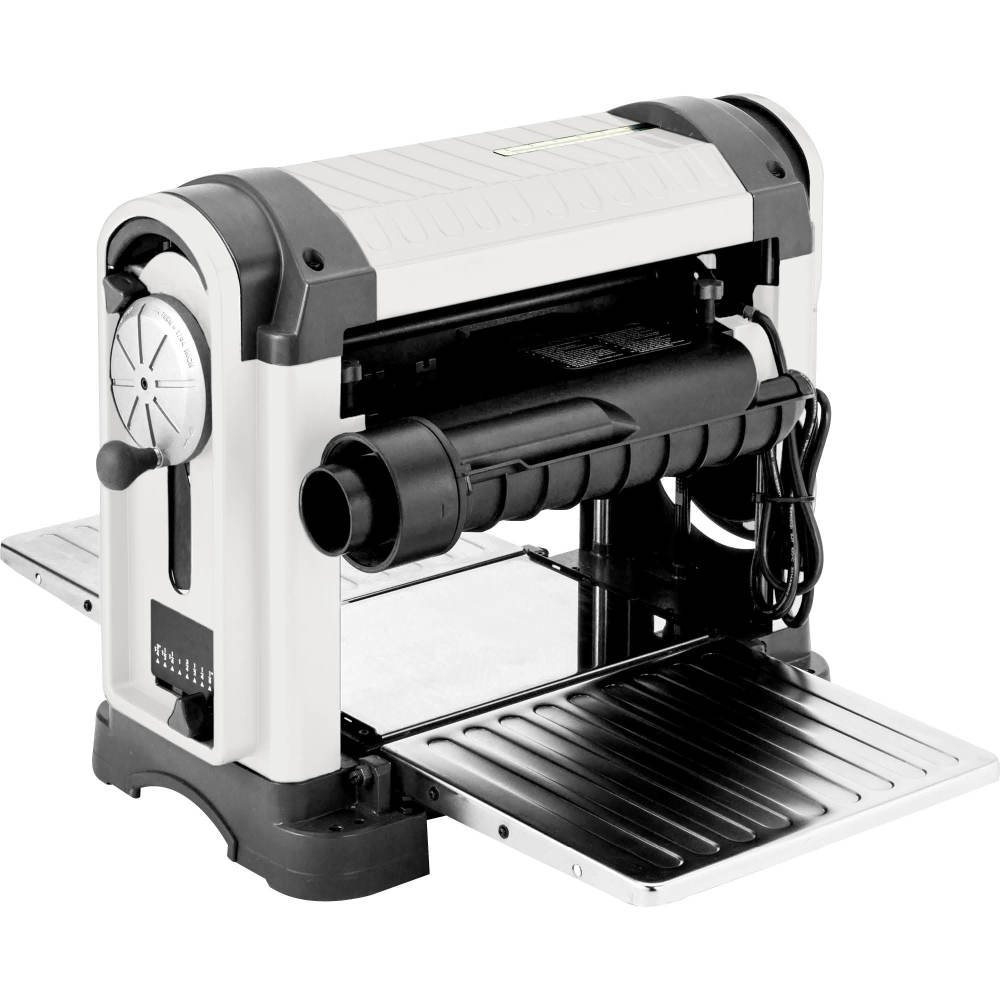

Dust port size: 4 in. with 2 -1/2 in. adapter included
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1877
Amperage (A)
15
Assembled Depth (in)
34
Assembled Height (in)
20
Assembled Weight (lbs)
84
Assembled Width (in)
30
Bench or Stationary
Bench
Blade Count
26
Blade Cutting Material
Carbide
Blade Length (in)
13″
Blade Type
Indexable carbide inserts
Color/Finish
White
Compatibility
Bench & Stationary Machinery
Cord Length (ft)
6 ft
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Cuts Per Minute
60000
Cutter Head Type
Spiral
Depth Measurement System
Yes
Depth Of Cut Range
1/16 in
ETL Listed
Yes
Feed Rate/s (Ft/Min)
26
Height (in)
20
Housing Material
Steel
Integrated Chip Management
No
Material Cut
Wood
Maximum Board Thickness (in)
6 in.
Maximum Cuts Per Inch
32
Maximum Cutting Depth (in)
1/16 in
Maximum Width Cutting Capacity (in)
13 in
Minimum Cuts Per Inch
32
Motor Horsepower (hp)
Universal Motor
Package Contents
13″ Portable Planer
Package Depth
34
Package Height
24
Package Weight
84
Reversible
Yes
Set / Individual
Individual
Sharpenable
No
Switch Type
On/Off
