Description

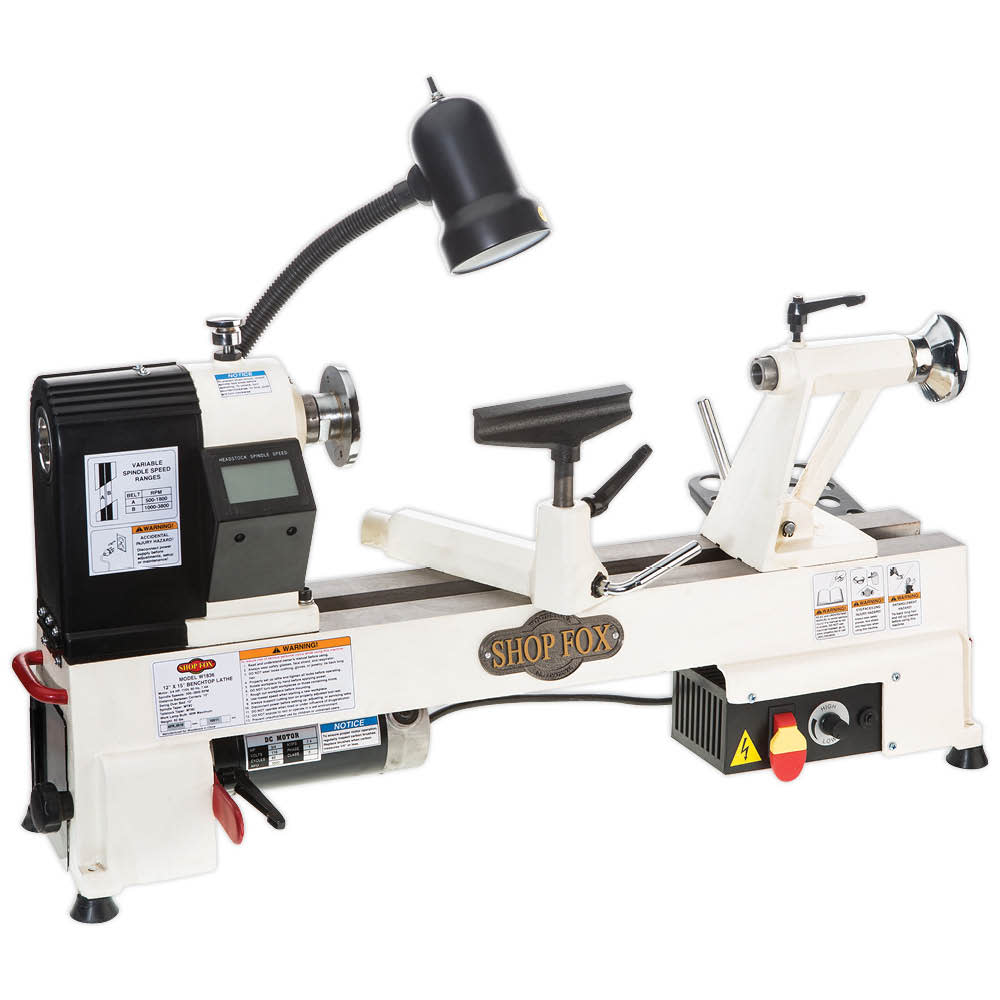

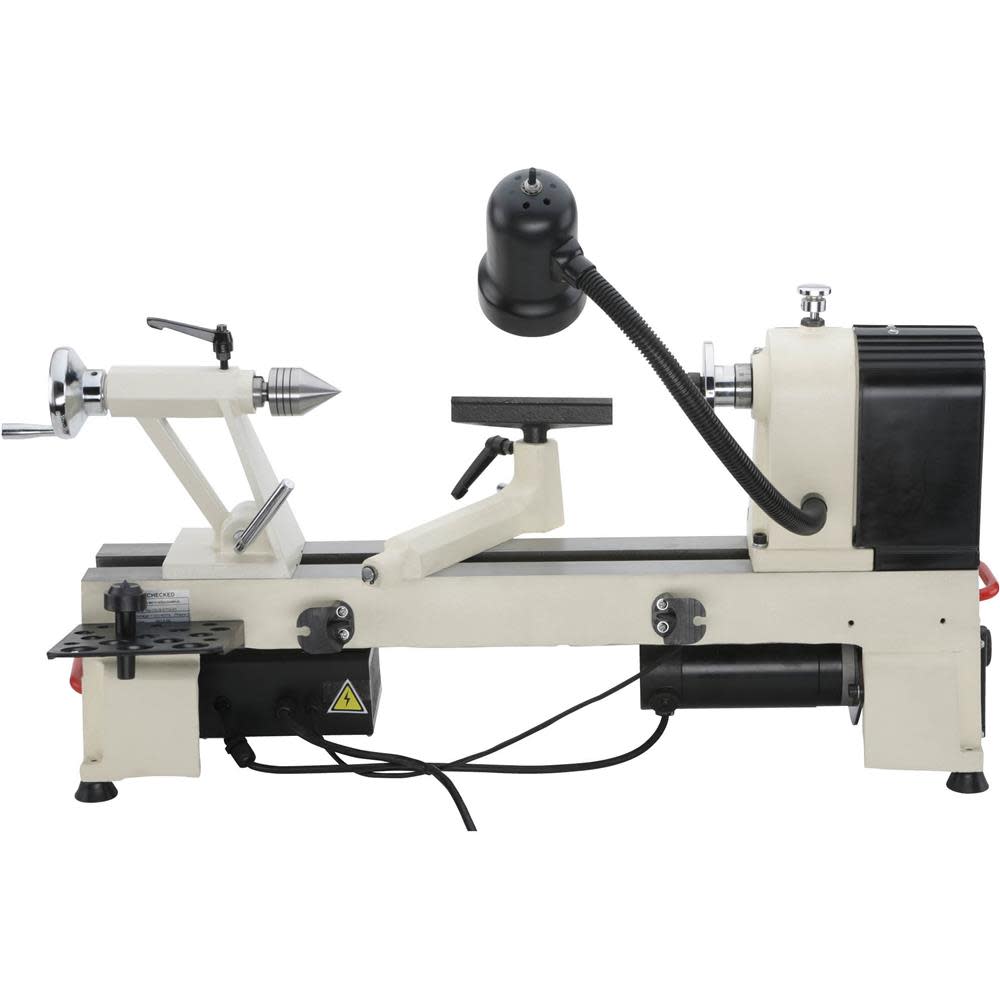

Shop Fox 12″ x 15″ Benchtop Wood Lathe 110V 3/4HP 1 Phase
The Shop Fox® W1836 wood lathe is packed with features that woodturners love. A powerful 3/4HP motor with electronic variable-speed spindle control and a digital Rpm readout for precise speed adjustments make this lathe a top choice. 24 indexes in increments of 15 Deg allow evenly spaced cuts while the headstock stays in a locked position, which opens new possibilities not available on most benchtop lathes. Heavy-duty cast-iron construction and rubber feet for increased stability and smooth turning operations.
Features
13 In. Distance between centers
12 In. Swing over bed

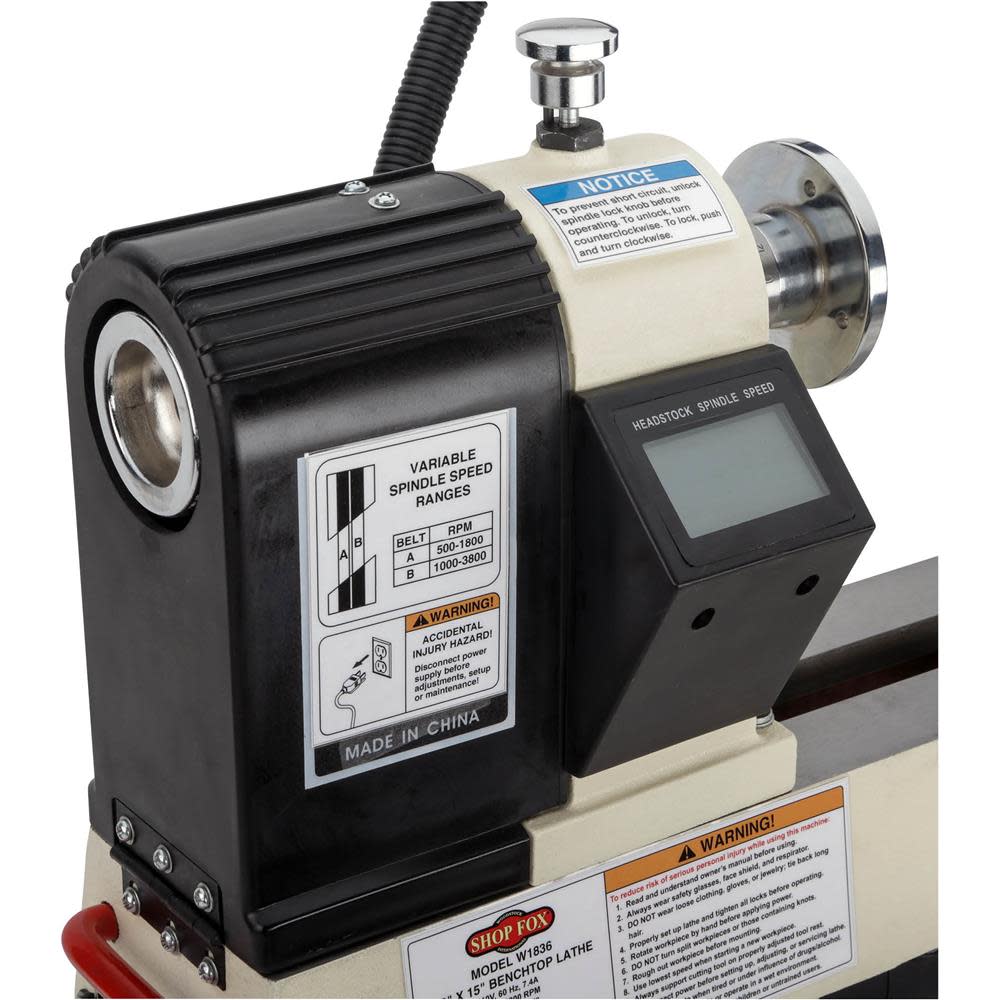

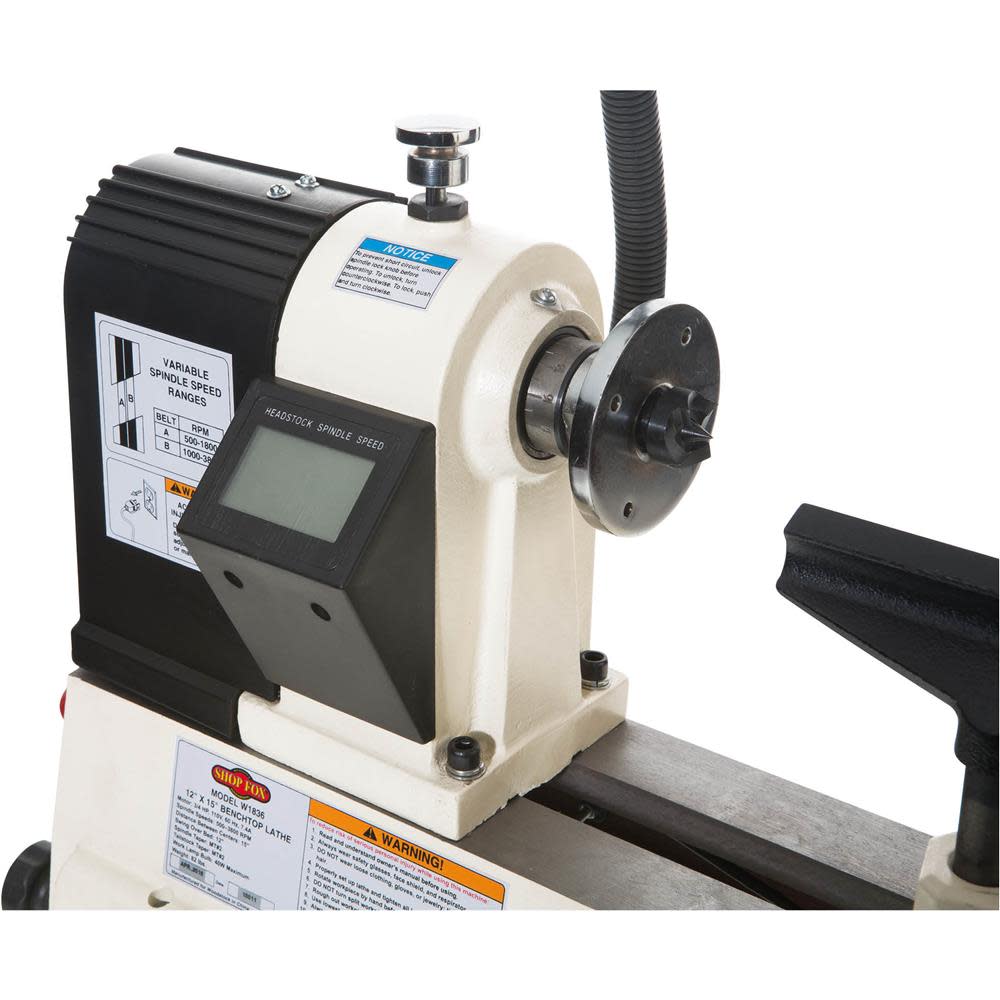

Electronic variable‐speed spindle control
Low‐speed spindle range of 500-1800 Rpm, high‐speed spindle range of 1000-3800 Rpm

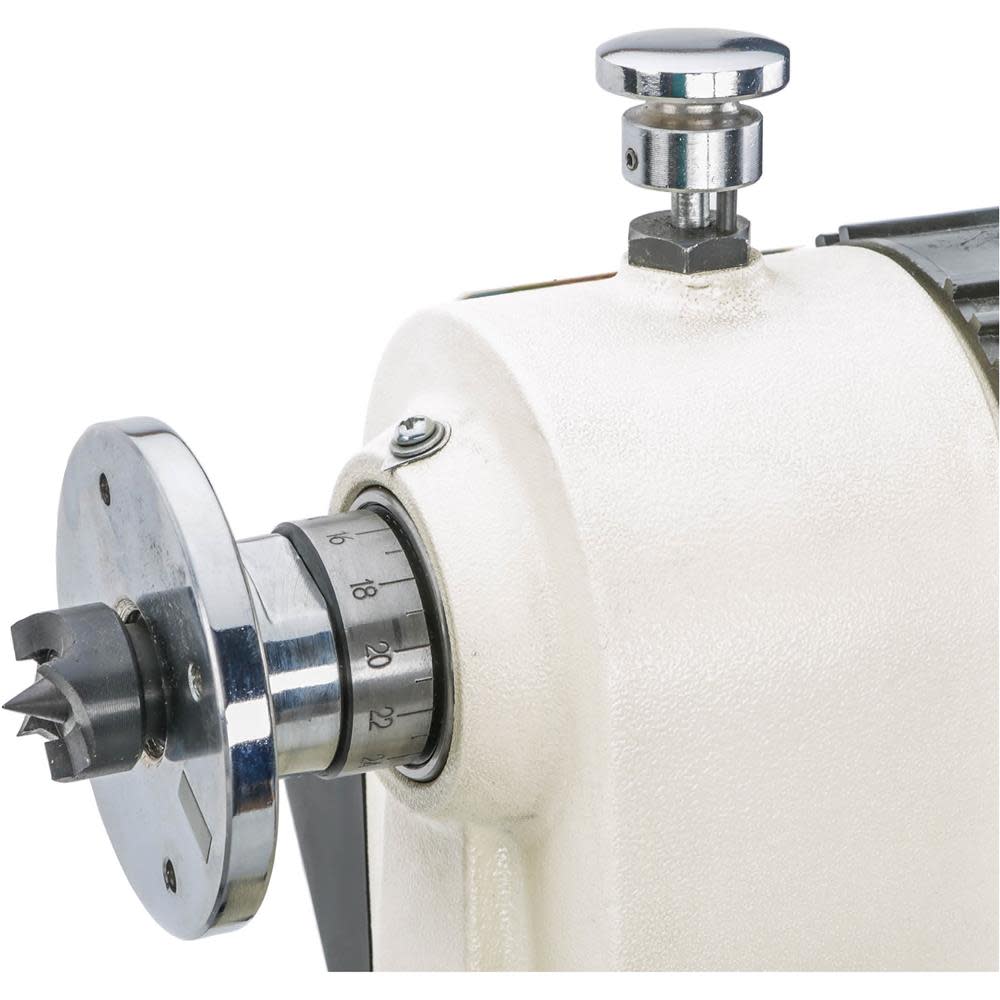

Spindle indexing in 15 Deg increments
Heavy-duty cast-iron construction and rubber feet for increased stability and smooth turning
Spindle lock pin
Tool holder
Work lamp
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1836
Amperage (A)
7.4
Assembled Weight (lbs)
85
Brand / Model Compatibility
N/A
California Proposition 65 Warning Required
Yes
Color/Finish
White
Cord Length (ft)
6
Country of Origin
China
CSA Certified
No
ETL Listed
No
Package Contents
Benchtop Wood Lathe
Package Depth
36
Package Height
19
Package Weight
86
Package Weight (lbs)
86
Spindle Lock
Yes
Spindle Speed High (rpm)
1800/3800
Spindle Speed Low (rpm)
500/1000
Spindle Taper
MT#2
Swing Over Bed
12
Swing Over Tool Rest Bed
9 In.

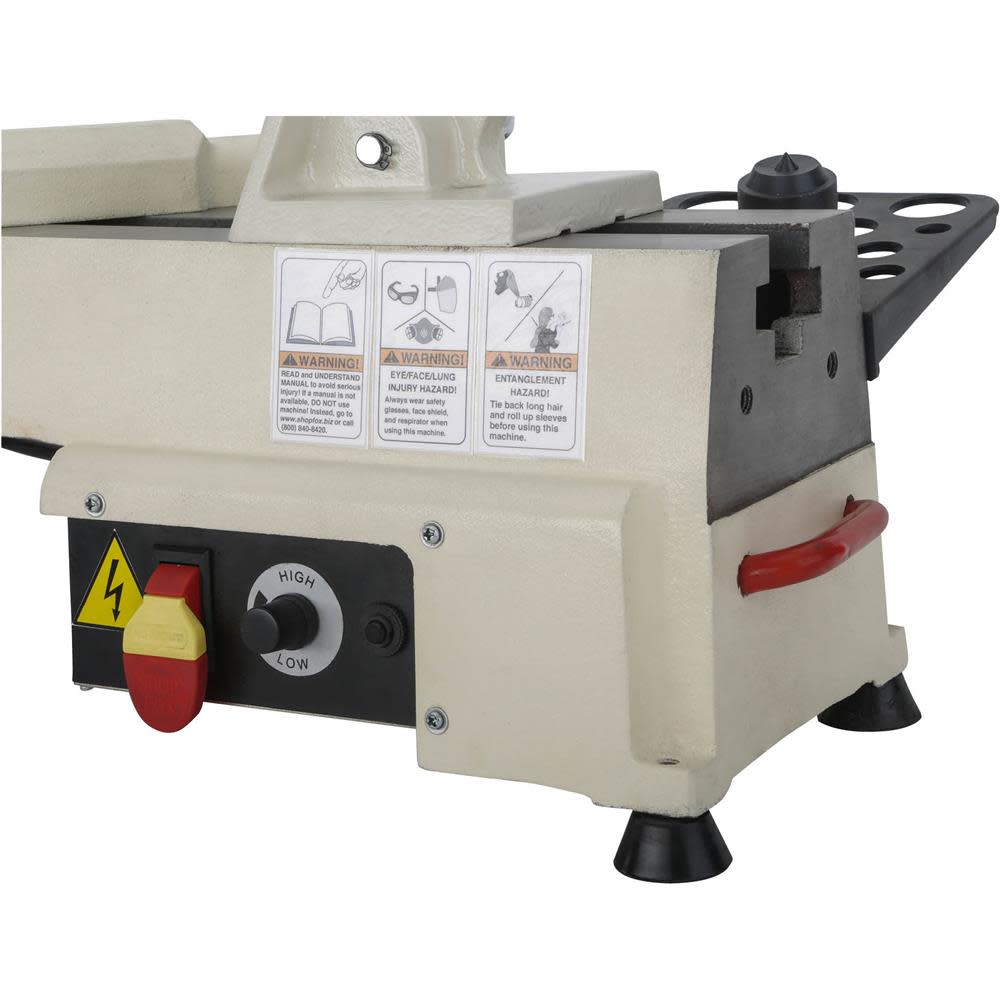

Switch Type
Paddle Safety Switch with Removable Key
Tailstock Taper
MT#2

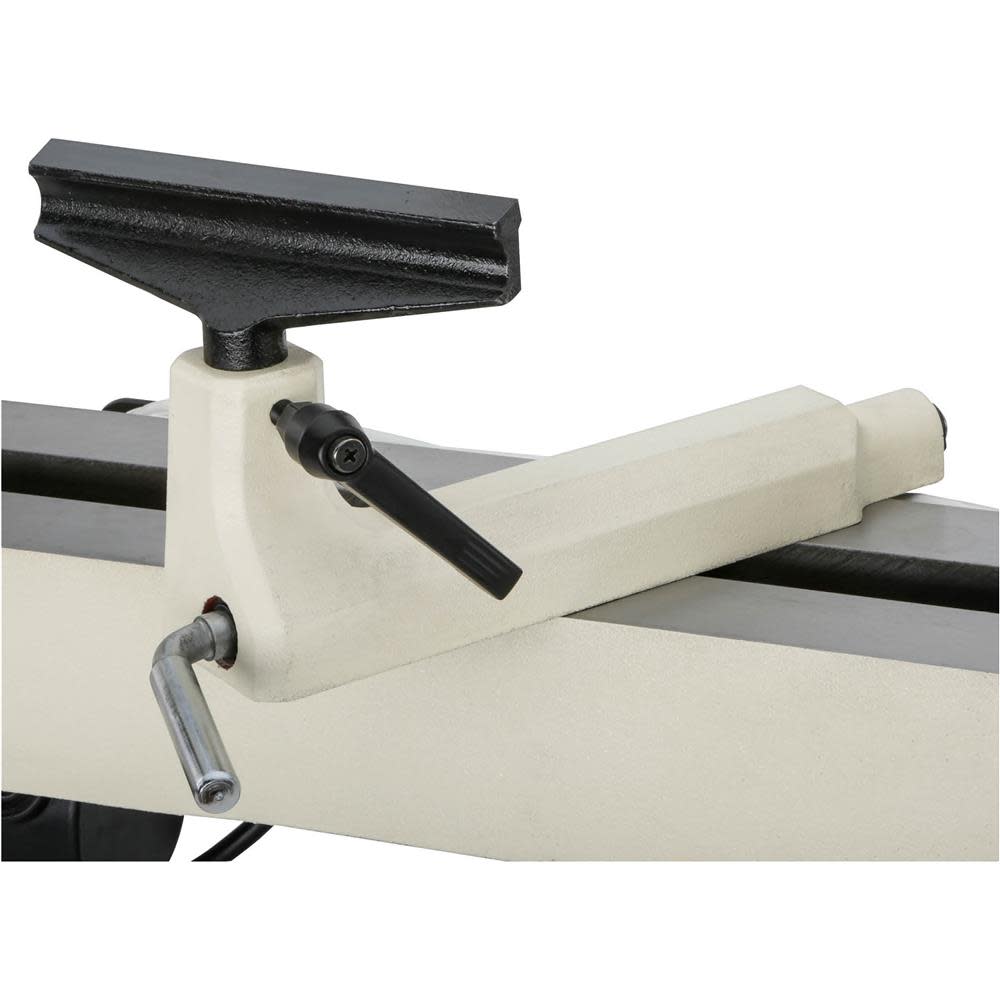

Tool Rest Width (in)
6
Variable Speed
Yes
Working Distance Between Centers
15 In.
