Description
Rikon 10″ Left Tilt Contractors Table Saw

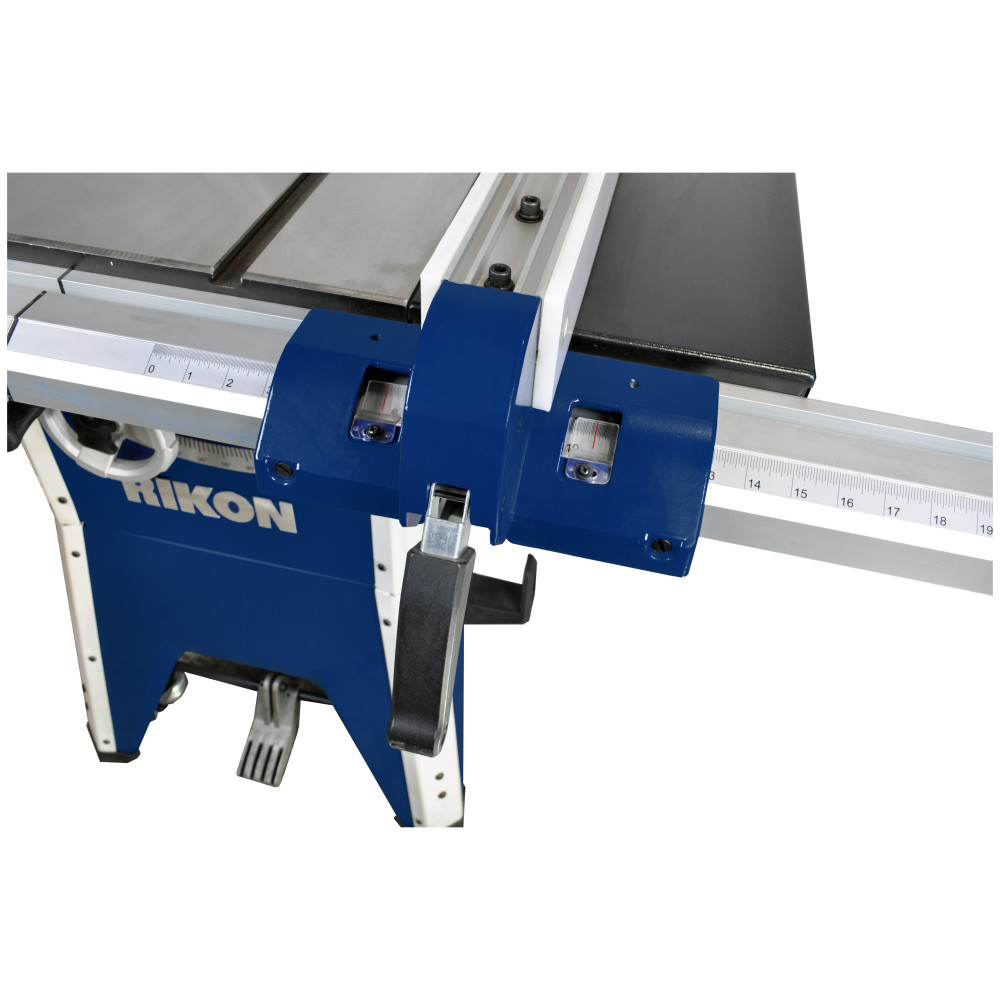

This no-nonsense machine whose simplicity is the strength behind its popularity with home craftspeople and professional workshops. Operating this table saw is straight forward – blade controls are large and easy to access. The box-type rip fence sets accurately. Built-in mobile base allows moving the saw around the shop easy. Wired for use with 3 wire 120 v receptacles.
Features
10 In. powerful 1-3/4 HP, single phase
120/240V, 3450 RPM motor – industrial quality
Precision machined cast iron table top and steel wings
Magnetic table insert removes without tools
Clear blade guard with riving knife/splitter for extra user safety
1 – 4 In. dust port
Specifications
Acme Tools Brand Name
RIKON
Acme Tools Part Number
10-205R
Amperage (A)
15
Assembled Depth (in)
39
Assembled Height (in)
45.5
Assembled Weight (lbs)
260
Assembled Width (in)
52
Bench or Stationary
Stationary
Bevel Direction
Left Bevel
Blade Diameter (in)
10
Blade Speed (rpm)
3450
Caster Platform Included
Yes
Color/Finish
Blue
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
China
CSA Certified
Yes
Diameter
1 in
Dust Blower
No
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Electrical Cord Configuration
3 Wire 120V Cord
ETL Listed
No
Fence Included
Yes
Flesh Sensing System
No
Horsepower (hp)
3-3/4
Maximum Dado Diameter (In)
3/4
Micro Adjust Fence
No
Miter Gauge
Yes
Number of Batteries Required
0
Package Depth
23
Package Height
45.5
Package Weight
1
Phase
Single Phase
Repetitive Cut Marking system
No
Table Height (in)
37-3/8
Table Height From Floor (In)
37-3/8
Table Length (in)
40
Table Material
Steel
Table Space in Front of Blade
11-3/8
Table Width (in)
27
UL Listed
No
