Description
ProShop II, 115V, 30 In. Rip, Cast Wings

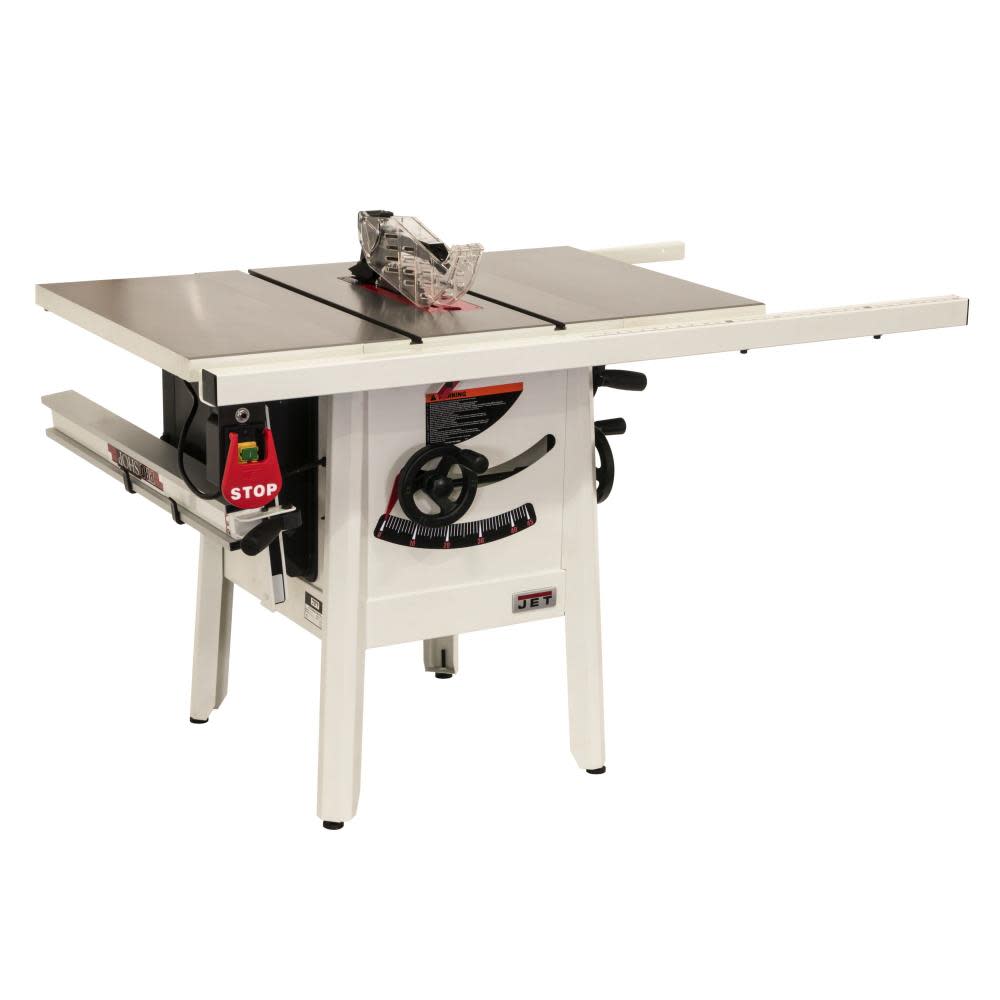

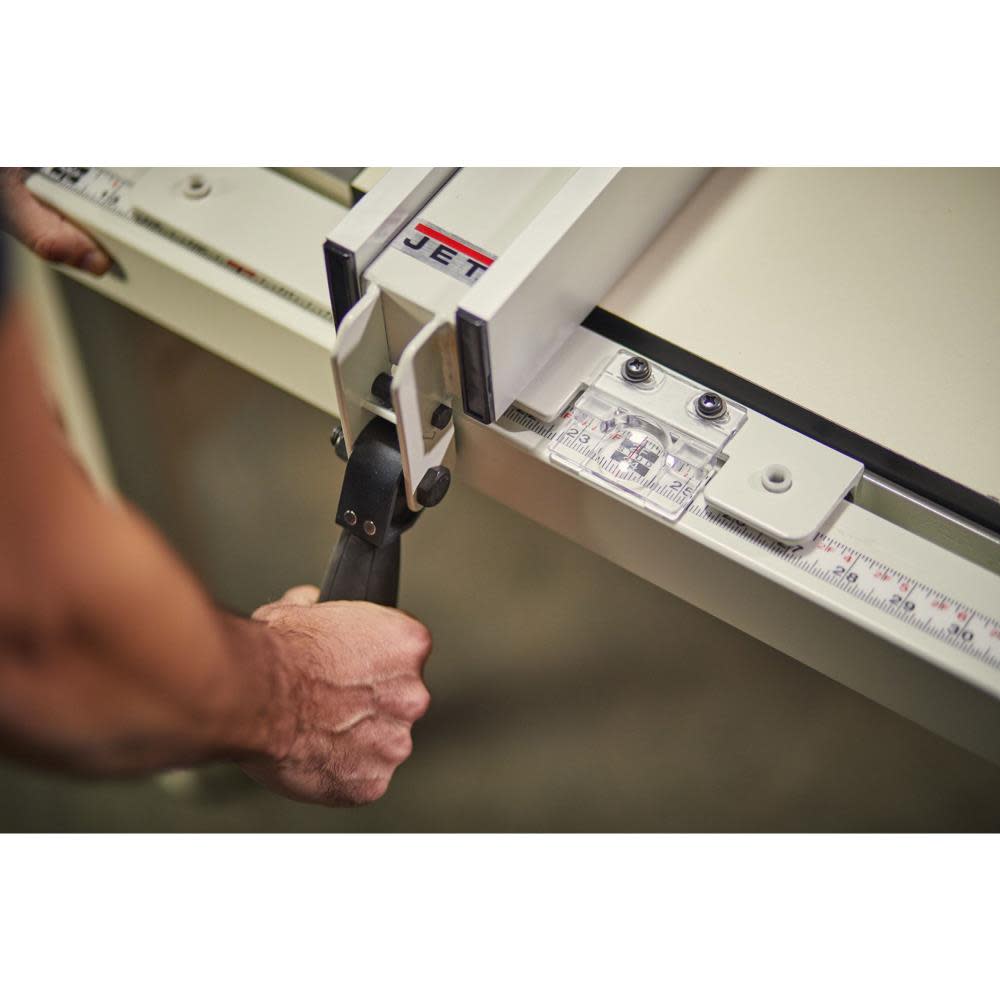

The Jet ProShop table saw offers features you expect from a high-end cabinet saw, in the compact design of a contractor-style machine. The redesigned transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife and dado insert are included for non-through cuts and dado cuts. The exclusive ProShop fence system is available in 30 In. or 52 In. rip capacity.
Features
Newly designed arbor lock to change blades quickly and easily
Quick release riving knife for hassle free riving knife changes

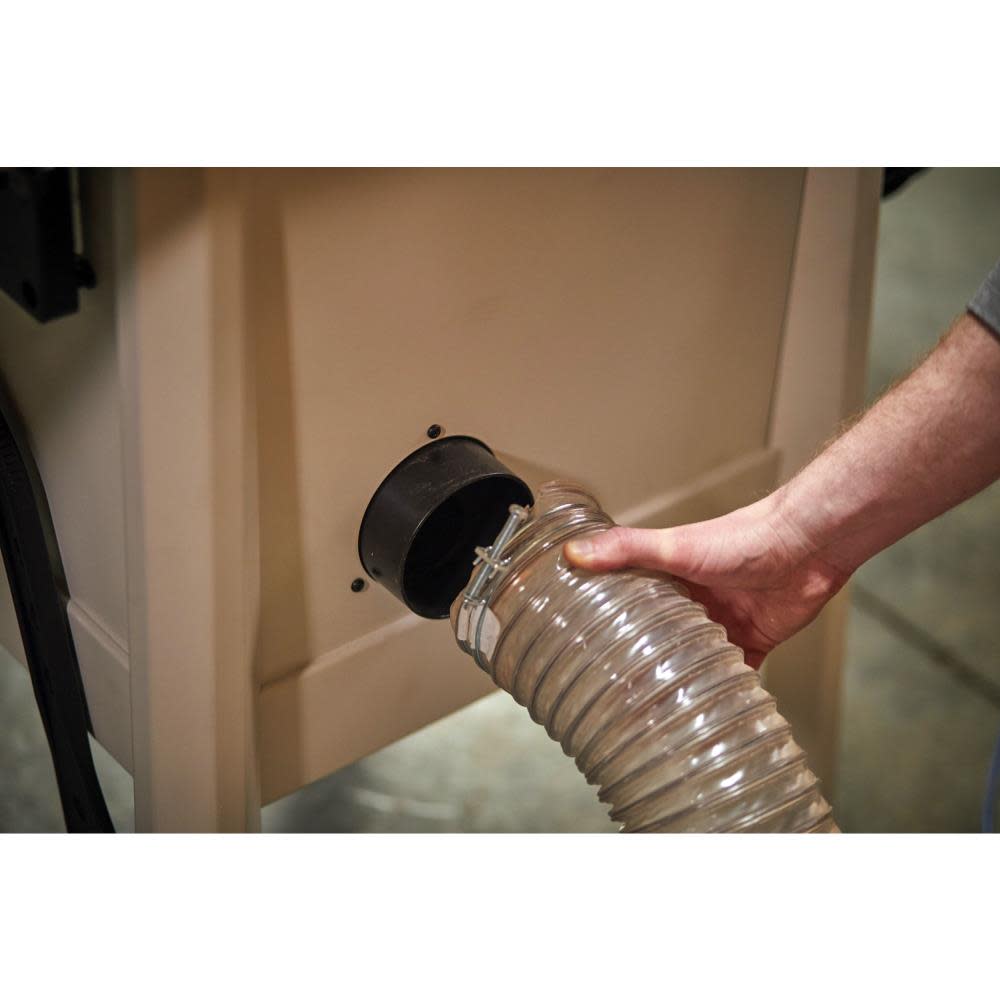

Improved dust shroud around blade for greater dust collection

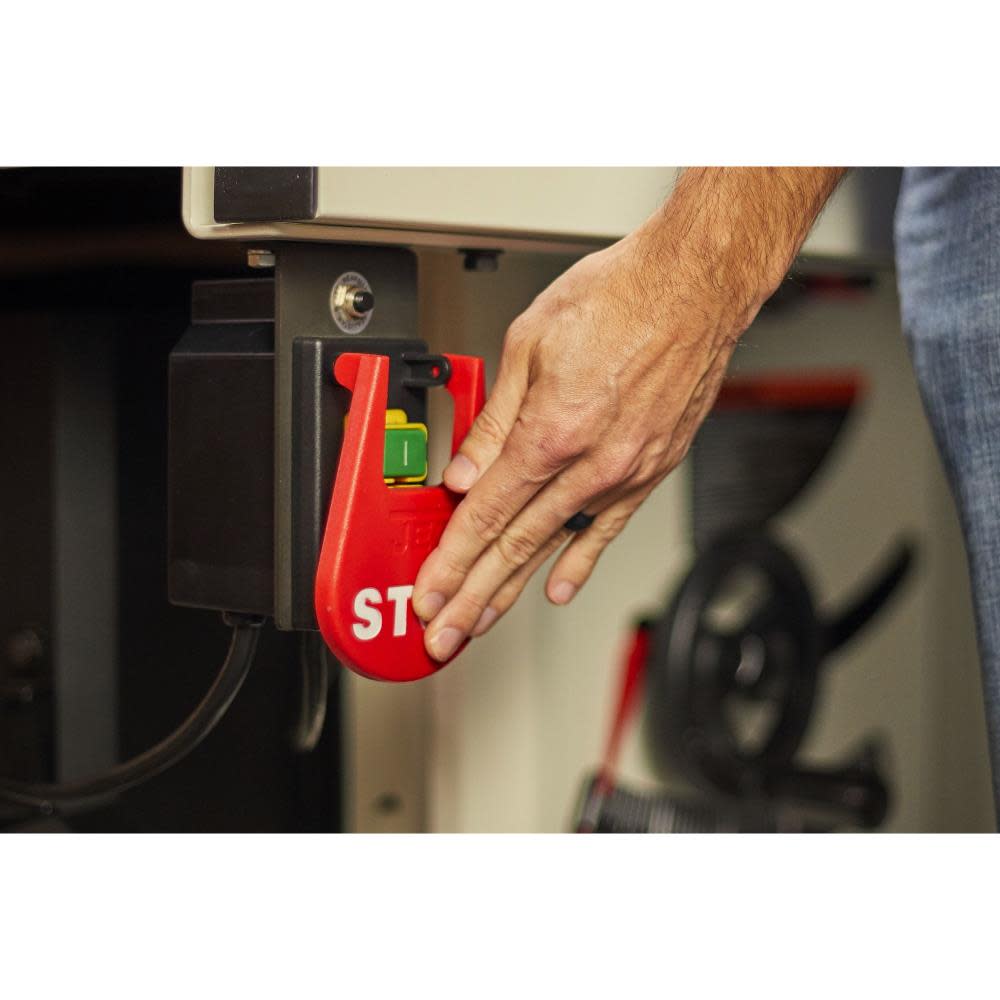

Convenient, magnetic paddle switch for the safest operation possible
Innovative single belt design for easier belt tensioning and reduced vibration
Motor reset switch conveniently relocated to the power switch, instead of the motor
Low profile riving knife included

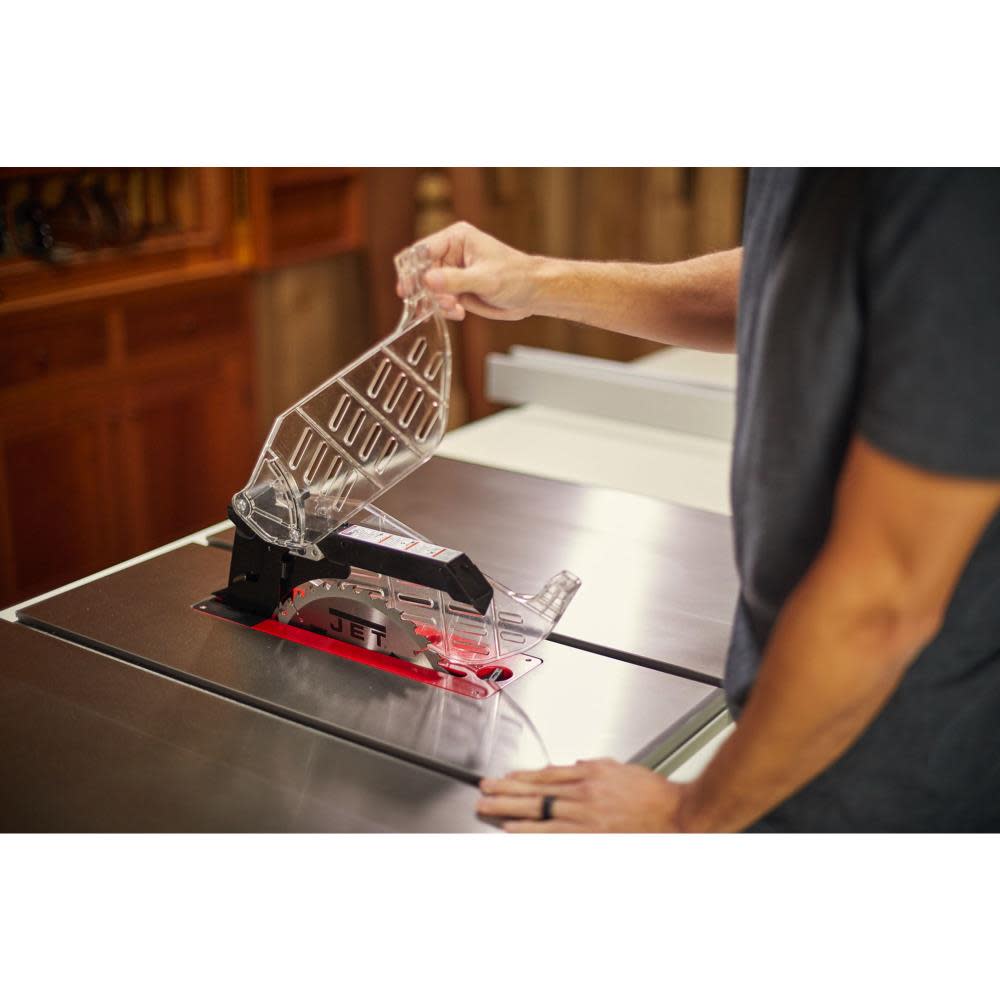

Redesigned guard for better protection and ease of use

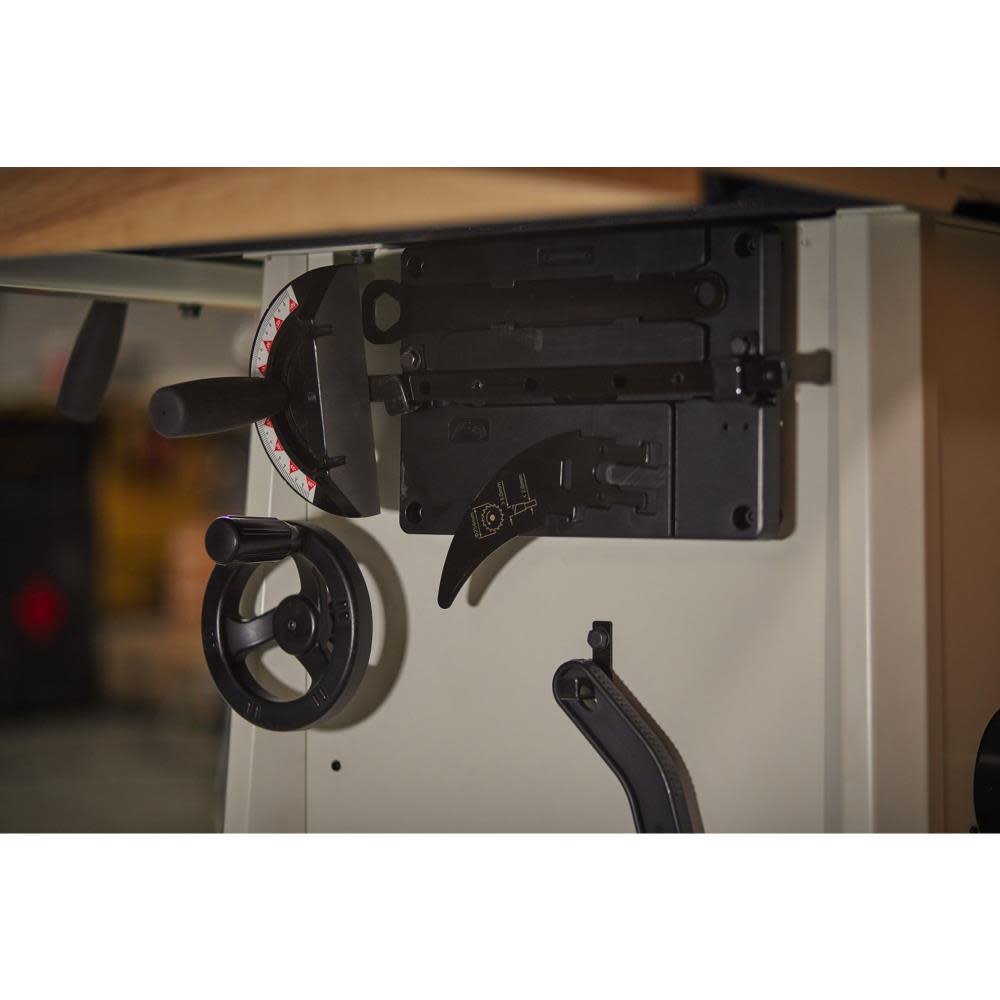

On board storage for all included accessories
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
725000K
Amperage (A)
7.4
Arbor Size (in)
0.625
Assembled Weight (lbs)
275.8
Bench or Stationary
Stationary
Bevel Direction
Right & Left Bevel
Blade Diameter (in)
10
Blade Speed (rpm)
3450
California Proposition 65 Warning Required
Yes
Color / Finish
White/Metal
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Diameter
10 in
Dust Blower
No
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Electrical Cord Configuration
14AWG x 3, 6 ft
ETL Listed
No
Fence Included
Yes
Flesh Sensing System
No
Horsepower (hp)
1.75
Internal Supplier Part #
725000K
Internet Product Code (IPC)
18CC25933C5
Manufacturer Warranty
5 Year Warranty
Material
Cast Iron
Maximum Dado Diameter (In)
8
Maximum Dado Width (in)
0.8125
Micro Adjust Fence
Yes
Miter Gauge
Yes
Miter Slot Depth
0.375
Net Tool Weight (lbs)
275.8
Number of Miter Slots
2
Package Depth
60
Package Height
43
Package Weight
301.6
Package Weight (lbs)
352.45
Repetitive Cut Marking system
Yes
Size
0.625 in
Spindle Lock
Yes
Table Height (in)
34.75
Table Height From Floor (In)
34.75
Table Length (in)
20
Table Material
Cast Iron
Table Space in Front of Blade
8.81
Table Width (in)
27
UL Listed
No
Voltage
115 Volts
