Description

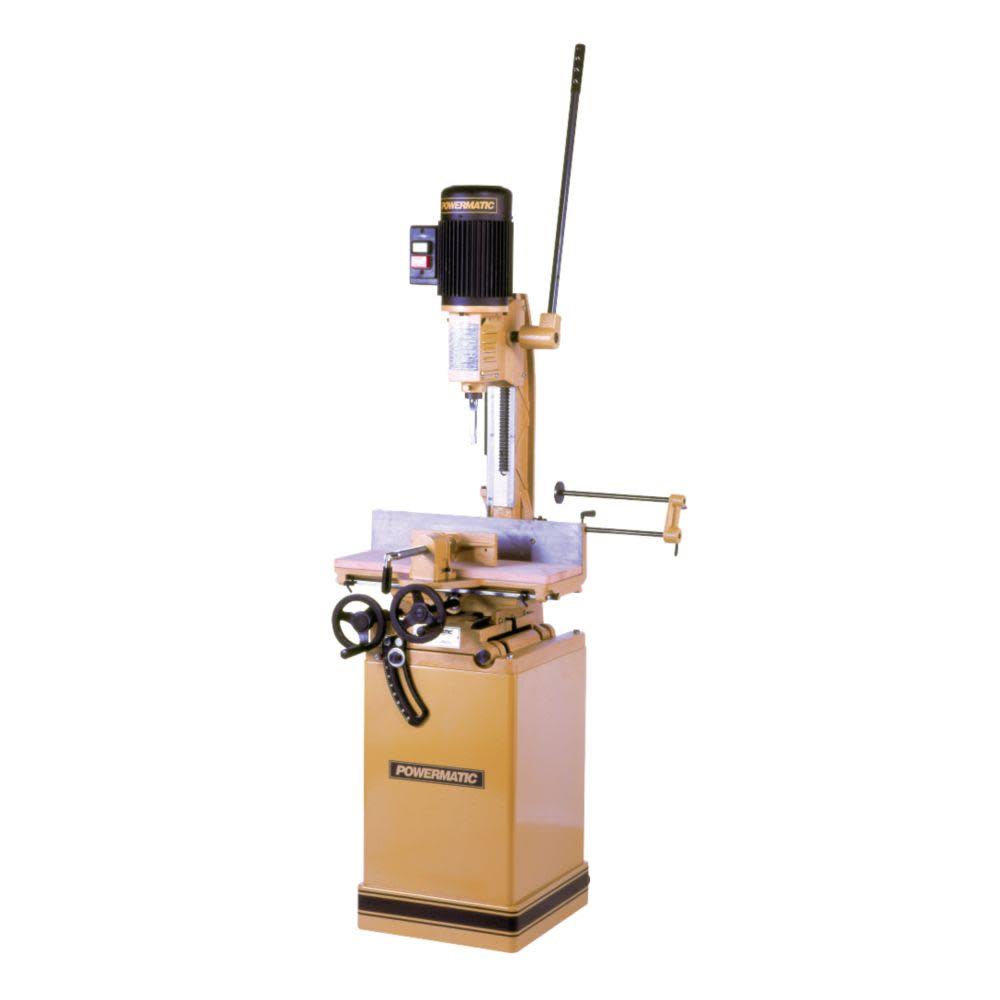

Powermatic 719 T Tilt Table Mortiser with Stand
The 719T Mortiser, 1HP 1Ph 115/230V, is an easy-to-use solution for creating joints, so your furniture pieces stick together securely. It has a 1hp motor runs the spindle at up to 1,725 rpm to get the job done quickly. This Powermatic mortiser features cast-iron construction to give it outstanding stability and strength. A swiveling vise clamp allows you to secure angled pieces for more precise results. The table mortiser’s rack and pinion system features gas cylinder controls to give you smoother raising and lowering action. This tool’s depth stop is easy to adjust so you can set it to a single depth and repeat it for more uniform results across multiple pieces.
Features
Powermatic mortiser comes with bushings in 5/8-inch, 3/4-inch and 1-1/8-inch sizes
Creates mortise joints that fit tenons for tight joints
Table mortiser’s 1hp motor achieves a top speed of 1,725 rpm
Cast-iron construction delivers stability and strength

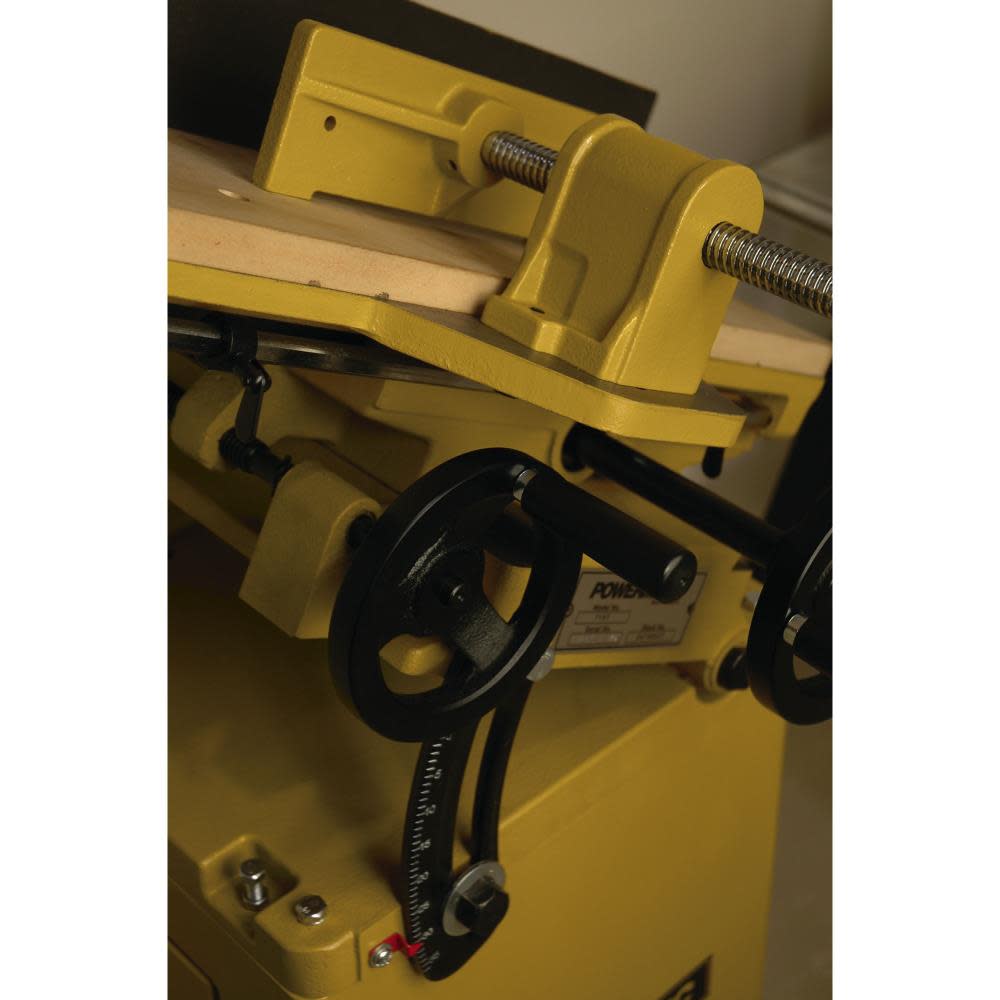

Heavy-duty mortiser’s swiveling vise holds angled pieces

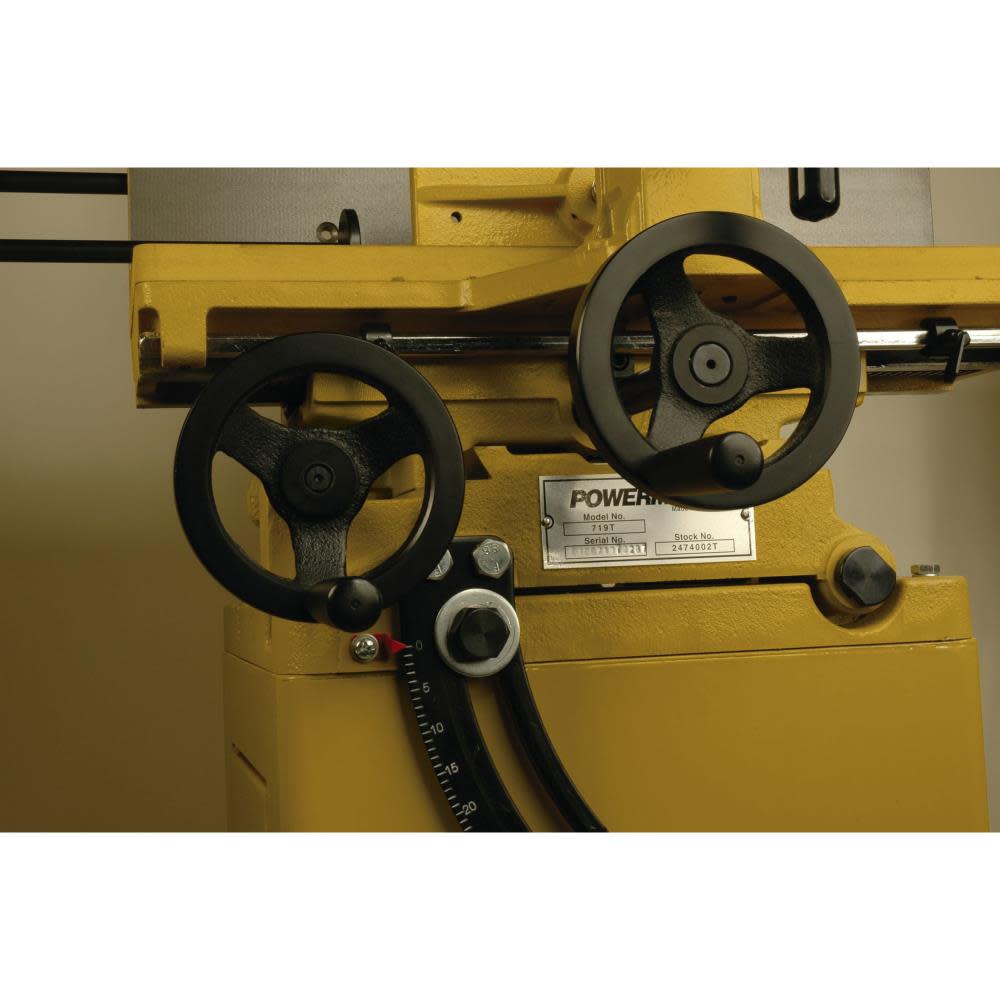

Gas cylinder makes the rack and pinion lower or raise smoothly
Adjustable depth stop makes it easy to repeat work across many pieces
5-year warranty for residential use; 2-year warranty for commercial applications
Adjustable work stop for repeat cuts
Specifications
Acme Tools Brand Name
POWERMATIC
Acme Tools Part Number
1791264K
Amperage (A)
11
Assembled Weight (lbs)
276
Bench or Stationary
Stationary
California Proposition 65 Warning Required
Yes
Chuck Key Storage
Yes

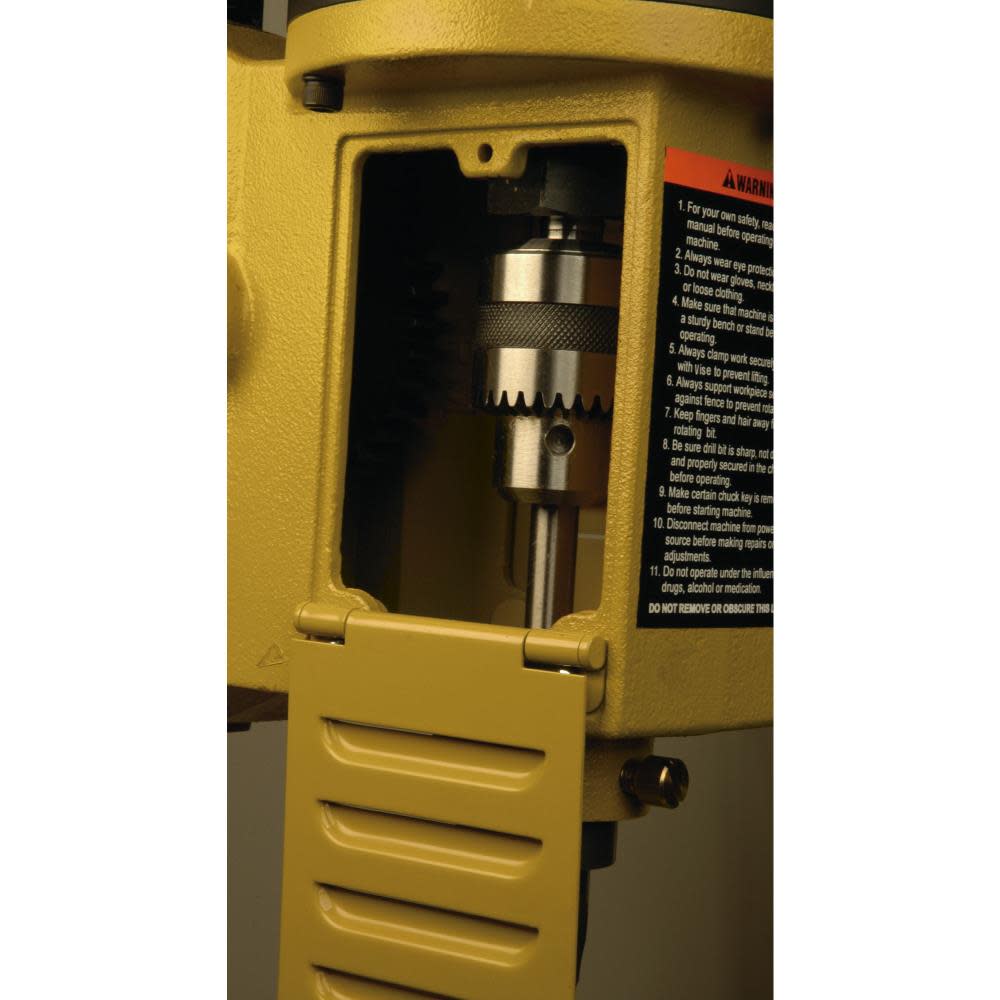

Chuck Size
1/2 In
Chuck Style
Key
Color / Finish
See Photo
Country of Origin
Taiwan
CSA Certified
No
Drive Motor System
Electric
ETL Listed
No
Fence Type
Not Adjustable
Horsepower (hp)
1
Illuminates
No
Integrated Laser Guide
No
Internal Supplier Part #
719T
Internet Product Code (IPC)
C1D3E6866D1
Length (in)
21.25
Manufacturer Warranty
5 Year
Motor Bearings
Yes
Net Tool Weight (lbs)
276
Number of Spindle Speeds
1
Overall Height (in)
0
Package Contents
Accessories Included
Package Depth
21.25
Package Height
74
Package Weight
292
Package Weight (lbs)
292
Pivot Head
No
Quick Release Belt Tension
No
Speed Range High (rpm)
1725
Speed Range Low (rpm)
1725
Spindle Travel (in)
6
Table Material
Steel
Table Movement
15.5
Table Tilt Range (Deg)
35
Table Work Surface Size
7 x 20.25
Tilting and Swiveling Table
No
UL Listed
No
Voltage
115/230 Volts
Width (in)
21.625
