Description

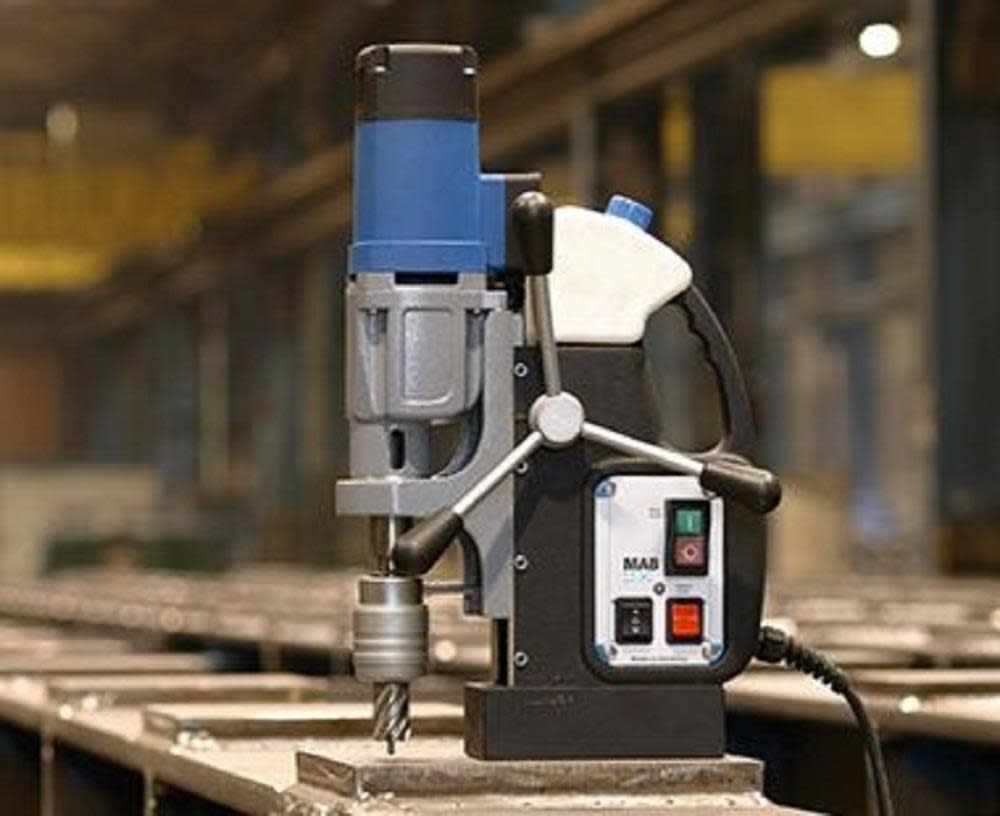

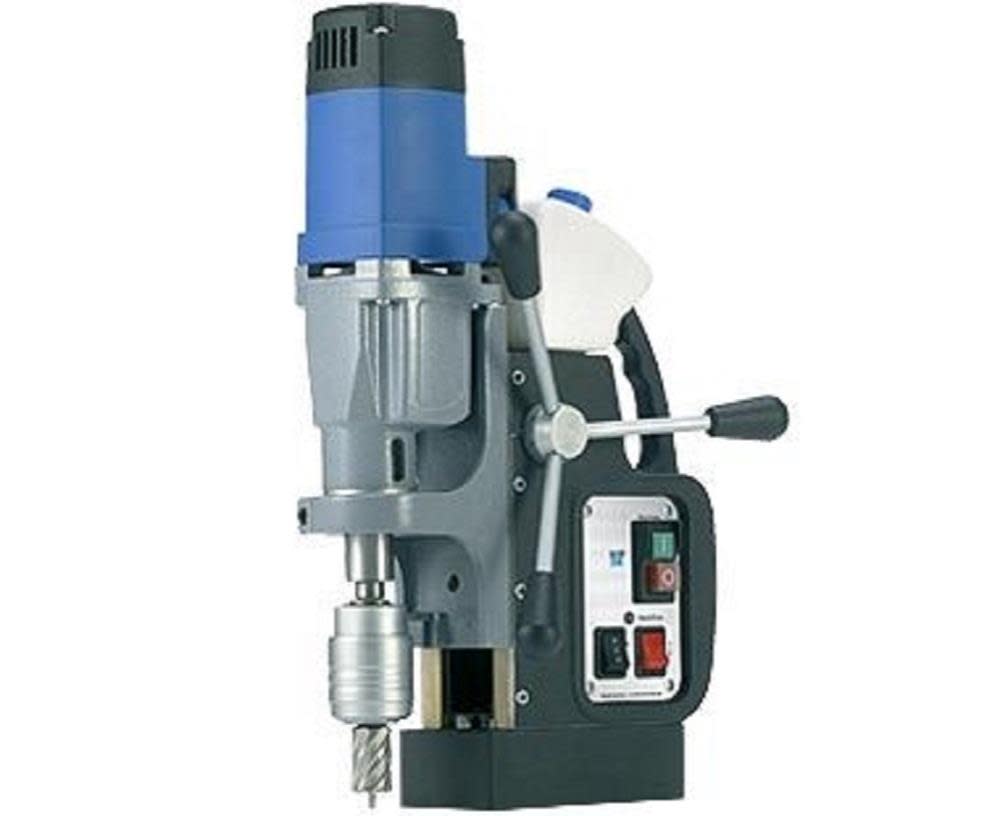

Portable Magnetic Drill with Swivel Base
Designed for continuous operation, the CS Unitec portable magnetic drills are ideal for drilling structural steel and virtually any metal. We offer the most compact, powerful and reliable series of portable magnetic drills for holes up to 5-1/8 In. diameter. All CS Unitec drills are heavy-duty for use in construction and industry. Our complete magnetic drill product line includes electric, pneumatic and hydraulic drills. They are available for prompt delivery.
Features
Powerful and reliable
Quick-change keyless cutter system
Integrated cutting oil reservoir
Automatic internal lubrication
Specifications
Acme Tools Brand Name
CS UNITEC
Acme Tools Part Number
MAB 485 SB
Amperage (A)
10.5
Assembled Weight (lbs)
27
California Proposition 65 Warning Required
Yes
Chuck Design
Keyless
Color / Finish
Blue, Black, Gray and White
Cordless / Corded
Corded
Country of Origin
Germany
Drill Press Type
Portable
Height (in)
11.61
Integrated Laser Guide
No
Internal Supplier Part #
MAB 485 SB
Internet Product Code (IPC)
8B0F5CBB2CF
Length (in)
17.25
Manufacturer Warranty
1 Year Limited Manufacturer Warranty. See Owner’s Manual for Details.
Net Tool Weight (lbs)
29
Package Contents
Drill, Quick-change arbor system KEYLESS Weldon 3/4″, Manual arbor with set screws, Weldon 3/4″, 2 Pilot pins – 1″ and 2″ depth, Safety chain, Drift key MT2, Tap collet adapters – 3/8″, 1/2″ and 3/4″, Warranty Certificate, Case, Operating Manual, Auto Lubrication, Safety Strap, Cabin Hoop and Allen Keys
Package Weight
32
Package Weight (lbs)
32
Pivot Head
Yes
Speed Range High (rpm)
450
Speed Range Low (rpm)
50
Speeds
2
Spindle Travel (in)
6.3

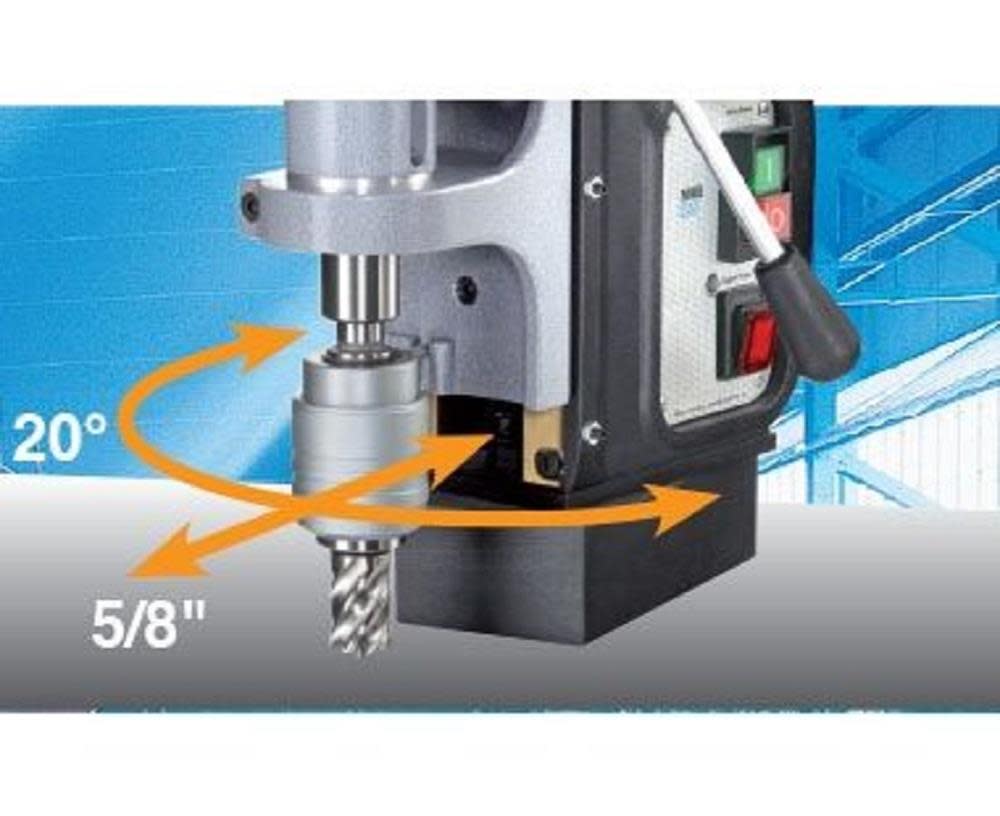

Tilting and Swiveling Table
Yes
UL Listed
Yes
Voltage
110 Volts
Width (in)
7
