Description

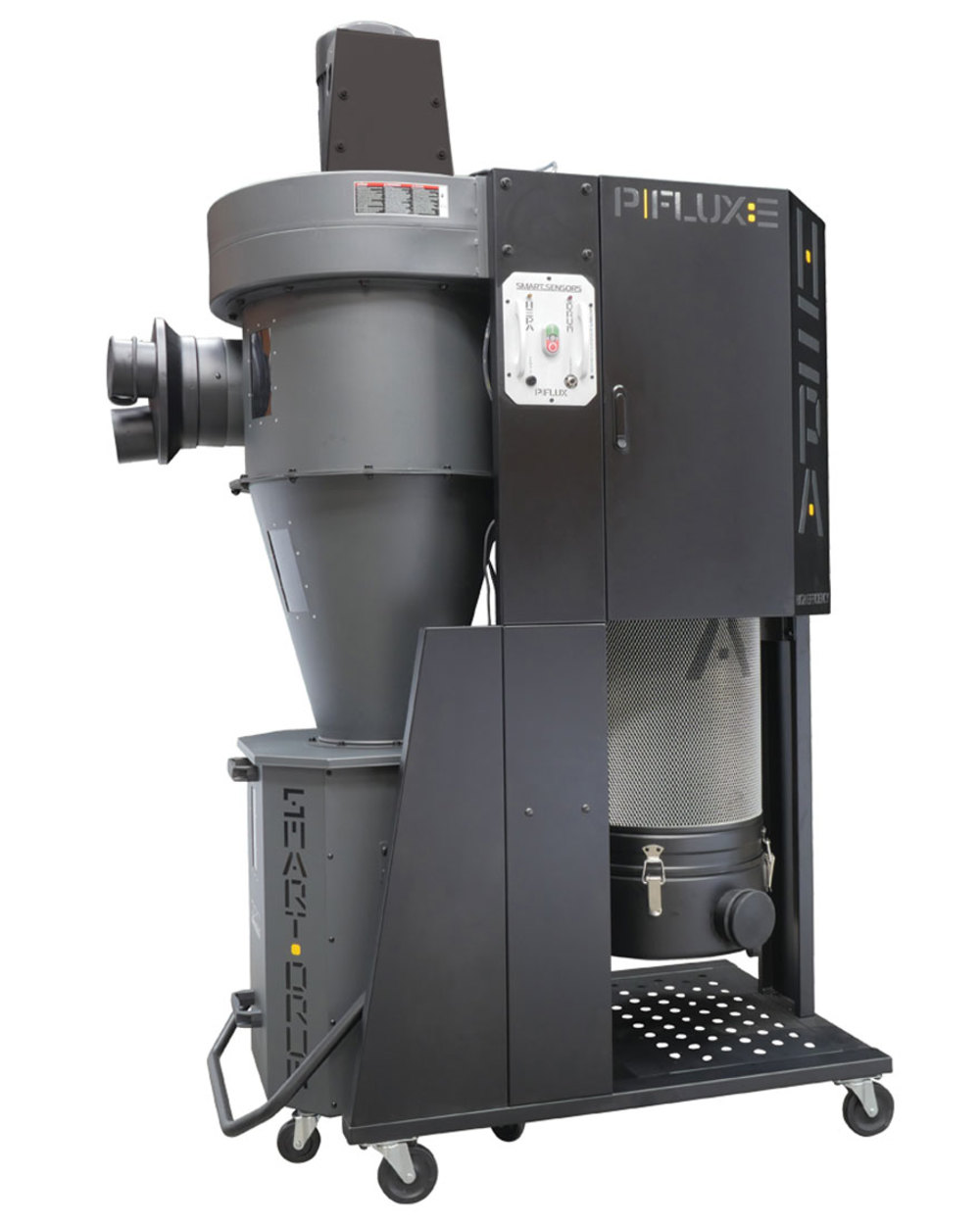

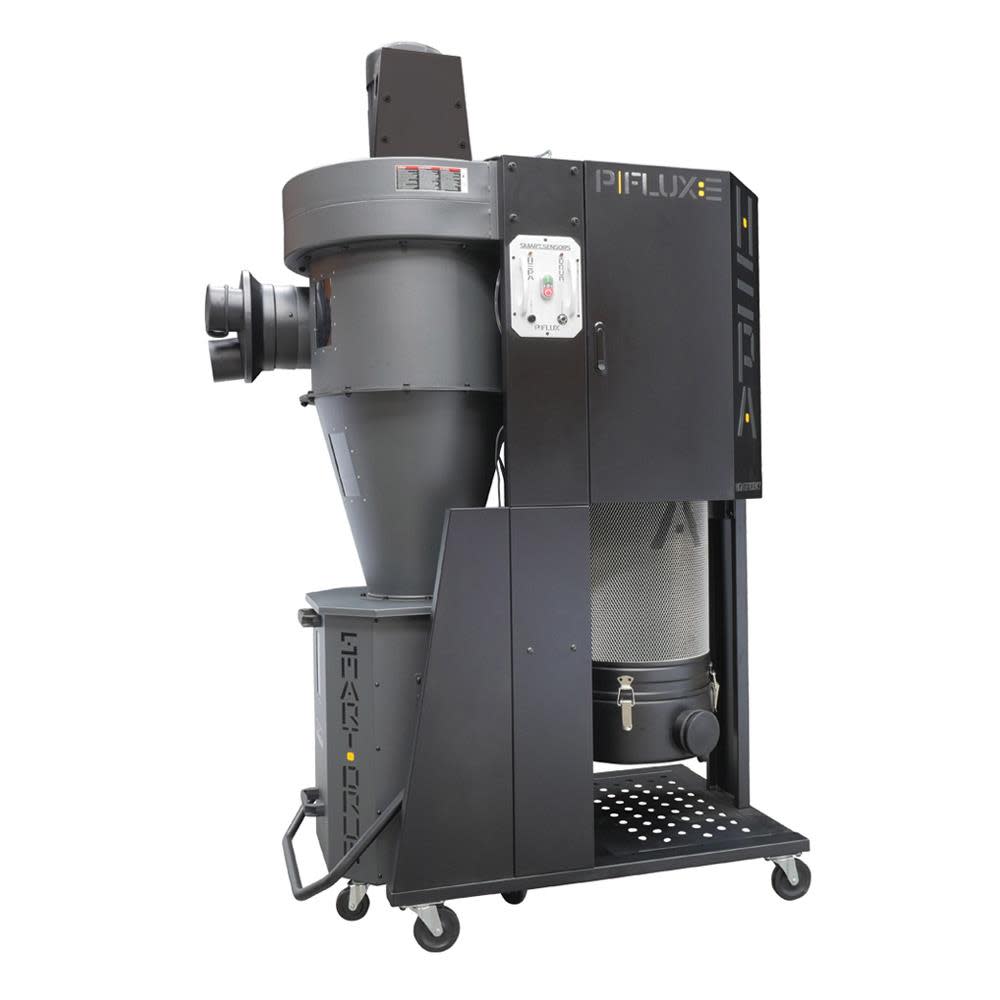

P|Flux:3 Dust Collector 2021 model

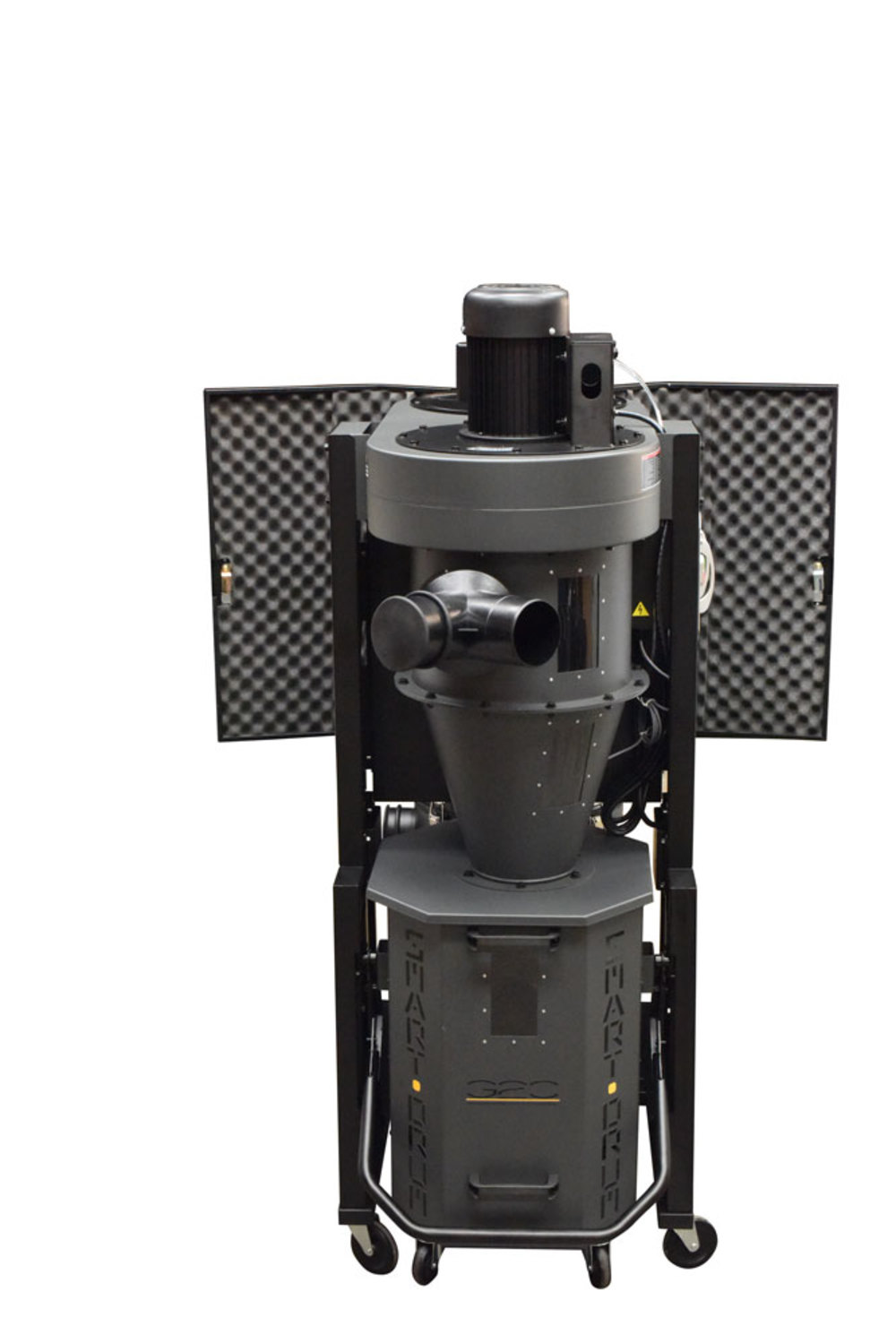

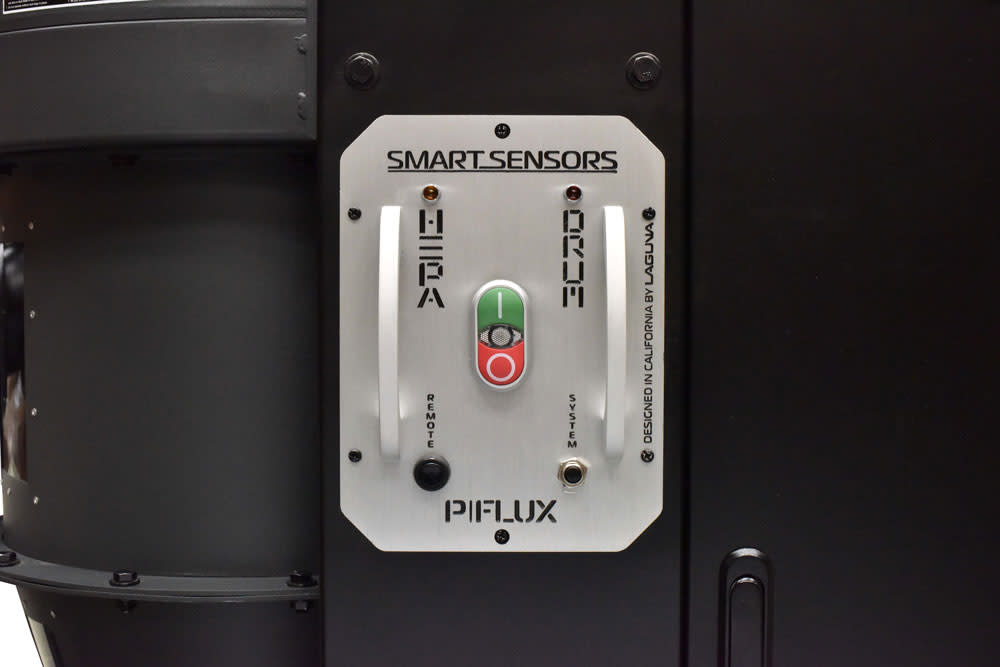

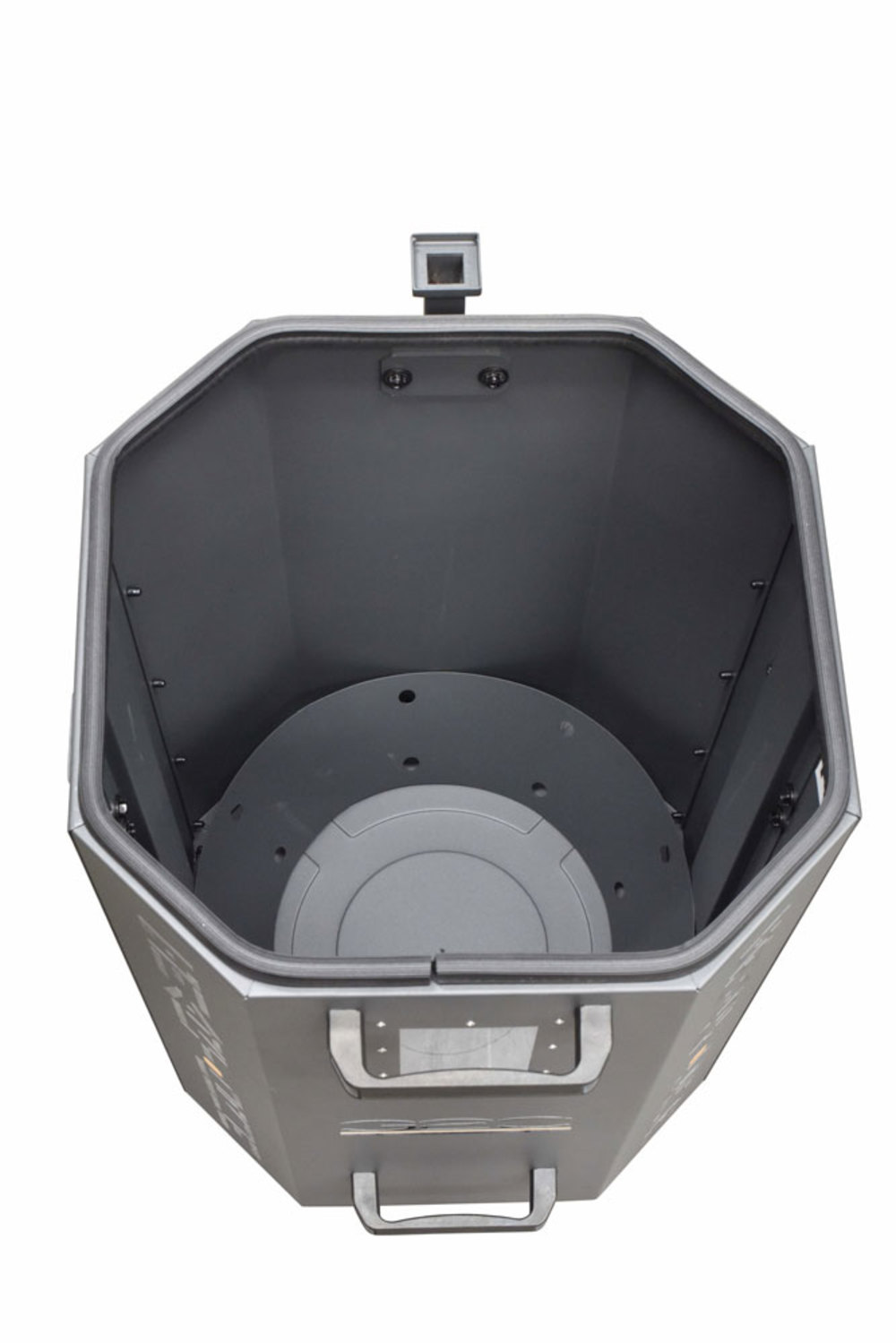

Peerless performance. Sporting standard black Hepa filtration the p|flux series is filled with innovative details such as: LED shows when drum is full, LED shows when filter needs cleaning, swing-away doors sports acoustic foam on the inside to lower noise level. When lifting the drum into position a connector on the back of drum automatically hooks up to a pipe in cyclone this way creating a low pressure in bottom of the drum, this is designed to hold down plastic bag to avoid it being sucked up into the cone during use, no other cyclone or dust system has such a smart system, it is a vast improvement over last generation. If you chose to use the p|flux without a bag you can simple shut off the system using a valve offering you speed and flexibility. 2021 Model
Features

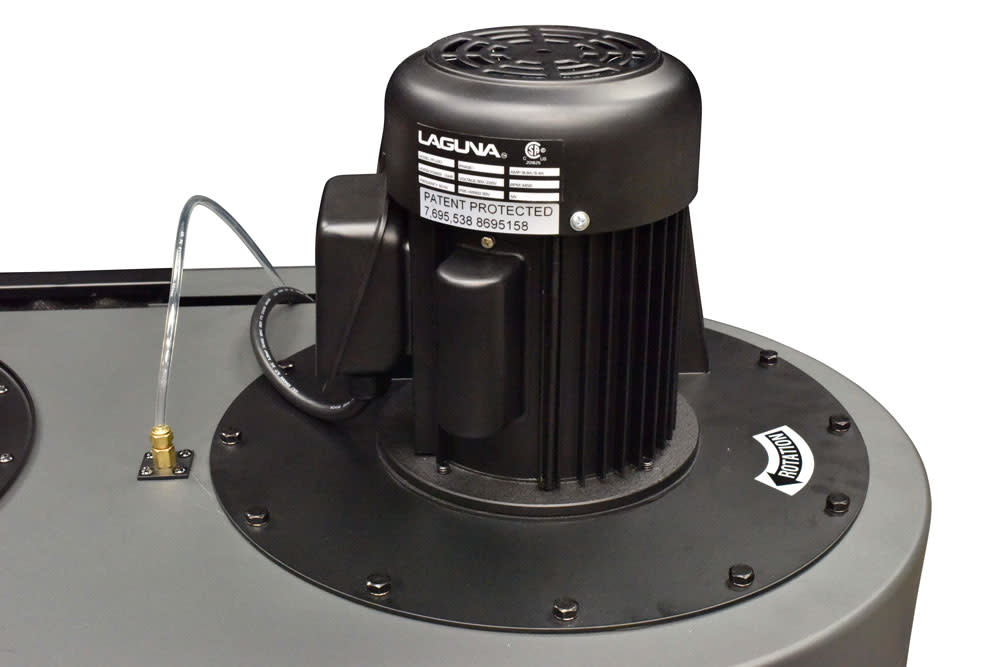

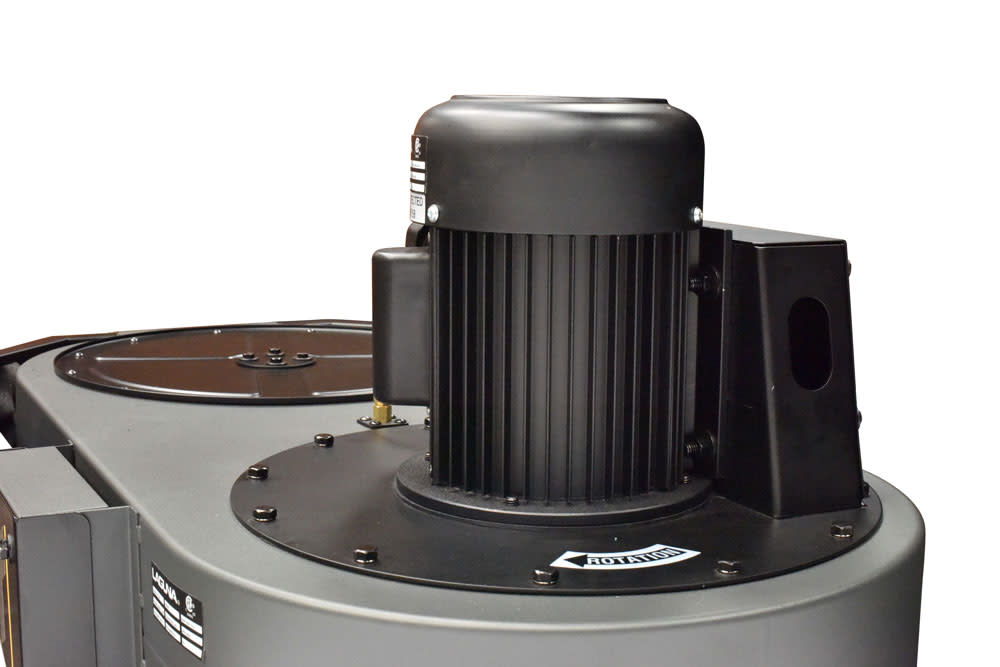

2021 Model Motor HP 3 HP, phase 1, voltage 220,
Amps 22 A, hertz 60, plug no
RPM 3450, high frequency hand held remote control
Nominal CFM 2817, inlet diameters 8″ by 4″ x 3 ports
Max static pressure (inches of water) 11.2″
Impeller/fan size 15.5″
Impeller material steel
Impeller type radial fin
Balanced to: ISO 1940
Canister diameter Ø 400 mm (15.75″)
Canister length 900 mm (35.43″)
Canister cleaning: clean using external air compressor (not incl)

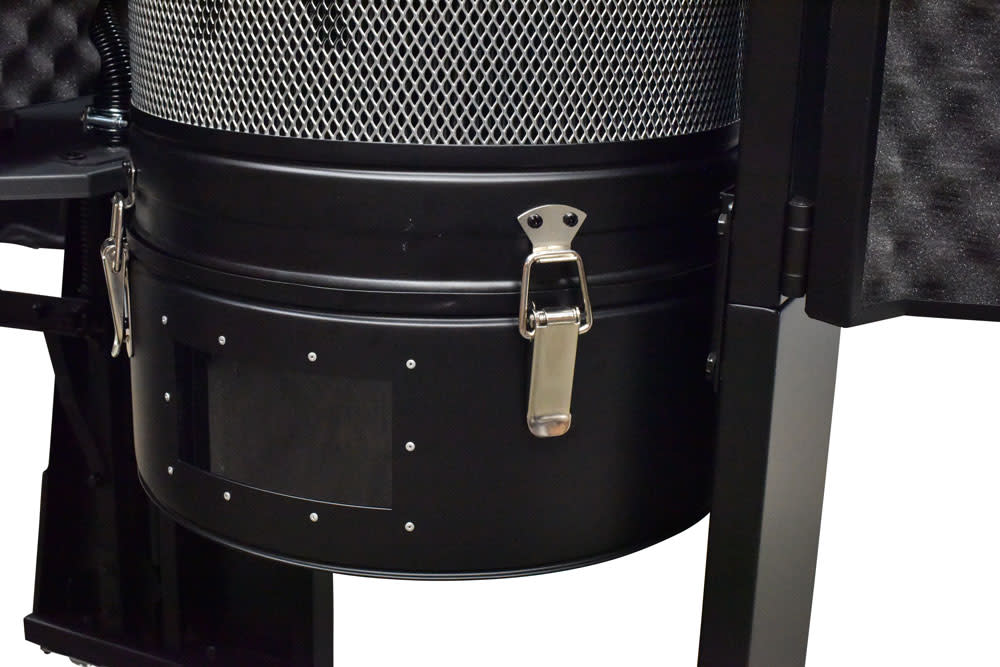

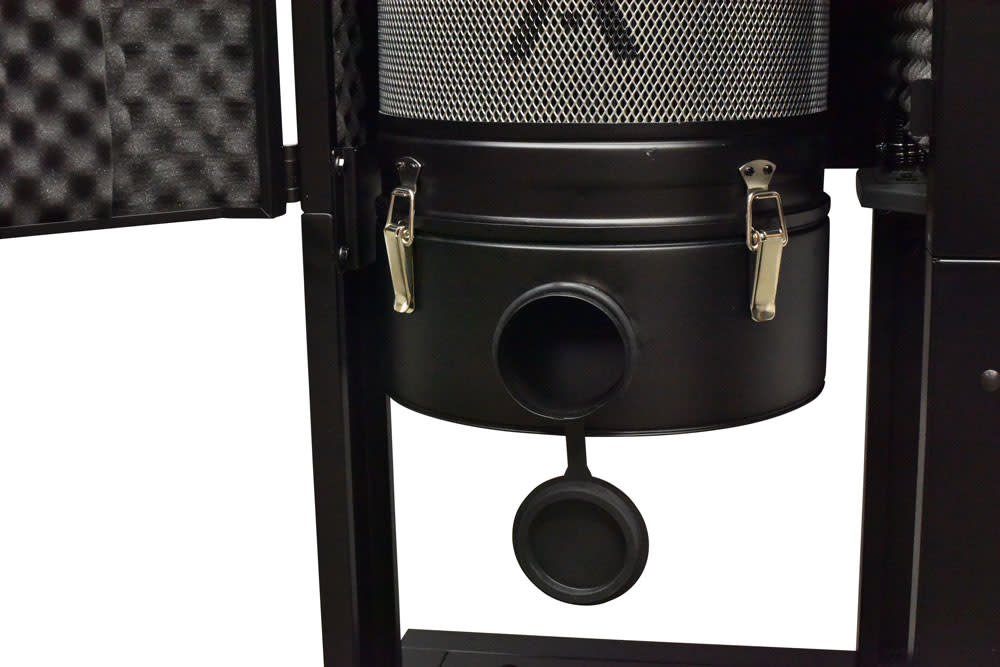

Canister filter lower dust collection: metal end cap with 4 In. hookup
Frame wheels: (4x) 4 In. flat caster
Drum wheels: (4x) 4 In. flat caster
US/CSA approved: yes
Filter surface area: 109 ft²
Decibel reading: 76 d B(A) (@ 9.8 ft)
