Description

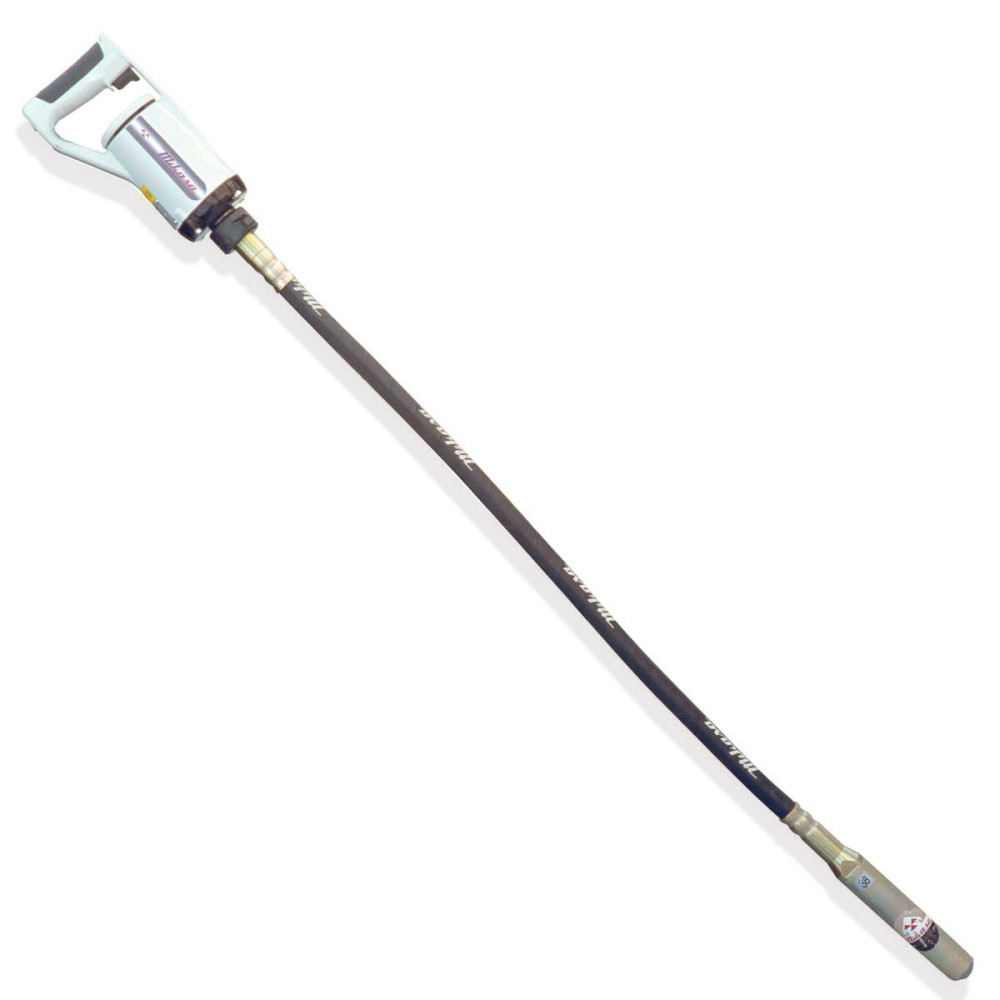

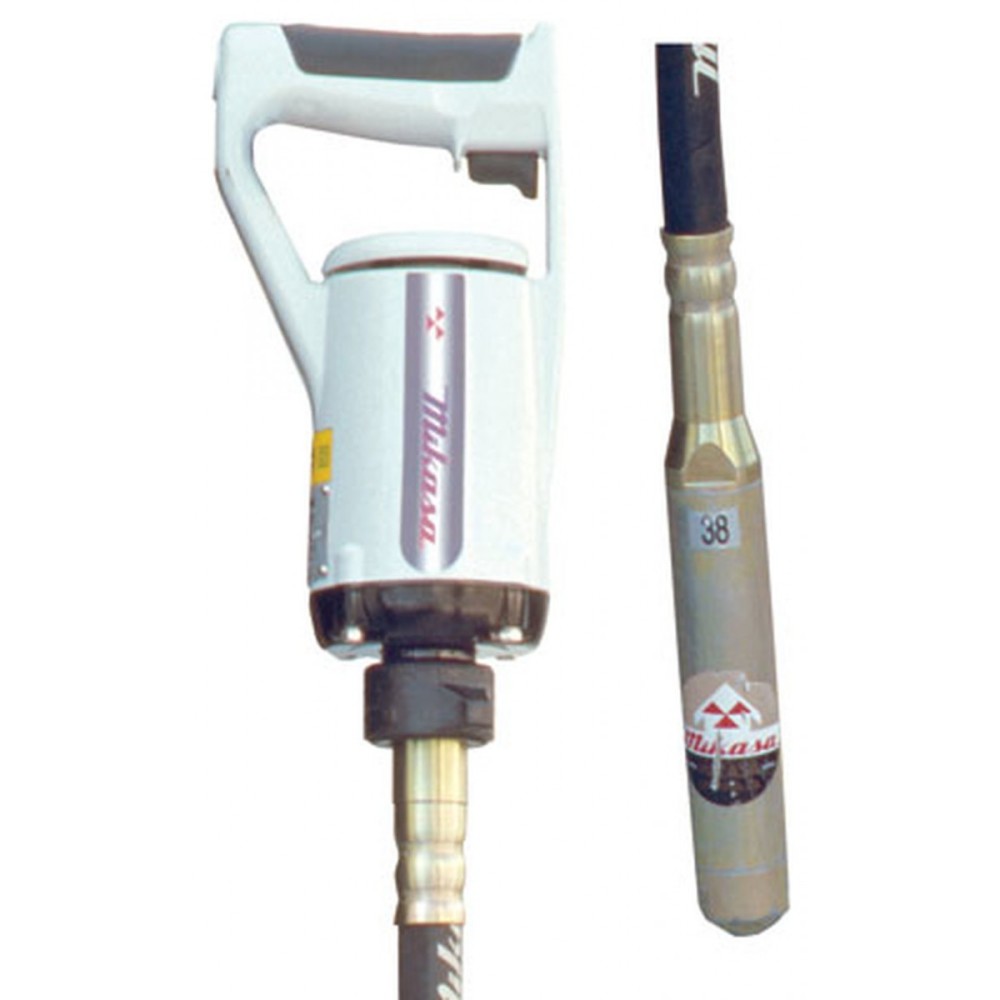

MultiQuip UM Series Concrete Slump Handheld Vibrator 120V 3.8A
The UM series handheld vibrators are ideal for short pours, walls, footings, and provide exceptional power in a lightweight, user friendly package. Multiquip offers a selection of complete motor/head/shaft combinations to meet all your requirements. Vibration dampening handle grip reduces operator fatigue. Original cord protector gives flexibility to input cord for longer cord life. A vibrating steel head is attached to one end of the flexshaft. This head generates vibration via an eccentric rotator that consolidates the concrete by removing air pockets. The round head design allows for the transmission of vibration in all directions.
Features
Lightweight aluminum motor case for easy portability
Durable 120V universal motor
Vibration dampening handle reduces operator fatigue
Sealed fan greatly reduces airborne contamination
Double insulated for no ground necessary
120V 3.8A 280W 200-258HZ
1.1 In. heads, 0.022 In. amplitude
8.2 Ft. shaft length, 9.6 Ft. overall length
6.6 Lbs motor weight, 9.46 Lbs shaft head weight, 16.06 Lbs total weight
Specifications
Acme Tools Brand Name
MULTIQUIP
Acme Tools Part Number
UM12825
Assembled Weight (lbs)
16.06
Country of Origin
China
Current Rating (A)
3.8
Package Contents
Handheld Vibrator
Package Depth
12.34
Package Height
12.34
Package Weight
16.06
