Description

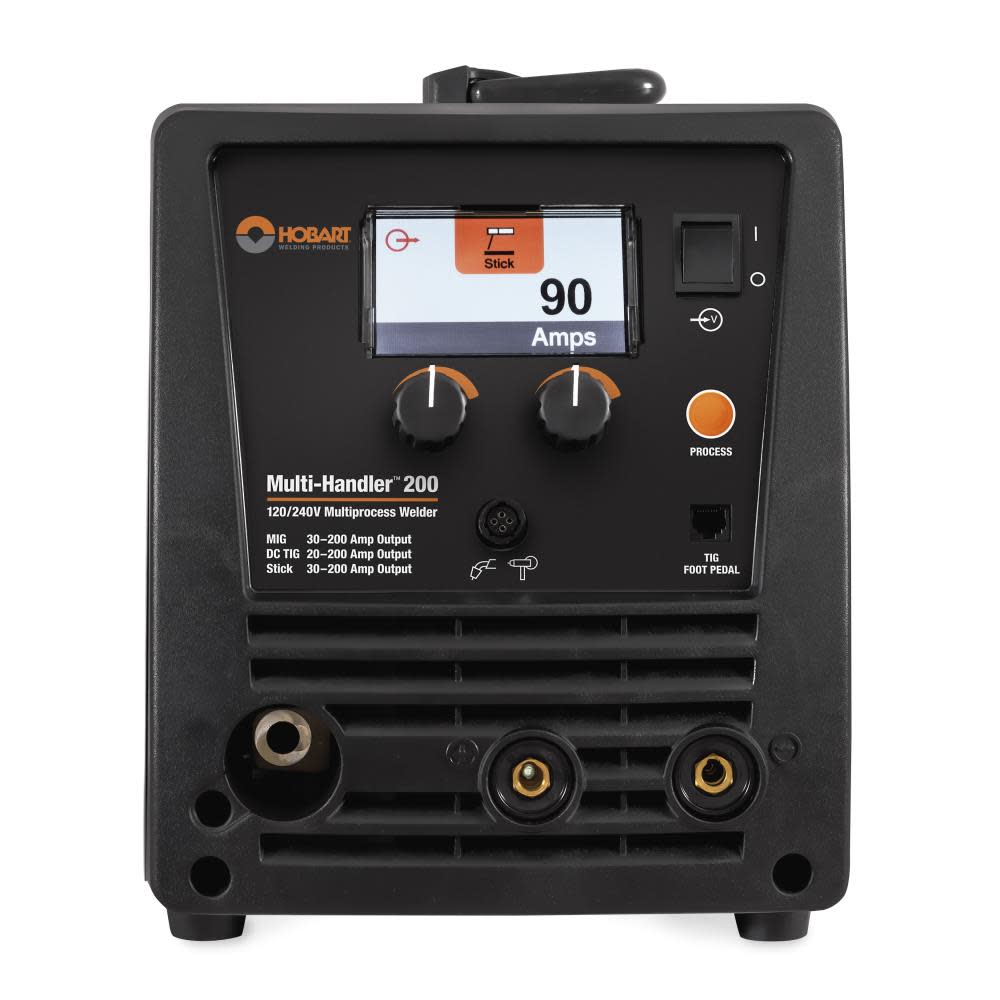

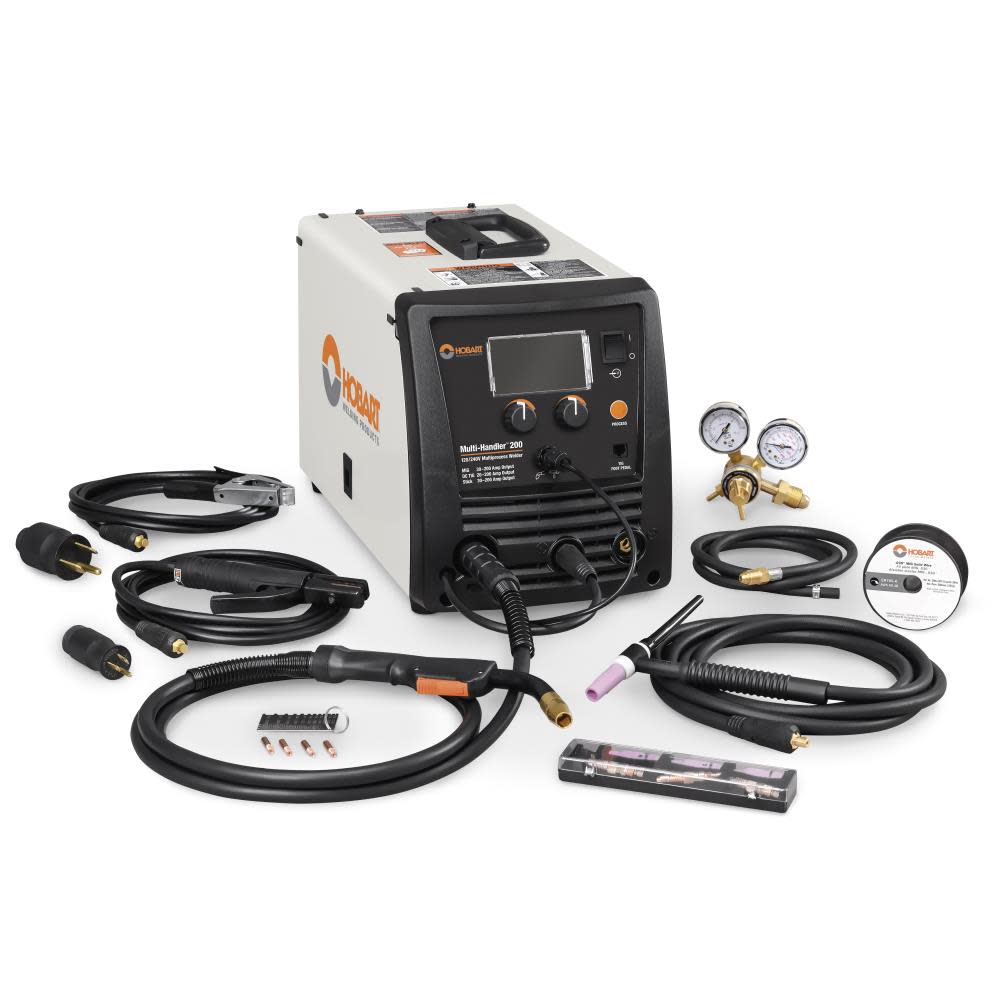

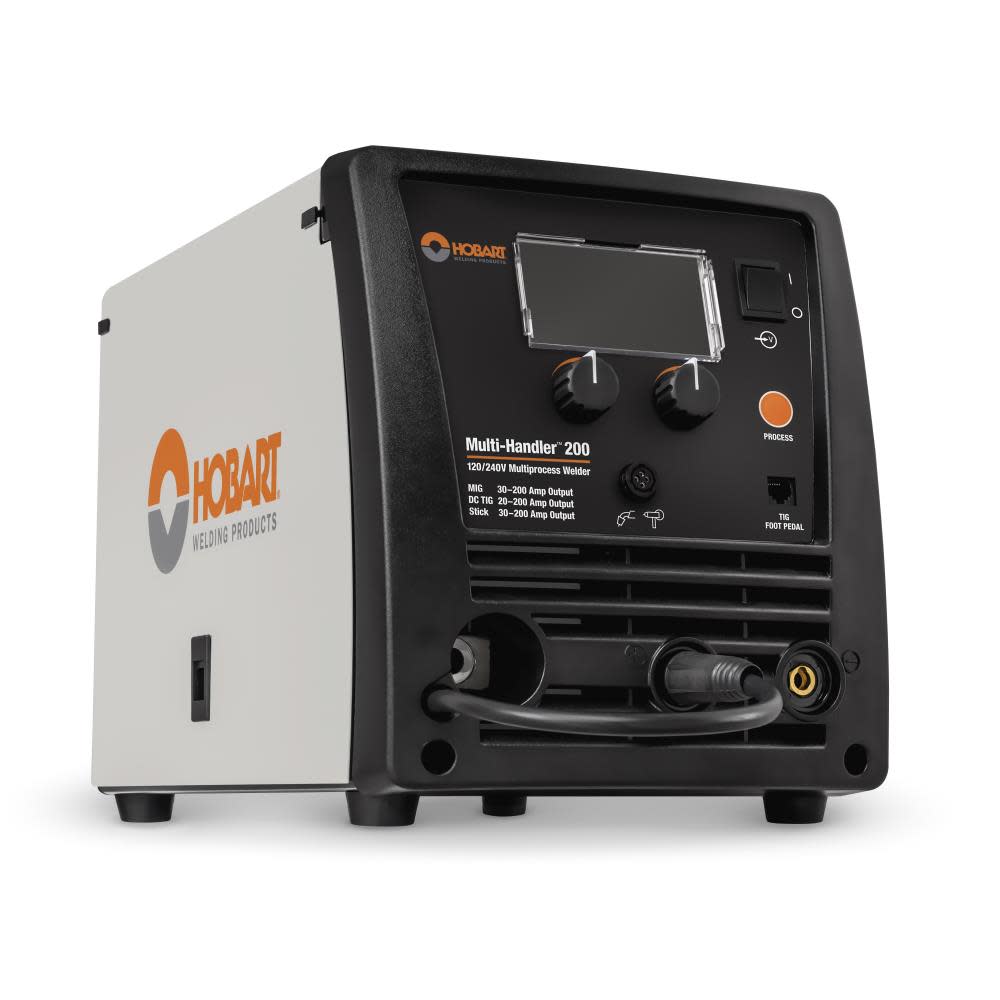

Multi-Handler 200, 120/240V Multiprocess Welder
Multi-process capabilities in a lightweight, versatile machine. Delivering 200 amps of output, the Multi-Handler 200 is capable of MIG, DC TIG and stick welding, giving you the flexibility to tackle many projects. It can MIG and stick weld up to 3/8-inch material and TIG weld up to 3/16 inch. The color LCD makes setup and changeover easy. Connect the appropriate accessory for the process, change polarity if needed, select the process and dial in your parameters. The parameter chart inside the door provides starting parameters for you to use. The Multi-Handler 200 has multi-voltage plug (MVP) technology so it can be used on either 120- or 240-volt input power.
Features
Multi-process capabilities – versatility with one machine that provides MIG, DC TIG and stick capabilities
Easy-to-use interface – with two knobs and a process button, setting up or changing over this machine is quick
Dual-voltage – allows you to connect to common 120- or 240-volt power receptacles without the use of any tools — simply choose the plug that fits the receptacle
Built-in wire feeder – positive feed with adjustable tension plus easy accessibility to thread new wire
Spool hub accommodates 4- or 8-in spools – offers you flexibility to use small or large spools of wire to better suit your welding needs
Quick select drive roll – makes setup quicker by offering three grooves — two for different size solid wire and a third for flux-cored wire
Spool gun ready – spool guns enhance feed ability and reduce “bird-nesting” associated with soft aluminum wires
No additional control box or adapter is required to connect the SpoolRunner 100 spool gun
Hobart 5/3/1 warranty – five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems and one year on guns (MIG, plasma and TIG torches)
Specifications
Acme Tools Brand Name
HOBART
Acme Tools Part Number
500578
Assembled Weight (lbs)
38.4
California Proposition 65 Warning Required
No
Country of Origin
China
CSA Certified
Yes
ETL Listed
No
Height (in)
13.4
Housing Material
Metal
Input Voltage
120
Internal Supplier Part #
500578
Internet Product Code (IPC)
48FE95AFD21
Length (in)
20.8
Manufacturer Warranty
Hobart 5/3/1 industrial warranty
Package Contents
Multi-Handler 200 Multiprocess Welder
Package Depth
20.08
Package Height
13.4
Package Weight
38.4
Package Weight (lbs)
38.4
UL Listed
No
Voltage
120
Voltage Rating
120V / 240V
Weight (lbs)
38.4
Welder / Cutter Type
Mig Welder
Width (in)
10.6
