Description

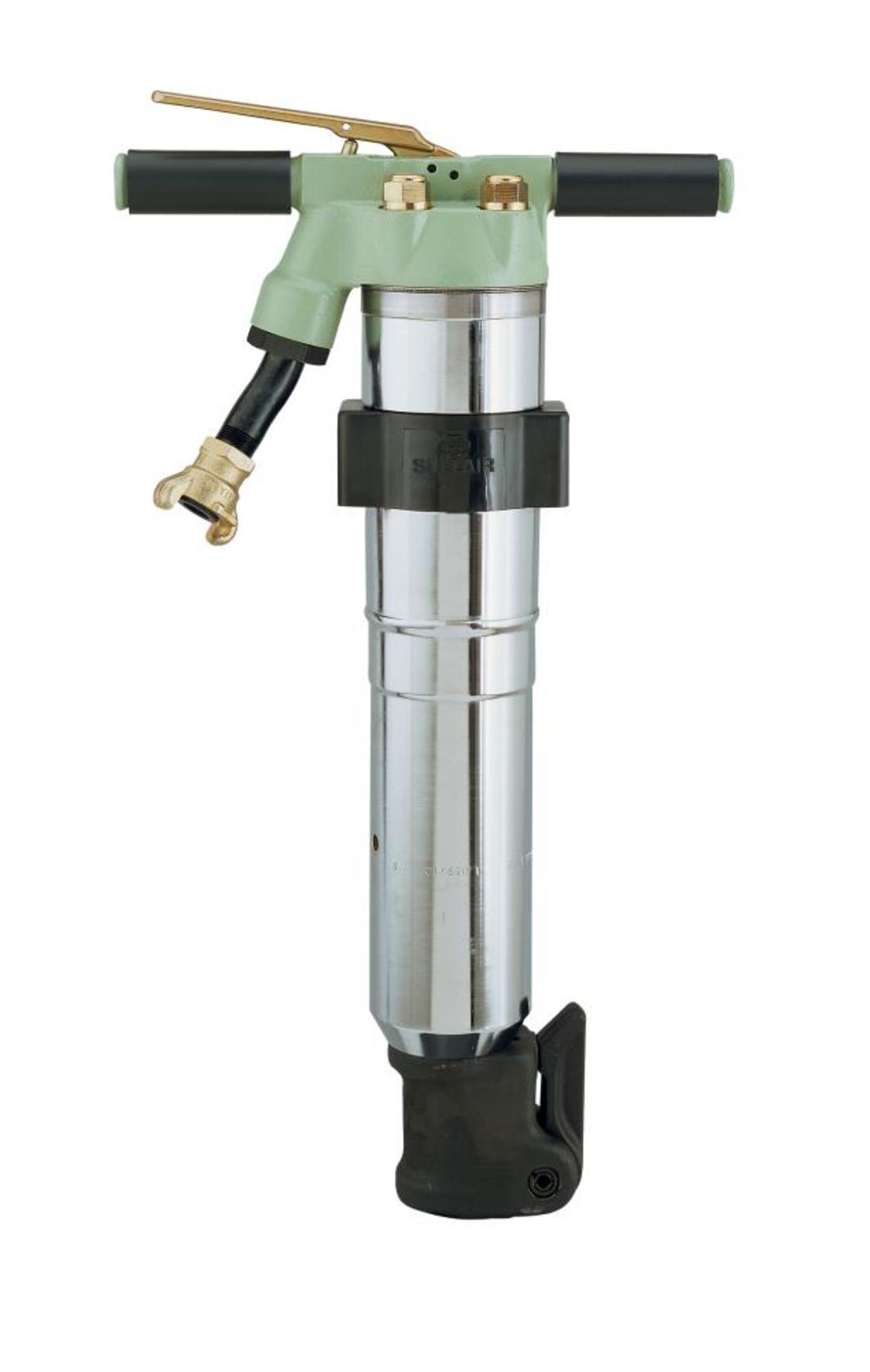

MPB-90A Pavement Breaker

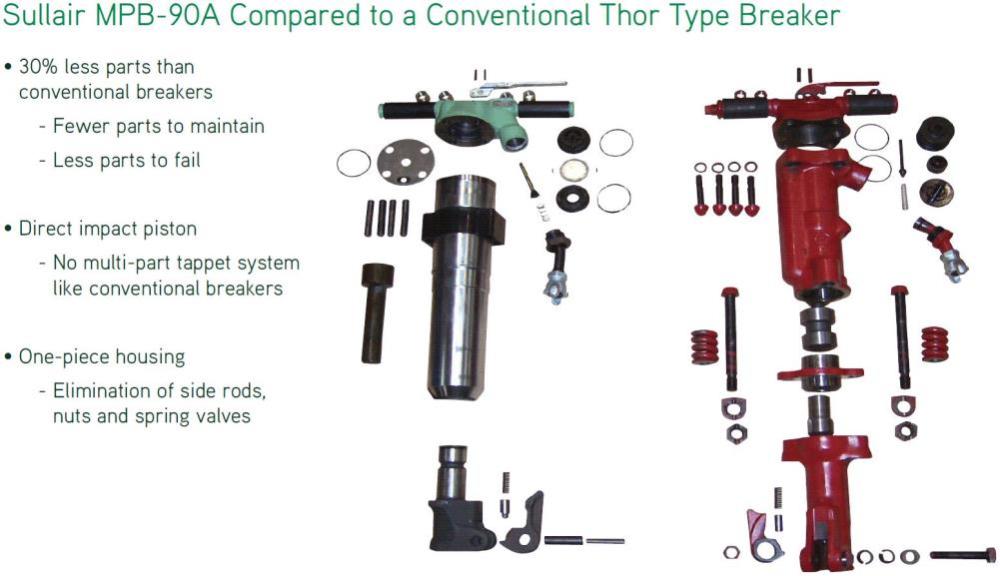

We have eliminated most high-wear parts in our breakers. Fewer parts mean less wear, less maintenance, and less downtime. Elimination of side rods, nuts, and springs make them sleeker and more comfortable to operate. Weve also simplified and standardized our air tools to make parts interchangeable between our various models.
Features
Our direct-impact, non-corrosive automatic valve design with its one-piece housing dramatically reduces air consumption. you can operate multiple tools from a single compressor.
Weight 92 lbs.
Length 27-1/2 In.
Bore & stroke 2-7/16 In. x 5-9/32 In.
Impact rate 1380 blows/min.
Air consumption 62 cfm (1.8 m3/min, 29 L/s)
Air inlet diameter 3/4 In. NPT
Shipping weight 97 lbs.
Chuck size 1-1/8 In. HX x 6 In.
No tappet system
One piece, non-protrusive housing
Minimal lubrication required
Direct impact piston
Parts interchangeability
Quieter
Smoother operation
Improved latch design
Less air consumption
Two-year limited warranty
Specifications
Acme Tools Brand Name
SULLAIR
Acme Tools Heavy Equipment
true
Acme Tools Part Number
68253070
Amperage (A)
0.0
Assembled Weight (lbs)
92
Brush Failure Shutdown
No
California Proposition 65 Warning Required
Yes
Chuck Design
Not Applicable
Color / Finish
Sullair Green / Polished Metal
Cord Length (ft)
0.0
Cordless / Corded
Corded
Country of Origin
Uruguay
Decibel Rating (dB)
9999
ETL Listed
Exempt
Handle Type
Standard T-Handle
Housing Material
Metal
Impact Energy
9999
Included Accessories
None
Internal Supplier Part #
68253070
Internet Product Code (IPC)
7FAD5AF148B
Length (in)
27.5
Lock-on Switch
No
Manufacturer Warranty
Two-year limited warranty
Material
Metal
Maximum Wattage (W)
0.0
Net Tool Weight (lbs)
92
Package Contents
MPB-90A 1-1/8in.
Package Weight
97
Package Weight (lbs)
97
Powered Tool Power Source
Pneumatic
Soft Start
No
Transport Cart Included
No
UL Listed
Exempt
Variable Speed
No
Vibration Dampening
No
Voltage
0.0
Weight (lbs)
92
Width (in)
16.14
