Description

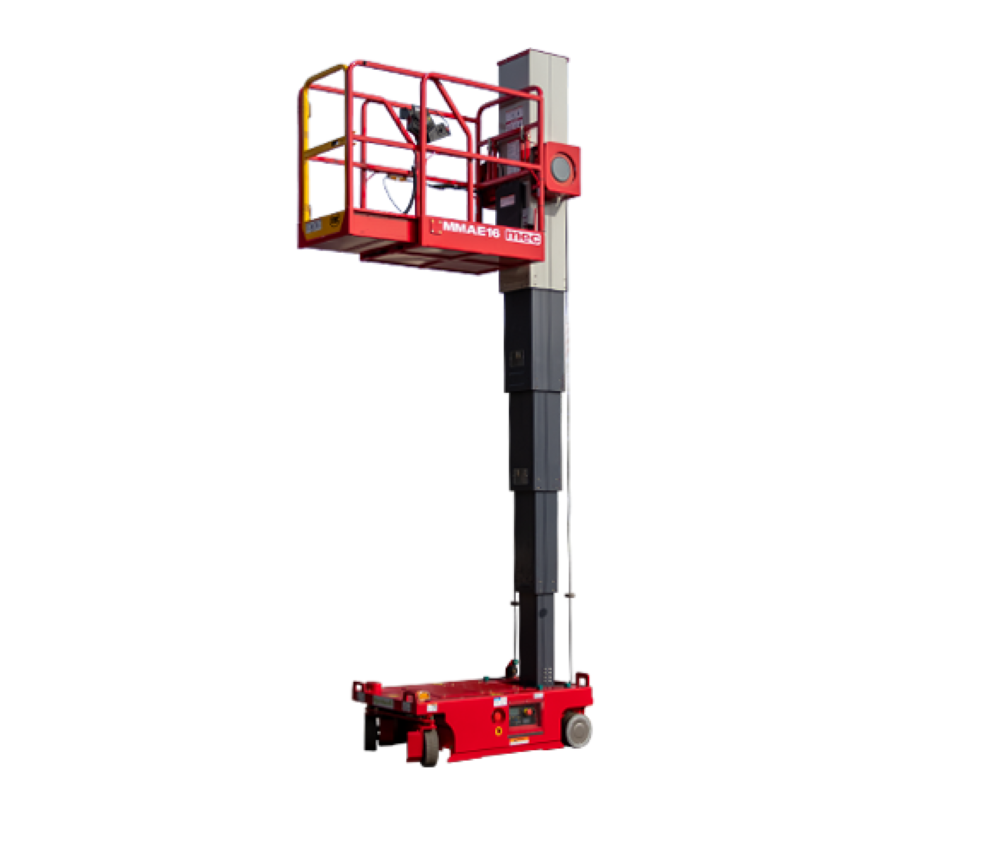

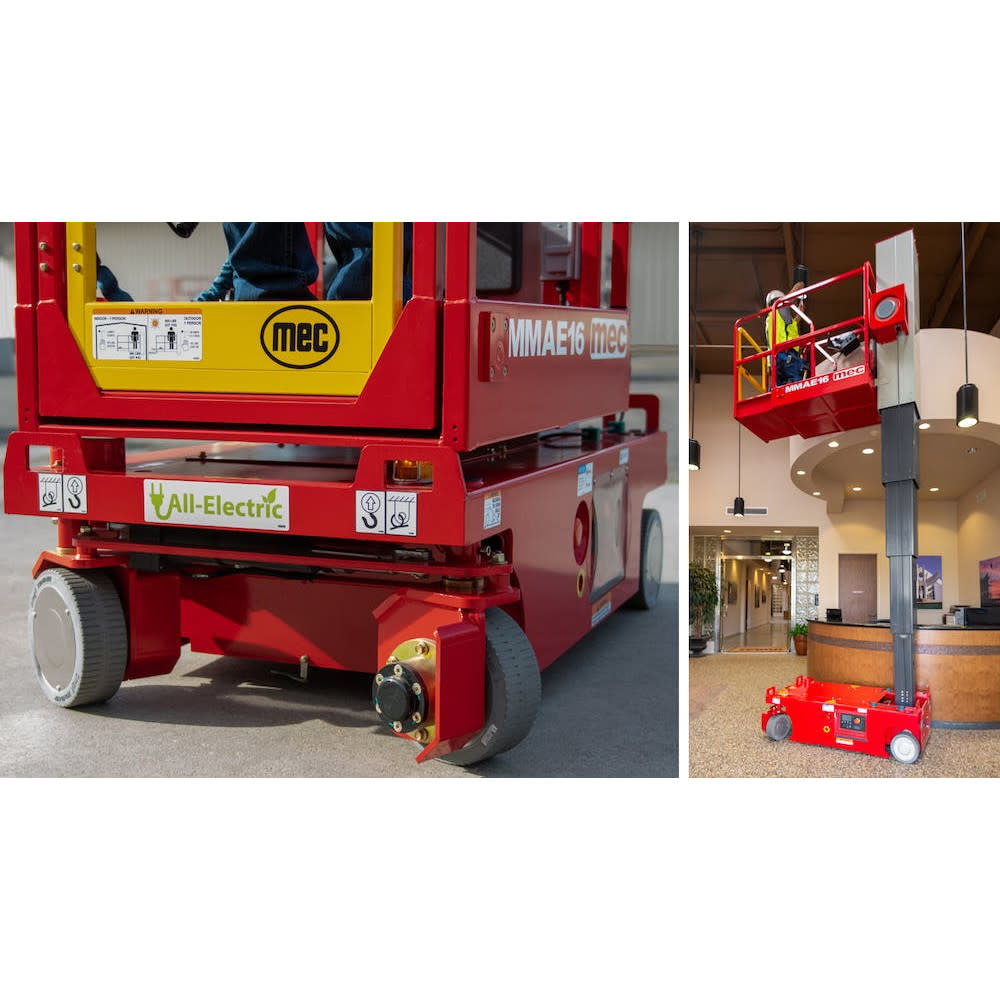

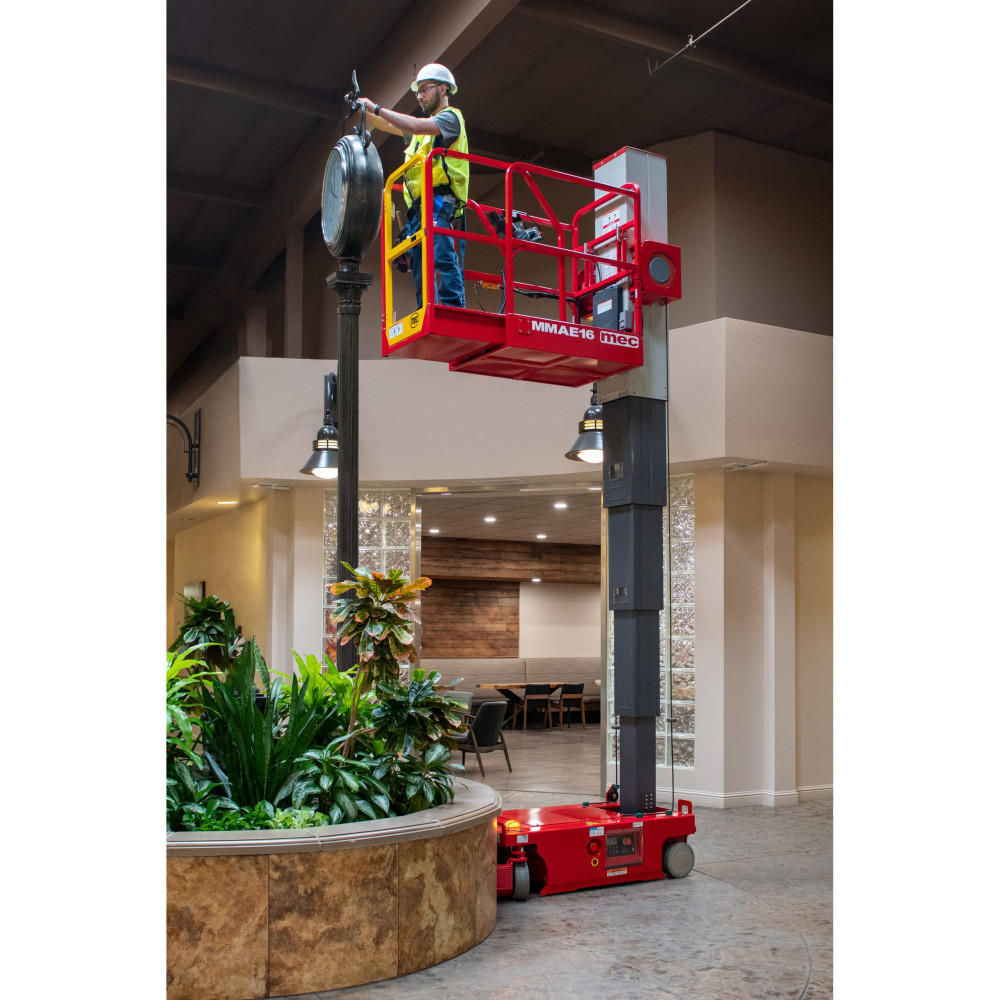

MEC 16′ All Electric Vertical Mast Lift New
MEC’s All Electric vertical mast offers the industry’s prevailing 16 Ft. platform height while delivering enhanced features for better productivity, accessibility and durability. Optimal duty cycle with standard AGM batteries and higher residual value. Fits on most elevators and into tight work areas with a true slide-out deck and low floor loading (Ground Pressure: 110 Psi). Standard steel platform, 250 Lbs capacity glide-out deck, lift-up entry gate and more.
Features
Work Area: Roll-out deck extension with incremental locking positions, (2) lanyard attachments, standard full height swing gate
Performance: All-electric – optimal in battery duty cycle, fully proportional drive and lift controls, zero hydraulic oil
Power: 24V 115Ah AGM electric power, battery charge indicator
Serviceability: Lubrication-free bearings, parking brake release for winching
Safety: Dedicated emergency lowering battery, emergency shut-off at platform and lower controls, non-skid metal deck construction, descent alarm, drive speed interlock, multi-axis tilt sensor
Up to 22 Ft. (6.7 m) platform height indoors and 18 Ft. (5.5 m) working height indoors
Direct electric drive for Greater duty cycle and smoother controls, AGM maintenance-free batteries standard
Lifetime roller mast construction for maintenance-free, smooth operation
Lowest ground pressure with wide non-marking tires, 250 Lbs unrestricted platform capacity
Specifications
Acme Tools Brand Name
MEC
Acme Tools Heavy Equipment
true
Acme Tools Part Number
MMAE16
ANSI Approved
Yes
Assembled Weight (lbs)
2170
Assembled Width (in)
30
Battery Ampere-hour (Ah)
115
Color/Finish
Red
Country of Origin
United States
Drive Motor System
Electric
Ground Clearance (in)
2.5
Package Contents
All Electric Vertical Mast Lift
Package Depth
57
Package Height
16
Package Weight
1
Platform Width (in)
30
Tire Size
9 In. x 3 In.
Turning Radius (in)
70.8
