Description

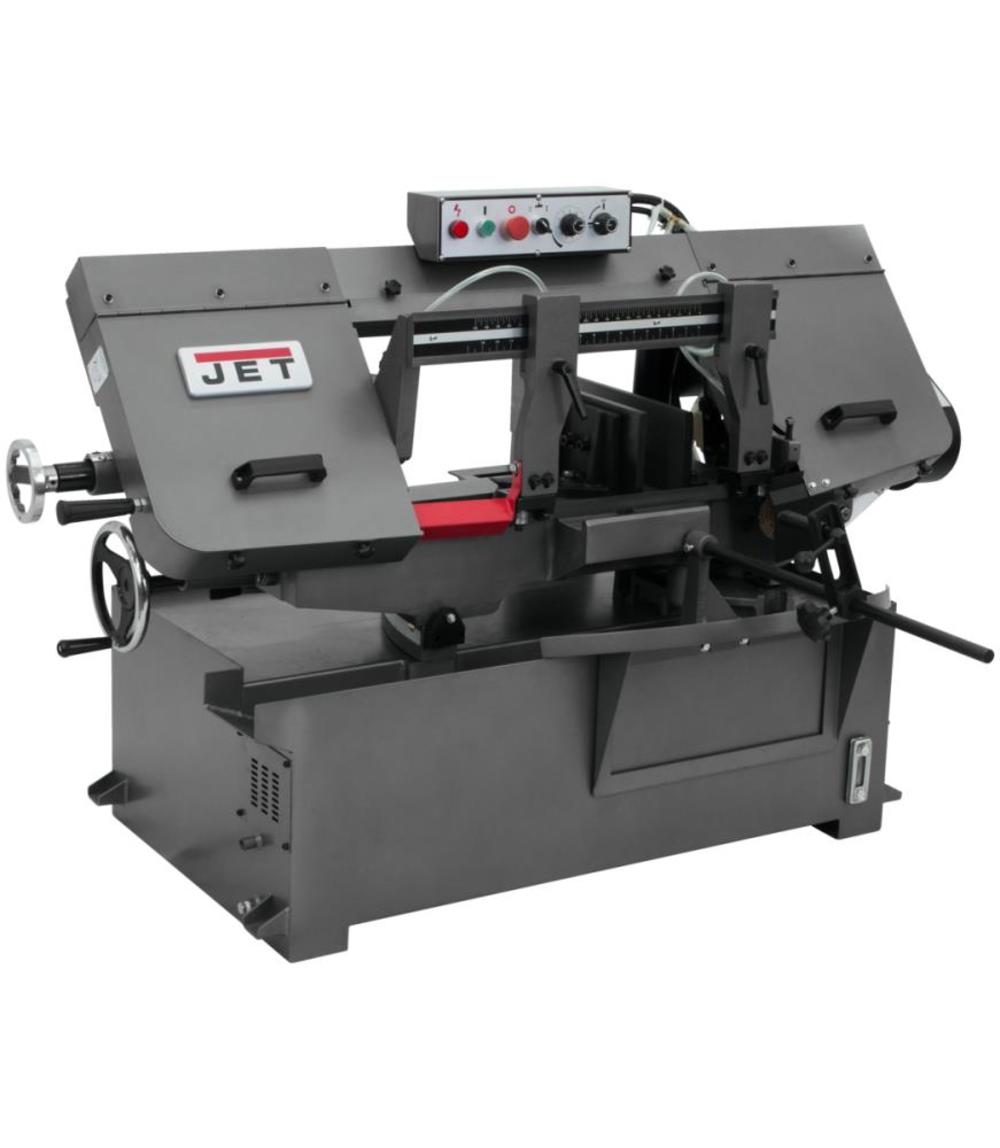

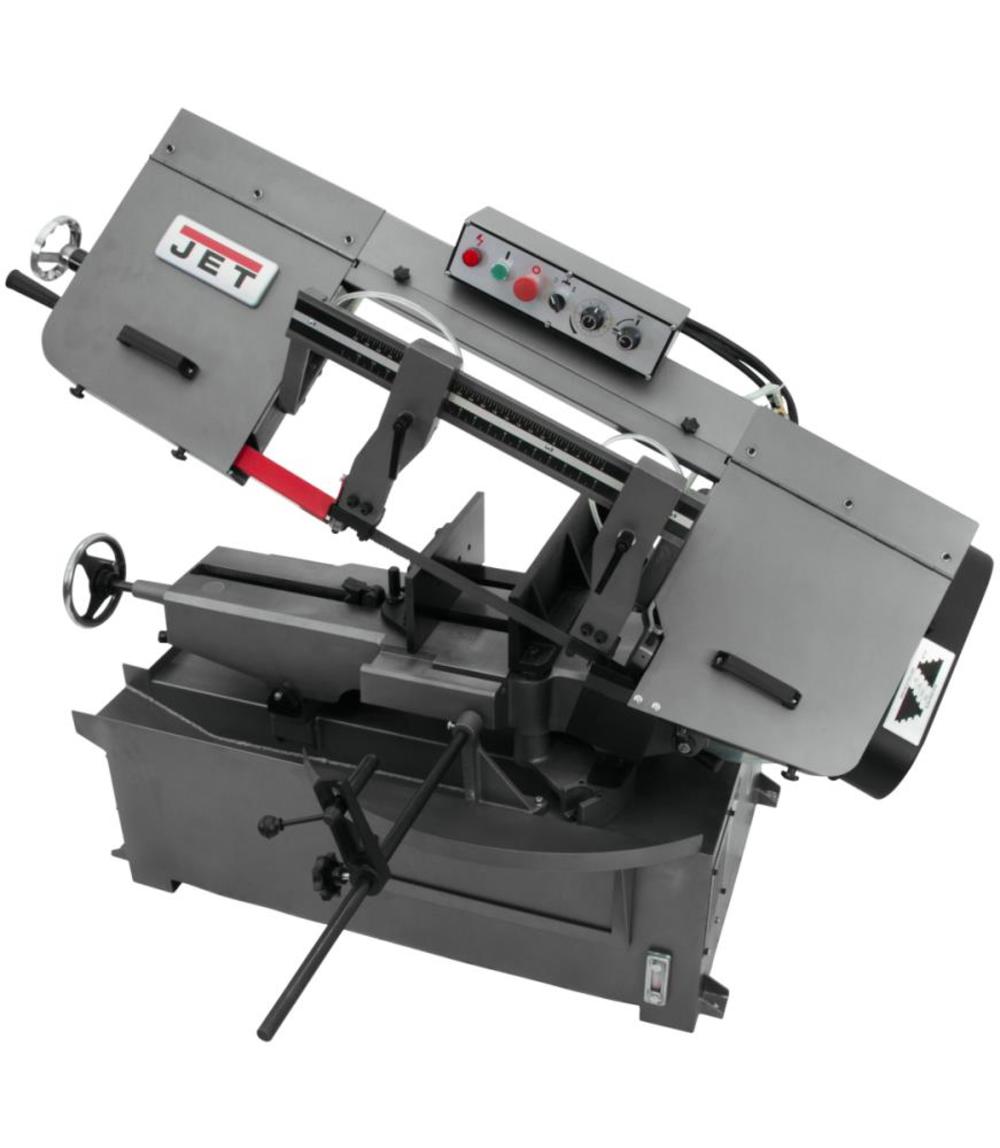

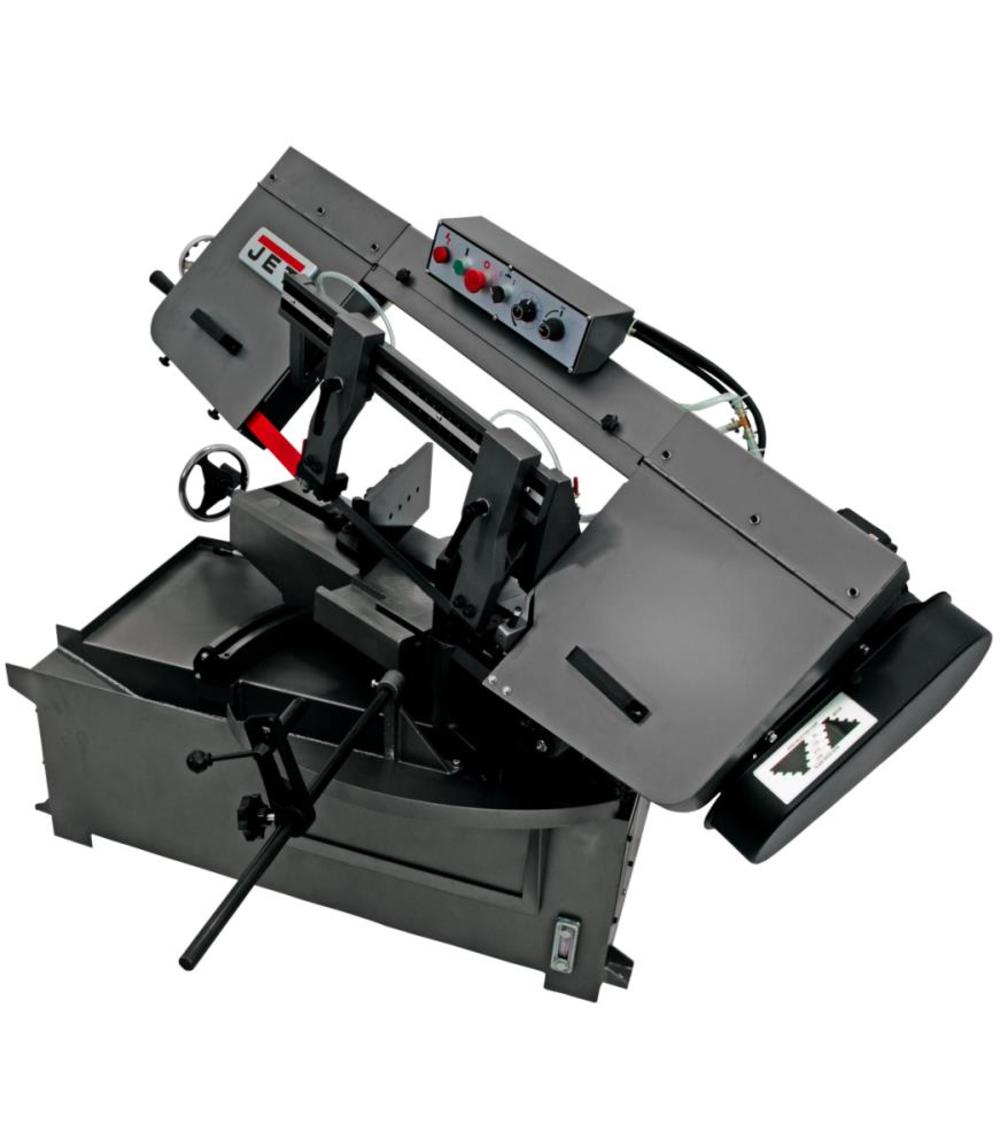

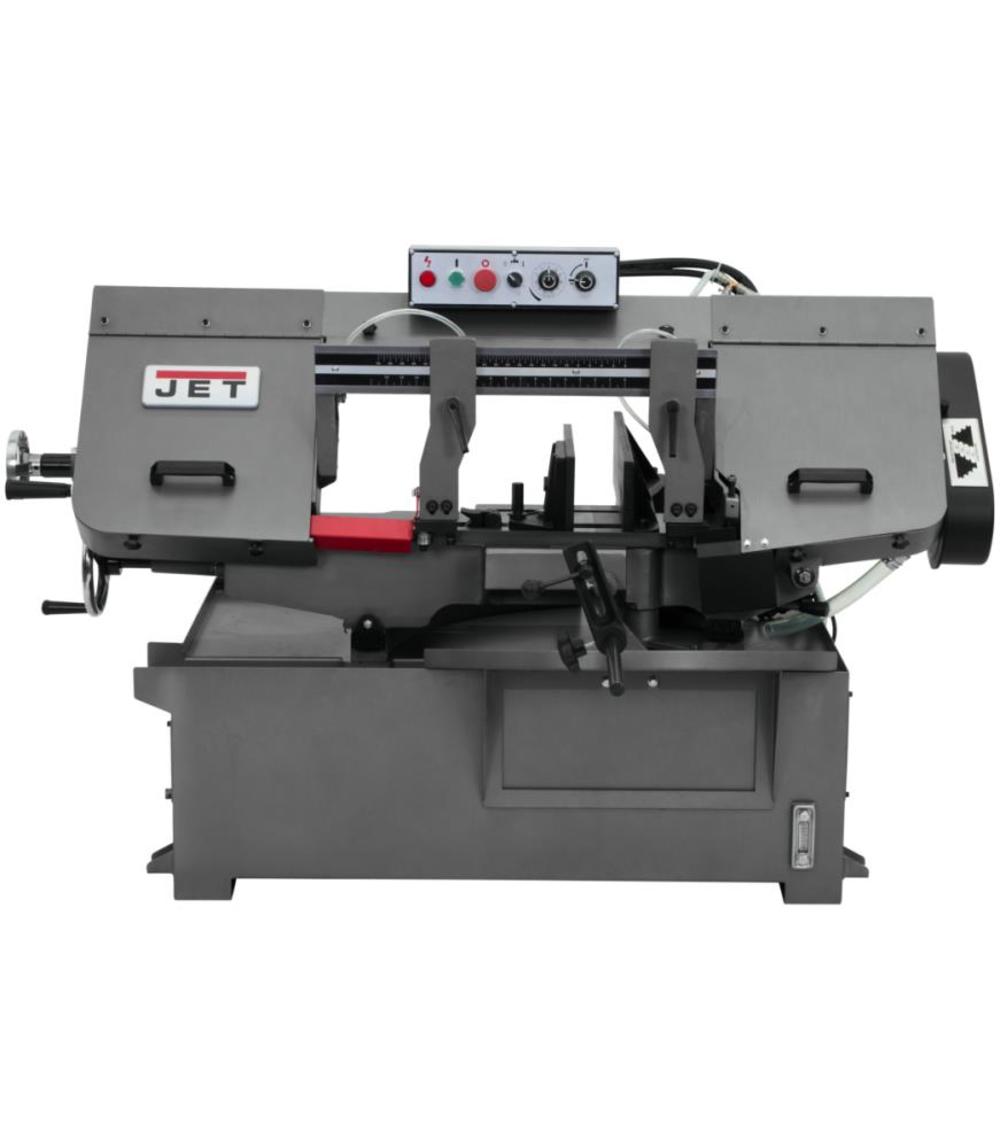

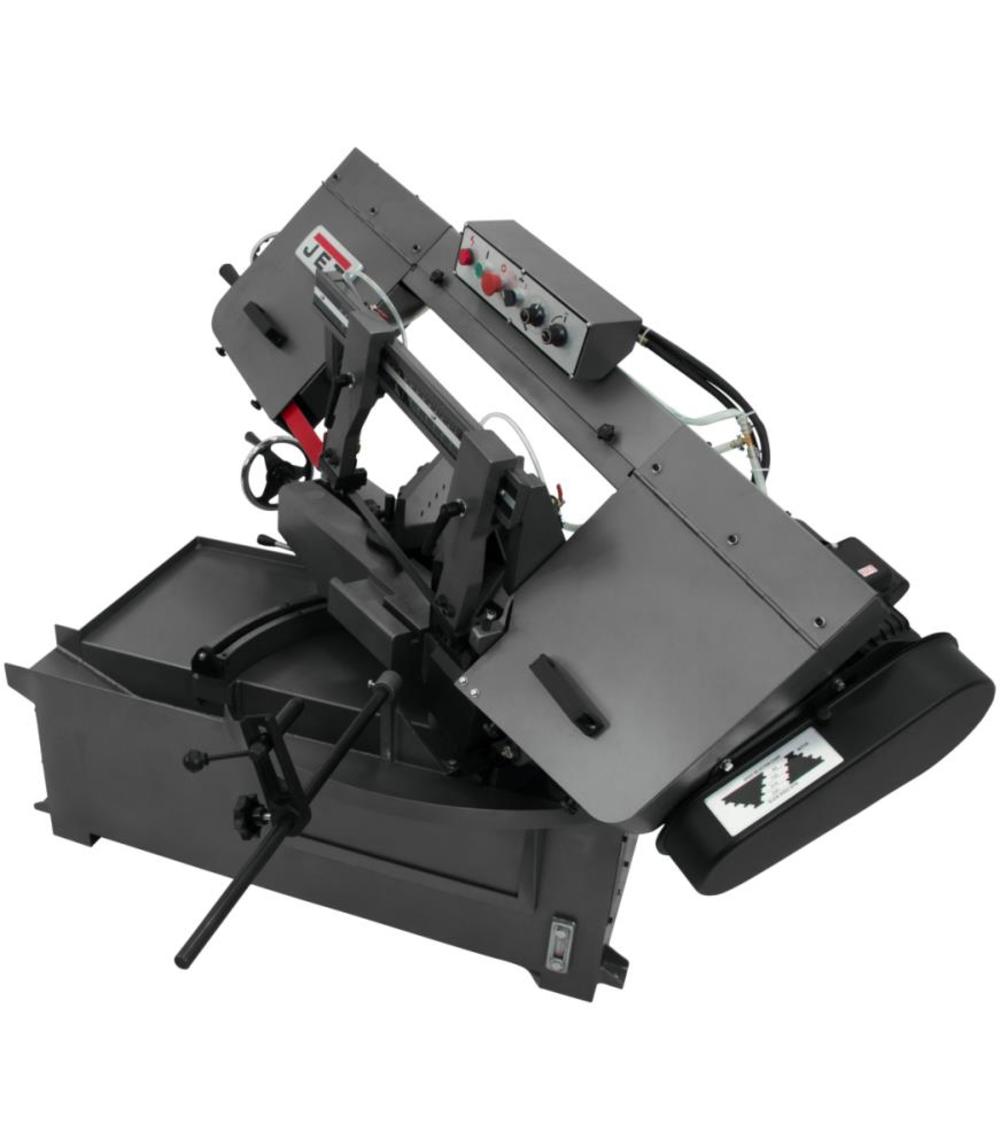

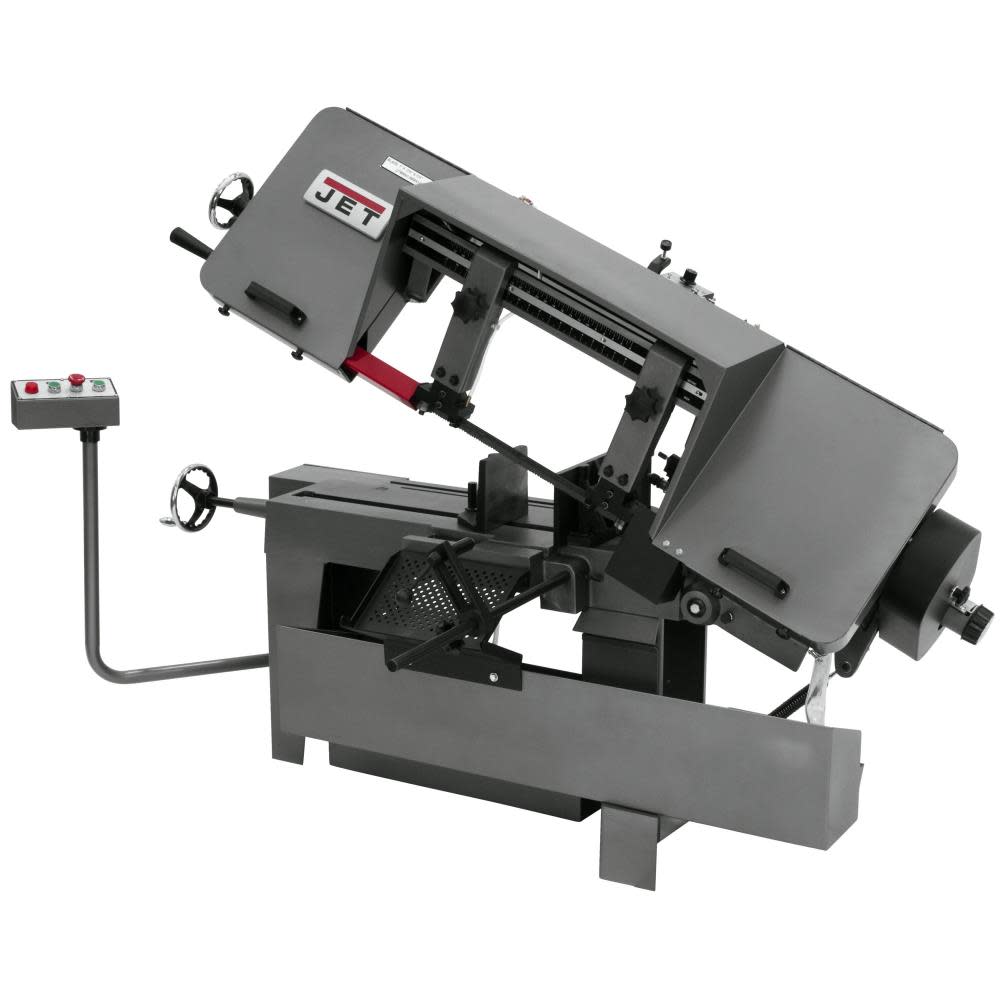

MBS-1014W-1 10 In. Horizontal Mitering Bandsaw 2 HP 230 V Only 1Ph
Whether you work in the shop or out on site, JET® saws deliver precession cuts for even the most heavy-duty jobs. Horizontal and vertical band saws, cold saws and sawing accessories – whatever your needs, JET® manufactures these machines to provide consistent, high quality results cut after cut. Backed by one of the industry’s top warranties, and accompanied by professional operations manuals, JET® machines are up and running faster, longer and more efficiently that the competition.
Features
1 In. horizontal mitering band saw
Unique design features a swivel-head for miter cutting structural, pipe and tubing
Miter head swivels from 9? to 45?, while the stock remains in the same position
Large, easy-to-read scale for positioning saw head

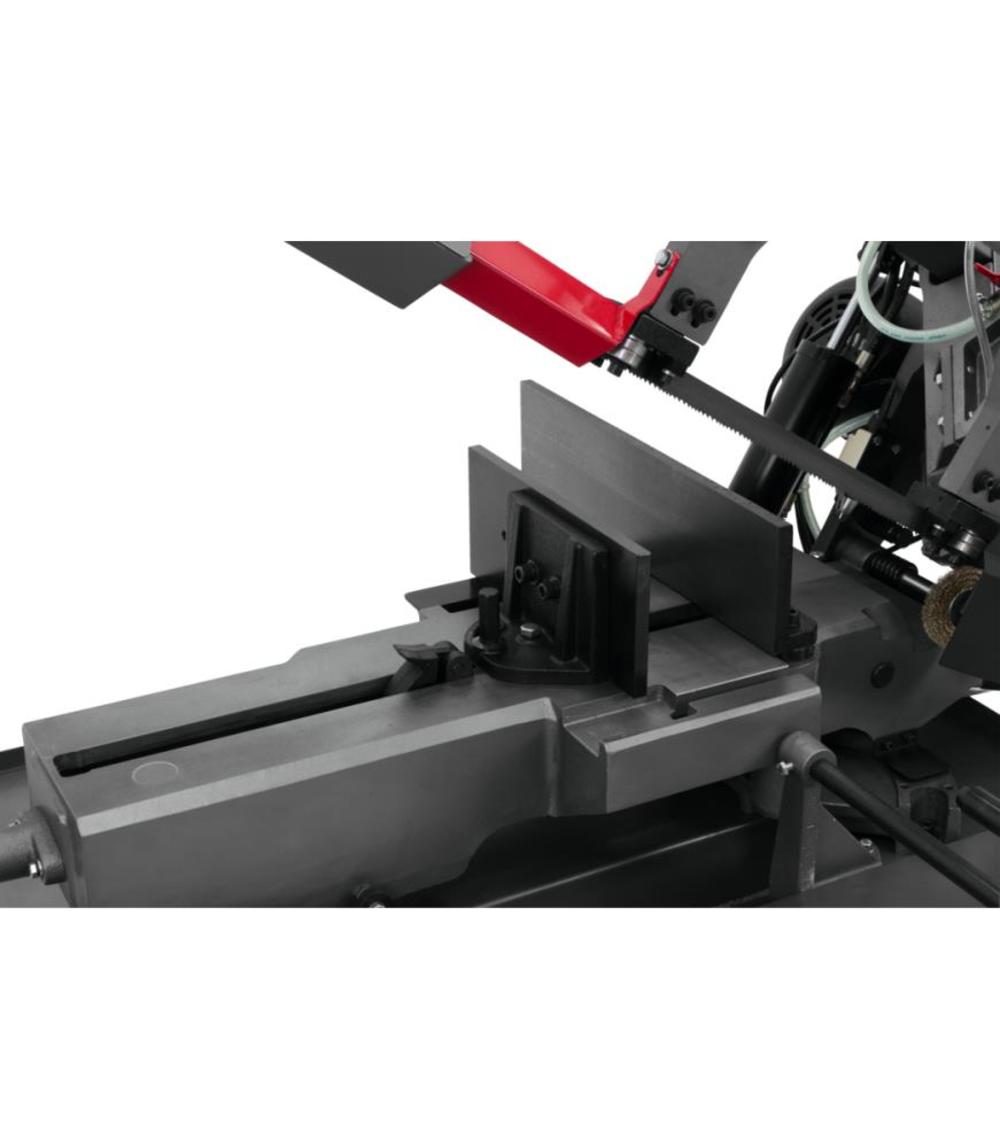

Quick-positioning vise lessens set-up time
Large handwheels and built-in gauge for easy blade tensioning
Coolant is distributed through the blade guides
Blade brush is built-in and self-propelled
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
414479
Amperage (A)
8
Assembled Weight (lbs)
1067
Band Saw Frame Material
Steel
Band Saw Type
Stationary
Blade Guide Type
Bearings
California Proposition 65 Warning Required
Yes
Color / Finish
See Photo
Cord Length (ft)
8
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
Cutting Capacity Height (in)
0
Dust Blower
No
Dust Port
No
ETL Listed
No
Fence Included
No
Horsepower (hp)
2
Internal Supplier Part #
414479
Internet Product Code (IPC)
3B3A698F766
Manufacturer Warranty
2 Year
Material
Cast Iron
Maximum Blade Length (In)
130
Maximum Blade Width (In)
1
Maximum Feet Per Minute
330
Maximum RPM
0
Micro Adjust Blade Guides Bottom
Yes
Micro Adjust Blade Guides Top
Yes
Minimum Blade Length (in)
130
Minimum Blade Width (in)
1
Minimum Feet Per Minute
82
Motor Bearings
Yes
Motor Type
2HP, 230V only, 1Ph
Number of Wheels
Not Featured
Package Contents
Saw and Blade
Package Depth
71
Package Height
44
Package Weight
1067
Package Weight (lbs)
1067
Quick Tensioning System
Yes
Rack & Pinion Guide Post Adjustment
Yes
Speeds
0
Stand Included
Yes
Table Height (in)
0
Table Height From Floor (In)
0
Table Length (in)
0
Table Material
Cast Iron
Table Tilt Left (Deg)
0
Table Tilt Right (Deg)
0
Table Width (in)
0
Thrust Bearing Contact Point
Face
Tire Cleaning Brush
Yes
UL Listed
No
Variable Speed
Yes
Voltage
115/230 Volts
Work Light
No
