Description

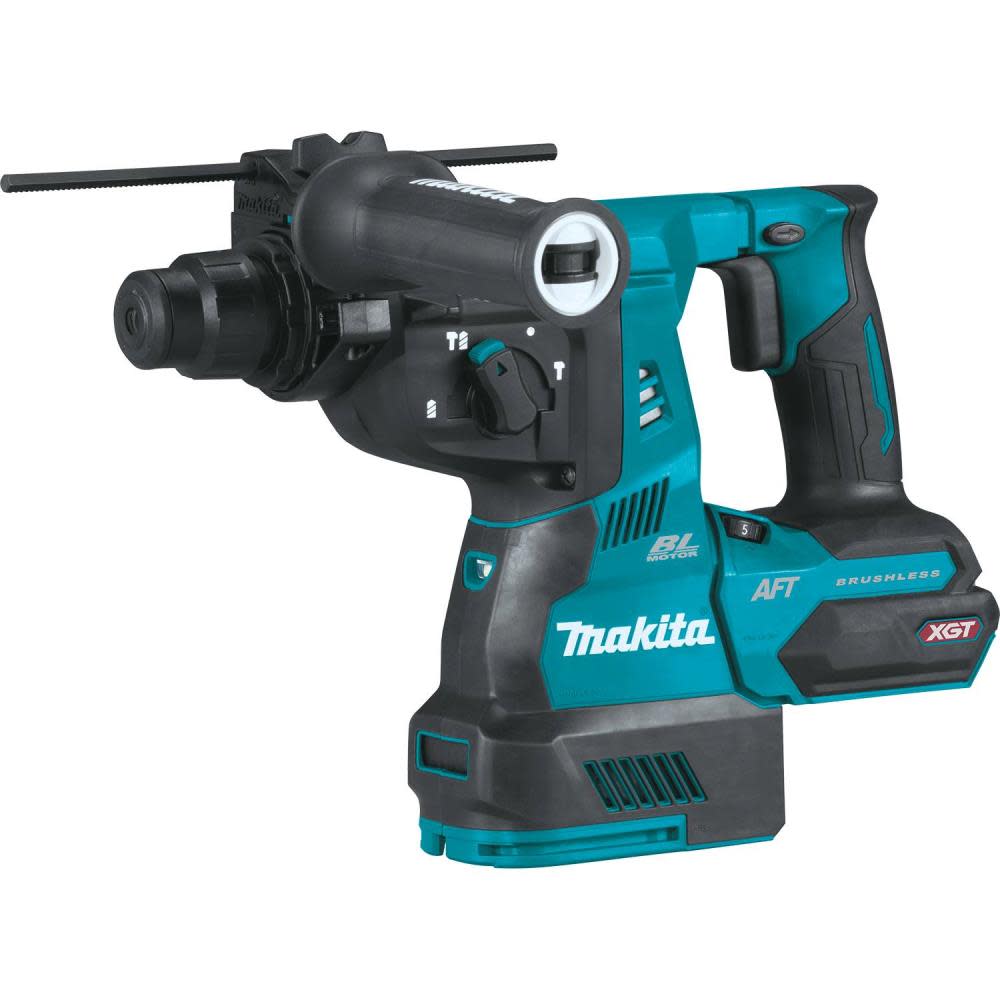

Makita XGT 40V max Rotary Hammer 1 1/8″ AVT, Bare Tool
The Makita 40 Volt Max XGT® 1-1/8 Inch AVT rotary hammer is powered by a brushless motor that delivers a full 2.8 ft-lb of impact energy, with 0 to 980 RPM and 0 to 5000 BPM. The XGT® technology delivers up to 135 of 3/8 Inch holes per charge when using one 40 Volt max XGT® 4.0 Amp-hour battery. Active feedback-sensing technology which electronically turns off the motor if rotation of bit is suddenly forced to stop and Anti-Vibration Technology (AVT®) for reduced vibration. AVT counterbalances that uses air pressure to move counterweight pistons in the opposite direction of the drive piston to actively reduce vibration. It offers enhanced durability in harsh job site conditions. The vibration-absorbing back handle and side handle minimizes vibration thereby reducing user fatigue.
Features
OUTPOWER: Makita-built brushless motor along with 40V max XGT® battery combine to deliver the power performance required for heavy-load application
OUTSMART: Constant speed control automatically applies additional power under load for optimum performance
OUTLAST: Overload protection is designed to protect the motor from burnout in abnormally high torque situations
XGT® technology delivers up to 135 of 3/8″ holes using a fully charged 40V XGT® 4.0Ah battery*

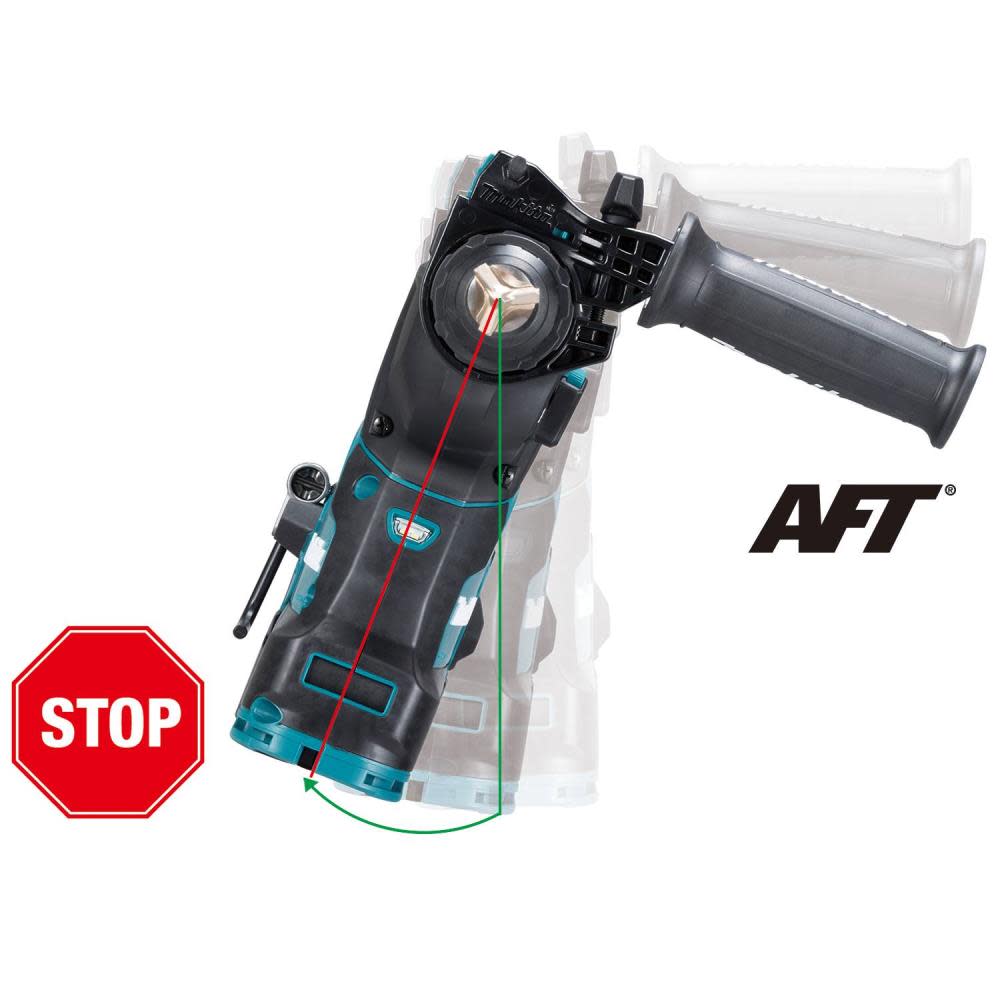

Active Feedback-Sensing Technology (AFT®) electronically turns off the motor if rotation of bit is suddenly forced to stop
Anti-Vibration Technology (AVT®) is an internal counterbalance system along with vibration-absorbing handles that work together to reduce vibration
Dust extraction capability with OSHA Table 1 compliant on-board HEPA Dust Extractor or stand-alone AWS® Extractor options
Auto-Start Wireless System (AWS®) which utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter sold separately)
Electric brake allows the tool to be repositioned faster for maximum productivity

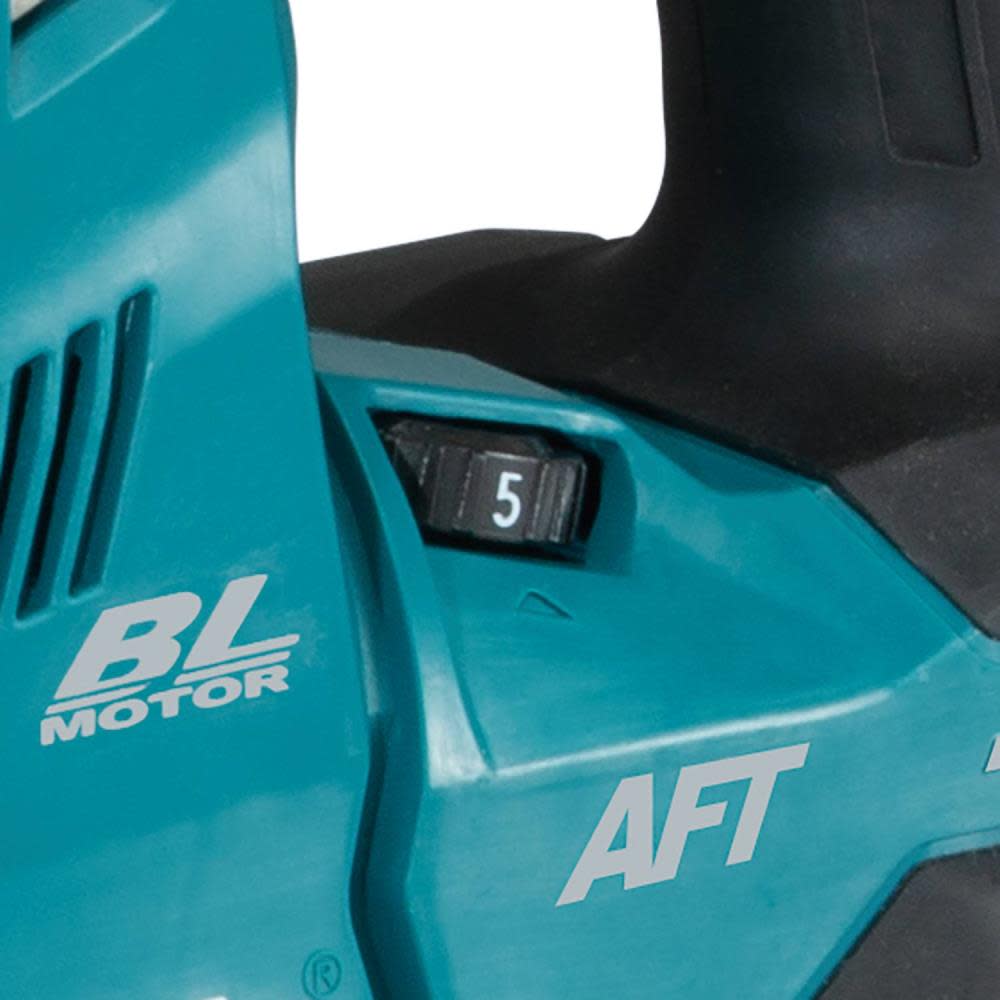

Variable speed dial and trigger enables user to match the speed to the application

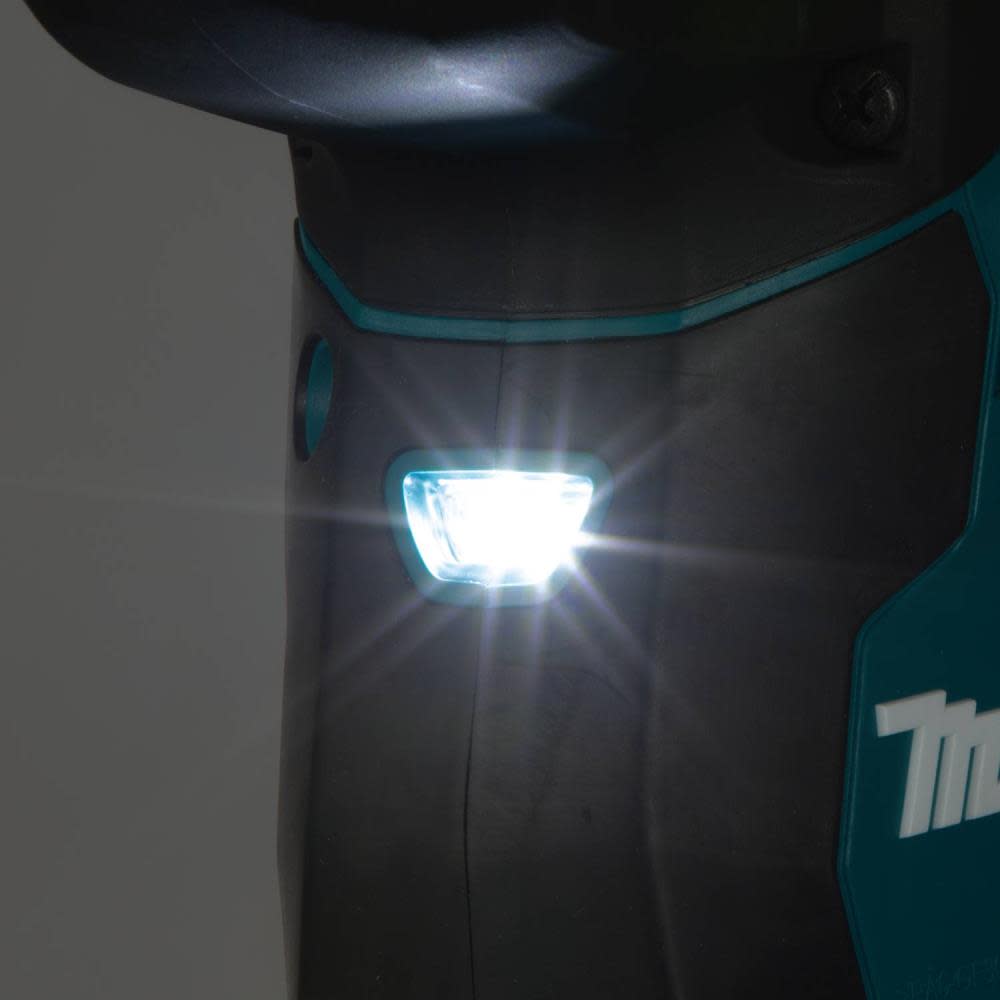

Built-in L.E.D. light with an independent on/off illuminates the work area
Ergonomic soft-grip handle and large 2-finger trigger provide increased comfort on the job
3-mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only” for multiple applications
Retractable tool hook secures the tool when not in use
Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications (batteries not included)
The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging (charger not included)
The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
Specifications
Acme Tools Brand Name
MAKITA
Acme Tools Part Number
GRH01Z
Assembled Weight (lbs)
9.860
Battery Voltage (V)
40
California Proposition 65 Warning Required
Yes
Case Included
No
Charger Included
No
Chuck Capacity
1-1/8 in.
Chuck Design
Not Applicable
Chuck Size
1/4 In
Color / Finish
Teal
Cordless / Corded
Cordless
Country of Origin
China
CSA Certified
No
Drill Maximum RPM
200
ETL Listed
No
Handle Material
Plastic
Housing Material
Plastic
Impact Energy
2.3 ft.lbs.
Integrated Light
Yes
Internal Supplier Part #
GRH01Z
Internet Product Code (IPC)
5651EA8436C
Length (in)
6.22
Main Handle Type
2 Finger Trigger
Manufacturer Warranty
3-year limited warranty
Maximum RPM
200
Net Tool Weight (lbs)
10.1
Number of Batteries Included
0
Package Depth
6.220
Package Height
10.240
Package Weight
9.860
Powered Tool Power Source
Electric – Cordless
Reverse
No
Side Handle
Yes
Soft Grip Handle
Yes
Thin Wall Core Bit Capacity
Yes
UL Listed
Yes
Variable Speed
Yes
Width (in)
18.7
