Description

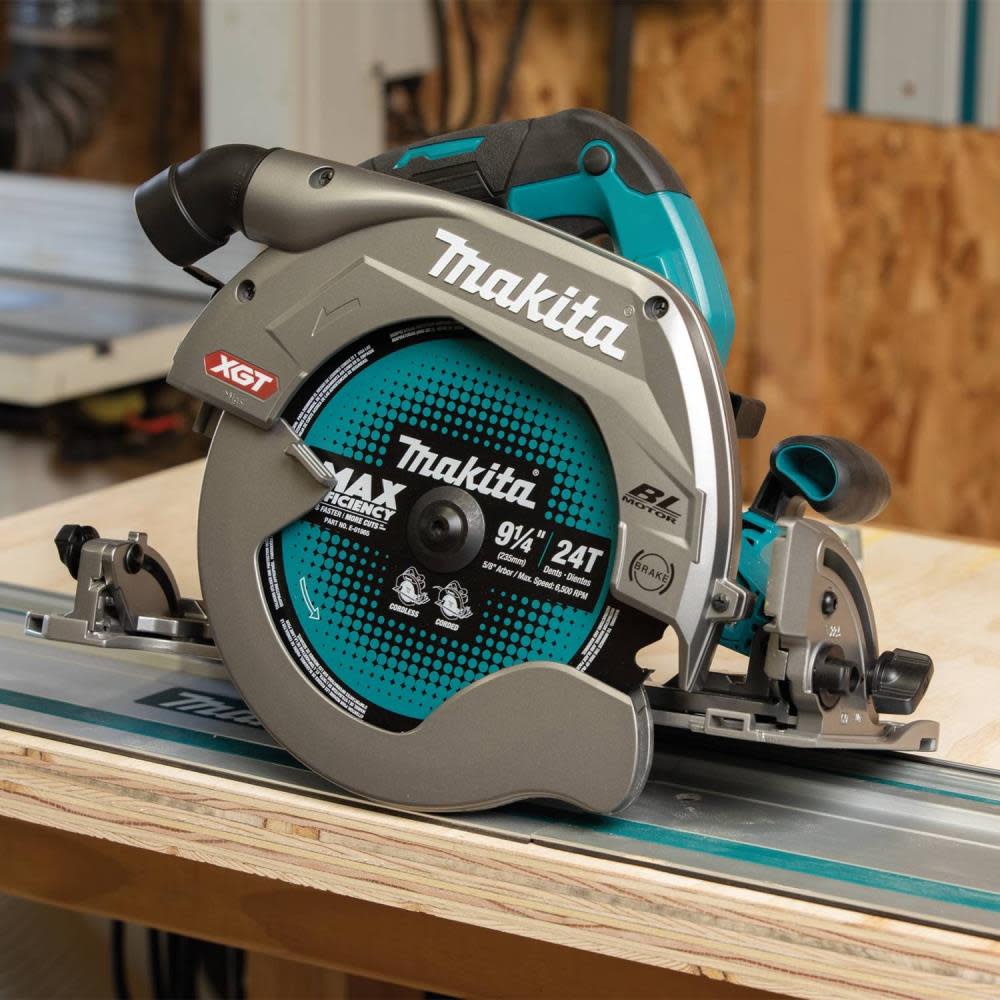

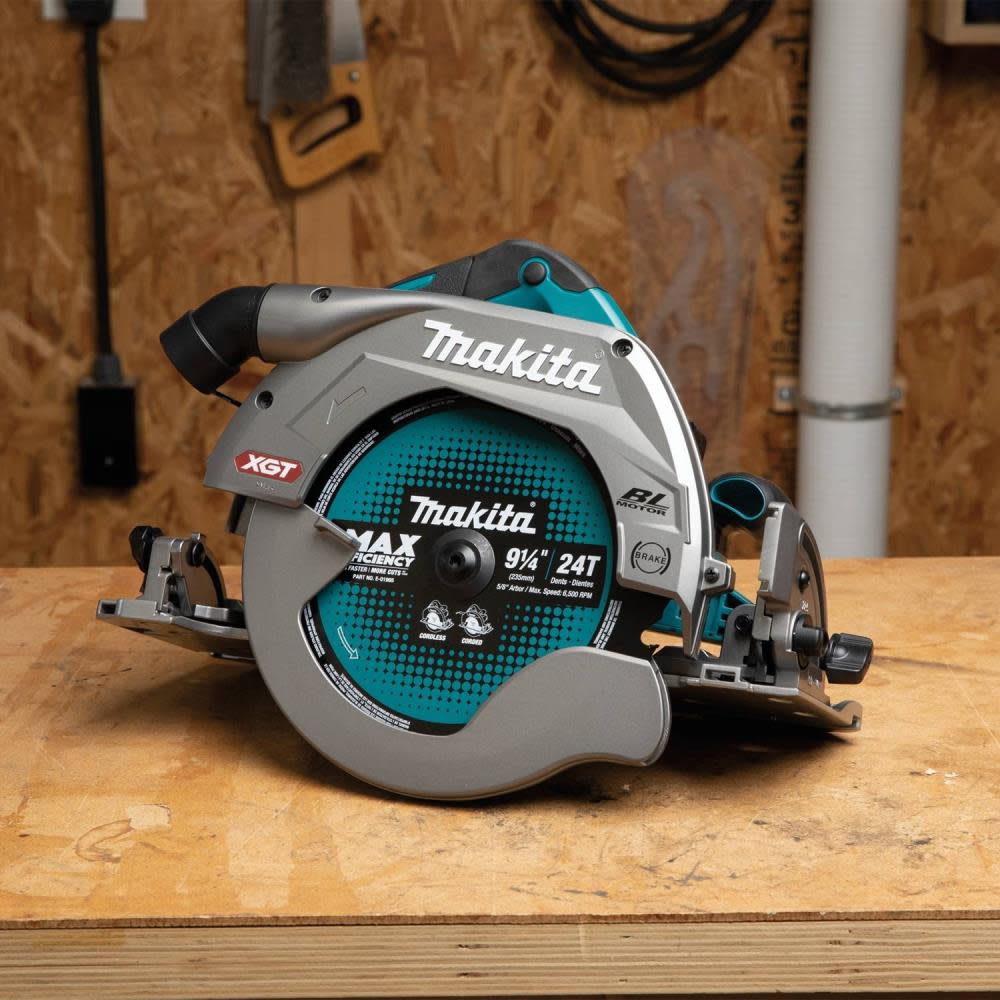

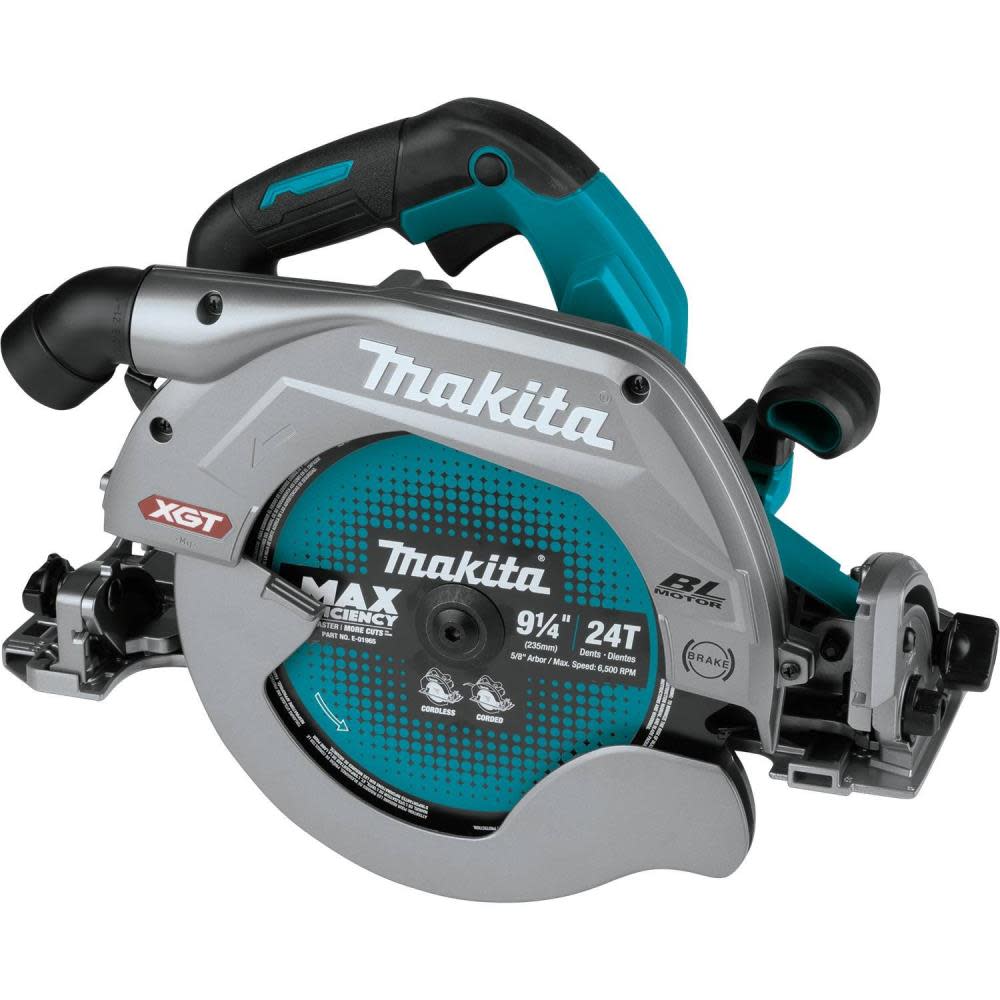

Makita 40V max XGT 9 1/4″ Circular Saw with Guide Rail Compatible Base AWS Capable Bare Tool
The 40V max XGT® Brushless 9-1/4″ Circular Saw with Guide Rail Compatible Base combines efficient cutting with the convenience of guide rail compatibility. The Makita-built brushless motor delivers 4,000 RPM for fast cutting performance, with constant speed control that automatically applies additional power under load for optimum performance. It offers 3-3/8” of cutting capacity at 90° with bevel cut capacity up to 1° left and 60° right with positive stops at 22.5° and 45°. It features a die-cast magnesium base, blade guard, and blade cover for lower weight at only 10.4 lbs. with battery (battery sold separately).

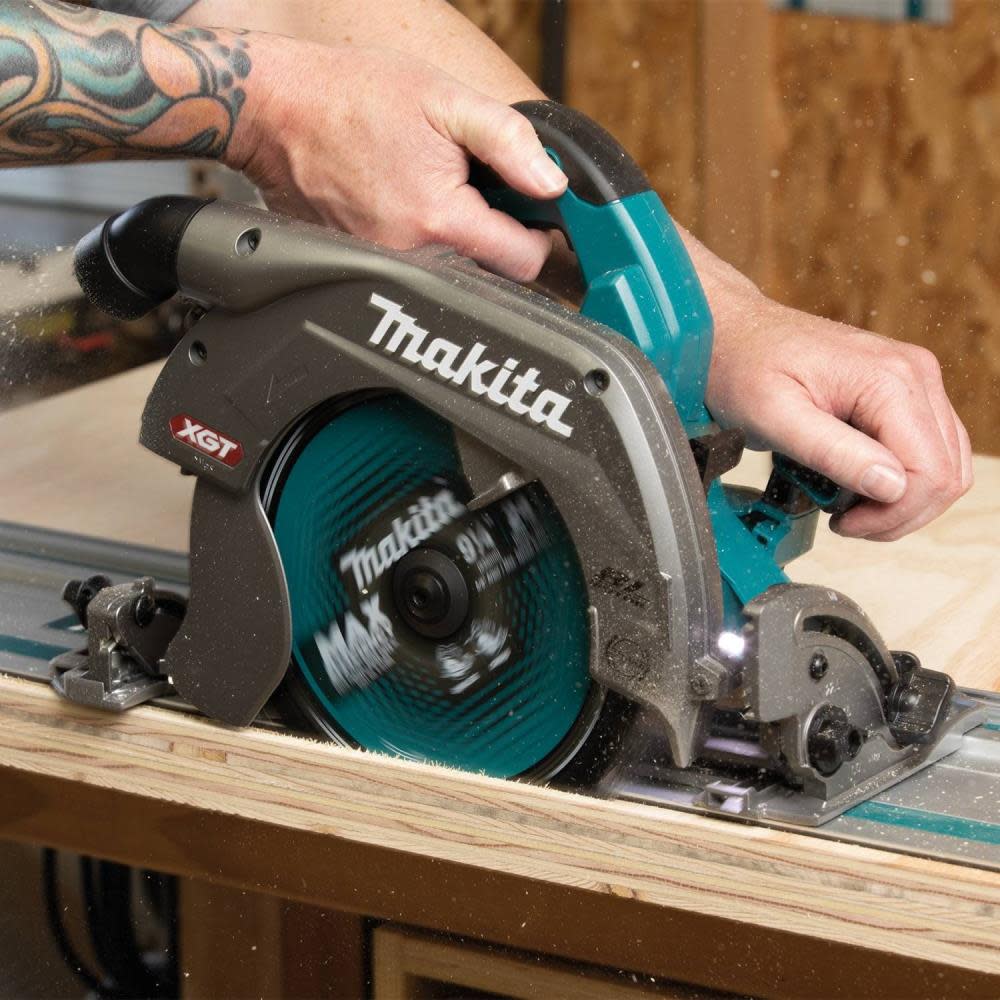

The convenient guide rail compatible saw base interacts with optional guide rails to provide perfect, dead-on straight or bevel cutting without the need for an adapter. Combined with a guide rail (sold separately), the GSH03 is a more portable option over a table saw for a range of cutting applications.
The saw also features Auto-Start Wireless System (AWS®). AWS® uses Bluetooth® technology for wireless power-on/power-off communication between the tool and an AWS® equipped dust extractor. The saw has an electronic brake for maximum productivity and soft start to suppress start-up reaction for smoother start-ups and longer gear life.
Convenience features include an L.E.D. light with pre-glow and afterglow to illuminate the work area, an onboard hex wrench for blade changes, and a secondary handle for two-handed operation.
XGT® is a system of equipment, tools, batteries, and chargers utilizing 40v max lithium-ion batteries. XGT® is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.
Features
OUTPOWER: Makita-built brushless motor delivers 4,000 RPM for faster cutting performance
OUTSMART: Constant speed control automatically applies additional power under load for optimum performance
OUTLAST: XPT™ is engineered to provide increased dust and water resistance in harsh jobsite conditions

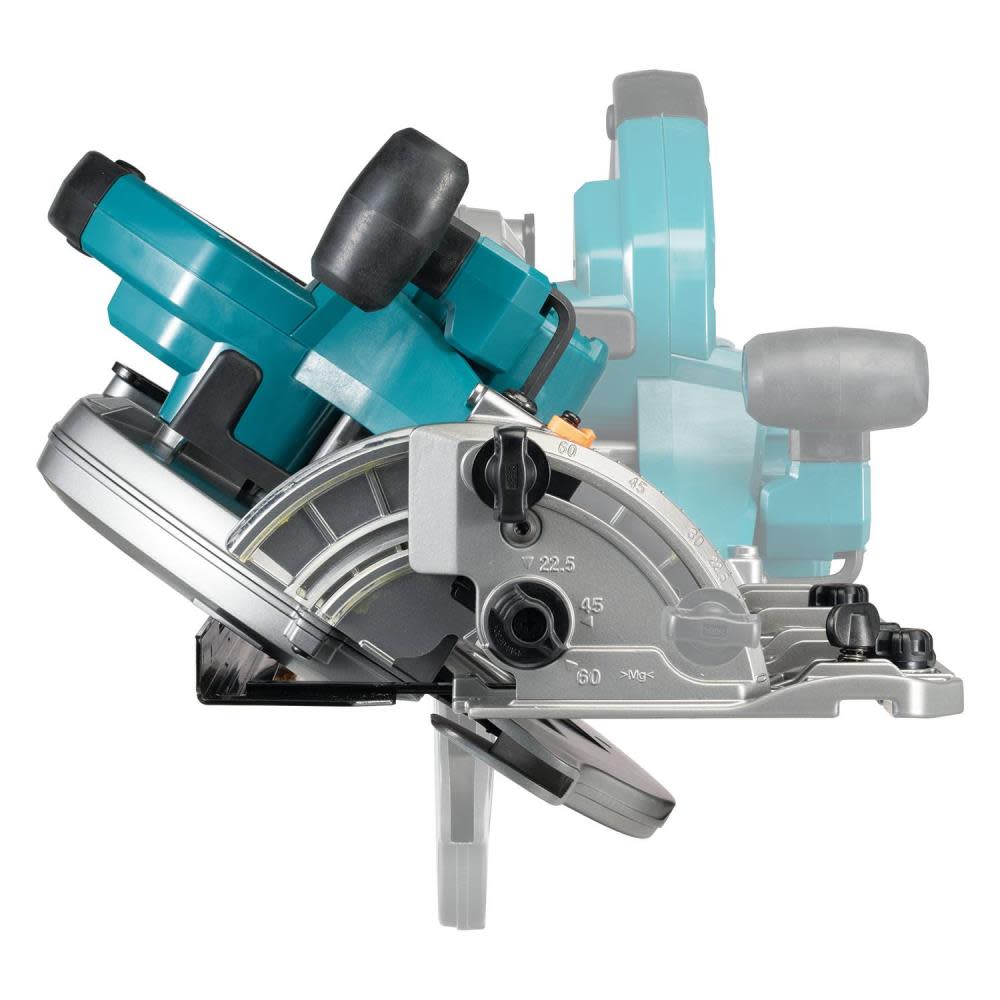

Bevel cut capacity up to 1° left and 60° right with positive stops at 22.5°, 45°
Large 3-3/8″ cutting capacity at 90°

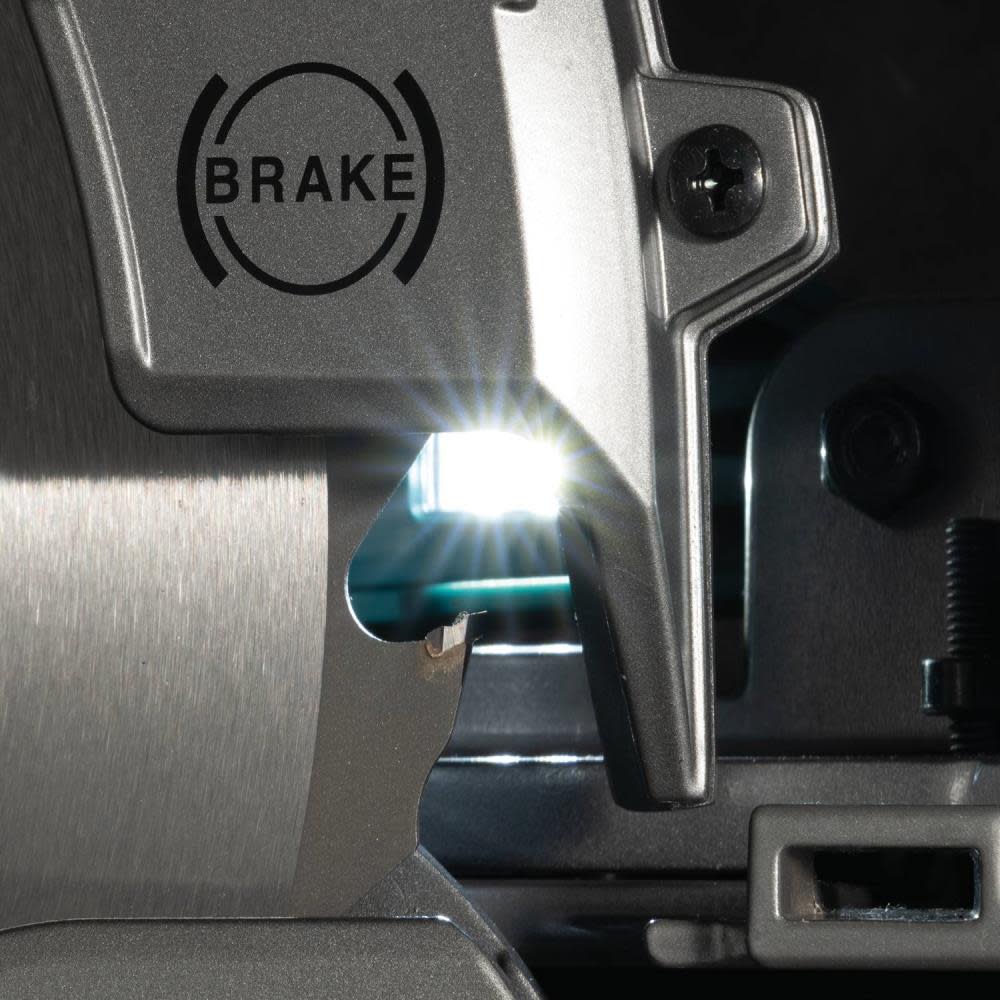

Electric brake for maximum productivity
Soft start suppresses start-up reaction for smooth start-ups and longer gear life
L.E.D. light with preglow and afterglow illuminates the work area
Compact and ergonomic design at only 16-1/4″ long
Die-cast magnesium base, blade guard, and blade cover provide a lightweight design; weighs only 10.4 lbs. with battery (battery not included)
Auto-start Wireless System (AWS®) uses Bluetooth technology to power wireless on-off communication between the tool and dust extractor
AWS® capable with Auto-start Wireless Transmitter (part no. 198901-5) sold separately
Onboard hex wrench for convenience
The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications (battery not included)
The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging (charger not included)
The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
