Description

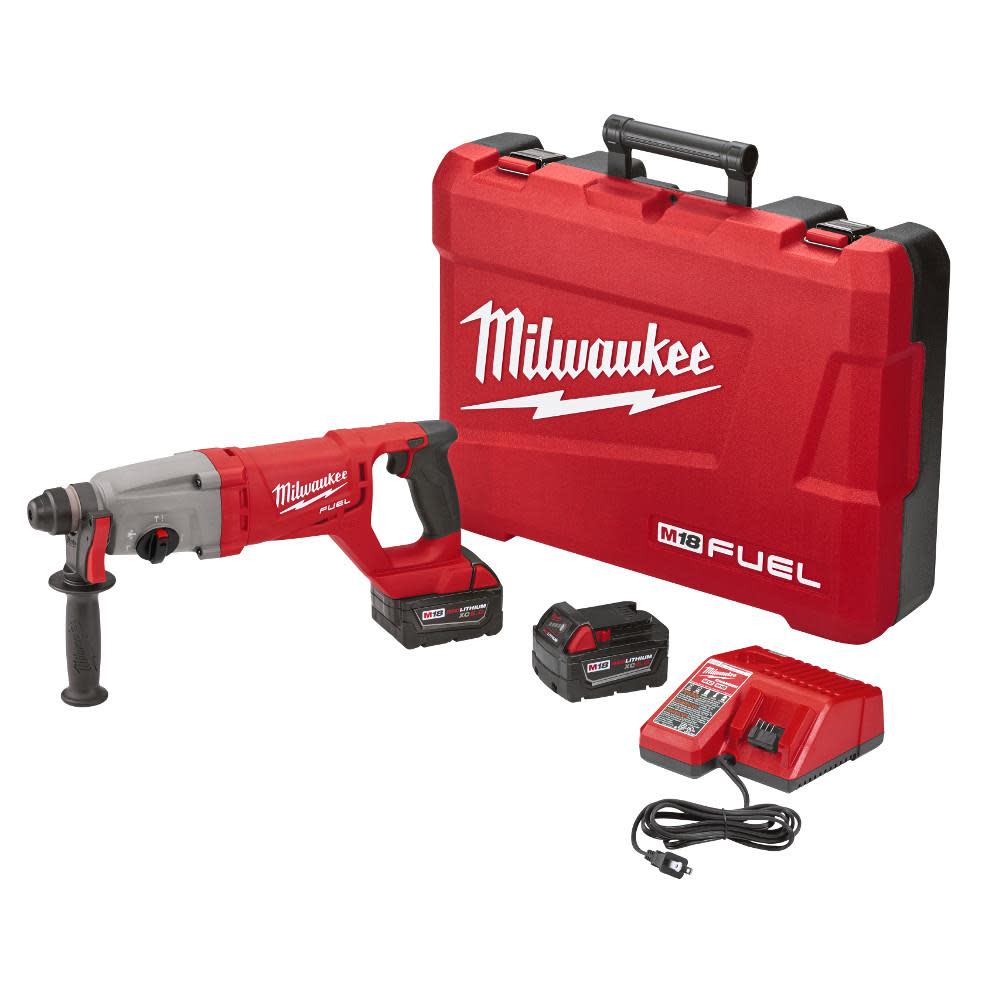

M18 FUEL™ D-handle Rotary Hammer Kit
Powered by FUEL™ technology, the M18 FUEL™ 1 in. SDS plus D-handle rotary hammer delivers faster than corded speed, corded durability and all day work on one charge. The Milwaukee POWERSTATE brushless motor provides 2.1 ft. lbs of impact energy, 0-1, 500 RPM and 0-4,400 bpm. The Milwaukee REDLITHIUM XC 5.0 battery packs (not included) provide all day work on one charge, 20% more power and 2X more recharges than standard lithium-ion batteries. REDLINK PLUS intelligence integrates full-circle communication between tool, battery and charger to protect from overloading, overheating and over-discharging.
Features
FUEL™ technology: delivers faster than corded speed, corded durability, and all day work on one charge.
POWERSTATE™ brushless motor: provides 2.1 ft-lbs of impact energy, 0-1, 500 RPM and 0-4,400 BPM.
REDLITHIUM™ XC 5.0 battery packs: provide all day work on one charge, 20% more power and 2X more recharges than standard lithium-ion batteries.
REDLINK Plus™ intelligence: integrates full-circle communication between the tool, battery and charger to protect from overloading, overheating and over-discharging.
In-line ergonomics provide extended reach for overhead and downward drilling applications
Drilling mode 3-mode: rotary hammer, hammer only, rotation only
Thin wall core bit capacity 2-1/2 in.
Solid bit capacity 1 in.
Blow energy 2.1 ft-lbs
Specifications
Acme Tools Brand Name
MILWAUKEE
Acme Tools Part Number
2713-22
Assembled Weight (lbs)
7.65
Battery Ampere-hour (Ah)
5.0
Battery Composition
Lithium-Ion (Li-ion)
Battery Voltage (V)
18
California Proposition 65 Warning Required
No
Case Included
Yes
Charger Included
Yes
Chuck Design
Keyless
Chuck Size
1 In
Color / Finish
Red/Black
Cordless / Corded
Cordless
Country of Origin
China
CSA Certified
No
Drill / Driver Maximum RPM
1500
Drill Type
Hammer Drill
ETL Listed
No
Handle Type
D
Housing Material
Glass-filled Nylon
Impact Energy
2.1 ft-lbs
Impacts per Minute
4400.0
Integrated Light
Yes
Internal Supplier Part #
2713-22
Internet Product Code (IPC)
6E88D64F272
Length (in)
16.37
Lock-on Switch
No
Manufacturer Warranty
5 Years (Tool), 3 Years (Battery)
Maximum RPM
1500
Maximum Torque (ft-lbs)
2.1
Net Tool Weight (lbs)
7.65
Number of Batteries Included
2
Number of Batteries Required
1
Package Contents
Case
Package Depth
21.5
Package Height
6.2
Package Weight
19.5
Package Weight (lbs)
18.29
Powered Tool Power Source
Electric – Cordless
Reverse
Yes
Side Handle
Yes
Switch Type
Trigger
Tool Handle Type
D
UL Listed
Yes
Variable Speed
Yes
Width (in)
2.87
