Description

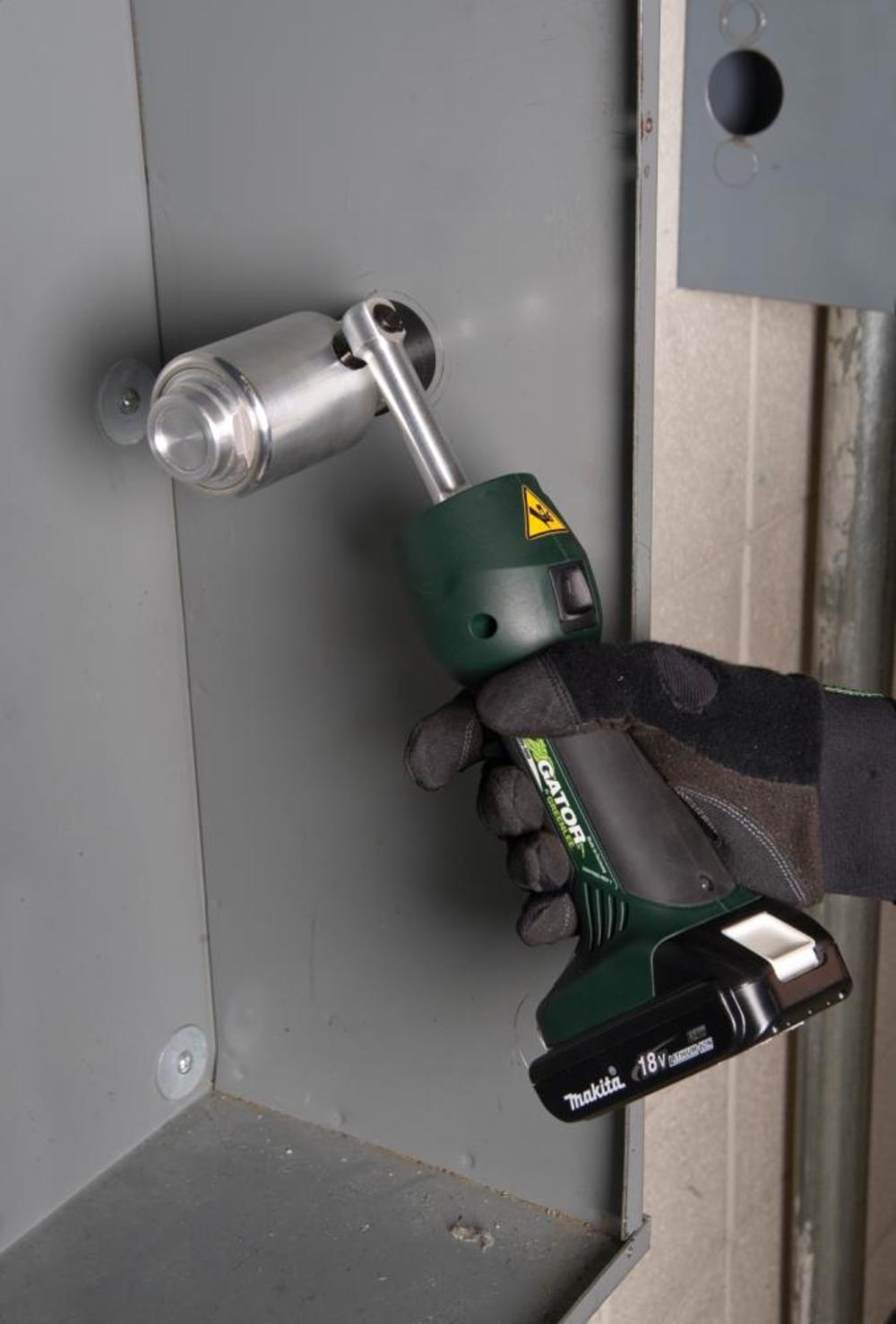

LS50L11B Battery-Powered Knockout Punch Driver

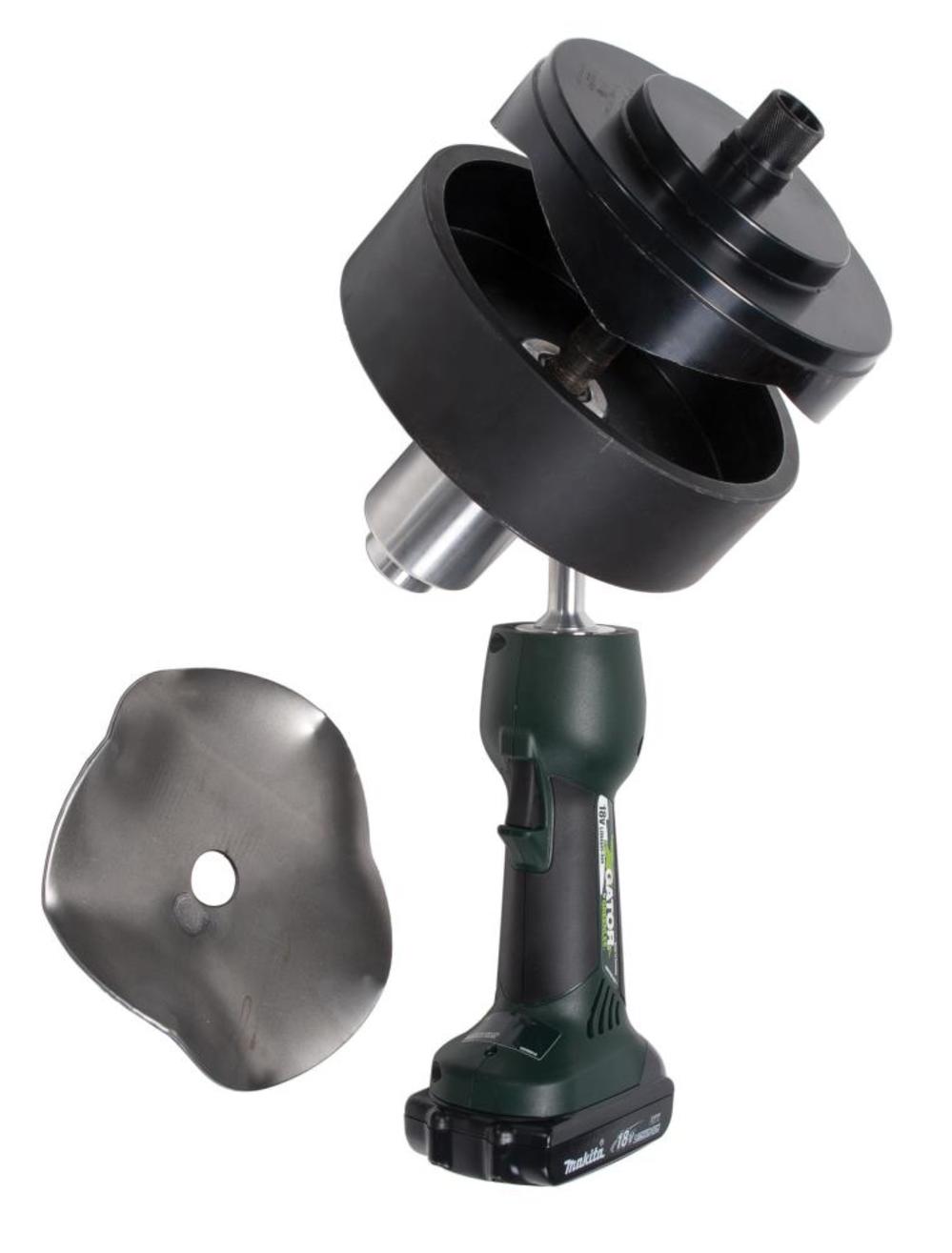

This knockout punch driver is capable of punching up to 6 In. conduit size holes in 14 gauge mild steel and 2 In. holes in 14 gauge stainless steel.
Features
Faster cycle times* – cuts holes in 1/2 the time
Up to 2X more holes* than conventional battery or hydraulic drivers
One trigger controls all tool functions–no additional manual work to punch the hole
Senses when the hole is complete and automatically retracts to prevent damage to the punch and die
360° rotating head for easier positioning in tight corners and other difficult working areas
In-line tool style is lightweight and very easy to control
State-of-the-art 18 V lithium-ion battery provides 70% more cycles per charge
LED indicator provides the operator with the battery charge and tool maintenance status
LED work light illuminates dark work areas
Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
Uses bio-degradable oil, which is better for the environment
Maximum punch force: 7 tons
Charging time: 15-22 minutes
Battery voltage: 18 V
Specifications
Acme Tools Brand Name
GREENLEE
Acme Tools Part Number
04956
Assembled Weight (lbs)
4.55
California Proposition 65 Warning Required
No
Color / Finish
Green/plastic
Country of Origin
United States
Internal Supplier Part #
LS50L11B
Internet Product Code (IPC)
D9D58A1ACD6
Kit
Yes

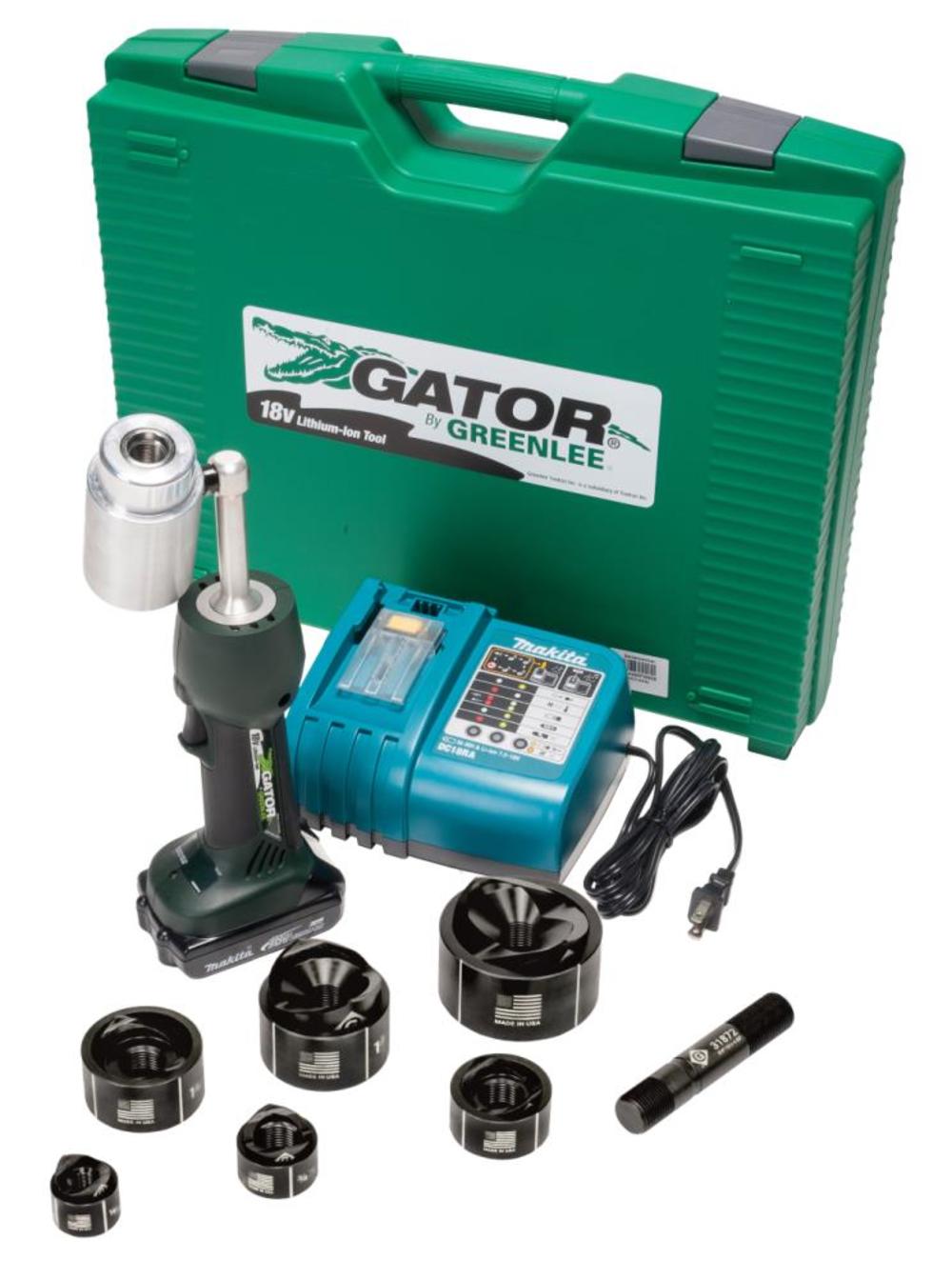

Kit Contents
LS50 Driver, 1/2 In. to 2 In. punches and dies, 3/4 In. draw stud, 3/8 In. draw stud/draw stud spacer, 18V 2.0Ah Li-Ion battery, 120VAC charger, carrying case
Knockout Size
Multiple Sizes
Knockout Type
Hydraulic
Manufacturer Warranty
Greenlee warrants their products will be free of defects in materials and workmanship.
Package Contents
LS50 Driver, 1/2 In. to 2 In. punches and dies, 3/4 In. draw stud, 3/8 In. draw stud/draw stud spacer, 18V 2.0Ah Li-Ion battery, 120VAC charger, carrying case
Package Depth
23
Package Height
4.7
Package Weight
22.24
Package Weight (lbs)
20
UL Listed
Yes
