Description

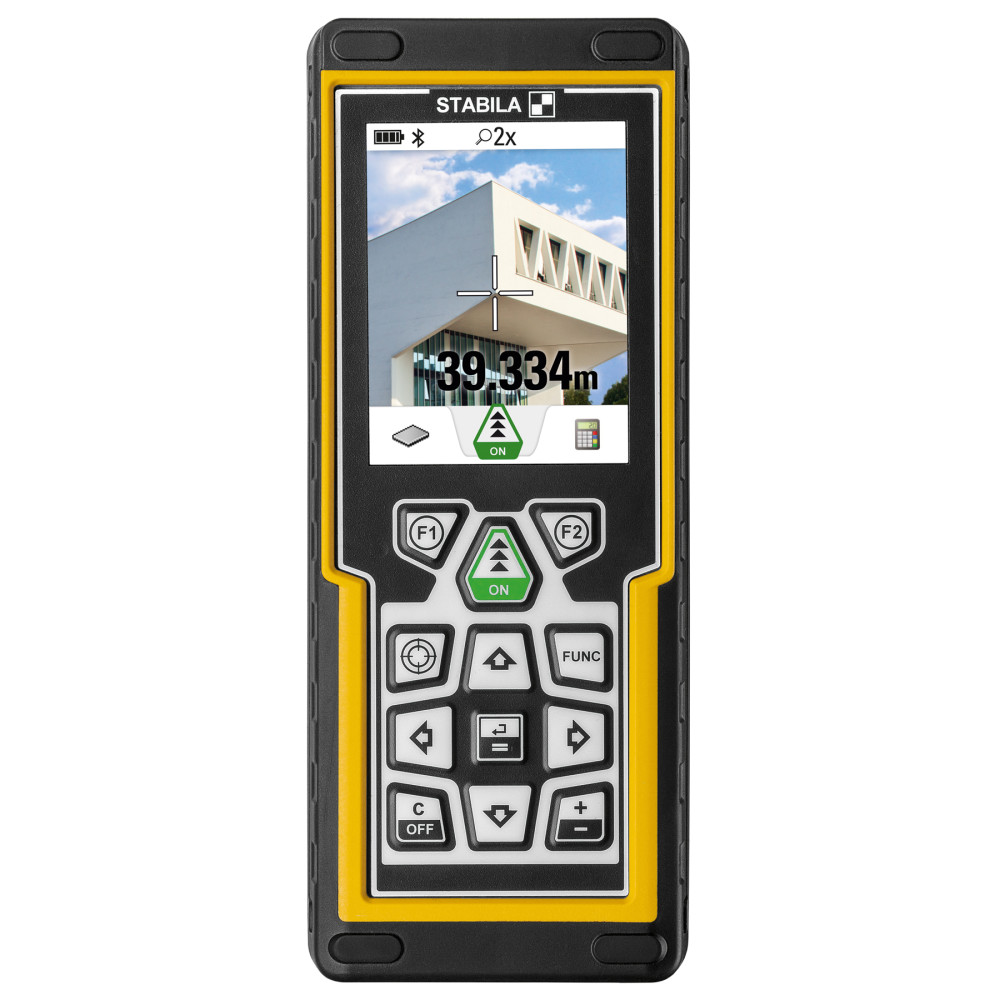

LD 520 Laser Measure
See your target outdoors up to 660ft, using the built-in video camera with 4x zoom function, even when the laser point is not visible. Transfer the data via the integrated Bluetooth® Smart 4.0 technology to your smartphone or tablet. This tool has a host of 18 applications for tradesmen and professionals alike. It is the fast and efficient way to measure and calculate material or labor costs.
Features
Integrated video based target locator with 4x zoom for accurate locating over large distances, even in strong sunlight.
Bluetooth® Smart 4.0 technology for the wireless transfer of measurement data from the laser to a smartphone or tablet.
360° inclination sensor for flexible measurement from any position (displays ± 180°).
Built-in calculator.
Comprehensive function package – 18 functions (including MIN and MAX tracking, indirect distances and heights, elevation profiles).
ISO-certified distance measurer – over the range of 660ft the accuracy tolerance will not exceed 1/16in.
Back-lit display makes it very easy to read.
Impact-resistant housing with shock-absorbent STABILA soft grip casing.
Protection class IP 54: protection against dust and water.
Specifications
Accuracy
1/16 In
Accurate to Within __ in per 100 ft
0.0016
Acme Tools Brand Name
STABILA
Acme Tools Part Number
06520
Application Method
Distance Measurer
Assembled Weight (lbs)
5
Battery Size
AA
California Proposition 65 Warning Required
Yes
Case Included
Yes
Color / Finish
black and yellow
Country of Origin
Hungary
Indoor / Outdoor
Indoor/Outdoor
Internal Supplier Part #
06520
Internet Product Code (IPC)
5F820A2C448
LED Display
Yes
Level Accuracy
1/16 In
Level Type
Laser
Manufacturer Warranty
2 year warranty
Maximum Distance (ft)
660
Measuring Tool Type
Laser Measure
Package Depth
3.15
Package Height
10.1
Package Weight
1.1
Package Weight (lbs)
1.1
Pythagoras / Indirect Measurement
Yes
Weight (lbs)
2.5
