Description

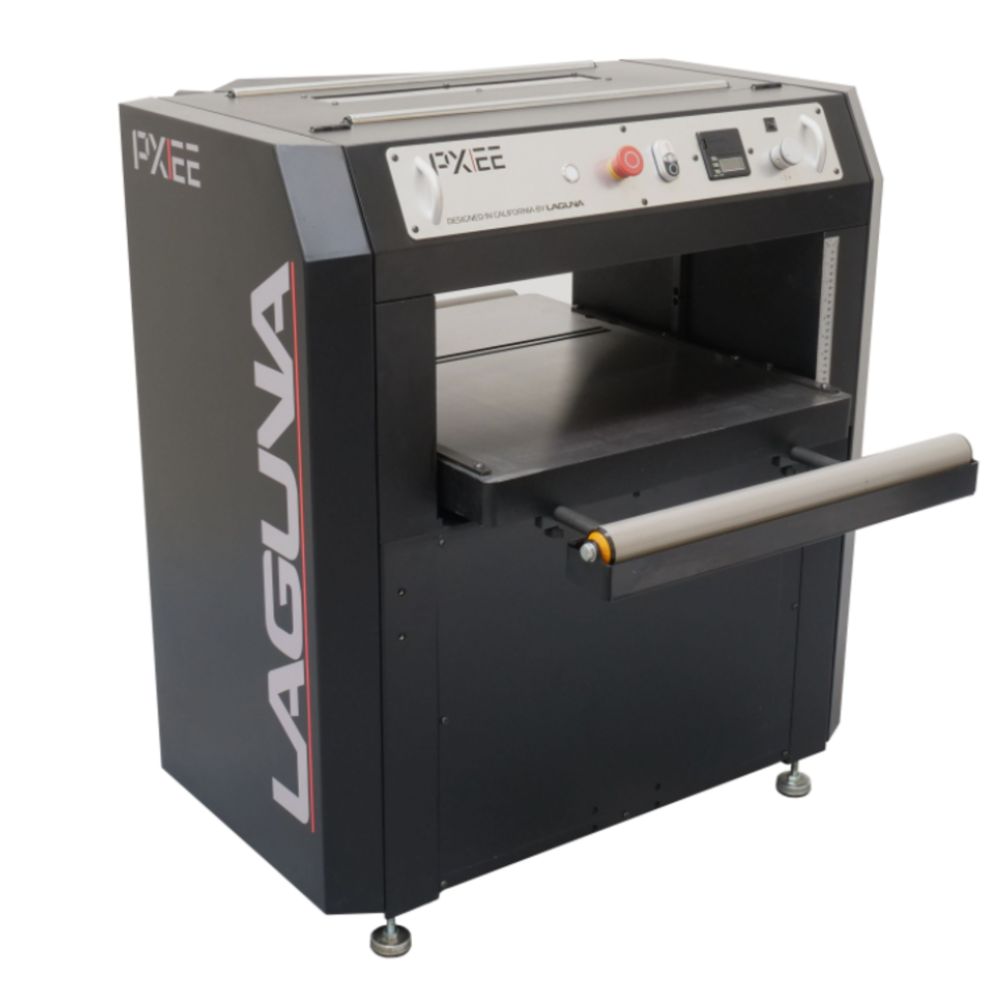

Laguna PX|22 SHEARTEC: II Planer 10HP 220V 3PH
The Laguna PX|22 planers are loaded with features to make woodworking safer and more enjoyable. The PX|22 has segmented infeed rollers that allow multiple boards to be fed through and also electronic variable speed which allows users to speed up for more thickness or slow down for more cuts per inch. It also has an Ergonomic control panel where the controls are at the top of the machine for easier access and visibility. The PX|22 also comes with either a 7.5 HP Single Phase or a 10HP 3 Phase motor.
Features
4-Post Bed Support – Provides precise and consistent performance with every cut
Digital Readout – The DRO makes setting precise thickness easier
Infeed and Outfeed Rollers – The PX|22 features infeed and outfeed rollers to assist with material loading and feeding and provide a compact footprint
Motor – The PX|22 comes with either 7.5 HP Single Phase or 10 HP 3 Phase motor
Electronic Variable Speed – Allows users to speed up the material feed for quick thicknessing or to use slower rates for more cuts per inch. This feature is something that is normally found on much more expensive models
Segmented Infeed Roller – Allows for multiple boards to be fed without having individual boards stall out due to small variations in thickness
The ShearTec II is standard on the PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force, preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The cutterhead has deep grooves that make it very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig

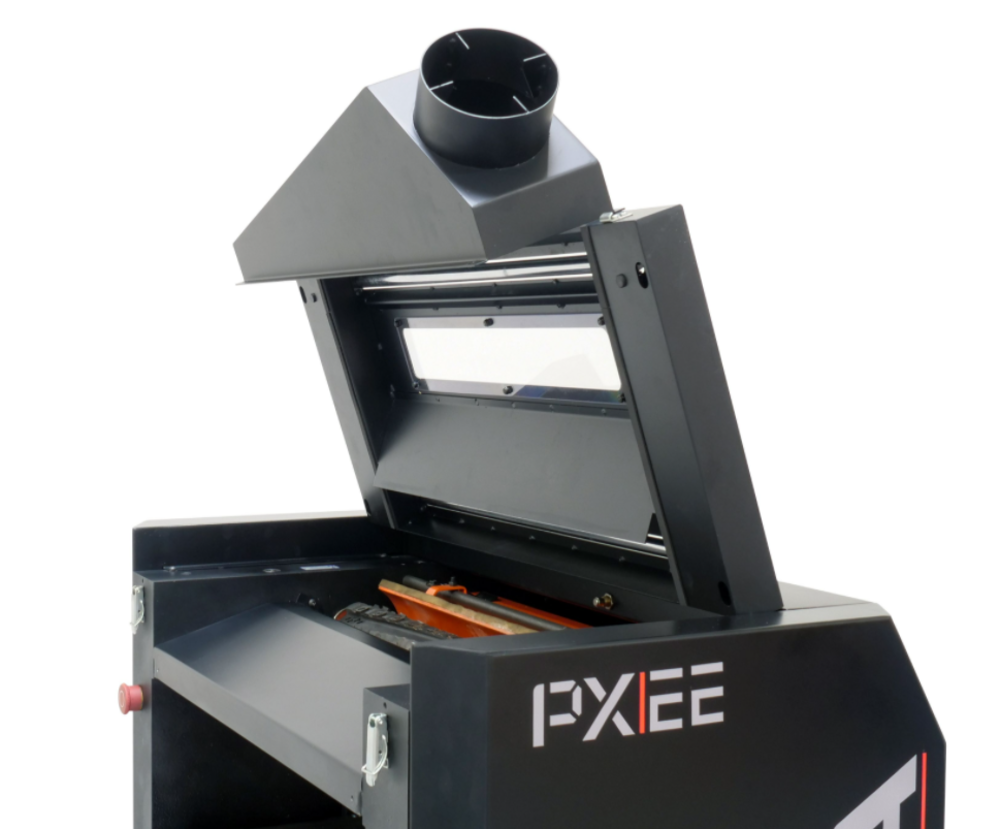

Improved Dust Collection – The 5” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
Specifications
Acme Tools Brand Name
LAGUNA TOOLS
Acme Tools Part Number
MPLANPX2210-0130
Assembled Depth (in)
40
Assembled Height (in)
42
Assembled Weight (lbs)
867
Assembled Width (in)
46
California Proposition 65 Warning Required
Yes
Cordless / Corded
Corded
Country of Origin
China
Height (in)
42
Maximum Width Cutting Capacity (in)
22 in
Motor Horsepower (hp)
10 HP
Package Contents
1 PX|22 SHEARTEC: II 10 HP 3 PH Planer
Package Depth
44
Package Height
48.5
Package Weight
955
