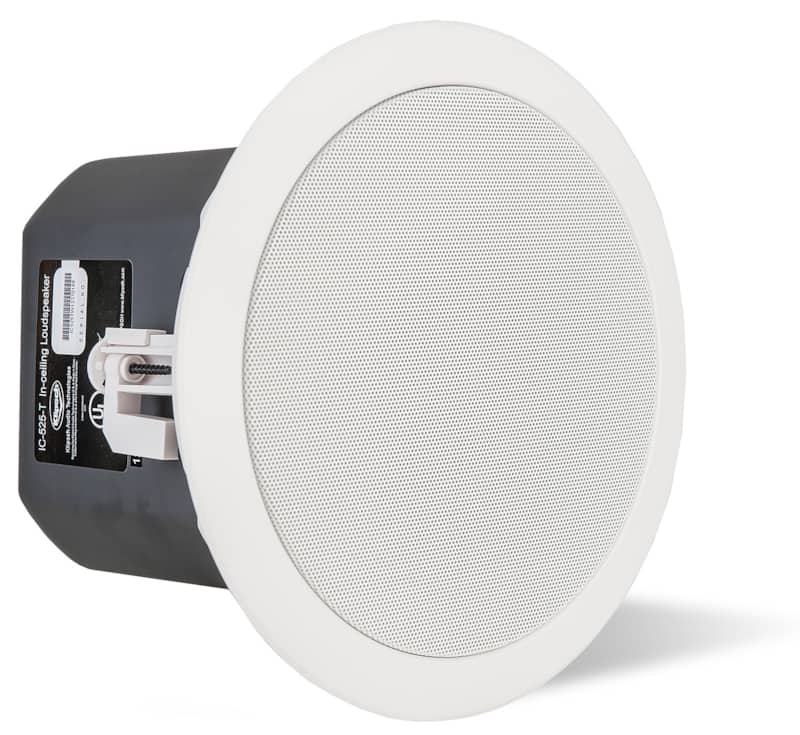

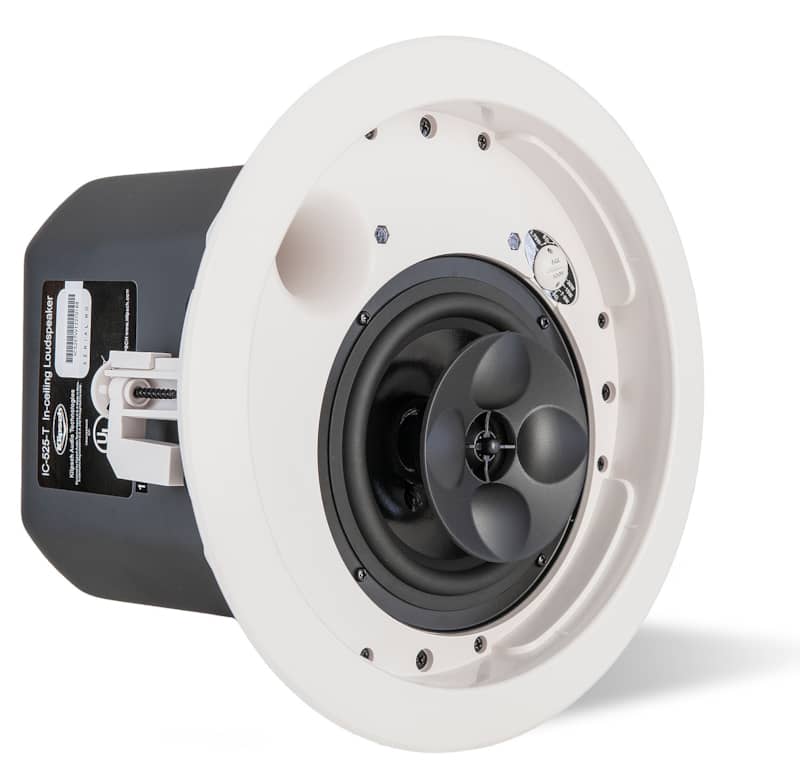

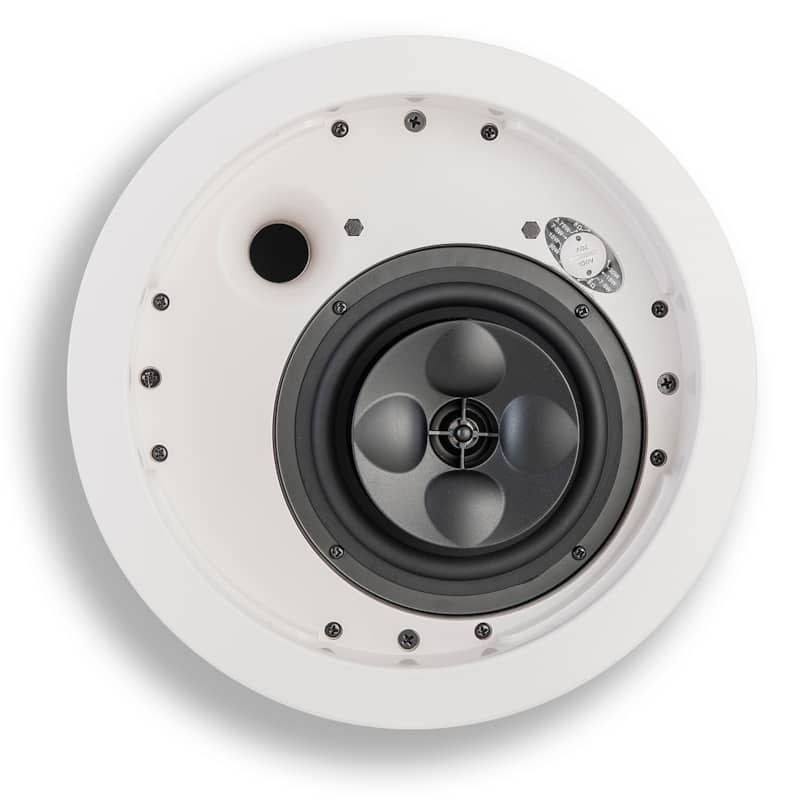

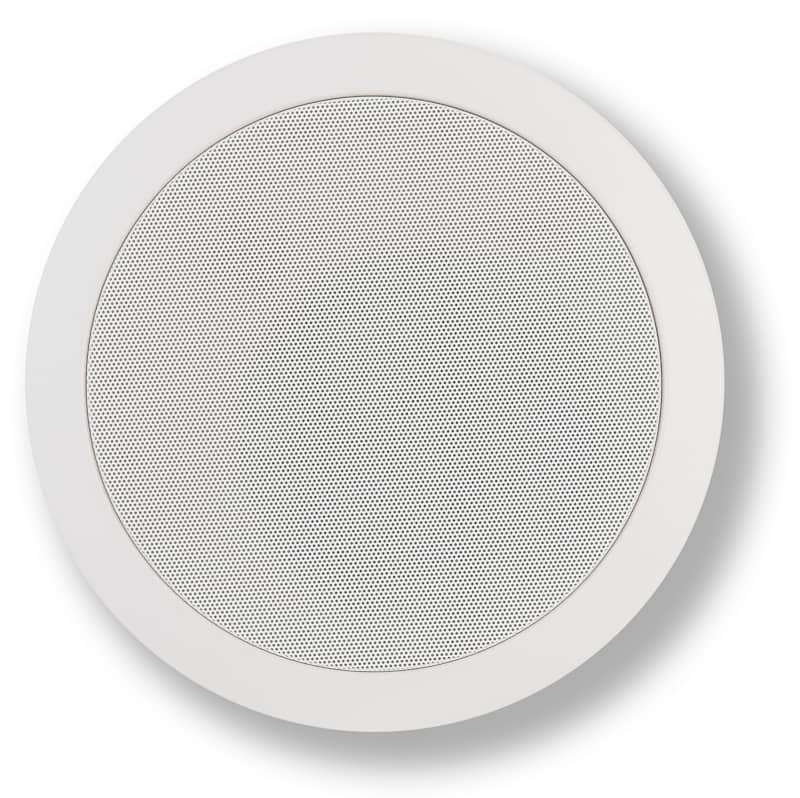

Klipsch IC-525-T White 5.25″ 2-Way Full Range In-Ceiling Speaker (Pair)

Klipsch White 5.25″ 2-Way Full Range In-Ceiling Speaker (Pair) – IC-525-T-WH

The IC-525-T packs proven materials and wide dispersion horn technology into an installer-friendly, UL-2043 and 1480 certified loudspeaker with an integrated back can and multi-tap transformer. IC-T Series speakers have been included in a number of major installations nationally, from Bloomingdales in New York City to the Ron Jon Surf Shop in Orlando.

The two-way IC-525-T features a 5.25-inch woofer, and a titanium diaphragm compression driver on a 3.5-inch round modified XT Tractrix® Horn for smooth response with constant directivity. A Tractrix port design helps to provide deeper, fuller bass with less compression and distortion, while a new, more compact design simplifies low ceiling mounting.

For distributed line applications, the IC-525-T features a 70/100 volt multi-tap transformer. A single rotary switch for the 8-ohm bypass and multi-tap setting is conveniently located under the speaker grille. The IC-525-T is shipped complete with a tile bridge for installation in a suspended ceiling or wherever additional reinforcement of the ceiling material is required.

Key Features

• Wider, shorter design to fit low ceilings; multi-tap transformer
• 70-volt, 100-volt, or 8-ohm operation selectable via front baffle switch
• Tractrix Port design for deep bass with less compression
• Wide dispersion Tractrix® Horn tweeter with XT technology for clear sound in any location
• Designed to mix and match with Klipsch CA-T speakers

Specifications

• Sold As Pair
• Frequency response: 65-20k Hz +/- 4 dB
• Power handling: 65 watts (16.5V) cont.
• Q: 4.5
• Sensitivity: 89dB 2.83 V/1M
• Nominal impedance: 8 ohms, min 4.2 ohms when switch is set to 8 ohm position
• Transformer taps:
  • 70V: 30W, 15W, 7.5W, 3.8W
  • 100V: 30W, 15W, 7.5W
• Maximum acoustic output: 104 dB @ 1M
• Coverage angle: 105 degrees
• Directivity index: 6.5 dB
• Transducers: 5.25” woofer and 1” titanium diaphragm compression driver on a 3.5” round XT modified Tractrix Horn
• Enclosure tuning: Vented via a Tractrix port
• Input connections: Terminal Strip
• Finish: White

Approximate Dimensions

• Overall
  • Width Diameter: 10.75″
  • Depth: 8.313″
• Cutout Diameter: 9.125″
• Mounting Depth: 8″
• Thru Hole Width Diameter: 9″

Approximate Weight

• Unit (Pair): 16.5 lbs
• Shipping: 25 lbs

Warranty Information

• Manufacturer Warranty (authorized online retailer):
  • KLIPSCH, AUDIO TECHNOLOGIES (“KLIPSCH”) warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below) for a period of five (5) years from the date of purchase. During the Warranty period, KLIPSCH will repair or replace (at KLIPSCH’s option) this product or any defective parts (excluding electronics and amplifiers). For products that have electronics or amplifiers, the Warranty on those parts is for a period of two (2) years from the date of purchase.
