Description
Kawasaki Gasoline Engine Air Cooled V Twin 4 Stroke 21.4hp 746 cc

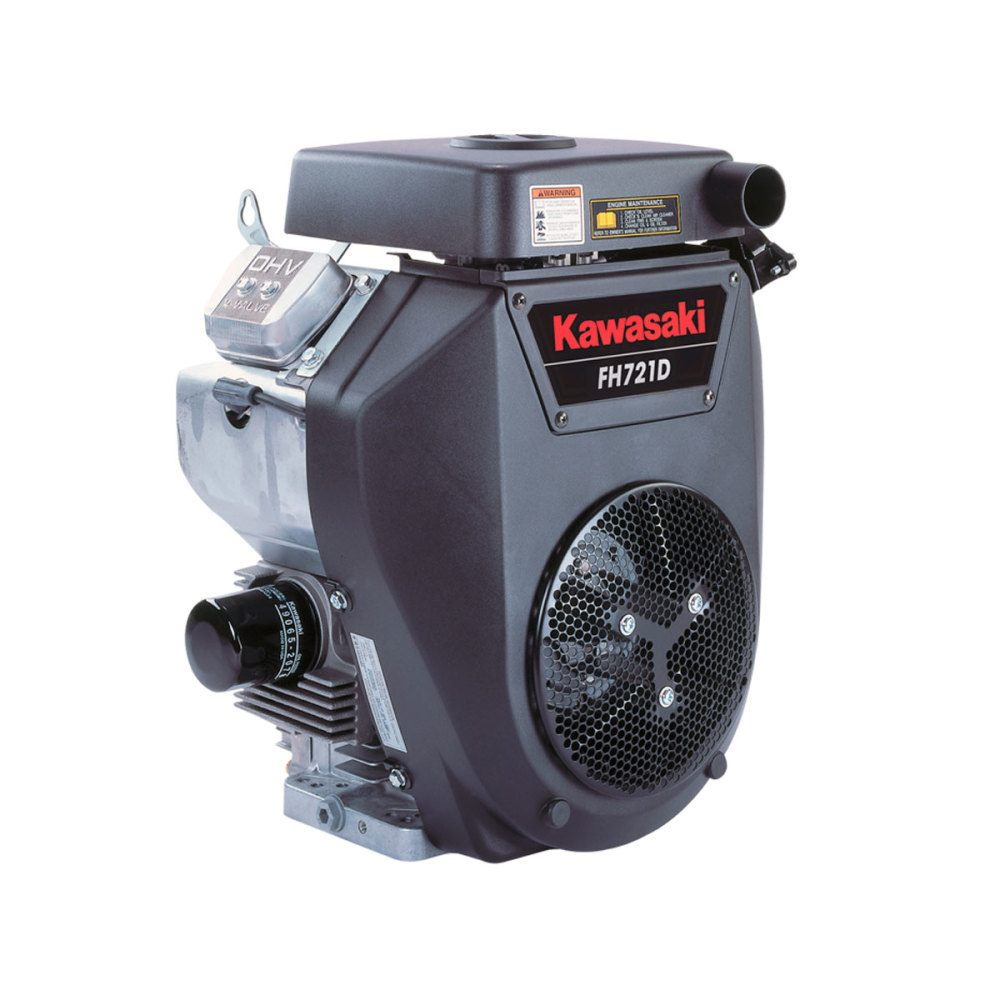

The Kawasaki FH721D is a 0.68 l (675 cc, 41.19 Cu In.) V-twin 90 Deg air-cooled 4-stroke internal combustion small gasoline motor with horizontal shaft, manufactured by Kawasaki Heavy Industries Ltd., for general-purpose applications. The FH721D has OHV (overhead valve design), cast-iron cylinder liners. The Kawasaki FH721D uses a full pressure lubrication system with spin-on oil filter and dual element air cleaner. The engine was equipped with BENDIX type electric starter and 12V-13A charging coil with a regulator. The Kawasaki FH721D develops 25.3 PS (18.6kW, 25HP) at 3600 Rpm and 56 Nm (5.7 kg·m, 41.3 Ft. lb) at 2400 Rpm of torque. It has a 75.2 mm (2.96 In.) cylinder bore and 76.0 mm (2.99 In.) piston stroke. Compression ratio rating is 8.1:1..
Features
Overhead V-valves
90 Deg V-twin
Pressurized lubrication
Oil cooler
Spin-on oil filter
Dual element air cleaner
Internally vented carburetor
Rotating grass screen
Cast-iron cylinder liners
