Description
JWS-22CS, 1-1/2HP Shaper, 1Ph 115/2

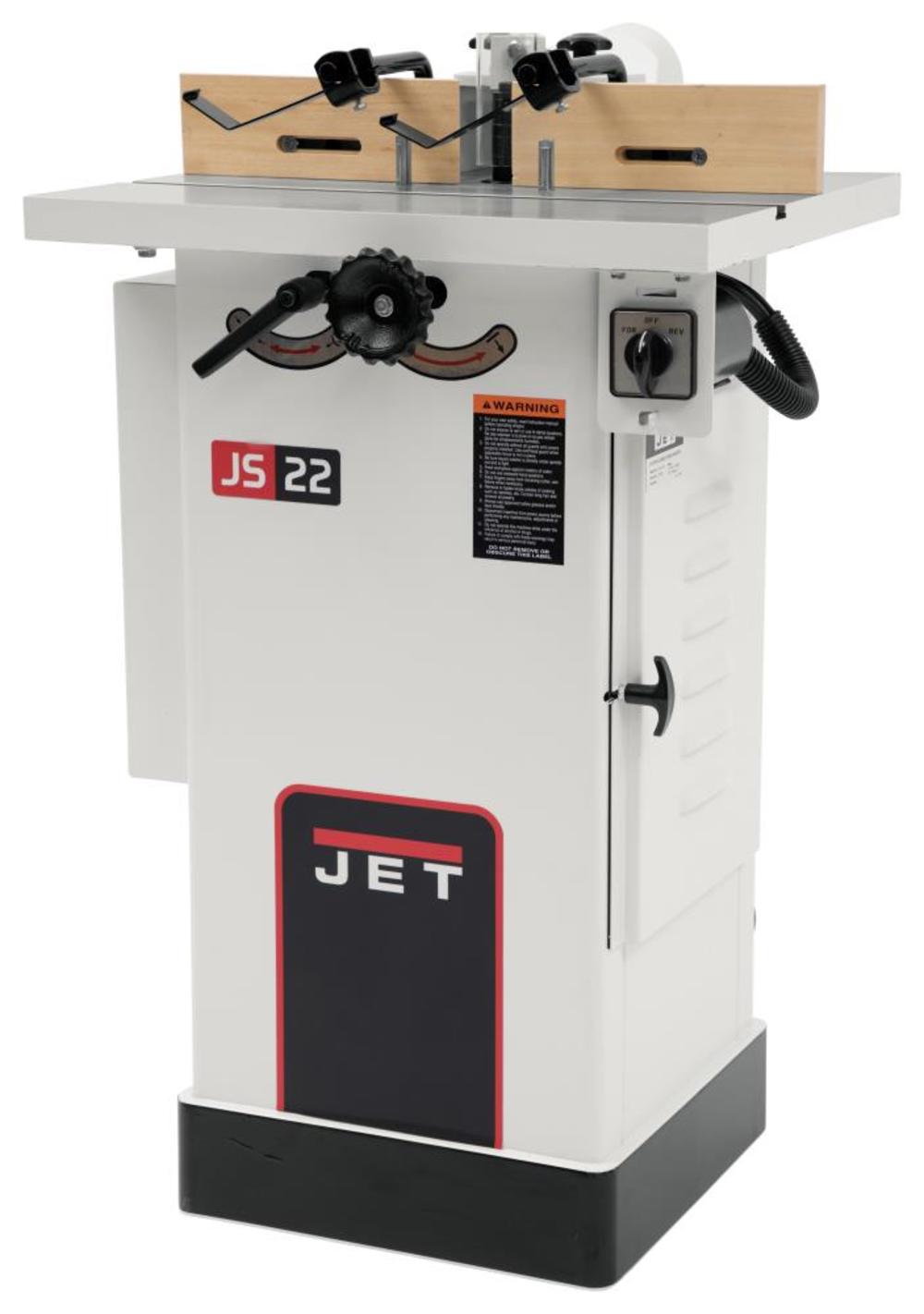

If you’re looking for a space-saving shaper for your shop, the new JET® JWS-22CS shaper is what you need. This compact powerhouse features a 7000 and 9000 RPM reversing 1-1/2 HP motor. The large 22-3/8 In. x 18-1/8 In. precision ground cast iron table provides a large, durable, work area. Safe, easy cutter set up is assisted by a positive center set spindle lock. The independent left and right fences feature micro-adjustment, and a built in 4 In. dust port. If you feel you just don’t have the space, the nominal 23 In. x 25 In. footprint of this workhorse is sure to change your mind. Put the new Jet JWS-22CS shaper in your shop today.
Features
Starting pins for irregular shaping
Forward/reverse switch for left and right hand operation
Two reversible spindle speeds lets you select the best speed and torque for different cutter diameters

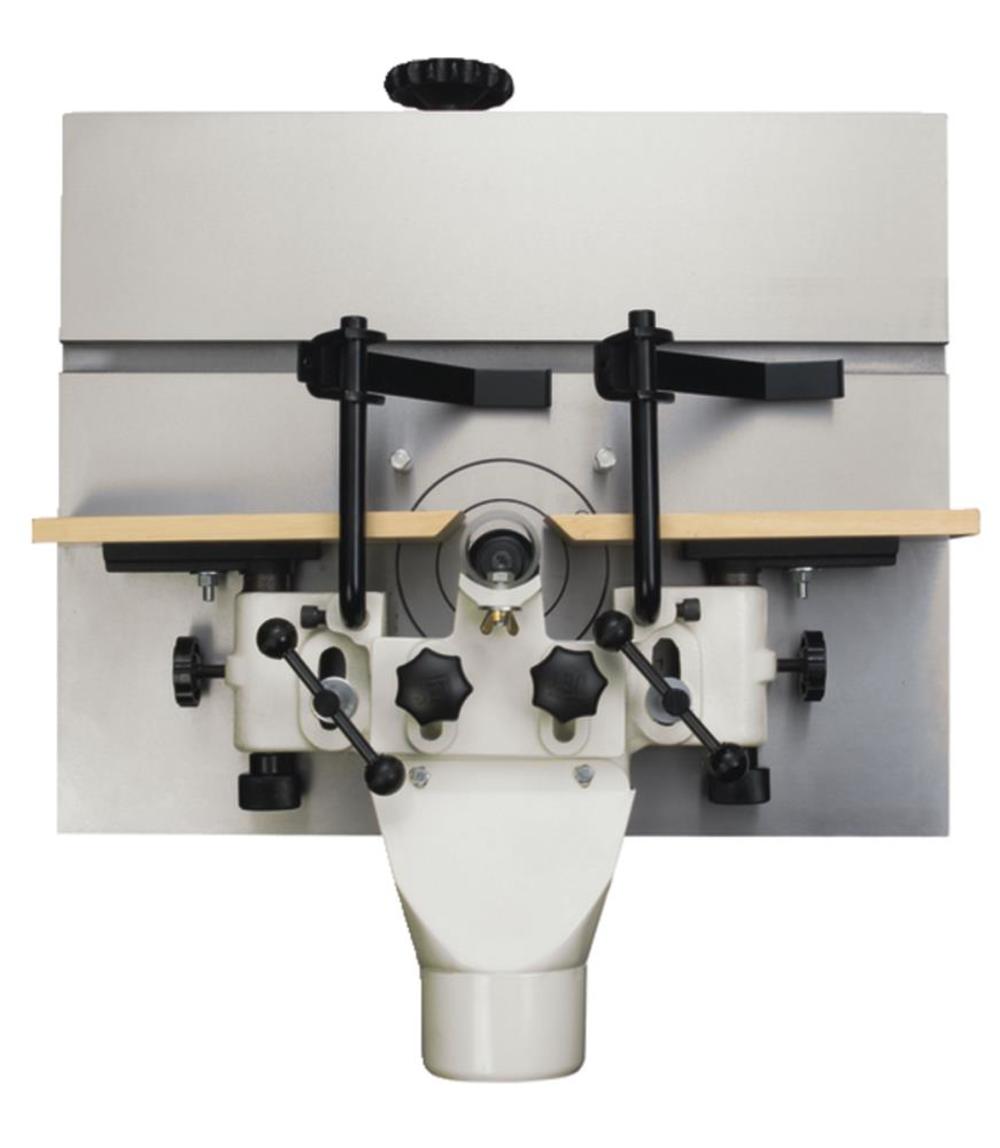

Independent left and right fences feature micro-adjustment and have zero-clearance capability
22-3/8 In. x 18-1/8 In. solid cast iron table provides a durable work area
Solid cast iron table provides a durable work area
Adjustable work hold-downs mounted to the fence secure your work while shaping
Large handwheels is conveniently located for fast, easy and accurate spindle height adjustments
Large handwheels is conveniently located for fast, easy & accurate spindle height adjustments
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
708320
Amperage (A)
12
Assembled Weight (lbs)
211
Bit Change Type
Wrench
California Proposition 65 Warning Required
Yes
Color / Finish
See Photo
Country of Origin
Taiwan
CSA Certified
No
Dust Collection
Yes
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Electric Motor Brake
No
ETL Listed
No
Fence Type
Adjustable
Horsepower (hp)
1.5
Internal Supplier Part #
708320
Internet Product Code (IPC)
6AC4516AEEE
Manufacturer Warranty
2 Year
Micro Adjust Fence
No
Package Depth
21
Package Height
23
Package Weight
170
Package Weight (lbs)
170
Spindle Speed High (rpm)
9000
Spindle Speed Low (rpm)
7000
Stand Included
Yes
Switch Type
Push Button
Table Height From Floor (In)
33.5
Table Length (in)
22.25
Table Material
Cast Iron
Table Space in Front of Blade
0
Table Width (in)
18.125
UL Listed
No
Variable Speed
No
Voltage
110/220 Volts
Wheeled
No
