Description

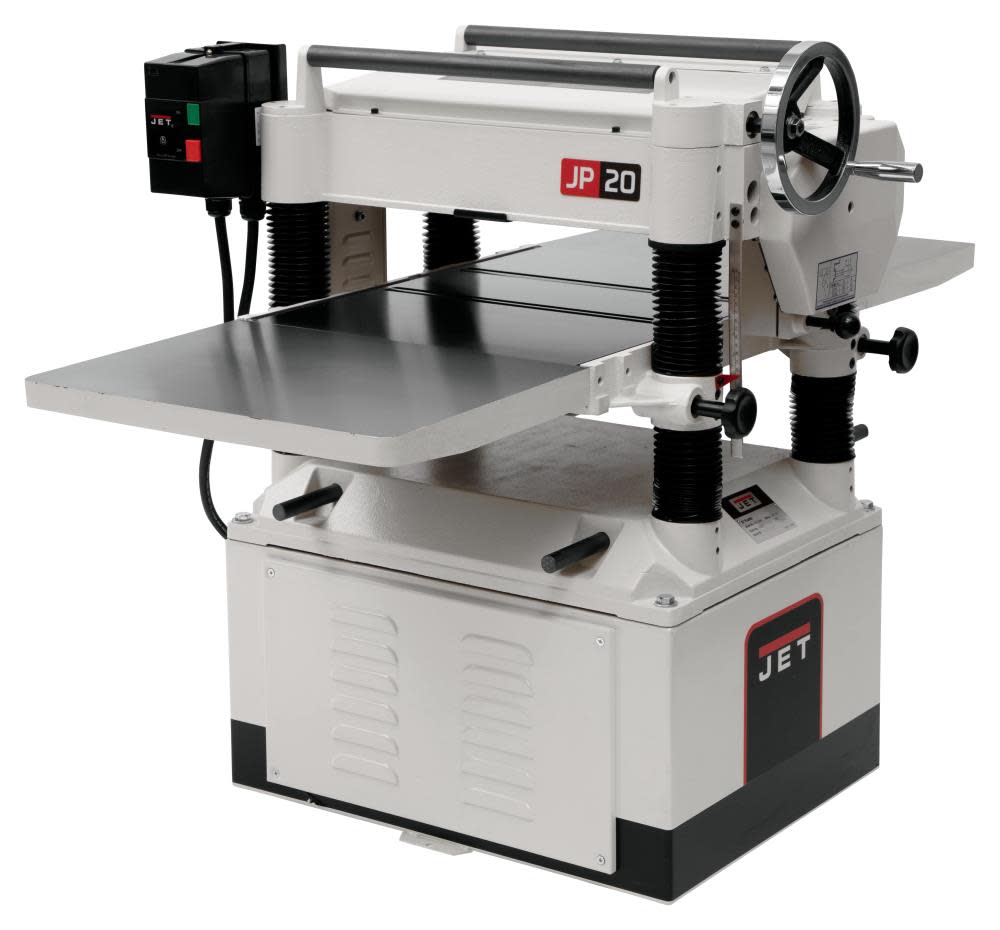

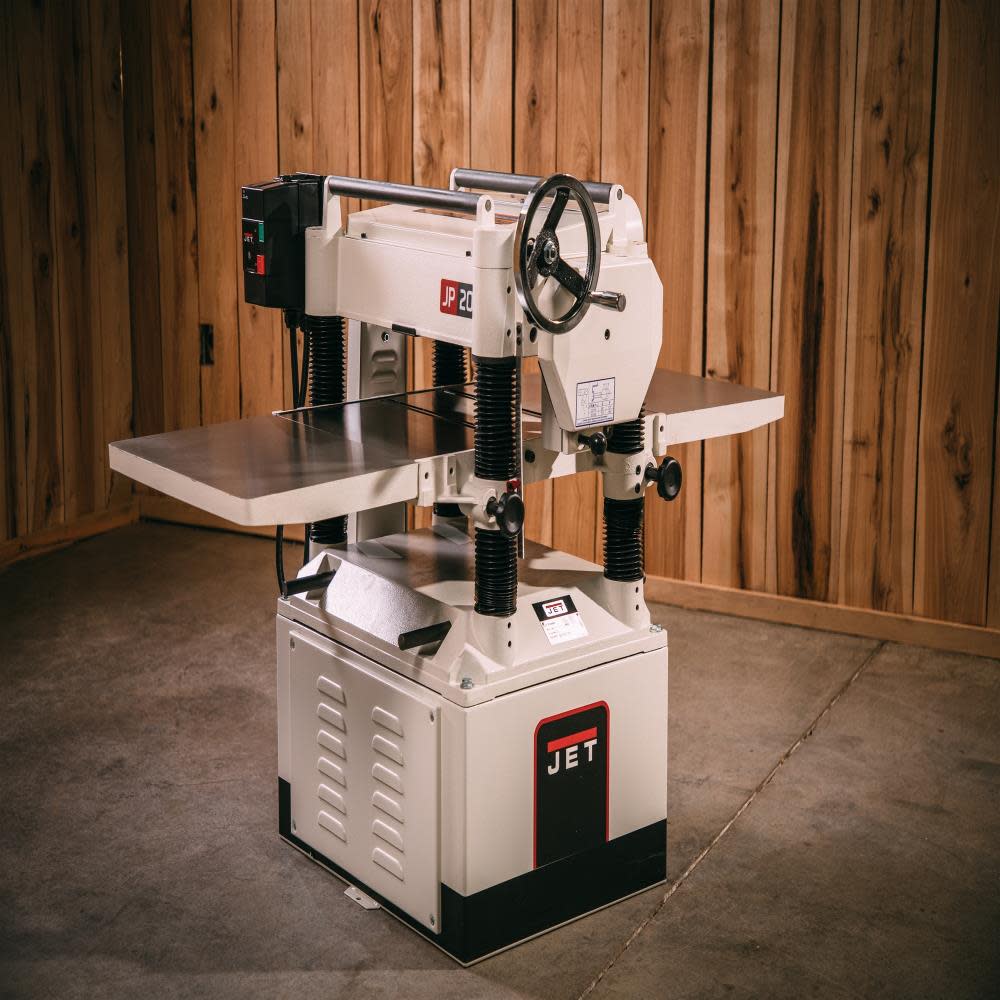

JWP-208HH, 20″ Planer 5 HP 1Ph, Helical Head
Get a fine finish on rough stock with the JET® JWP-208HH, 20-Inch Planer 5HP 1Ph, Helical Head. The planer operates with a powerful 5 hp motor that turns the cutter blade at up to 5000 rpm. The Jet helical head planer accepts boards up to a maximum thickness of 8 inches and a width of 20 inches, so it’s equipped to handle large stock. The helical cutting blade, with staggered waves of 92 carbide knives on a cylindrical head, provides an ultra-smooth finish with minimal operating noise. A 2-speed gearbox lets you feed boards into the Jet 20-inch planer at either 24 or 31 fpm, and steel infeed and outfeed rollers maintain the position of the cutterhead against the board, eliminating snipe. An all cast-iron, precision-ground feed table enhances the accuracy of planer depth and provides a stable work surface. The Jet planer includes a canted dust collection port to keep the collection hose angled away from the work area.
Features
Jet helical head planer surfaces large stock to a fine finish
5 hp motor puts out 5000 rpm of cutterhead speed
Planer smooths boards up to 8 inches thick and 20 inches wide

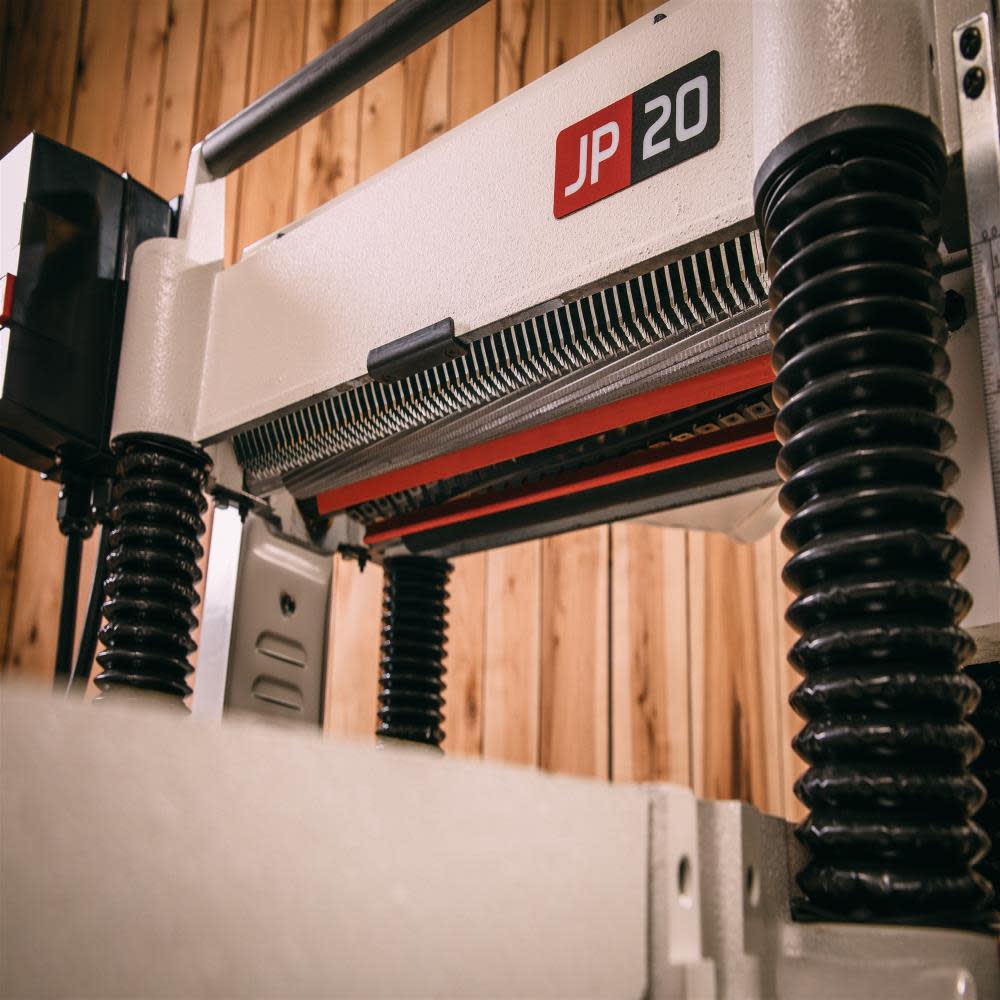

Cutterhead has 92 helical rows of carbide knife blades

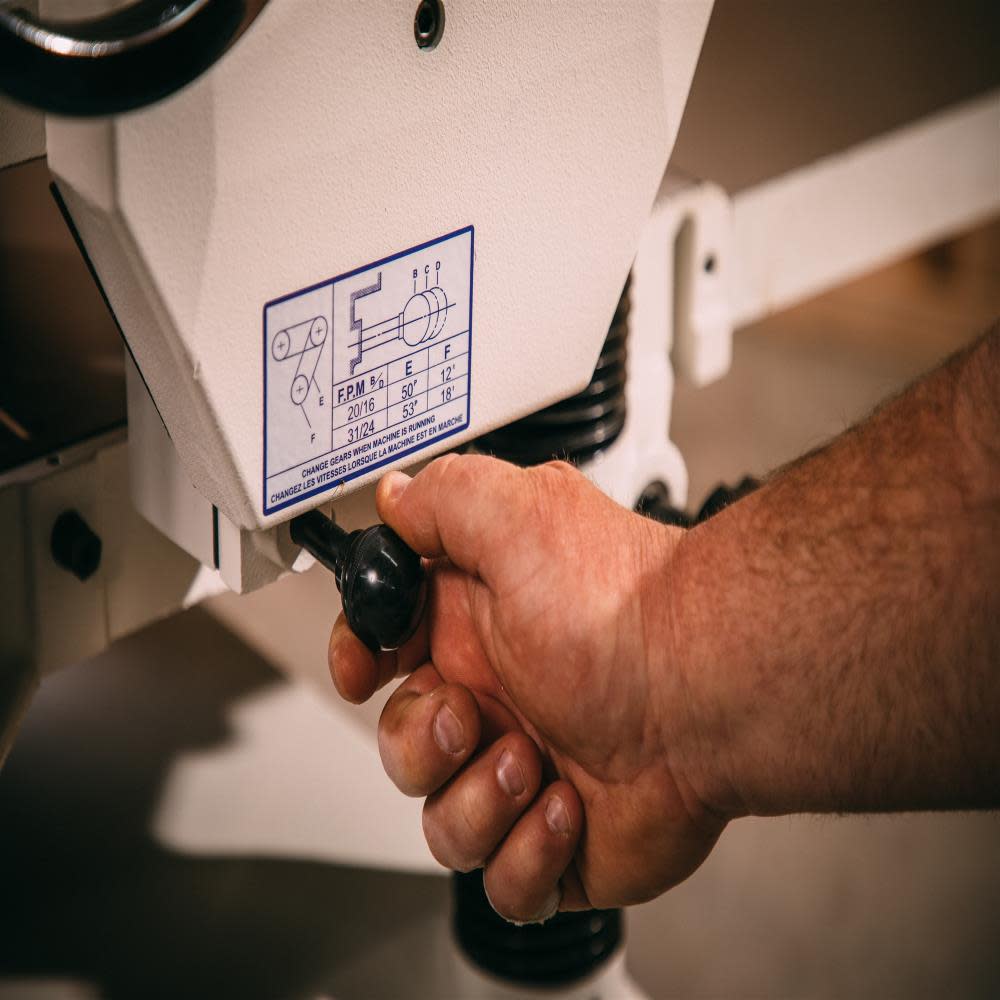

Jet 20-inch planer has adjustable feed rates of 24 and 31 fpm
Feed tables have steel rollers to prevent snipe
Cast-iron, machine-engineered table provides work stability and cutting accuracy
Planer has a dust collection port
Jet planer comes with a 5-year limited warranty
