Description

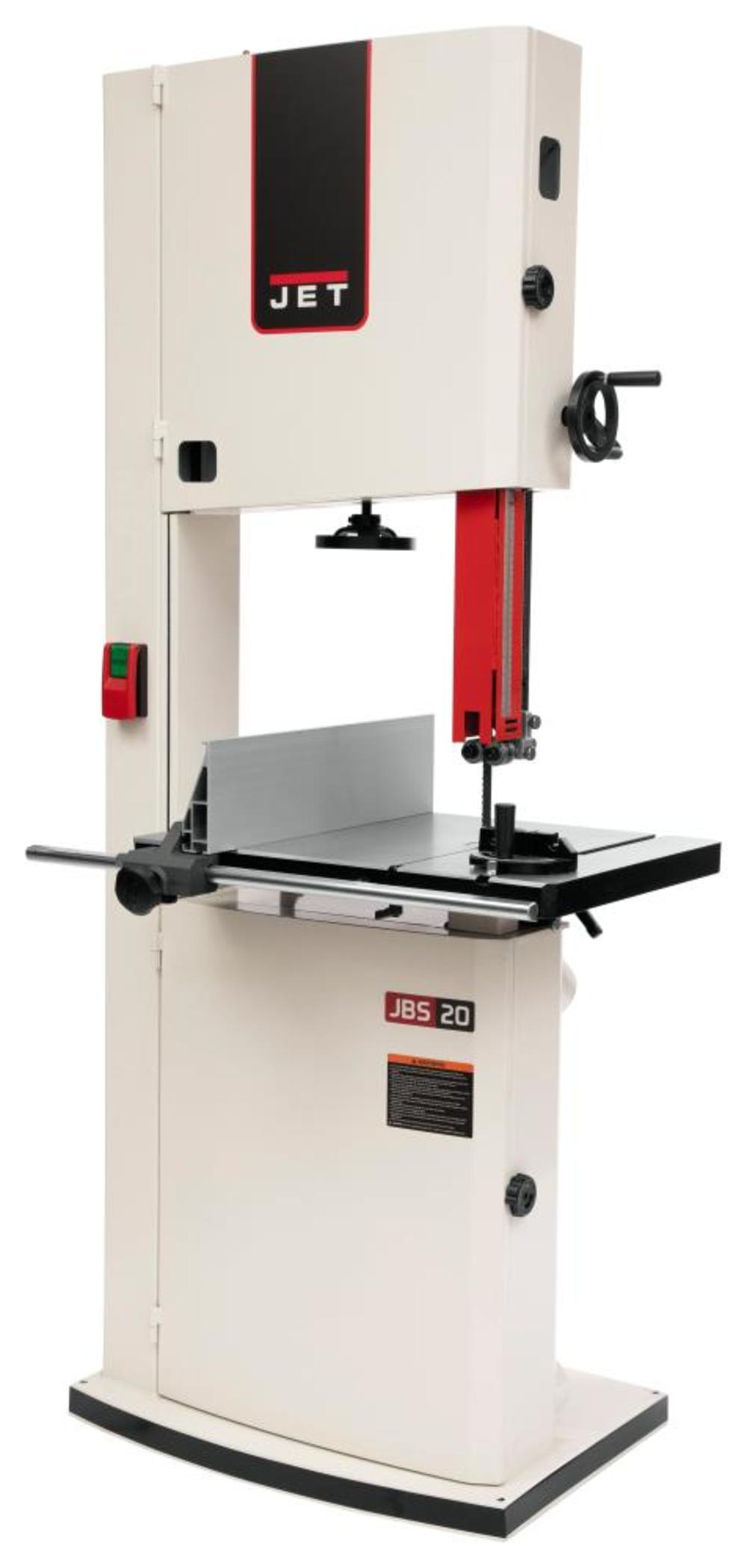

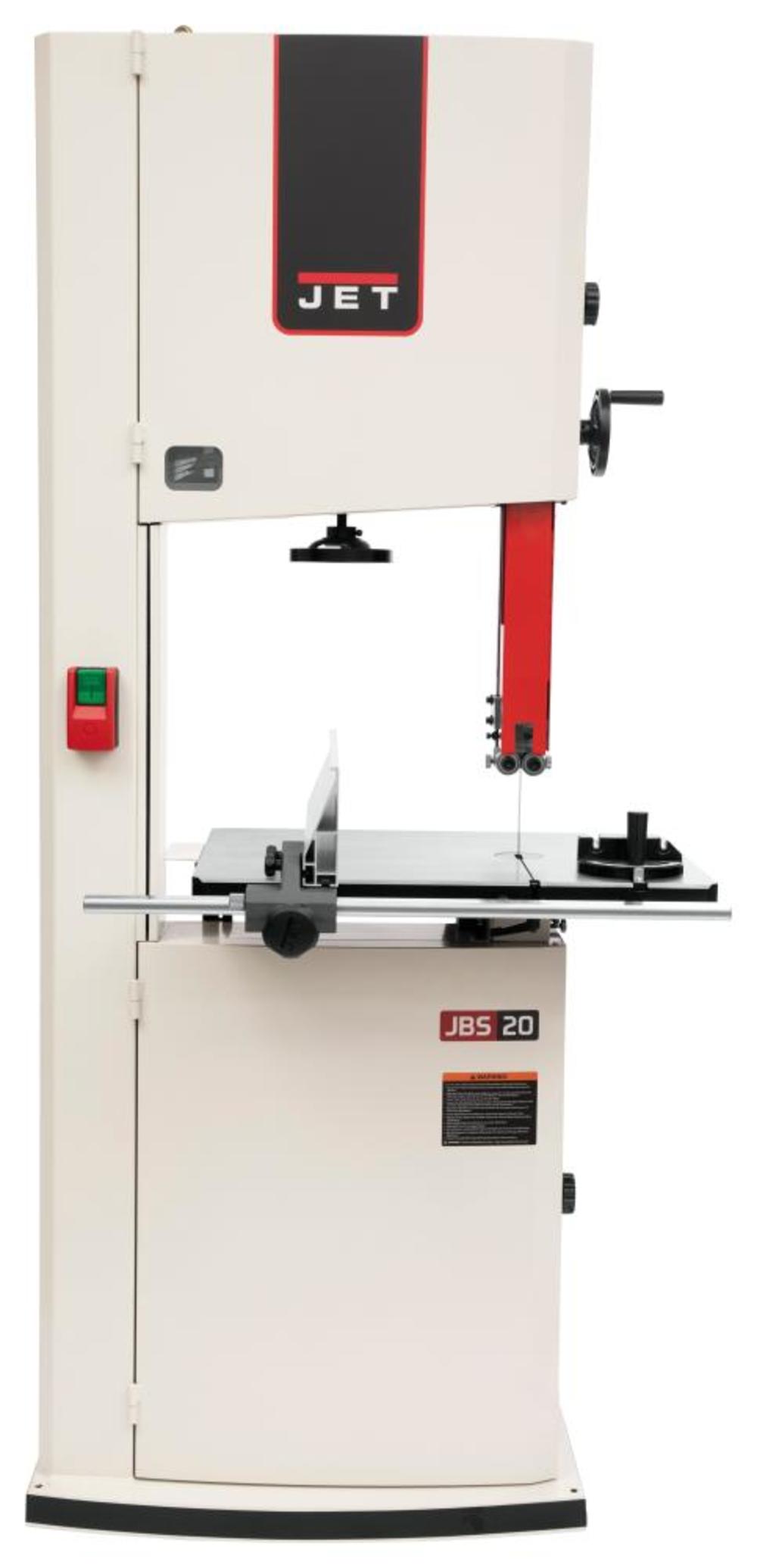

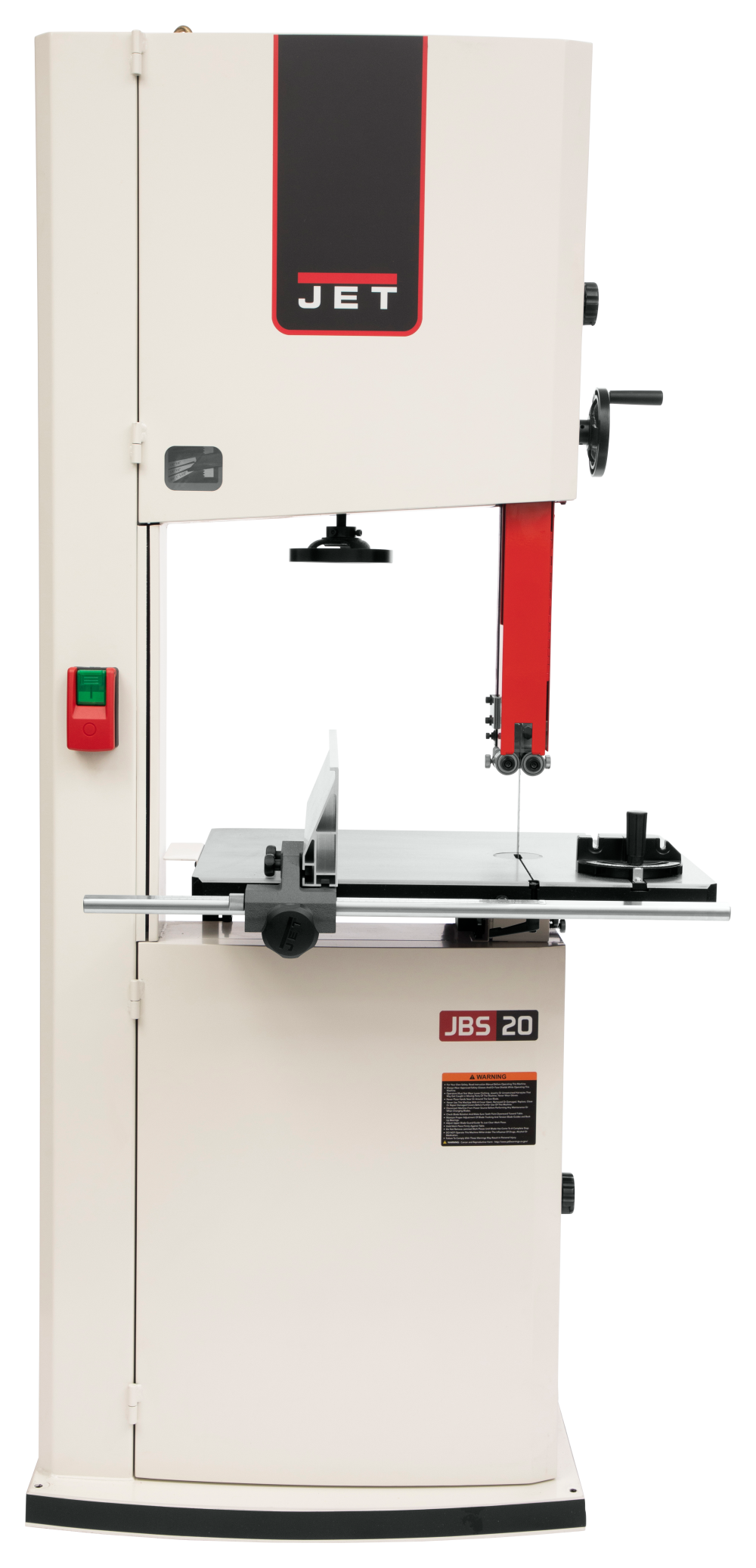

JWBS-20-5, 20 Bandsaw 5 HP, 1PH, 230 V”
Designed to perform, the Jet 20 In. Bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The Jet 20 In. steel frame Bandsaw is engineered to build great projects through superior performance.
Features
Large resaw capacity for cutting large pieces of wood, slicing veneers, and cutting book matched panels

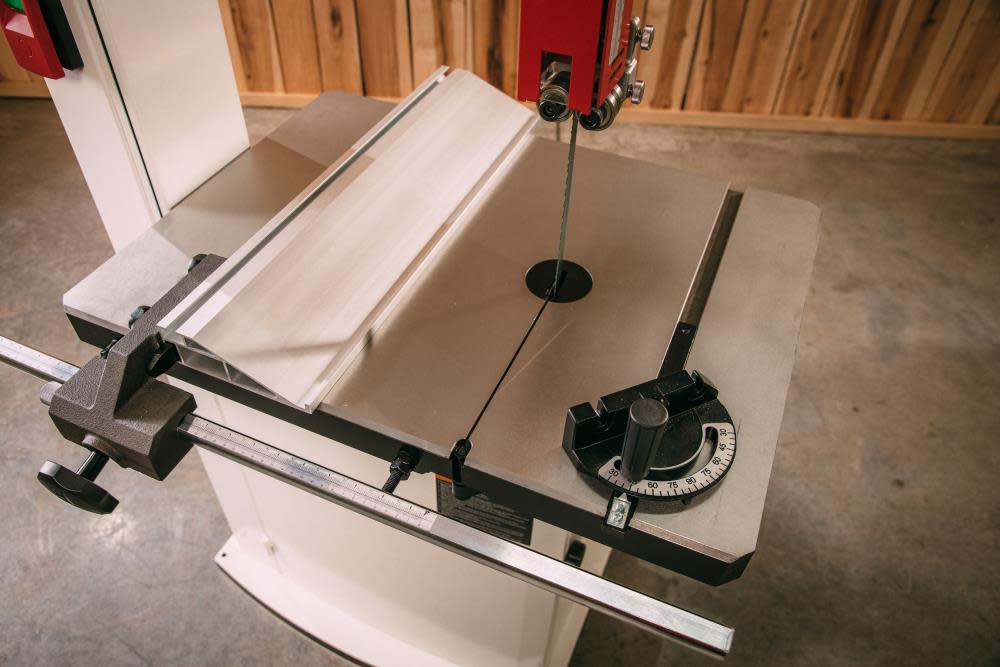

Precision ground cast iron table for added stability and work support
Fence system features a micro-adjustable, dual-position side plate

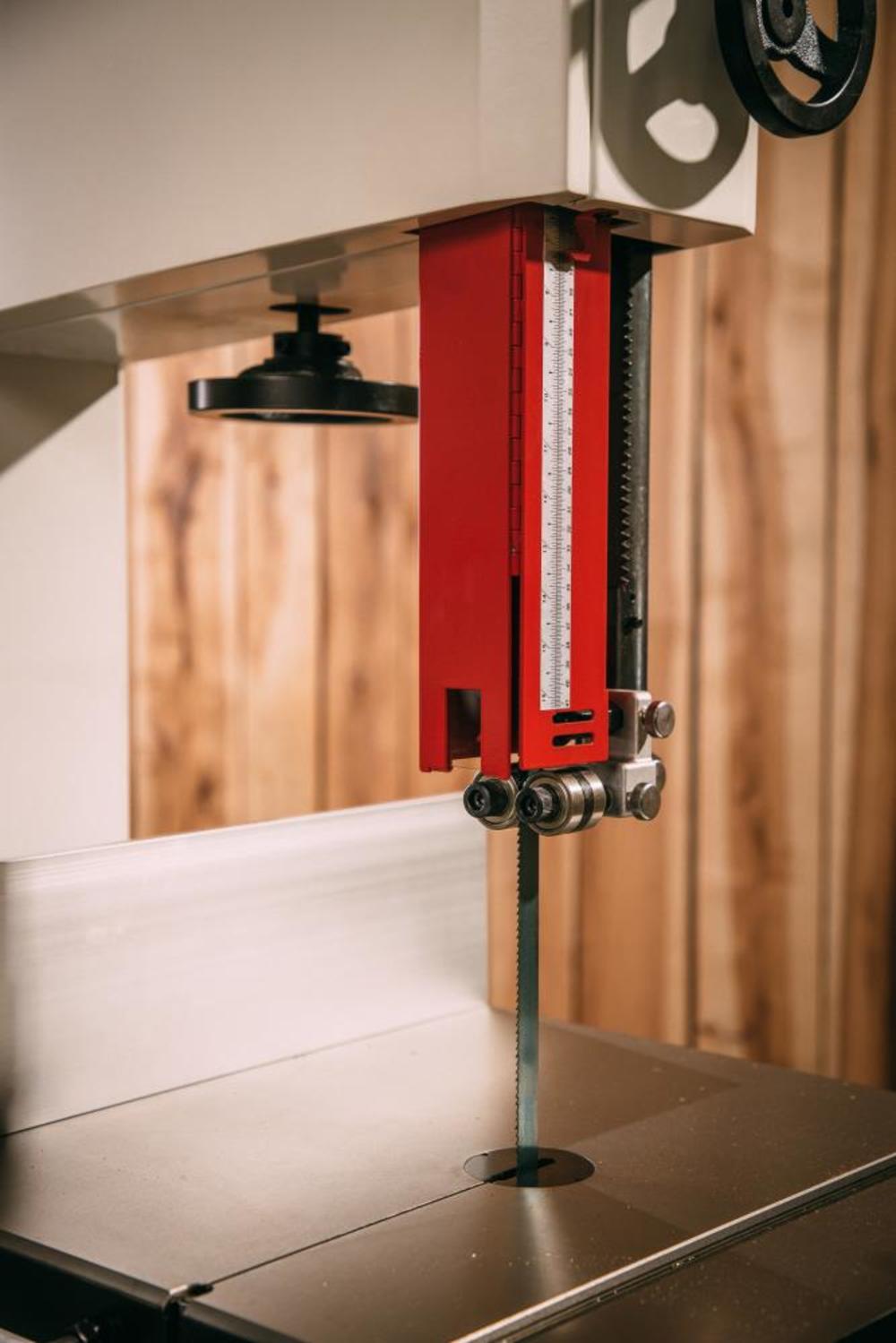

Tool-less, independently adjustable, upper and lower ball bearing guides
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
714850
Amperage (A)
30.0
Assembled Weight (lbs)
616.0
Band Saw Frame Material
Steel
Band Saw Type
Stationary
California Proposition 65 Warning Required
Yes
Color / Finish
See Image
Cord Length (ft)
6.0
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes

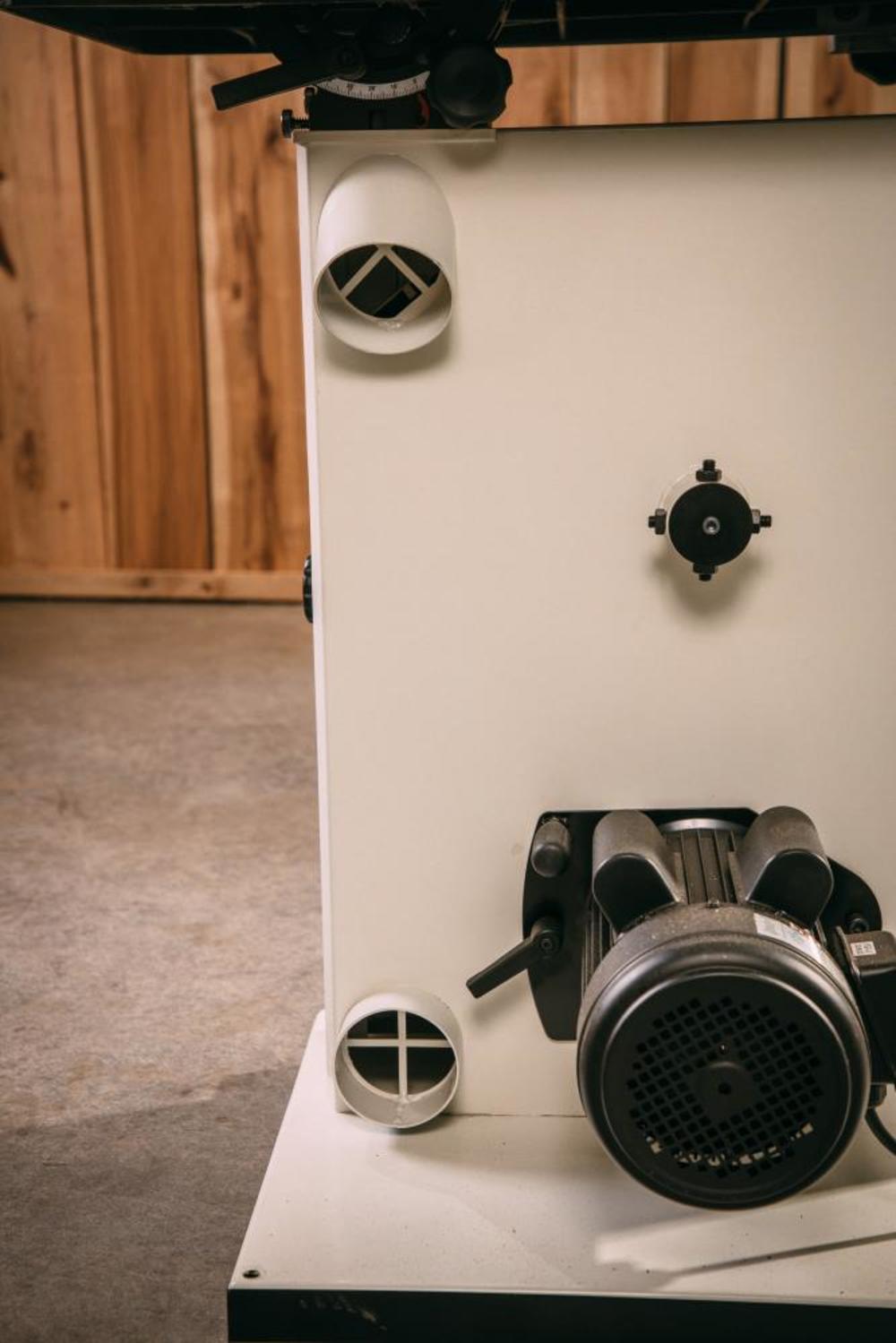

Dust Port
Yes
Dust Port Outside Diameter (in)
4.0
ETL Listed
No
Horsepower (hp)
5.0
Internal Supplier Part #
714850
Internet Product Code (IPC)
43733AB36FD
Manufacturer Warranty
2 Year
Material
Cast Iron
Maximum Blade Length (In)
158.0
Maximum Blade Width (In)
1.5
Maximum Feet Per Minute
4850.0
Maximum RPM
1720.0
Micro Adjust Blade Guides Bottom
Yes
Minimum Blade Length (in)
157.0
Minimum Blade Width (in)
0.125
Minimum Feet Per Minute
2530.0
Package Depth
32.6
Package Height
88.2
Package Weight
616.0
Package Weight (lbs)
616
Speeds
2
Table Length (in)
27.25
Table Material
Cast Iron
Table Width (in)
20.0
UL Listed
No
Variable Speed
Yes
Voltage
230 Volts
