Description

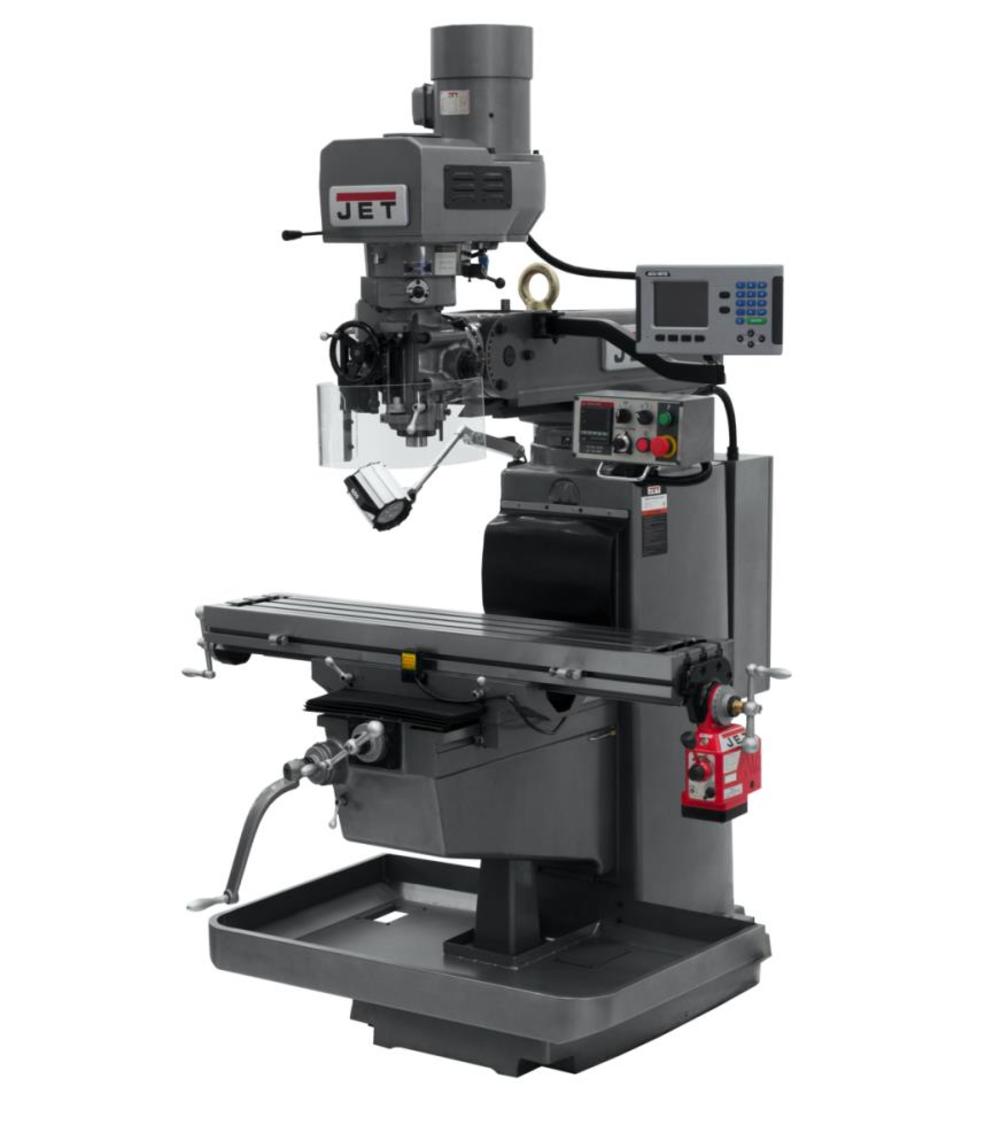

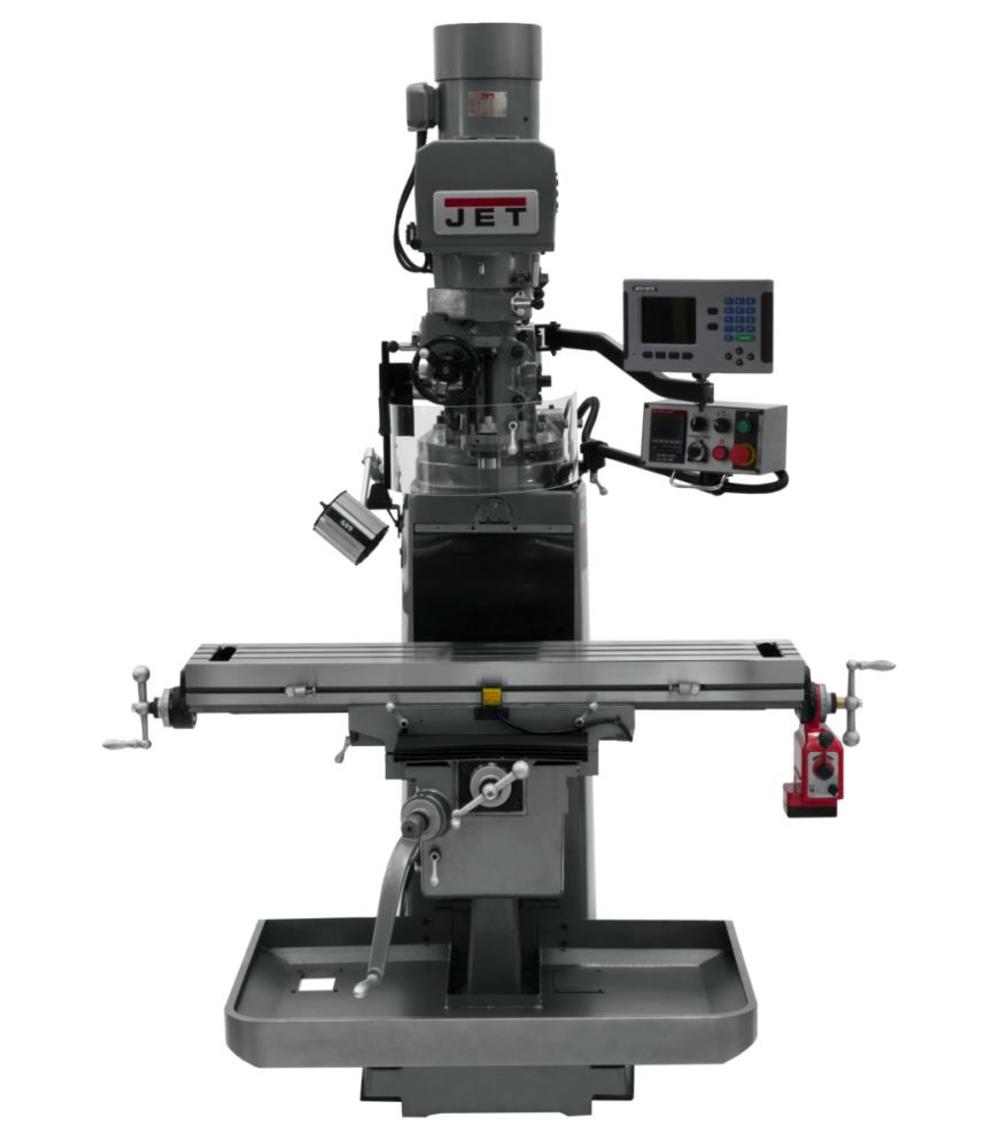

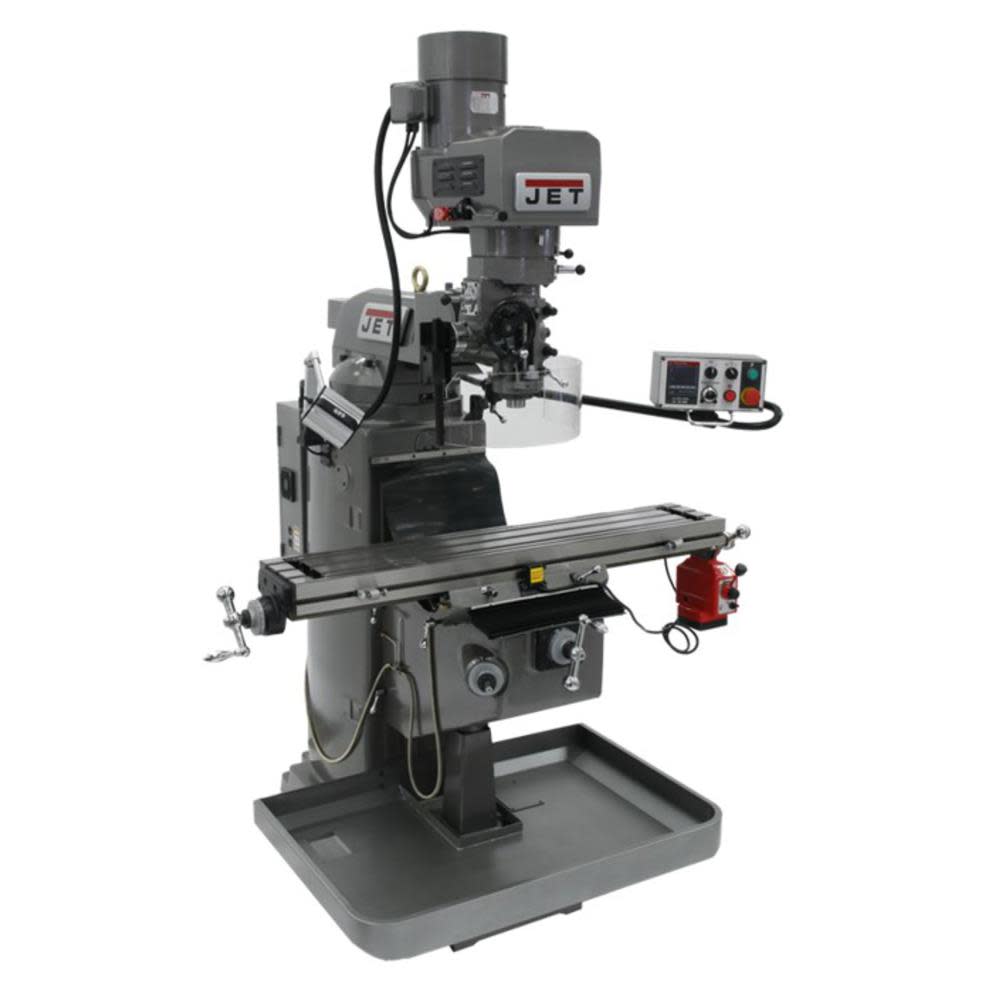

JTM-1050EVS2/230 Vertical Milling Machine
Constructed using the Meehanite® casting process, the JTM-1050EVS2/230, 10″ x 50″ Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you’ve come to expect and are backed by the industry-leading JET Two Year Warranty
Features
JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
Hardened and ground table

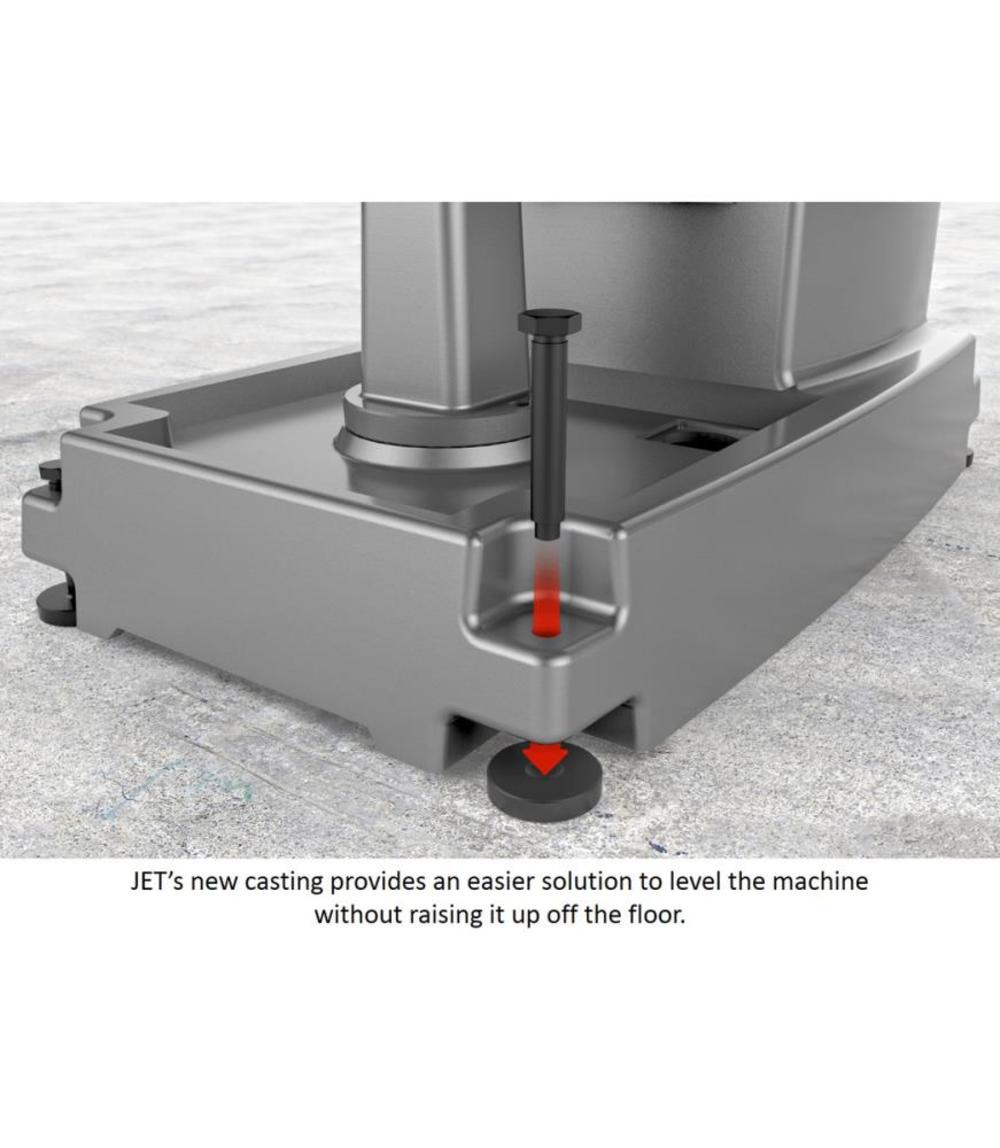

The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor

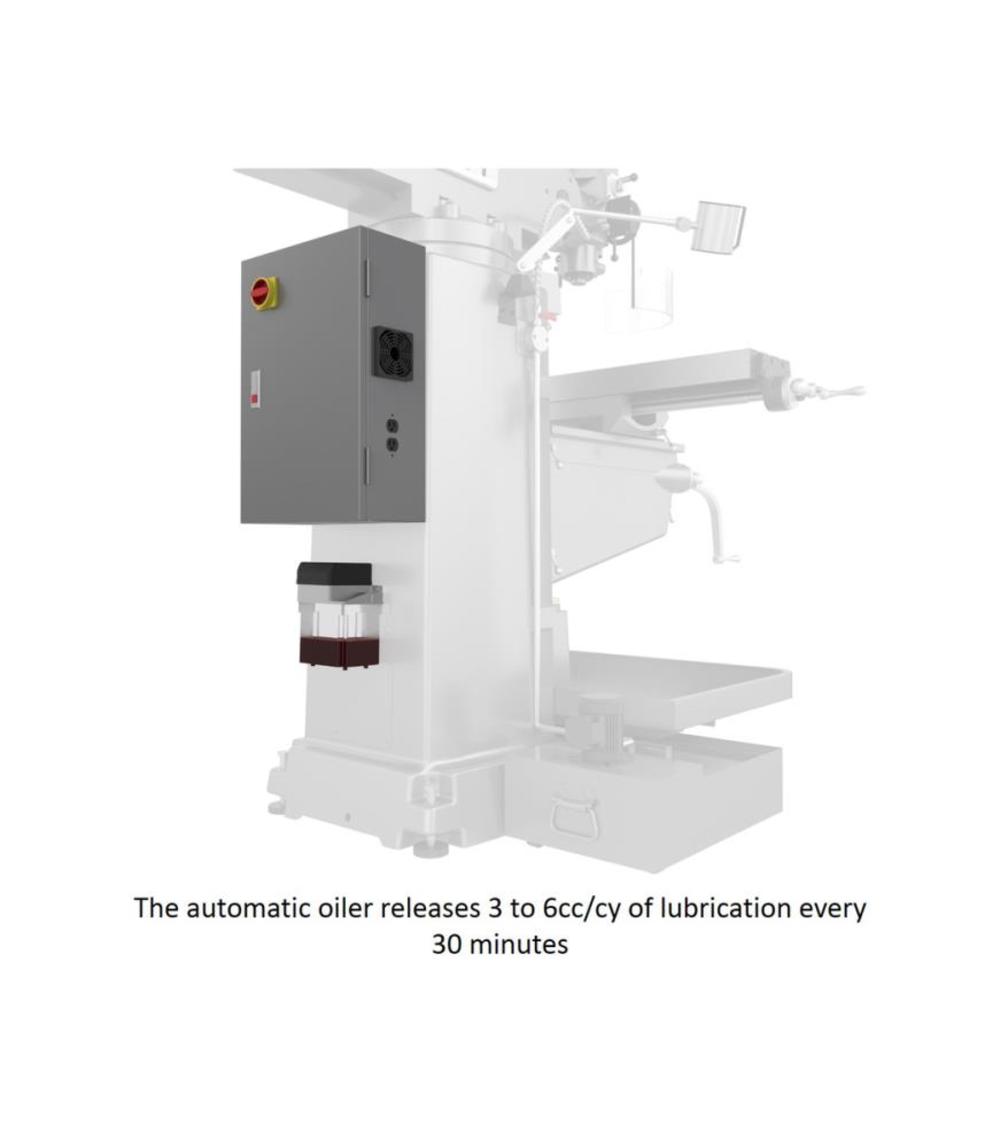

Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
690619
Assembled Weight (lbs)
2860
California Proposition 65 Warning Required
Yes
Color / Finish
See Image
Country of Origin
Taiwan
Head Tilt (Left Or Right)
90
Height (in)
87.0
Internal Supplier Part #
690619
Internet Product Code (IPC)
6D1A16A5C0B
Length (in)
66.0
Manufacturer Warranty
2 Year
Motor RPM
1720
Motor Size
#N/A
Number of T-Slots
3
Package Depth
66
Package Height
87
Package Weight
3000
Package Weight (lbs)
2580
Ram Travel
15.875
Stand Included
Yes
T-Slot Width (in)
0.625
UL Listed
No
Unit of Measurement
Inch
Variable Speed
Yes
Voltage
230 Volts
Weight (lbs)
2580.0
Width (in)
63.0
X Axis, Longitudinal (in)
0.0
Y Axis, Cross (in)
0.0
