Description

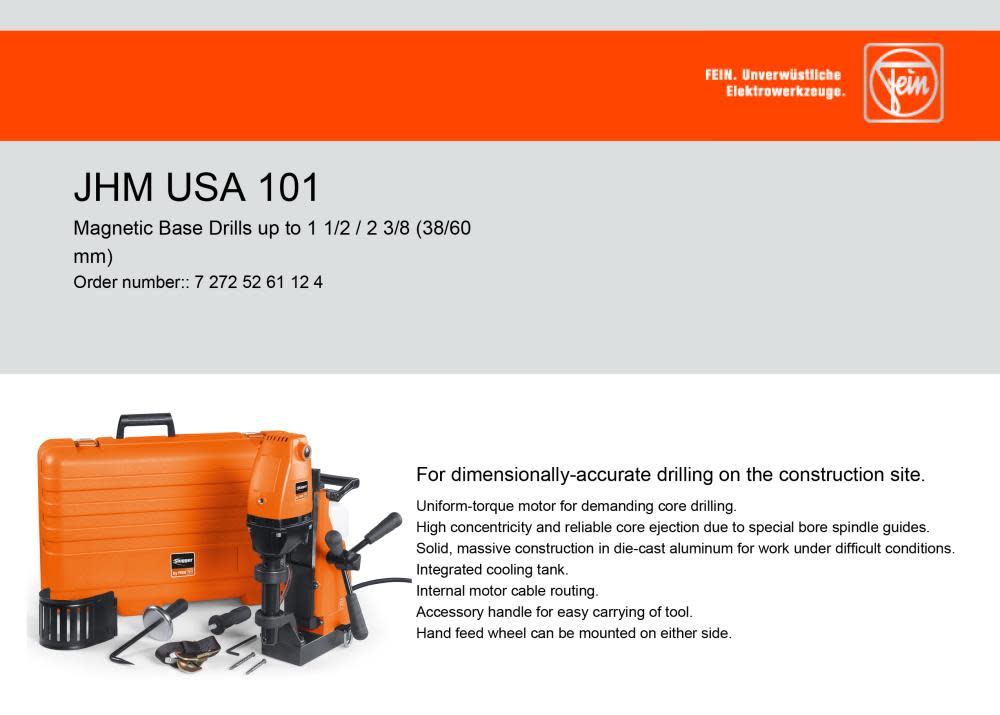

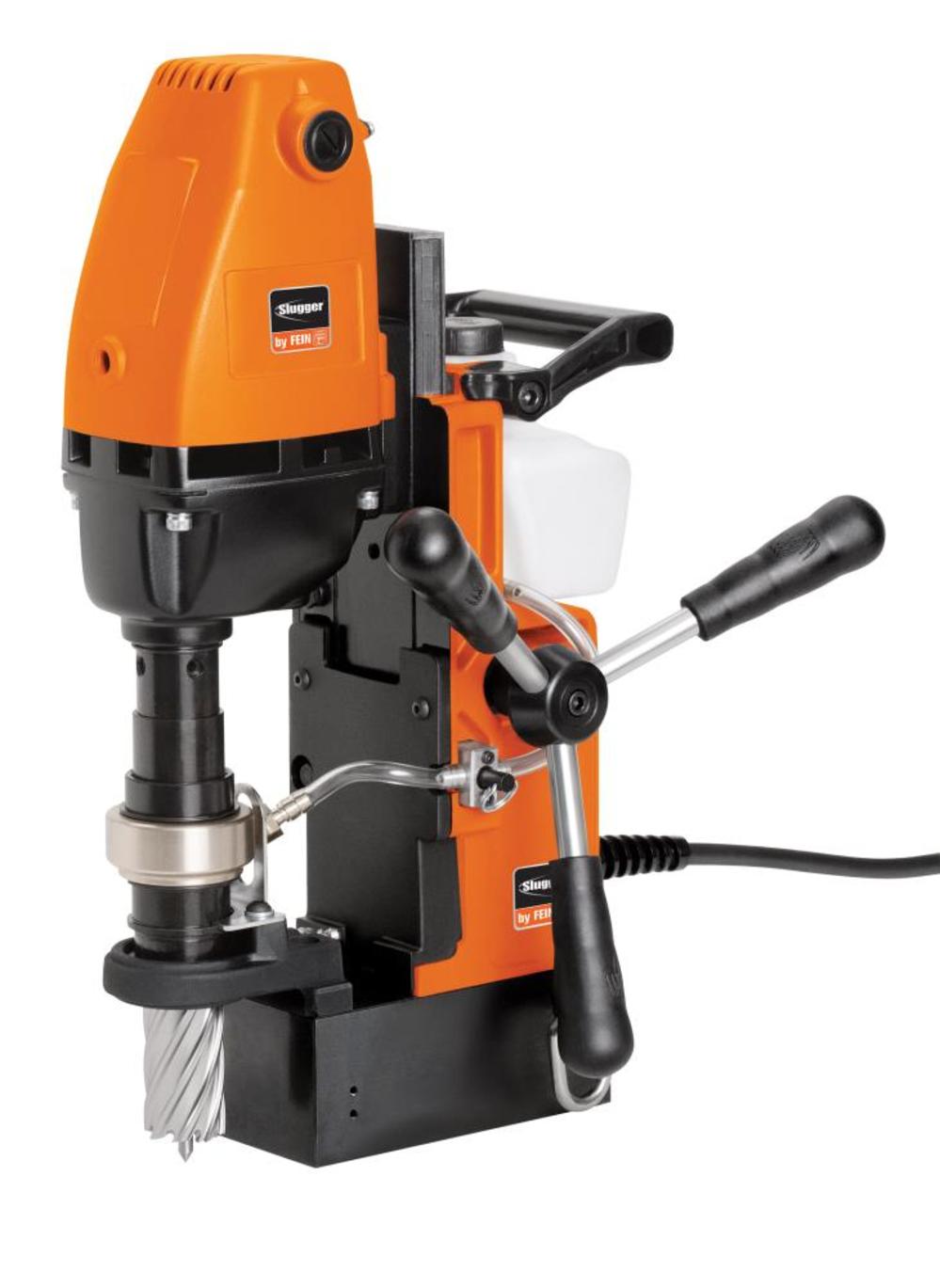

JHM USA101 SLUGGER Magnetic Drill 1-1/2 In. Capacity
The JHM USA101 is a magnetic base drilling unit for diameters of 7/8 In. to 1-1/2 In. The JHM USA 101 is your durable, dependable workhorse for on-site drilling. Featuring sturdy construction and thru spindle coolant which improves cutter efficiency by providing cutting fluid to the entire cutting surface. At 32 Lbs., the SLUGGER JHM USA 101 is easy and comfortable to use in any number of working positions.
Features
With positive slug ejection, the JHM USA101 allows the “slug” to be removed easily eliminating costly downtime.
Lightweight at only 32 lbs., this drill is both powerful and portable for working on-site
The magnetic base holding force is up to 2025 lbs. and can cut diameters up to 1-3/8 In. with up to 2 In. depth of cut
The JHM USA101 is also capable of tapping up to 1/2 In. with the tapping attachment.
Specifications
Acme Tools Brand Name
FEIN
Acme Tools Part Number
72725261124
Amperage (A)
11.5
Assembled Weight (lbs)
43
California Proposition 65 Warning Required
Yes

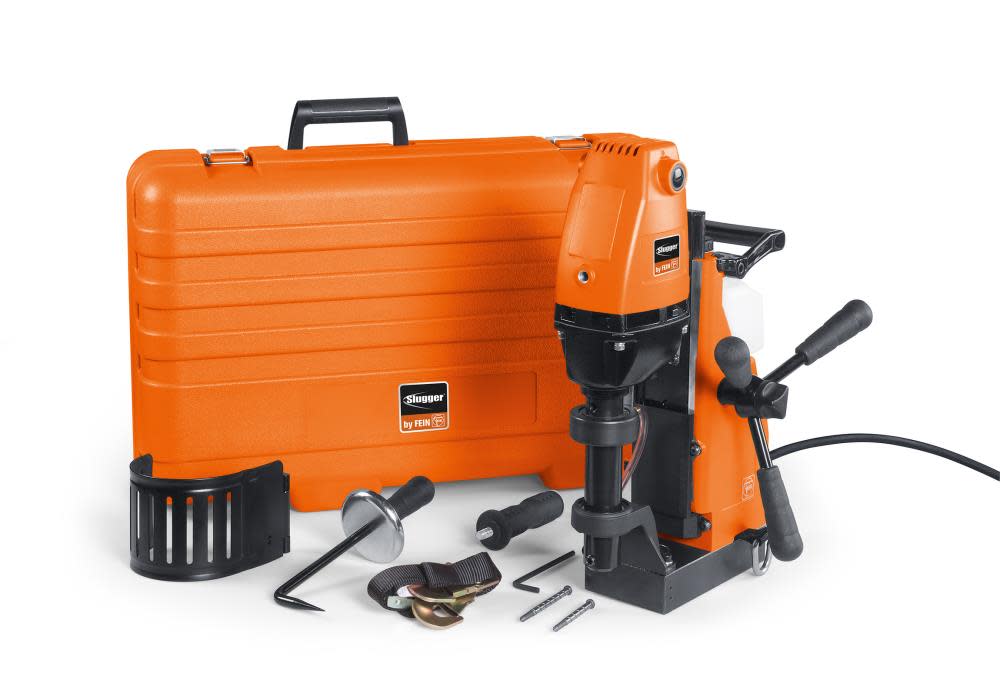

Case Included
Yes
Chuck Capacity
3/4 In. Slugger Shank Chuck 1-1/2 In. annular cutter capacity
Color / Finish
FEIN Orange/mate black
Coolant System
Yes
Cord Length (ft)
13
Cordless / Corded
Corded
Country of Origin
United States
Decibel Rating (dB)
98
Drill Amperage (A)
11.5
Drill Type
Magnetic
ETL Listed
No
First Gear Maximum Speed (rpm)
450
First Gear Minimum Speed (rpm)
450
Handle Type
Spade
Height (in)
15.08
Housing Material
Metal
Included Safety Features
Safety strap and contact guard
Internal Supplier Part #
72725261124
Internet Product Code (IPC)
4BB57BFA6DA
Length (in)
9.25
Lock-on Switch
Yes
Manufacturer Warranty
1 Year out of the package plus two additional years available with product registration
Maximum Torque (in-lbs)
135.684
Net Tool Weight (lbs)
32
Package Weight
43
Package Weight (lbs)
43
Powered Tool Power Source
Electric – Corded
Range Spindle Lock
No
Reverse
No
Second Gear Maximum Speed (rpm)
0
Second Gear Minimum Speed (rpm)
0
Side Handle
Yes
Switch Type
Rocker/Push button switch
Tool Handle Type
Spade
UL Listed
Yes
Voltage
120
Weight (lbs)
43
Width (in)
7.87
