Description

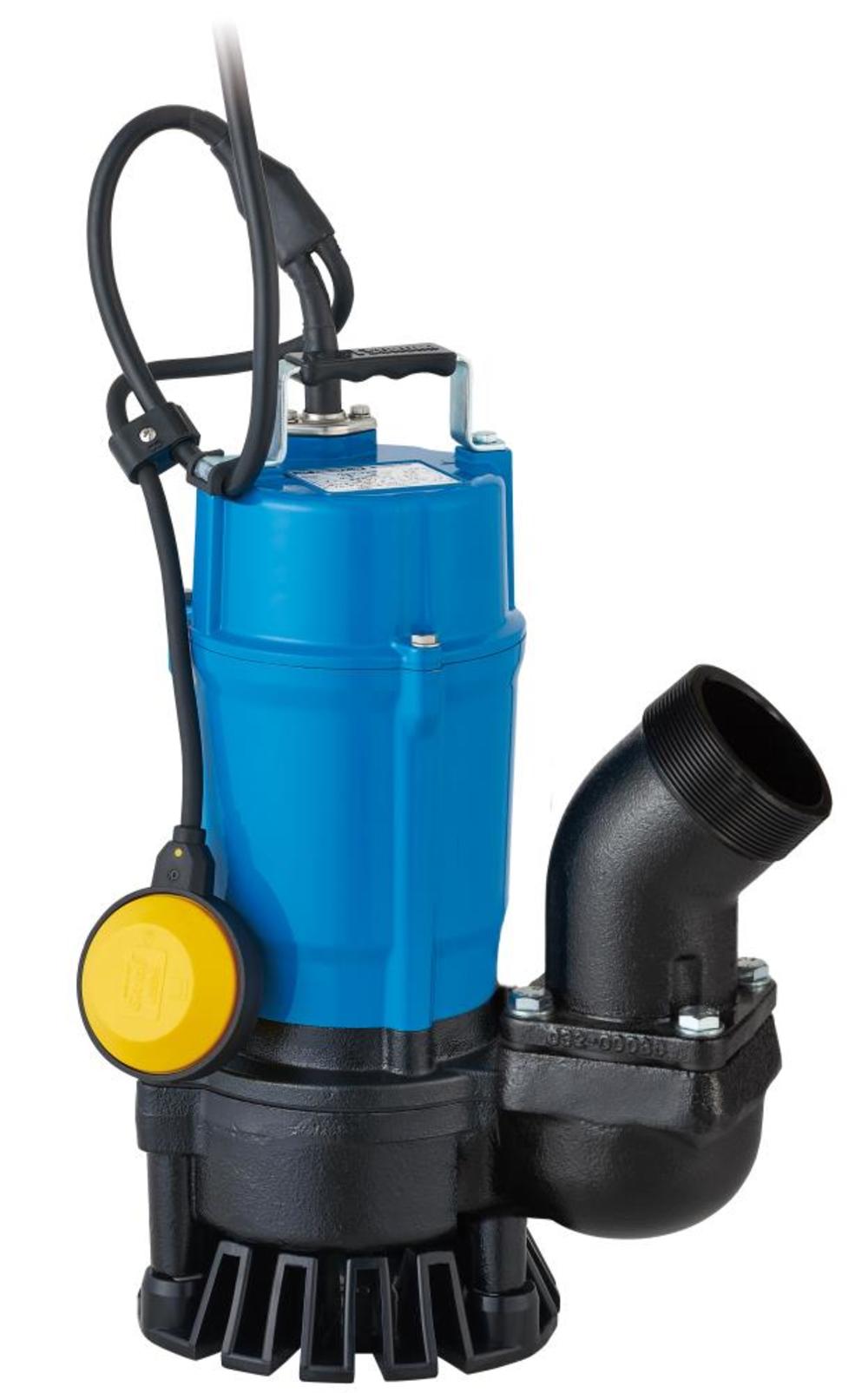

HS3Z.75SL Automatic Electric Submersible Pump

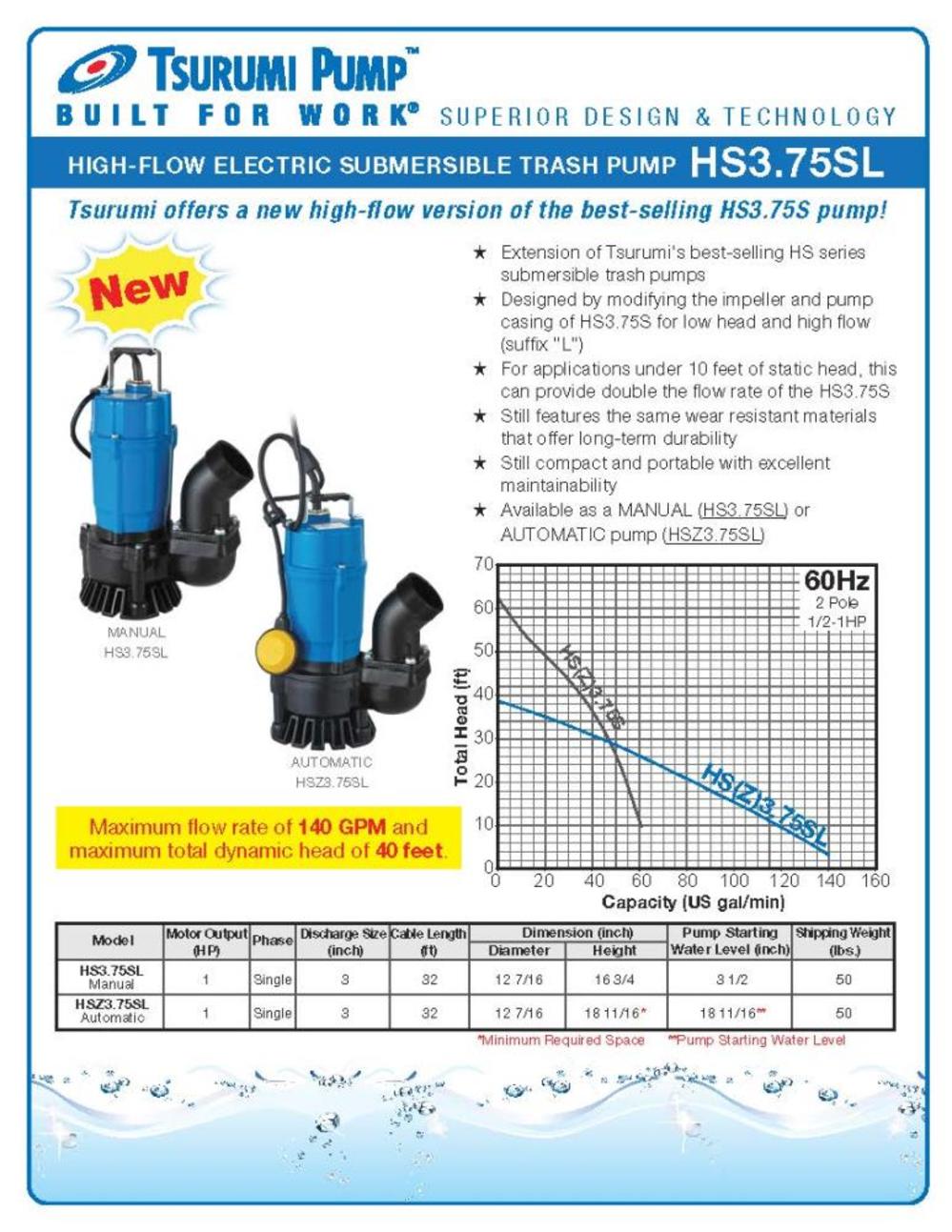

Extension of Tsurumi’s best-selling HS series submersible trash pumps. Designed by modifying the impeller and pump casing of HSZ3.75S for low head and high flow (suffix “L”). For applications under 10 feet of static head, this can provide double the flow rate of the HSZ3.75S.
Features
Designed by modifying the impeller and pump casing of HSZ3.75S for low head and high flow (suffix “L”)
For applications under 10 feet of static head, this can provide double the flow rate of the HSZ3.75S
Still features the same wear resistant materials that offer long-term durability
Still compact and portable with excellent maintainability
Specifications
Acme Tools Brand Name
TSURUMI
Acme Tools Part Number
HSZ3.75SL
Amperage (A)
9.7
Assembled Weight (lbs)
55
Battery Backup
No
California Proposition 65 Warning Required
No
Cord Length (ft)
32
Cordless / Corded
Corded
Country of Origin
Japan
Floatable
No
Gallons Per Hour (gal)
8100
Height (in)
16.75
Horsepower (hp)
1
Housing Material
Ductile Cast Iron
Impeller Material
Urethane Rubber
Inlet Size (in)
.25
Internal Supplier Part #
HSZ3.75SL
Internet Product Code (IPC)
2B3A4ACFED7
Length (in)
12.5
Manufacturer Warranty
2 Year
Maximum Pumping Height (Ft.)
35
Motor Housing
Cast Iron
Outlet Size (in)
2
Package Depth
20
Package Height
10
Package Weight
55
Package Weight (lbs)
55
Pump Category
Sump
Pump Construction
Cast Iron & Cast Aluminum
Pump Switch Type
Tethered
Submersible
Yes
Switch Type
Tethered
Voltage
115
Voltage (V)
115
Water Flow
75 gpm @ 20′ tdh
Width (in)
7.25
