Description

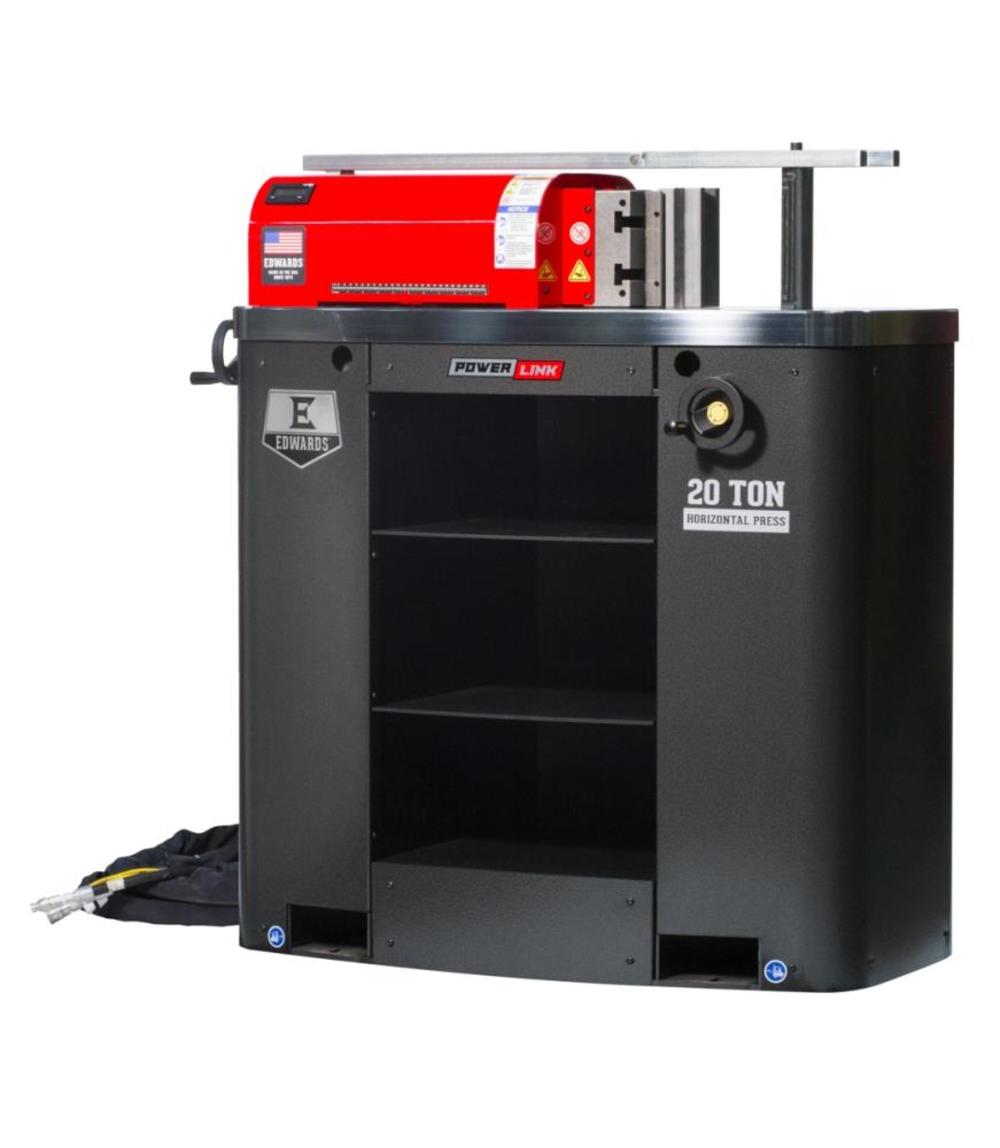

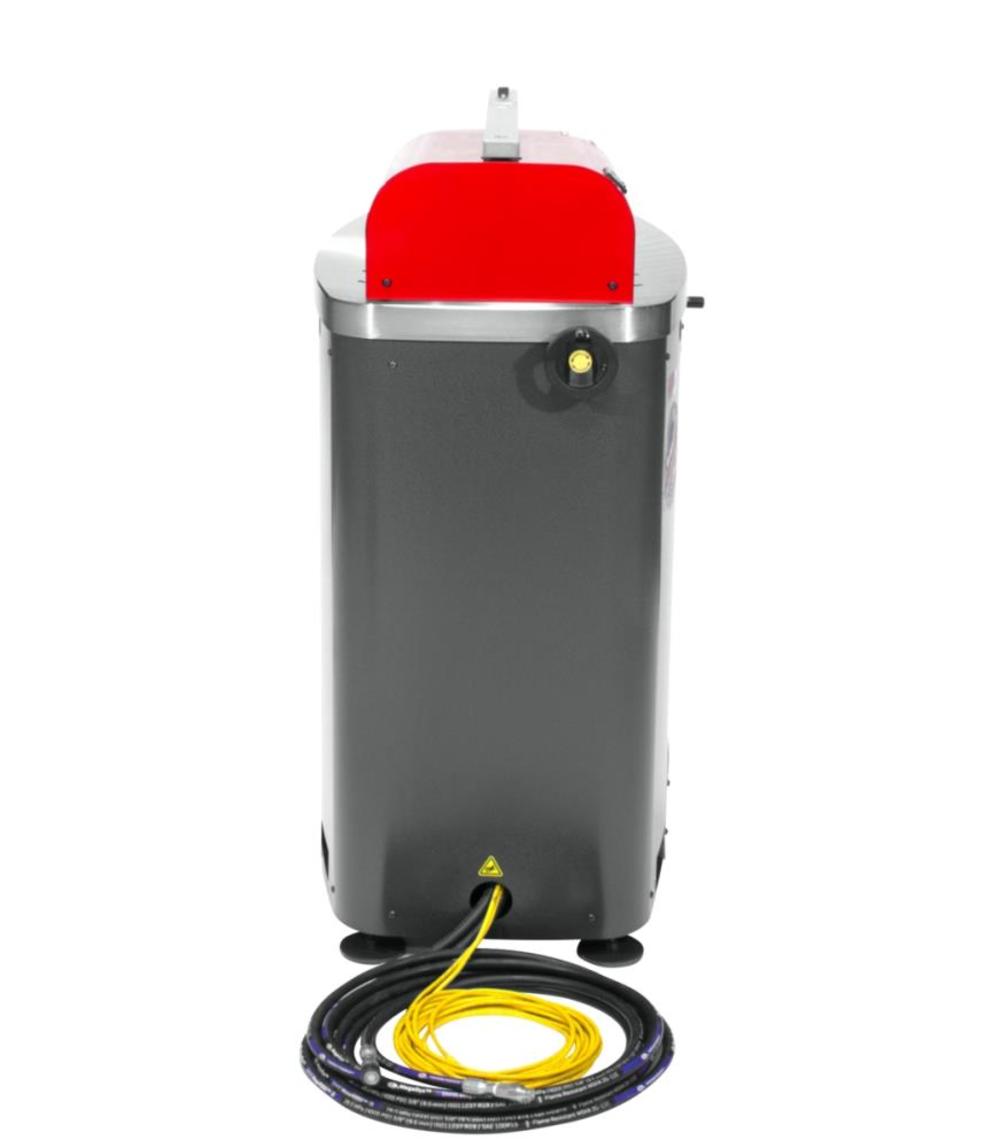

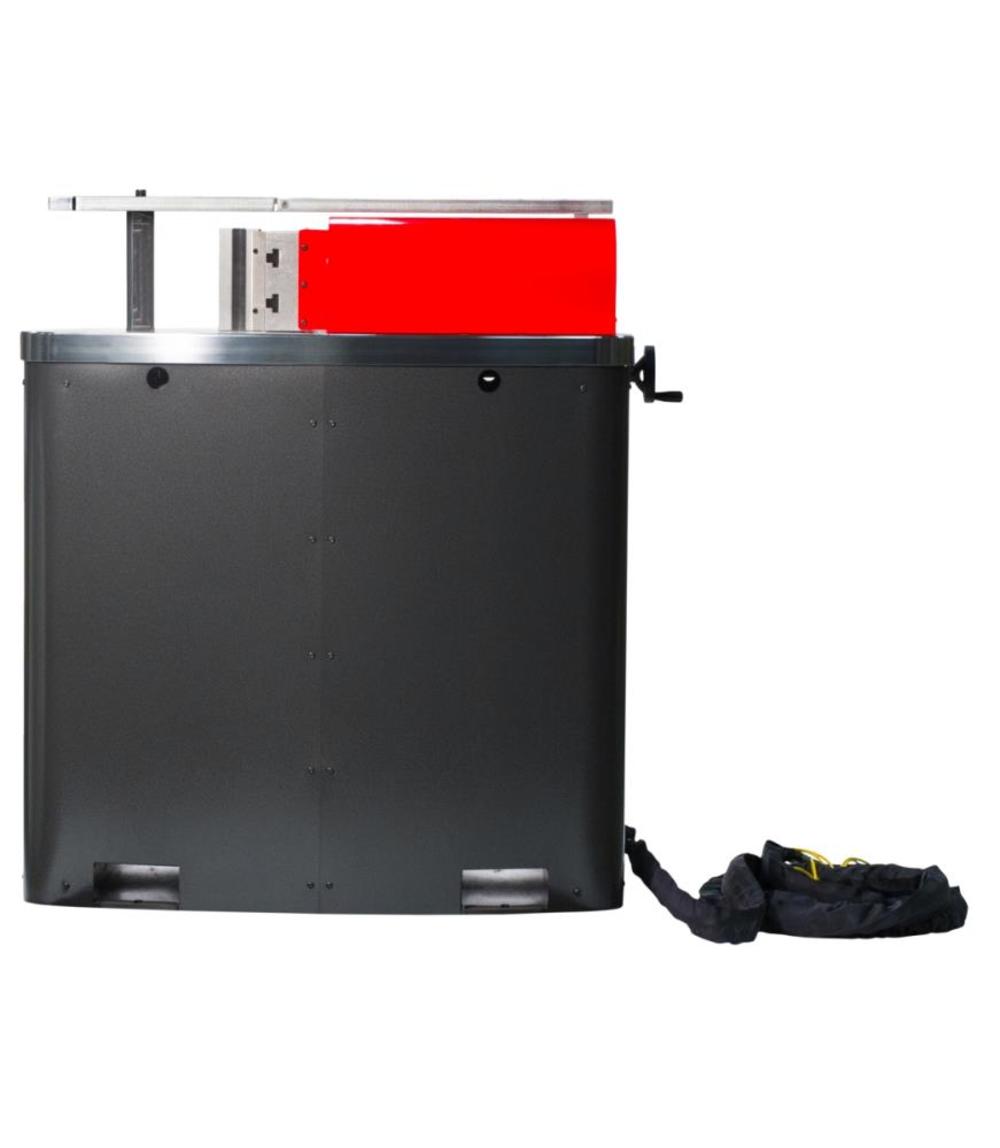

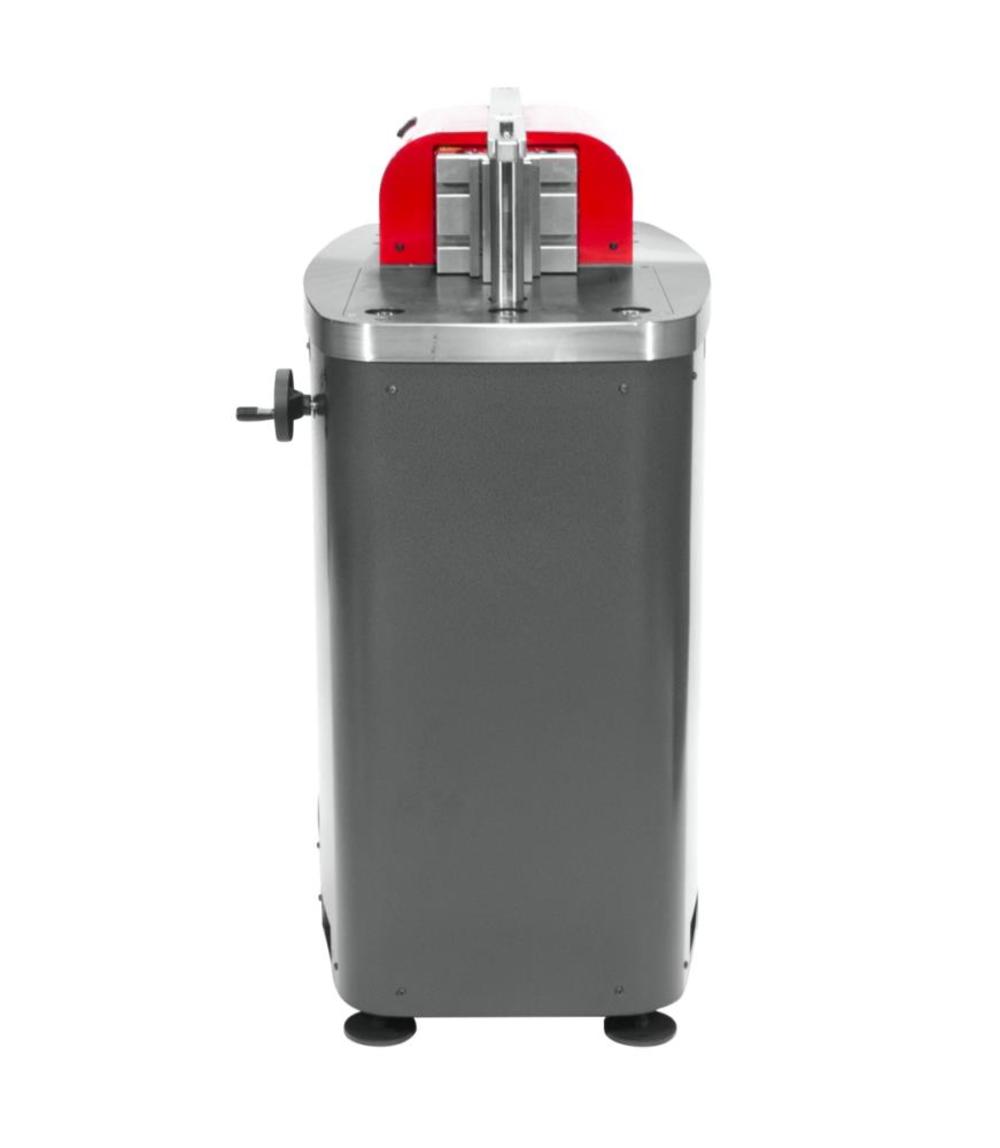

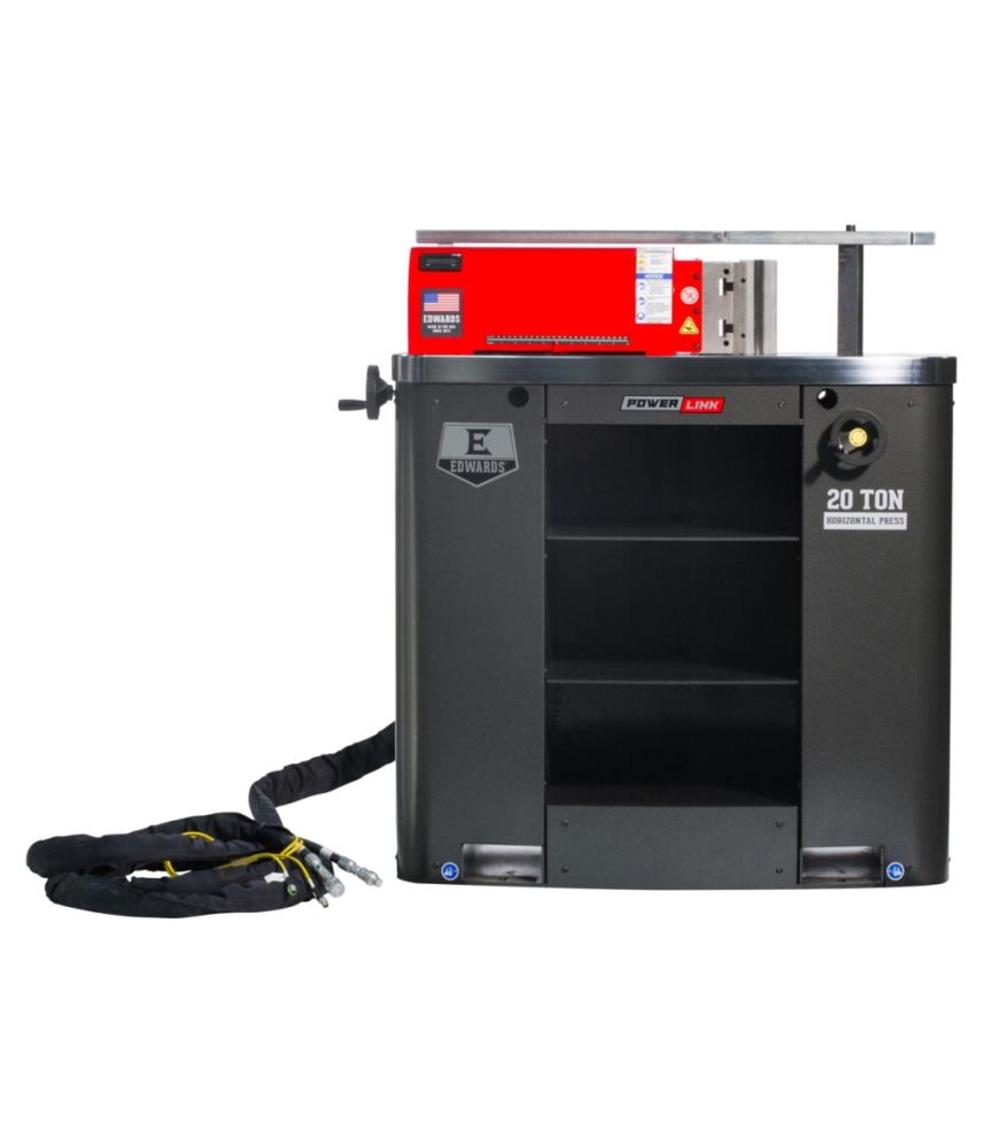

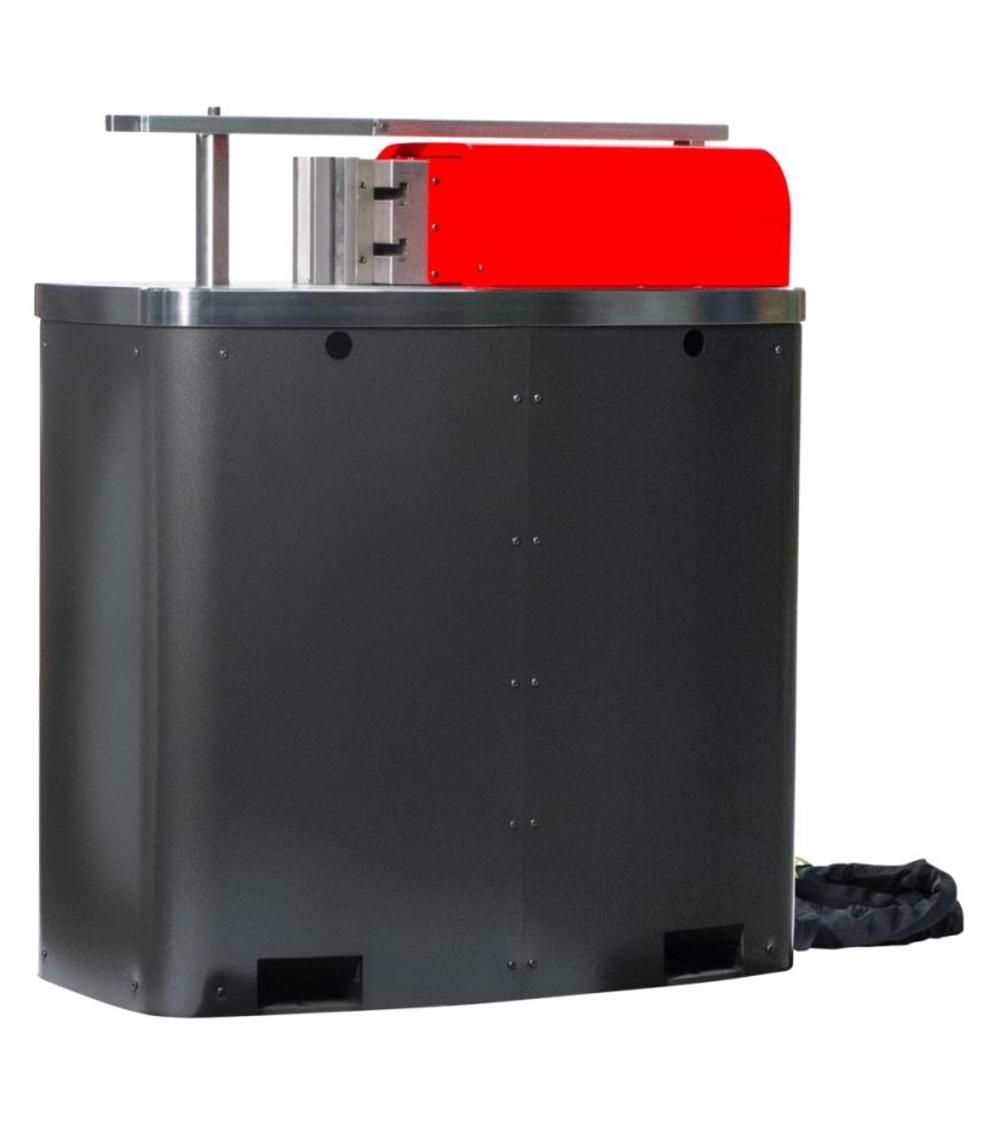

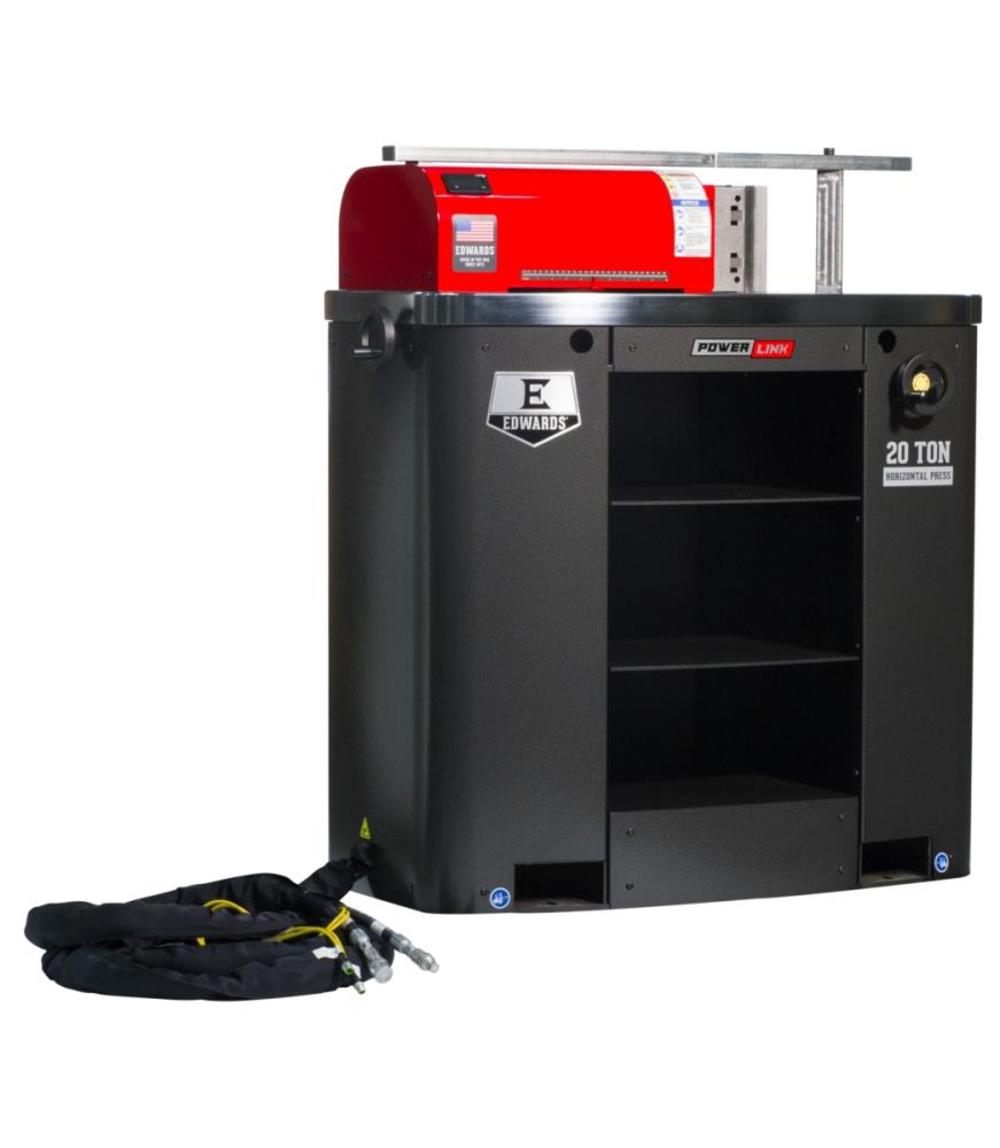

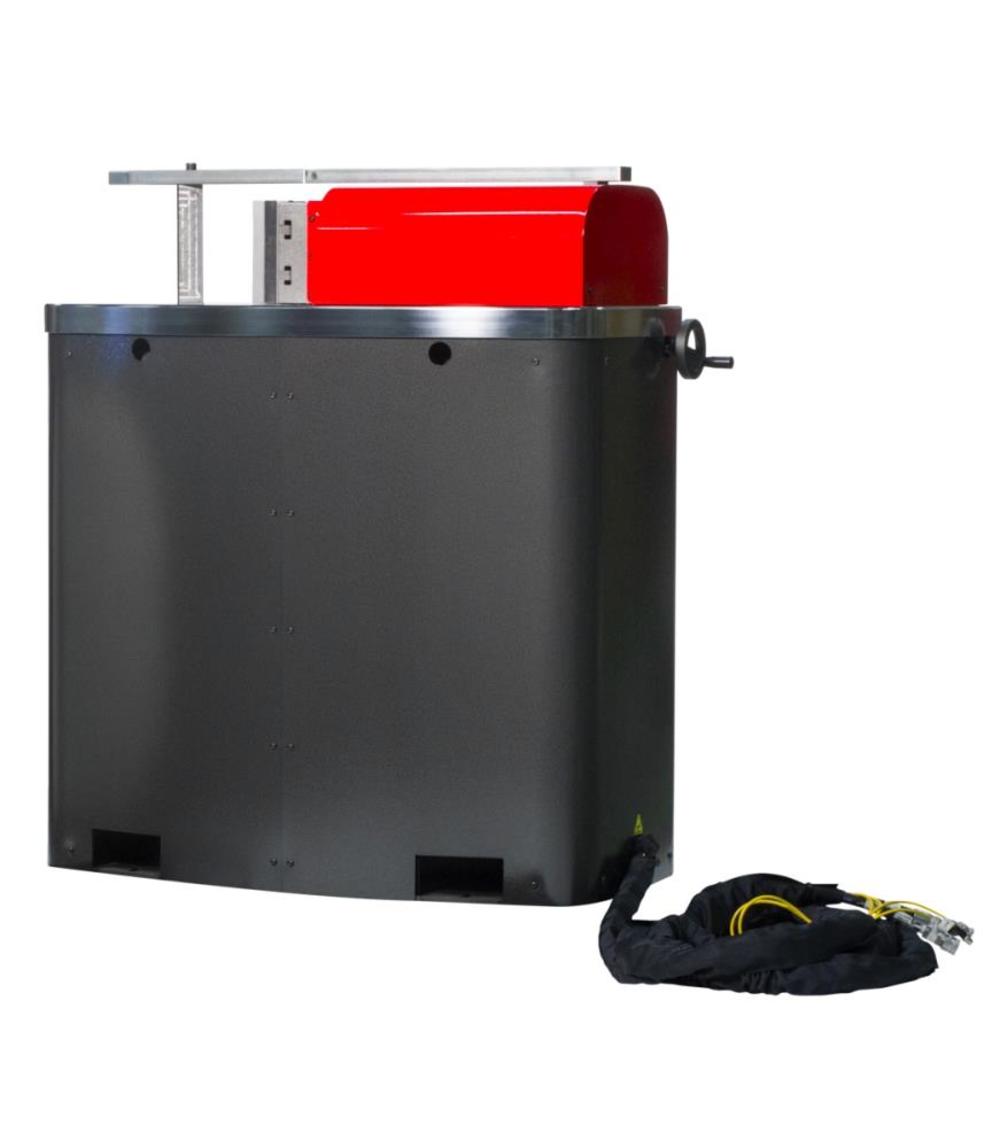

Horizontal Press
With 20 tons of force, the Edwards horizontal press accepts a great variety of tooling to form, brake, and straighten mild steel. This compact powerhouse quickly connects to your Edwards ironworker with a PowerLink system or Edwards portable power unit to greatly expand your fabrication capabilities. Designed for maximum tooling flexibility, the 4 pin locations are locked with a simple crank for inboard tool squaring. The included digital encoder reads positive stop for accurate repeatability. The potential of this tool is only limited by your imagination.
Features
20 Tons of force
10″ stroke
1350 lbs
5 HP
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
HAT6000
Amperage (A)
14
ANSI Safety Listing
Yes
Assembled Weight (lbs)
1350
California Proposition 65 Warning Required
Yes
Color / Finish
See image
Country of Origin
United States
CSA Certified
No
ETL Listed
Yes
Horsepower (hp)
5
Internet Product Code (IPC)
3CAC8B35958
Manufacturer Warranty
1 year
Maximum RPM
1725
Motor Horsepower (hp)
5
Motor Voltage (V)
230
Overall Height (in)
60.0
Overall Length (in)
30.0
Overall Width (in)
48.0
Package Depth
30.0
Package Height
60.0
Package Weight
1500.0
Package Weight (lbs)
1500
Phase
Three Phase
Reservoir Capacity (gal)
7
UL Listed
Yes
Voltage
230
Weight (lbs)
1350
