Description

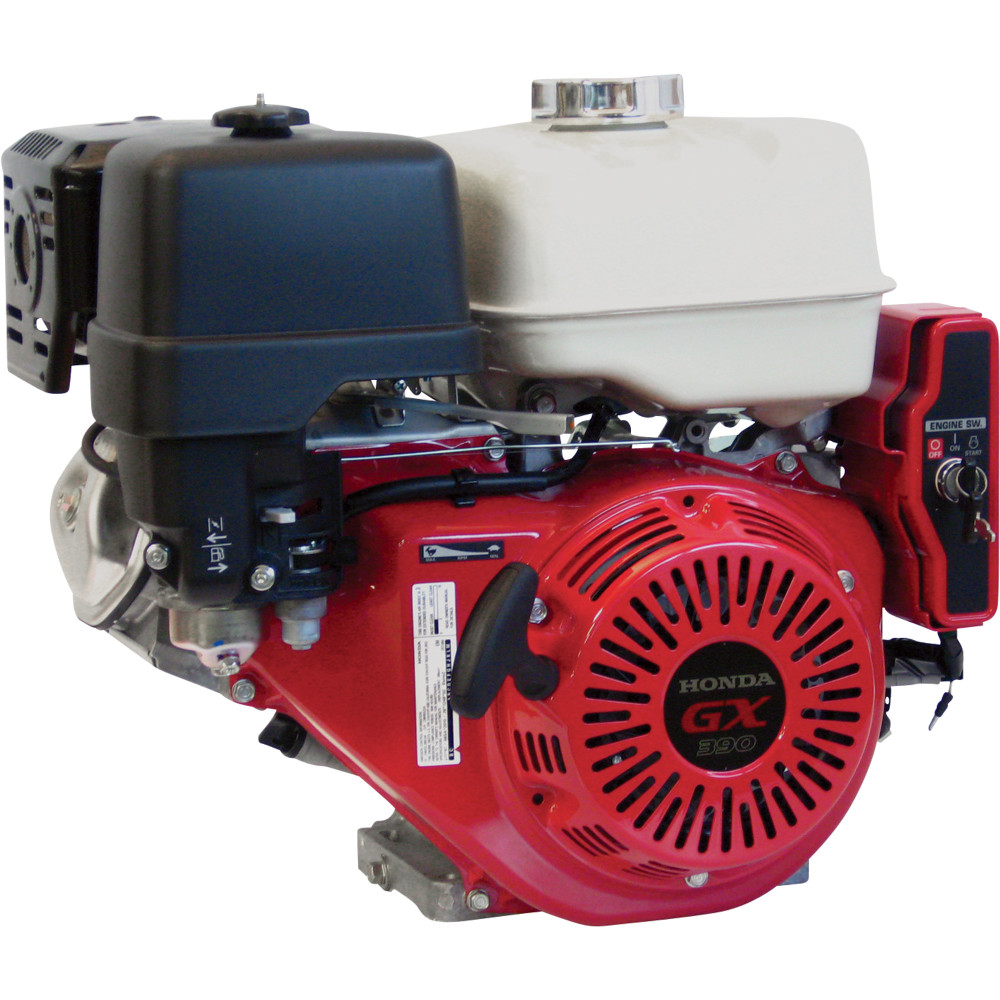

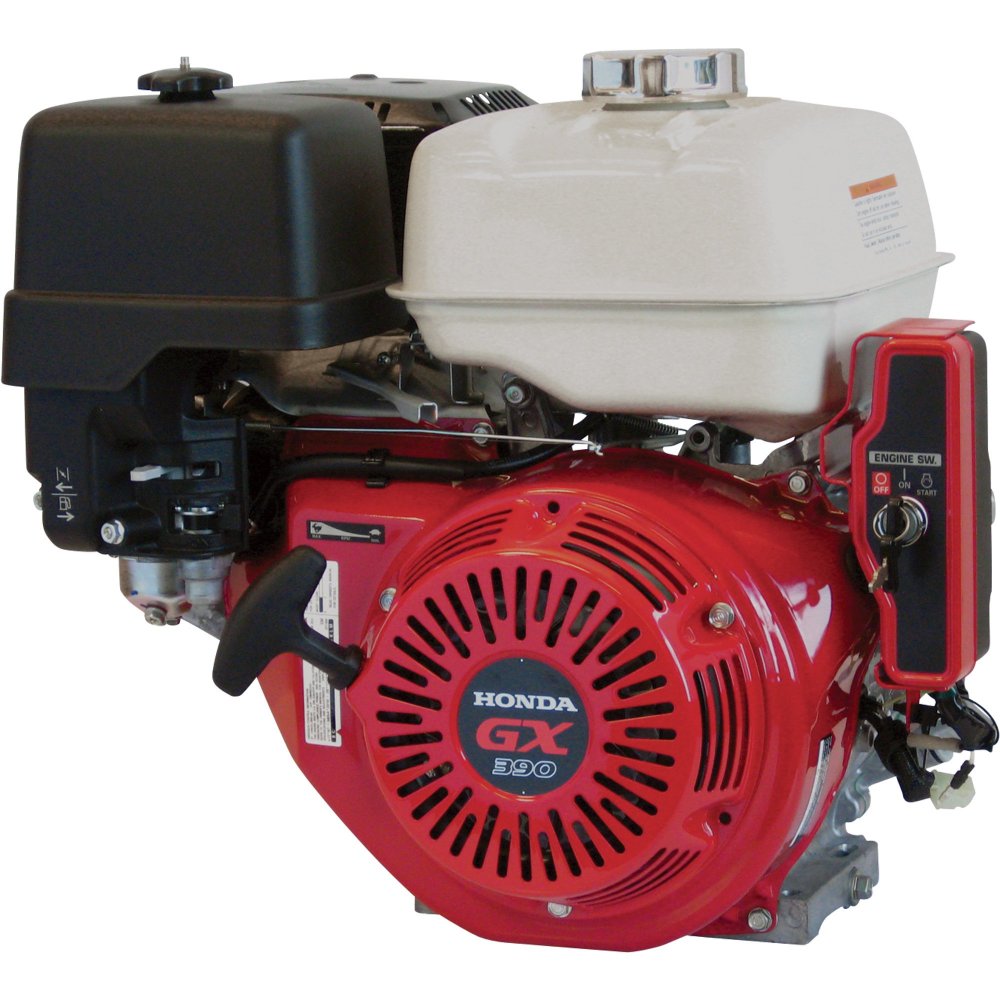

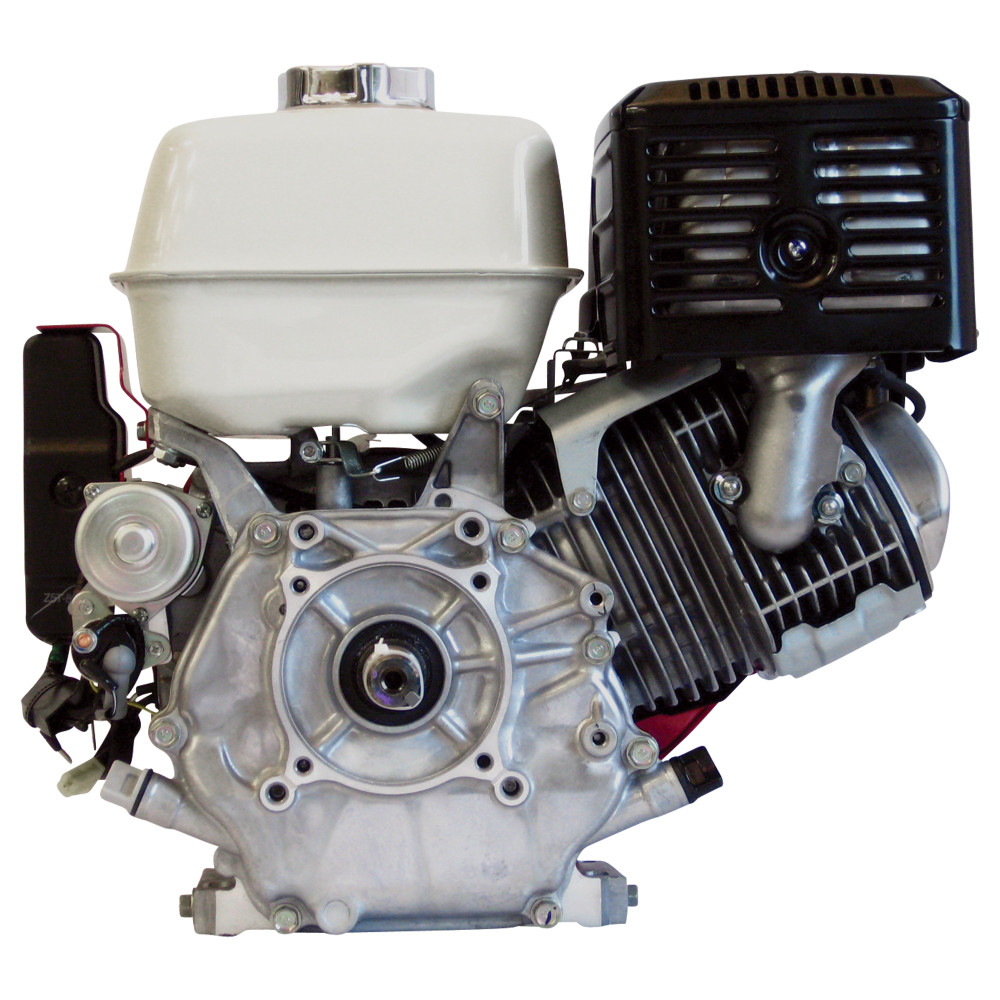

Horizontal GX390 389cc GX OHV Air-Cooled, 4-Stroke Engine
The Honda 389cc GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common applications include pressure washers, compressors, go-karts, log splitters and chipper/shredders.
Features
Fuel efficient, high-output operation with precision camshaft design and a high compression ratio
OHV design delivers increased efficiency and optimal power transfer
Digital CDI ignition system with variable timing
Smooth performance and reduced vibration from precision-balanced crankshaft and reduced piston weight
Ball bearing-supported crankshaft offers greater stability
Aluminum push roads reduce both valve clearance and noise level
Muffler, breather valve, case cover, air intake system, rigid crankcase, helical-cut gears and lightweight materials are also designed to reduce noise level
Oil alert protects engine
Carburetor coating and filter help protect fuel from impurities
Specifications
Acme Tools Brand Name
HONDA
Acme Tools Part Number
GX390UT2QNE2
Assembled Depth (in)
15.8
Assembled Height (in)
17.3
Assembled Weight (lbs)
75
Assembled Width (in)
17.6
California Proposition 65 Warning Required
Yes
CARB Compliant
No
Country of Origin
Thailand
Height (in)
17.3
Horsepower (hp)
11.7
Input Frequency (Hz)
60
Input Voltage
6.9
Motor Enclosure
Closed
NEMA Frame Size
254T
Package Contents
Engine
Package Depth
15.8
Package Height
17.3
Package Weight
76
Package Weight (lbs)
76
RPM
3600
Shaft Diameter (in)
1
Shaft Length (in)
3.4
Shaft Rotation
Counterclockwise
