Description

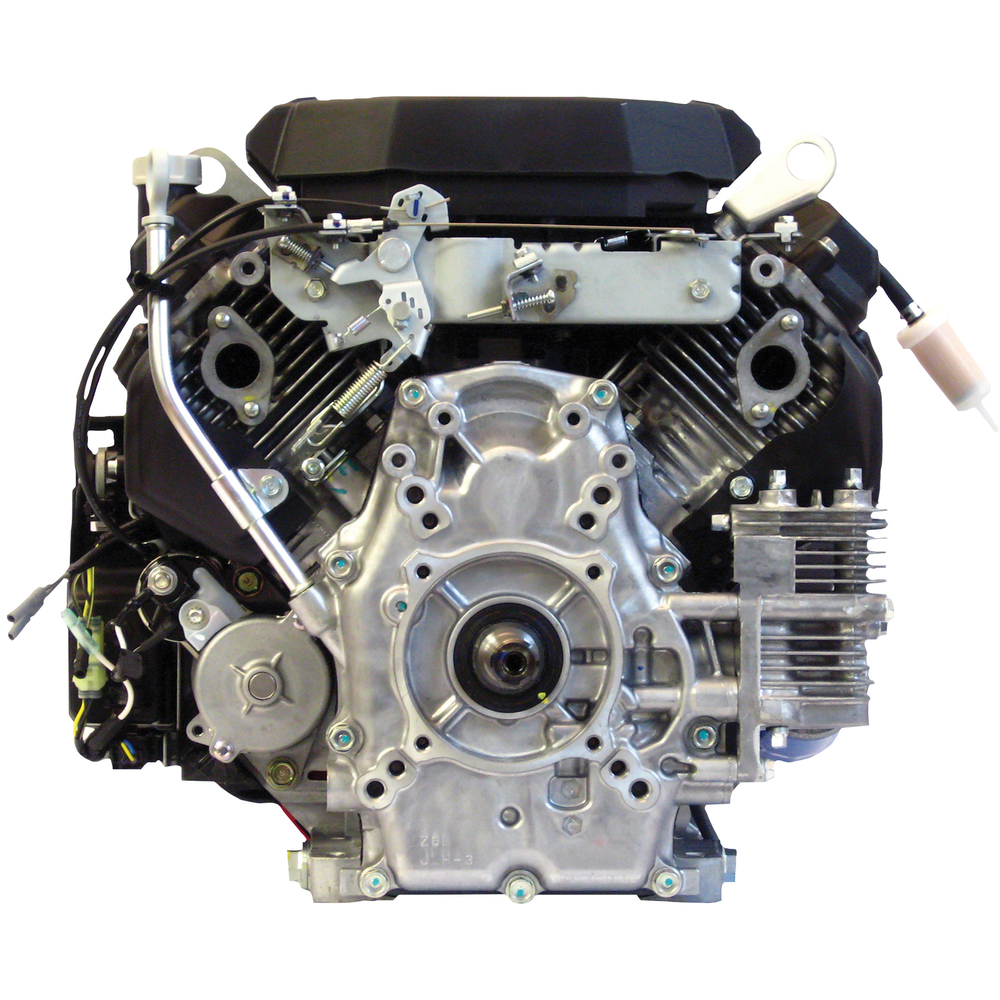

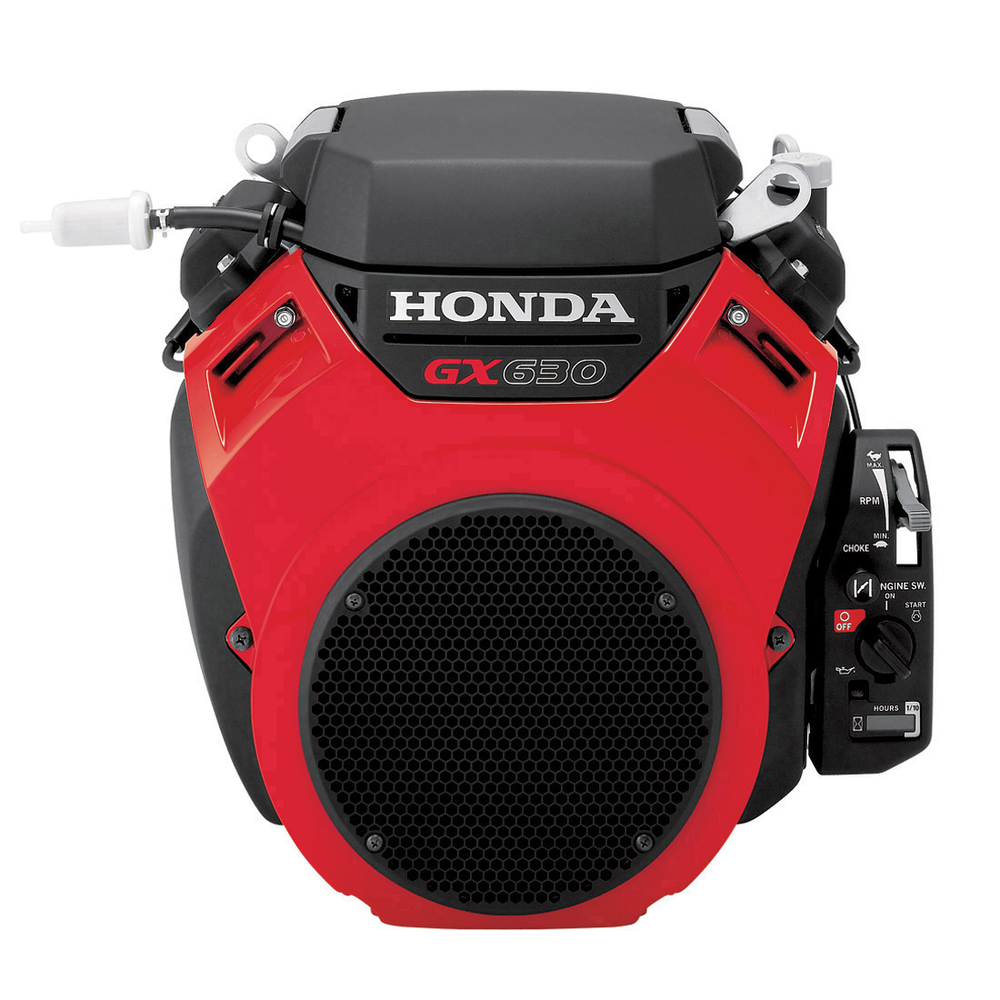

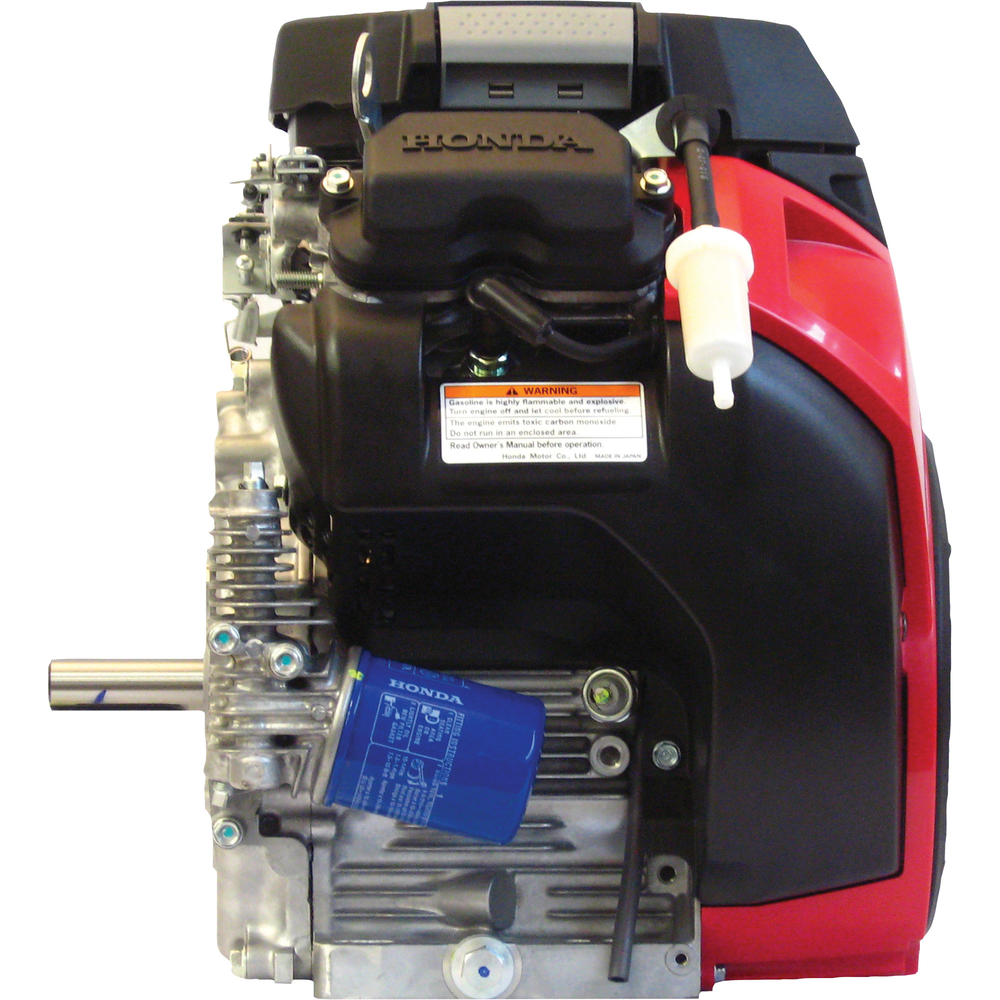

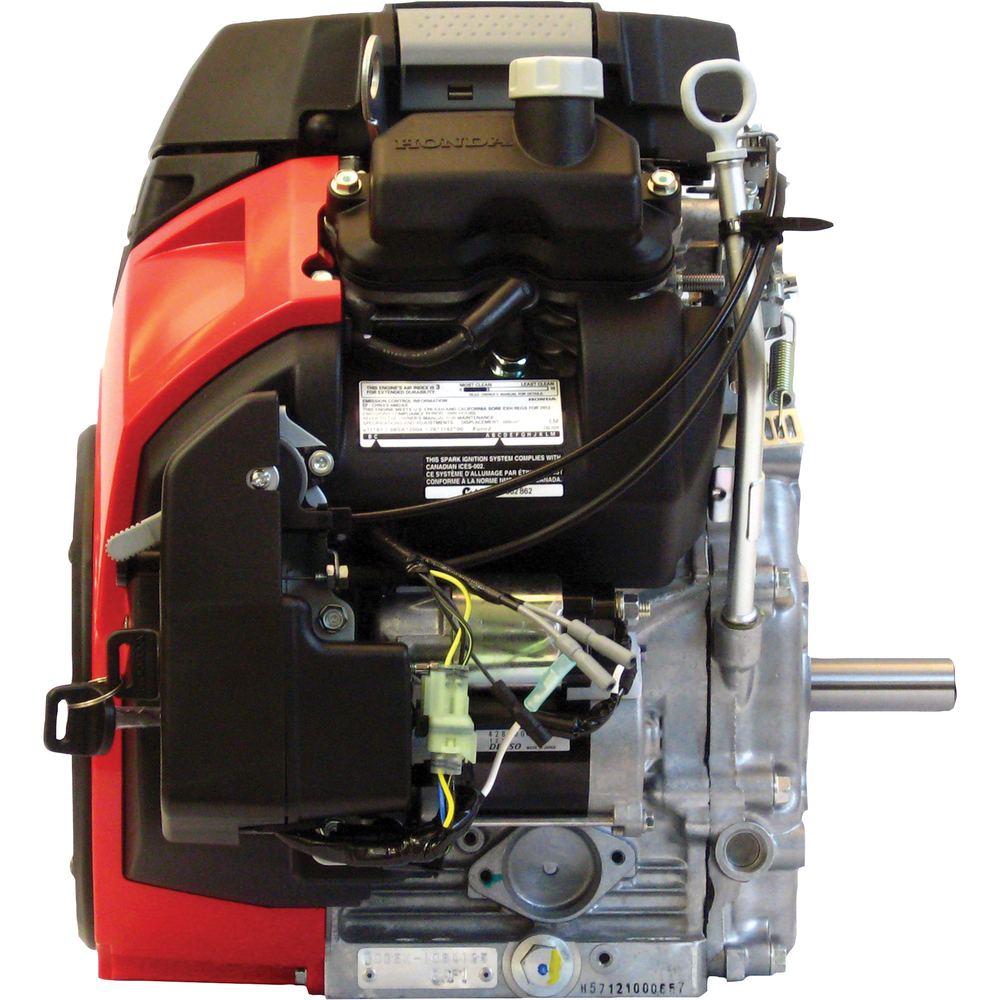

Honda GX630 688cc V-Twin OHV Horizontal Engine with Electric Start
ACME Tools is a Honda Authorized Dealer. Honda V-twin engines offer higher horsepower 20.8 @ 3600 RPM, improved adaptability, Aluminum push rods with steel tips are lighter weight with lower vibration and quieter operation. Honda Oil Alert® protects the engine from low oil levels by detecting them and shutting the engine down before damage can occur. The engine features a large air intake diameter and dual air cleaners for easier maintenance. Not to mention a 3 year warranty and CARB and EPA certified.
Features
Digital CDI ignition system with variable timing
9.3:1 compression ratio generates high power output without the need for premium fuel
Includes a rev limiter to protect against damage from over-revving
Hemispherical combustion chamber delivers rapid combustion
Integrated cylinder and head
High capacity 36 blade cooling fan
High capacity pump facilitates consistent oil delivery
Large diameter air intake for superior cooling
Conveniently located controls
Specifications
Acme Tools Brand Name
HONDA
Acme Tools Part Number
GX630RHQZB3
Assembled Weight (lbs)
5.0
California Proposition 65 Warning Required
Yes
CARB Compliant
No
Color
Black, Red
Country of Origin
Thailand
Horsepower (hp)
20.8
Motor Enclosure
Closed
NEMA Frame Size
213
Package Contents
Honda GX630 Small Engine
Package Depth
15.9
Package Height
17.2
Package Weight
6
Package Weight (lbs)
6
RPM
3600
Shaft Diameter (in)
1
Shaft Length (in)
2-29/32
Shaft Rotation
Counterclockwise
