Description

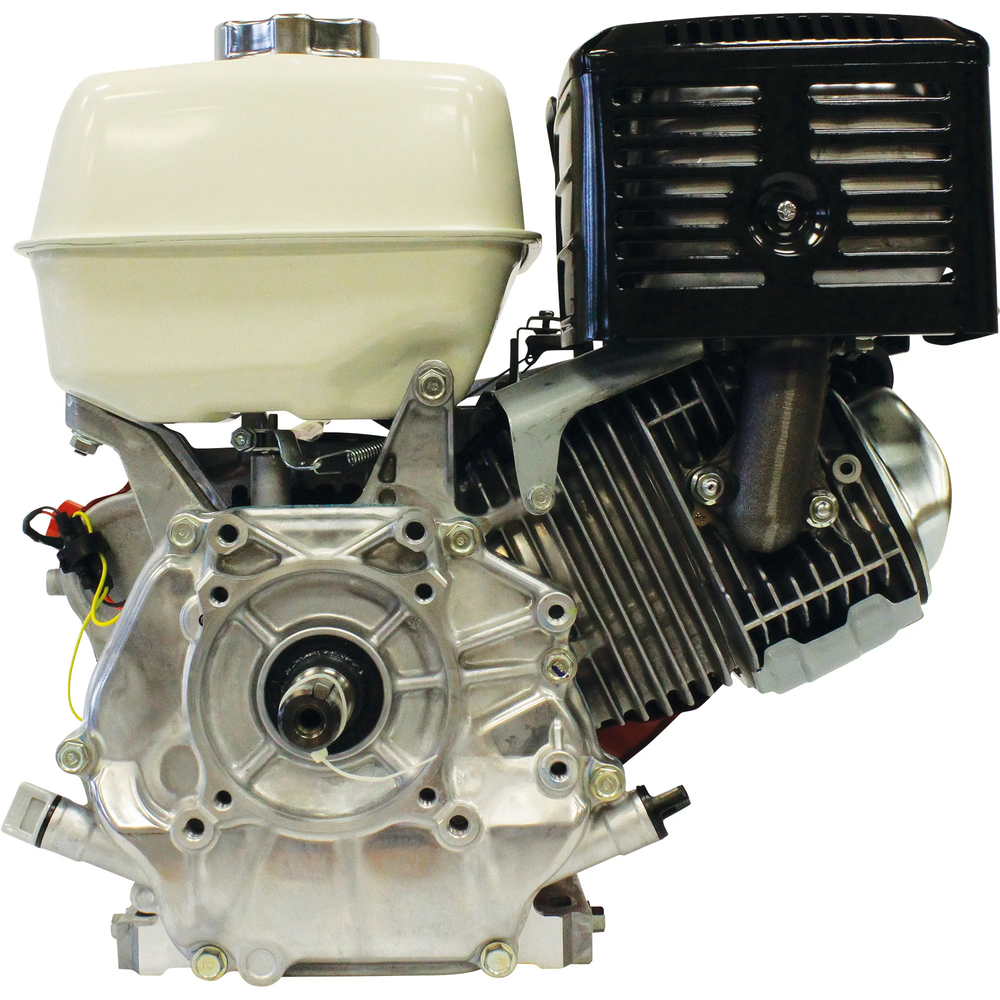

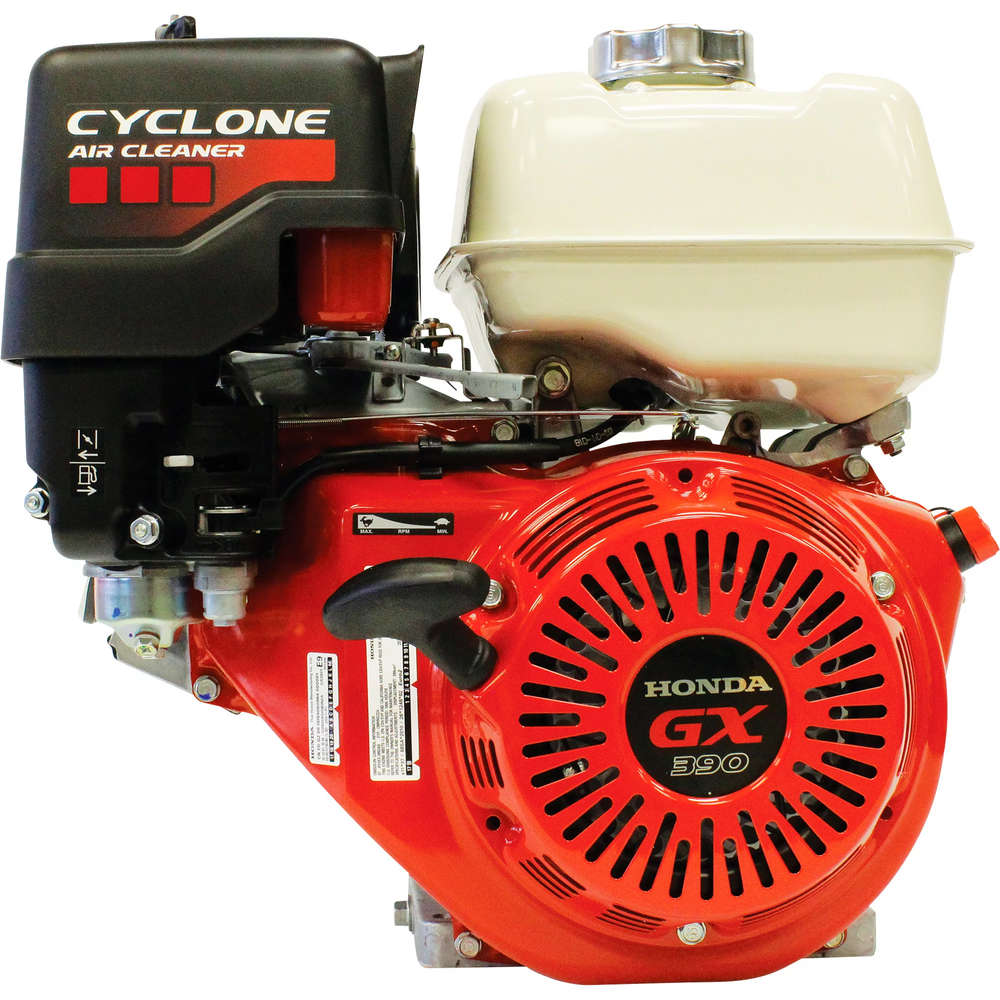

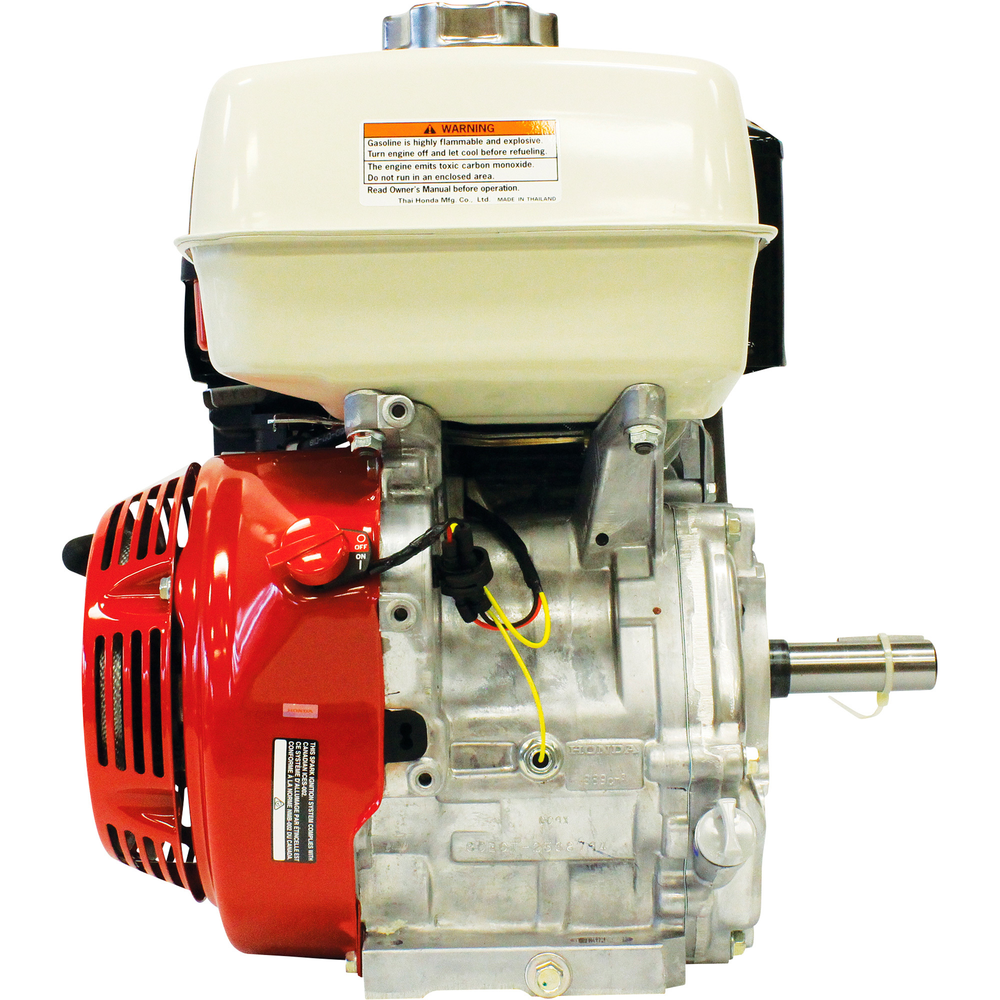

Honda GX390 Horizontal OHV with Cyclone Air Cleaner
ACME Tools is a Honda Authorized Dealer. With the GX390, you’re looking at one of the best engines in the business. 11.7HP @3600 RPM. Large capacity, multi-chamber exhaust system provides quieter performance. Also has lower fuel consumption, lower emissions, better features, and exceptional performance. Honda’s GX series lives up to the legend, and then some. The engine meets emission compliance standards by the Environmental Protection Agency (EPA) but not the California Air Resources Board (CARB).
Features
Digital CDI ignition system with variable timing
Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
Improved camshaft and muffler reduce overall engine noise by up to 5 dB
Sophisticated air intake system
Oil Alert
Automatic mechanical de-compression system for easy starting
Precision engineered components result in lower vibration
Cyclone air cleaner
Variable ignition timing
Specifications
Acme Tools Brand Name
HONDA
Acme Tools Part Number
GX390UT2QC9
Assembled Weight (lbs)
5.0
California Proposition 65 Warning Required
Yes
CARB Compliant
No
Color
Black, Red
Country of Origin
Thailand
Horsepower (hp)
11.7
Motor Enclosure
Closed
NEMA Frame Size
182
Package Contents
Honda 389CC engine
Package Depth
16.0
Package Height
17.7
Package Weight
6
Package Weight (lbs)
6
RPM
3600
Shaft Diameter (in)
1
Shaft Length (in)
3 31/64
Shaft Rotation
Counterclockwise
