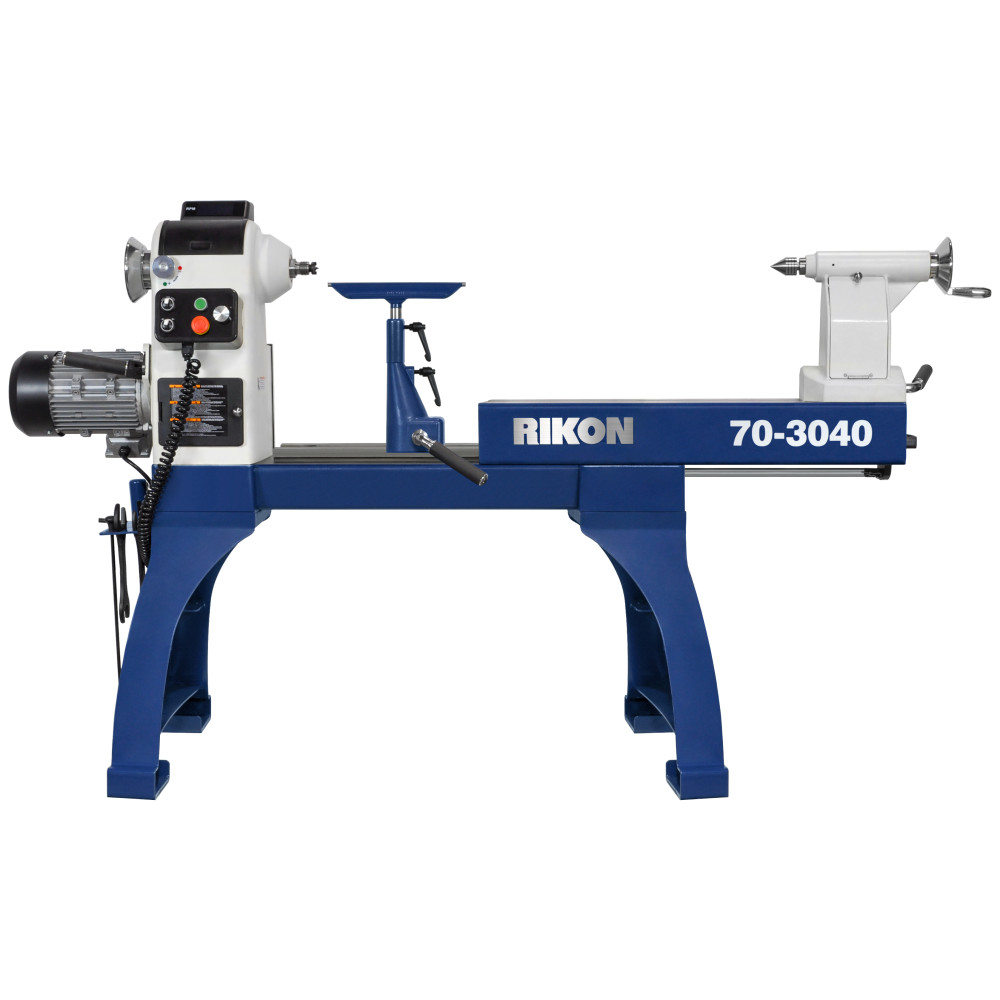

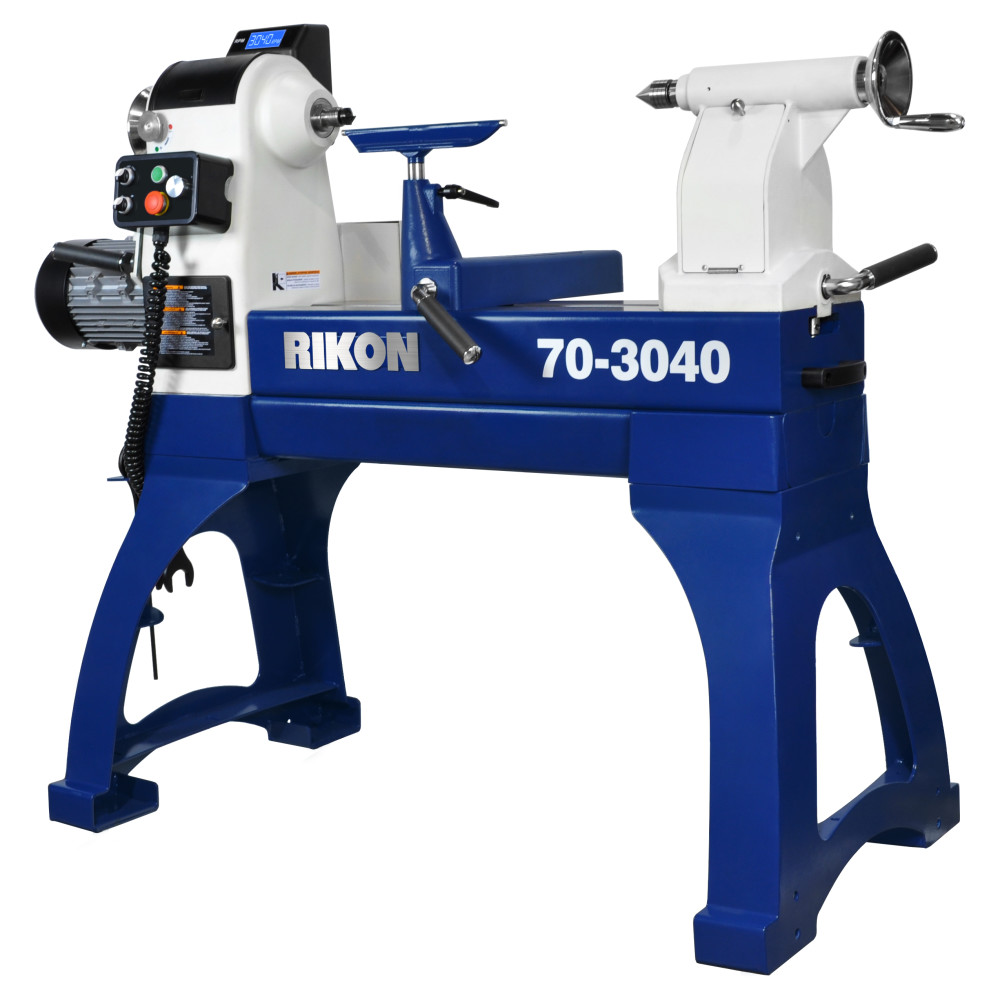

30 In. x 40 In. Heavy Duty VSR Lathe with Sliding Bed
Rikon’s heavy duty variable speed lathe features an innovative sliding bed that increases your turning capacity with just a turning of a switch. Motorized sliding bed goes from 20 to 40 inches. Inverter motor w/1 PH input and 3 HP output. Three step pulleys include 36 index positions. LCD speed display with easy to read speeds from 20 to 3850 RPM. Control box with magnetic back positions control anywhere on long bed. Cast iron tool rest base is extra wide and sturdy. Sliding bed swing increases the swing from 25-3/16 to 31-13/16 In. 220 V motor combined w/4 heavy duty bearings in headstock. Ideal for turning large bowls or platters.
Features
Motorized sliding bed goes from 23-7/32” to 31-1/4”
Beefy 3 horsepower motor
Three step pulleys include 36 index positions

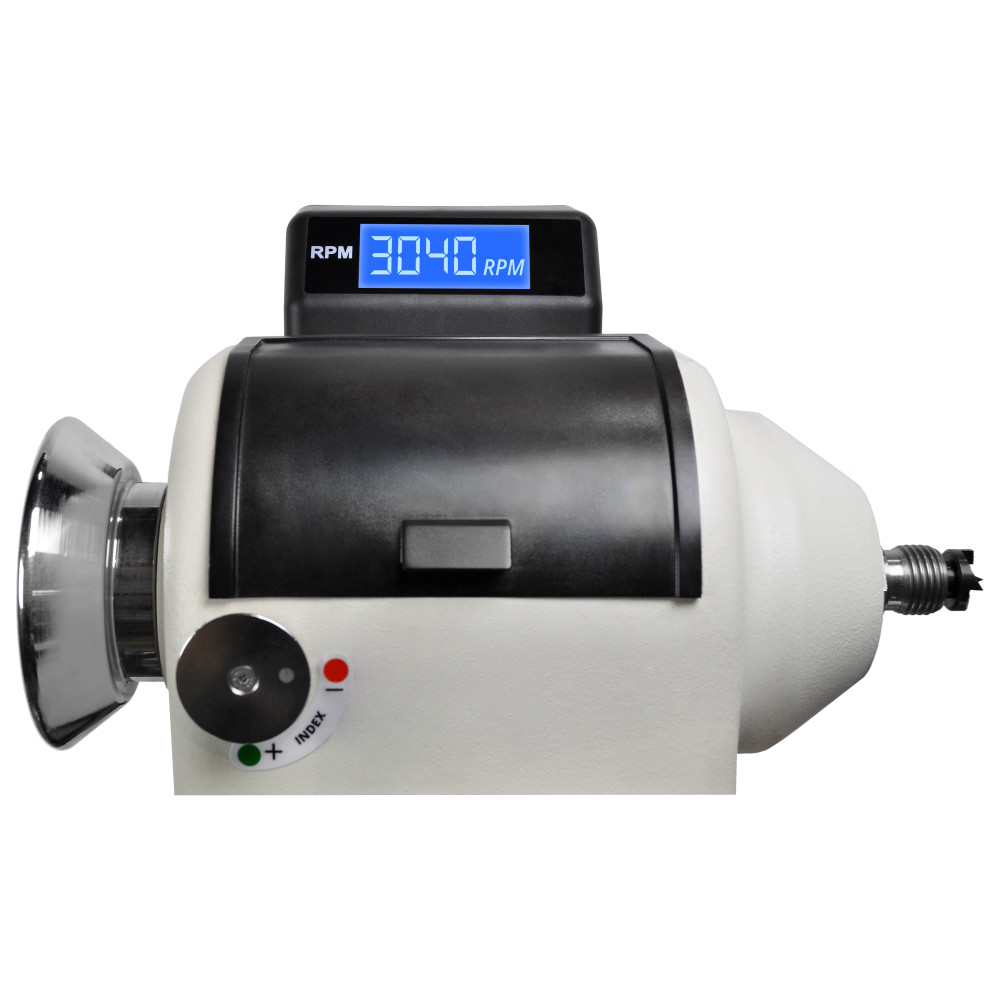

LCD speed display with easy to read speeds from 20 to 3850 RPM

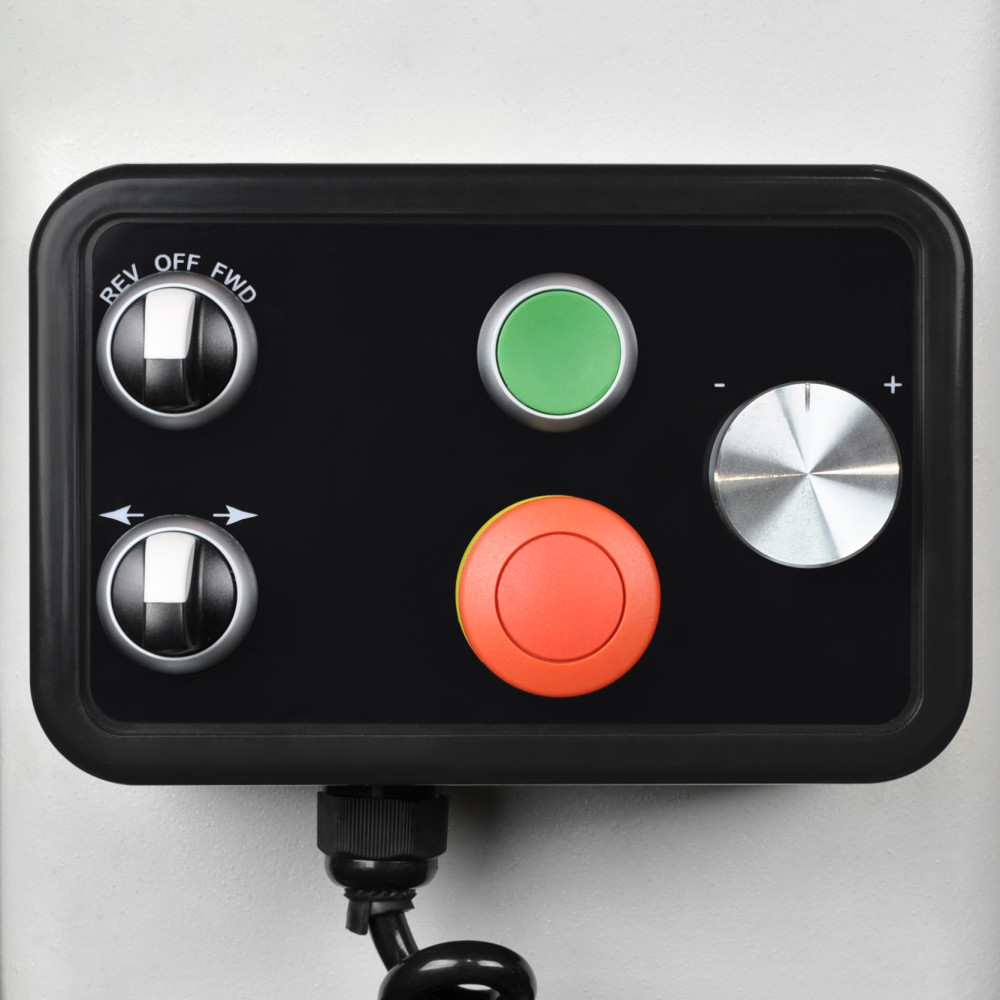

Control box with magnetic back positions control anywhere on long bed
Cast iron tool rest base is extra wide and sturdy
Sliding bed swing increases the swing from 17-13/32” to 25-7/16”
Ideal for turning large bowls or platters
220 V motor combined w/4 heavy duty bearings in headstock
Specifications
Acme Tools Brand Name
RIKON
Acme Tools Part Number
70-3040
Amperage (A)
220
Assembled Depth (in)
30
Assembled Height (in)
61.6
Assembled Weight (lbs)
546
Assembled Width (in)
50.4
Brand / Model Compatibility
Rikon Lathe 70-3040
Built-In Accessory Storage
Yes
California Proposition 65 Warning Required
Yes
Cam Lock Adjustments
Yes
Chuck Fitment
Morse Taper
Color/Finish
Blue
Country of Origin
China
Diameter (in)
23-7/32 in to 31-1/4 In.
Digital Display
Yes
Dust Collection
No
ETL Listed
Yes
Height (in)
61.6
Horsepower (hp)
3
Housing Material
Cast Iron
Lathe Tool Rest Type
T-Bar Rest
Material
Metal
Motor Size
3 HP
Outboard Turning
Yes
Overall Depth (in)
61-5/8 to 81-5/8
Package Contents
Lathe, Stand, Spur Center, Live Center, 3″ Faceplate, 12″ Tool Rest, 4″ Tool Rest Height Extension, 2 Knock-out bars, 11 Wrenches, Tool Holder, Hand Wheel, Handle, Rubber Foot Pads, Mountng Hardware, Instructions
Package Depth
61.8
Package Height
34.25
Package Weight
665
Package Weight (lbs)
665
Ram Travel
4-11/16 In.
Size Of Hole Through Spindle (in)
0.375
Size Of Hole Through Tailstock (in)
0.375
Spindle Lock
Yes
Spindle Speed High (rpm)
3850
Spindle Speed Low (rpm)
20
Spindle Taper
MT2
Stand Included
Yes
Swing Over Bed
23-7/32” to 31-1/4”
Swing Over Tool Rest Bed
17-13/32” to 25-7/16”
Switch Type
Control Panel with push buttons and selector switches

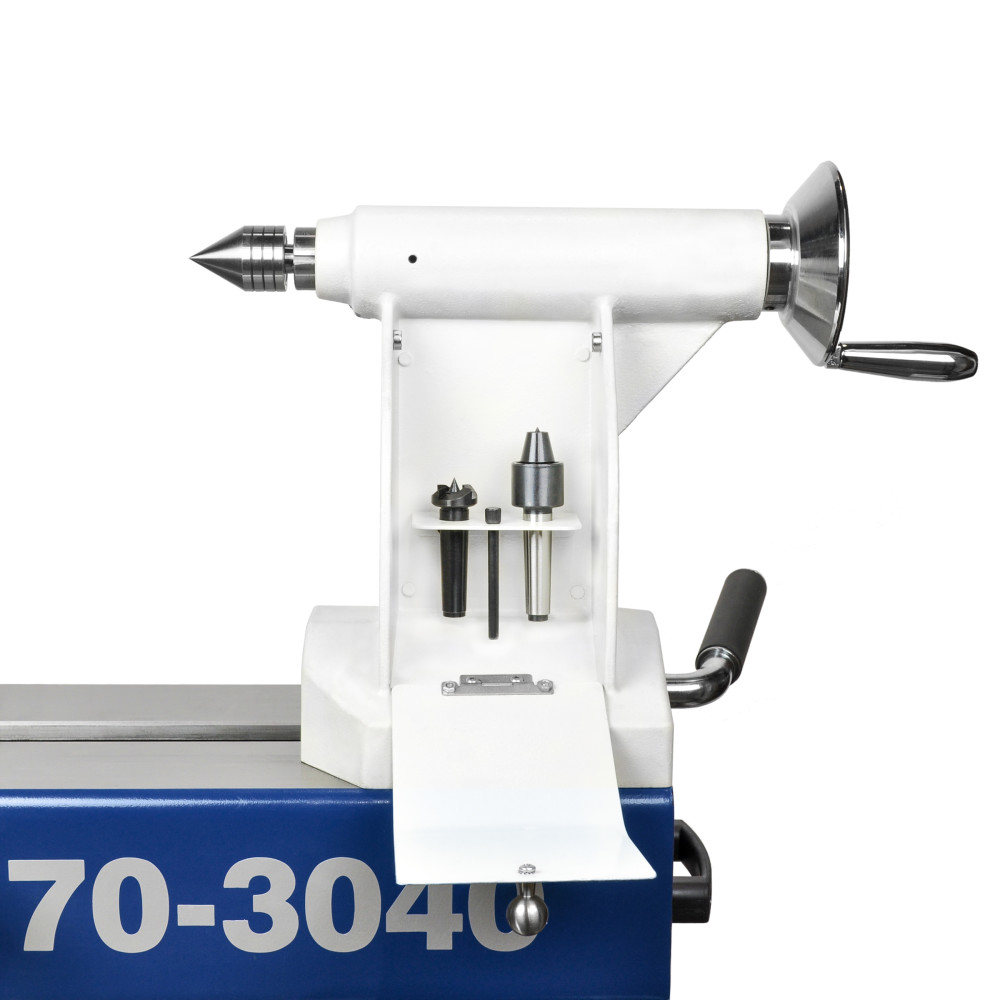

Tailstock Adjustment Range
0-40 In.
Tailstock Taper
MT2
Tool Rest Width (in)
12
UL Listed
No
Variable Speed
Yes
Working Distance Between Centers
20-40 In.
