Description
3″ X 79″ Belt Grinder 220V 1PH
Perhaps the thing operators notice first when putting the Jet BG-379 through its paces is how safe and easy it is to use, even when grinding larger pieces along the entire length of the belt. Pivoting belt assembly and hinged top cover, advanced belt tracking, vented and fixed front wheel and the Jet exclusive spark arrester allow broad use of this Jet bench grinder. Power and precision you can count on; backed by the industry-leading two year warranty.
Features
Pivots up and down on base for easy and safe work height adjustments
Hinged top cover opens for access to grind large pieces using the entire length of the belt

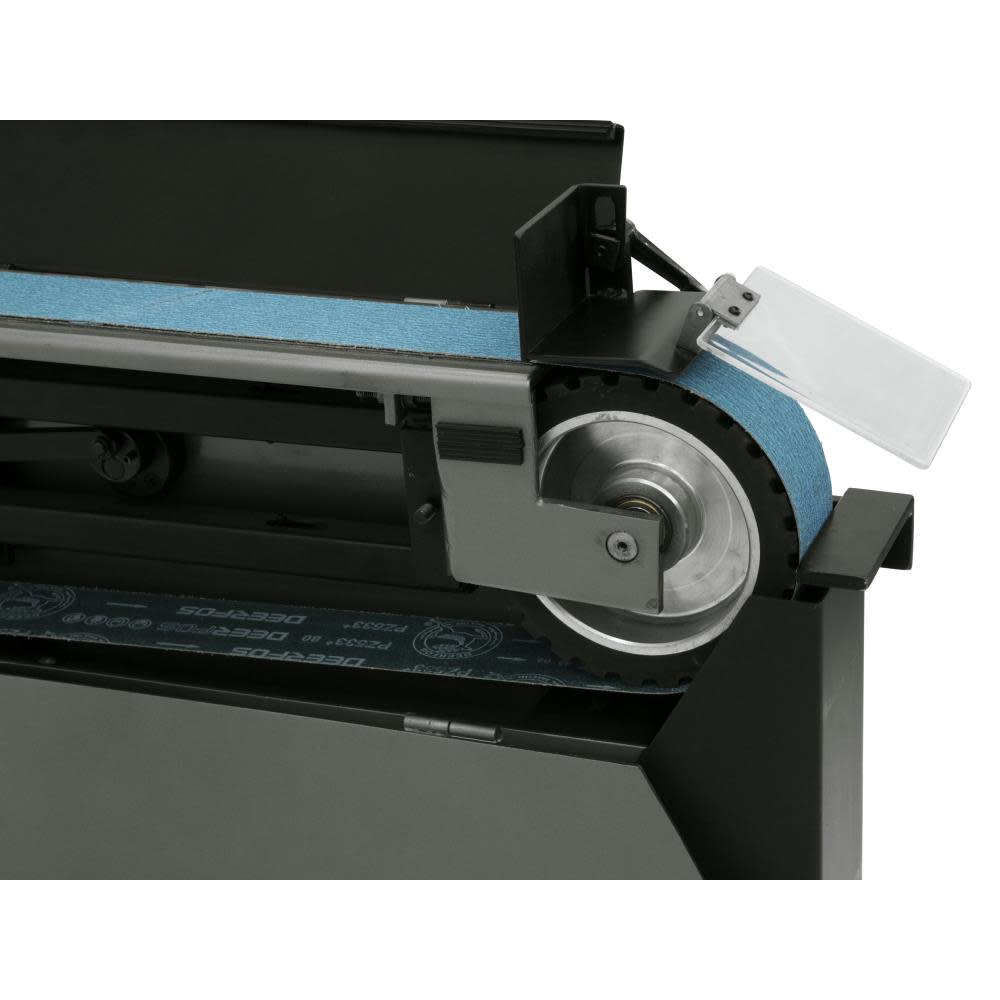

Advanced belt tracking with vented front wheel fixed in place for rigidity when grinding on the wheel radius
Sturdy enclosed base
Fully assembled for immediate use
Locking handle for top cover
3 in round connector and hose clamp for ease of mounting to a metalworking dust collection system
Spark arrester to prevent sparks from flying while using the full length of the belt
3 Extra 80 grit silicon carbide belts included
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
414610
Amperage (A)
50
Assembled Weight (lbs)
198.4
Belt Grit
80
Belt Included
Yes
Belt Length (in)
79
California Proposition 65 Warning Required
Yes
Color / Finish
Grey/Metal
Cordless / Corded
Corded
Country of Origin
China
CSA Certified
No
ETL Listed
No
Eye Shields
Yes
Grinder Type
Straight
Height (in)
41.2
Horsepower (hp)
4
Housing Material
Steel
Internet Product Code (IPC)
CEBB9823B34
Length (in)
17
Manufacturer Warranty
2 Year
Package Contents
1 Belt Grinder
1 Instructions and Parts Manual (not shown)
1 Warranty Card (not shown
1 Instructions and Parts Manual (not shown)
1 Warranty Card (not shown
Package Depth
43
Package Height
44
Package Weight
288
Package Weight (lbs)
286.6
Spindle Lock
No
UL Listed
No
Variable Speed
No
Voltage
230 Volts
Weight (lbs)
198.4
Width (in)
21
