Description

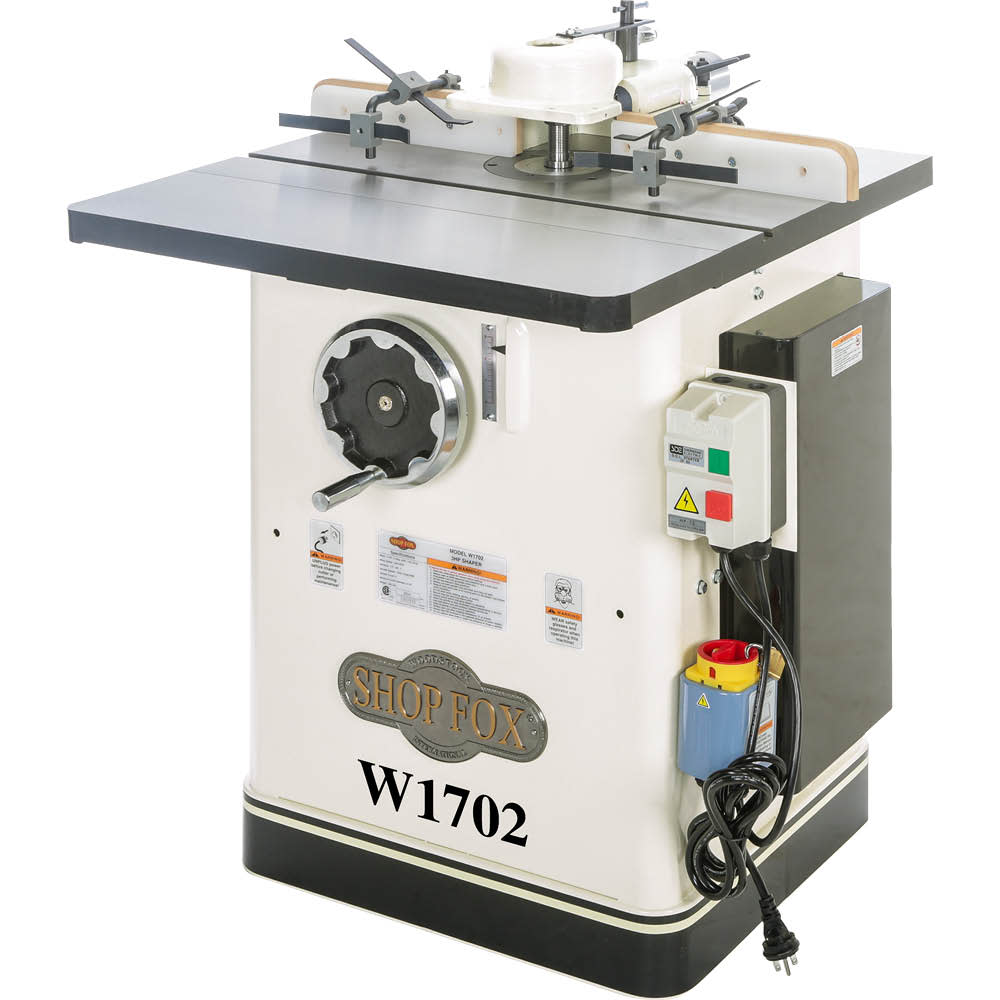

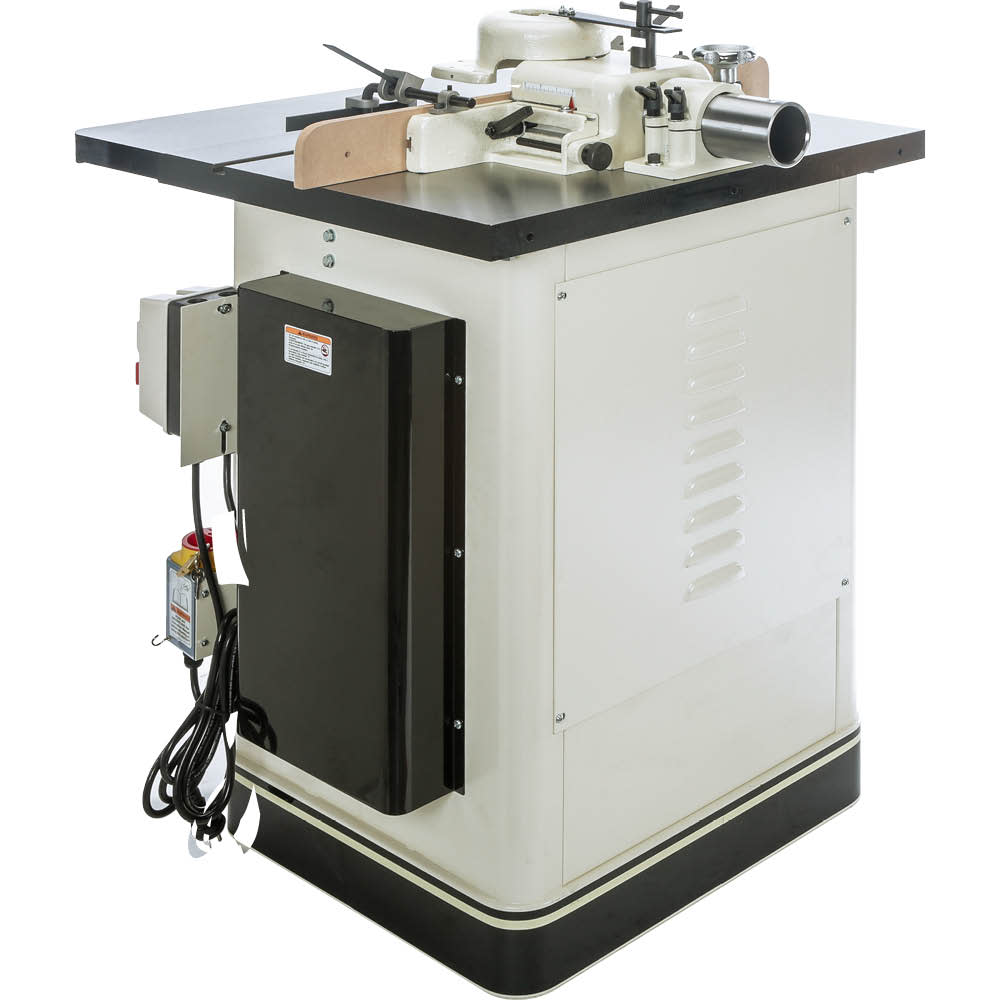

3 HP Shaper
This full-capacity 3 HP Shaper will handle the smallest profile cutters, all the way up to the largest panel cutters with its three included spindle sizes, 3″ spindle travel, and 5-1/2″ maximum cutter diameter capacity. Two reversible speeds also provide the greatest flexibility for accomodating cutters of all sizes. So, no matter what the shaping application is—whether it’s simple edge-profiling or making door stiles, rails, and panels—this is the right machine for the job.
Features
Motor: 3 HP, 220V, single-phase with reversing switch, 12A
Large precision-ground cast-iron table
Table size: 28-1/4″W x 30-1/2″D
Spindles: 1/2″, 3/4″, 1″ (included)
Max. cutter height (per spindle): 2″, 2-1/2″, 2-1/4″
Spindle travel: 3″
Spindle speeds: 7000 & 10,000 RPM
Spindle openings: 1-3/8″, 2-3/4″, 4″, 5-1/2″
Floor-to-table height: 34″
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1702
Amperage (A)
12
Assembled Weight (lbs)
353
California Proposition 65 Warning Required
Yes
Country of Origin
Taiwan
Package Contents
Shaper
Package Depth
26.00
Package Height
41.00
Package Weight
354
Package Weight (lbs)
354
