Description
28 in. TR Magnet Tile Cutter

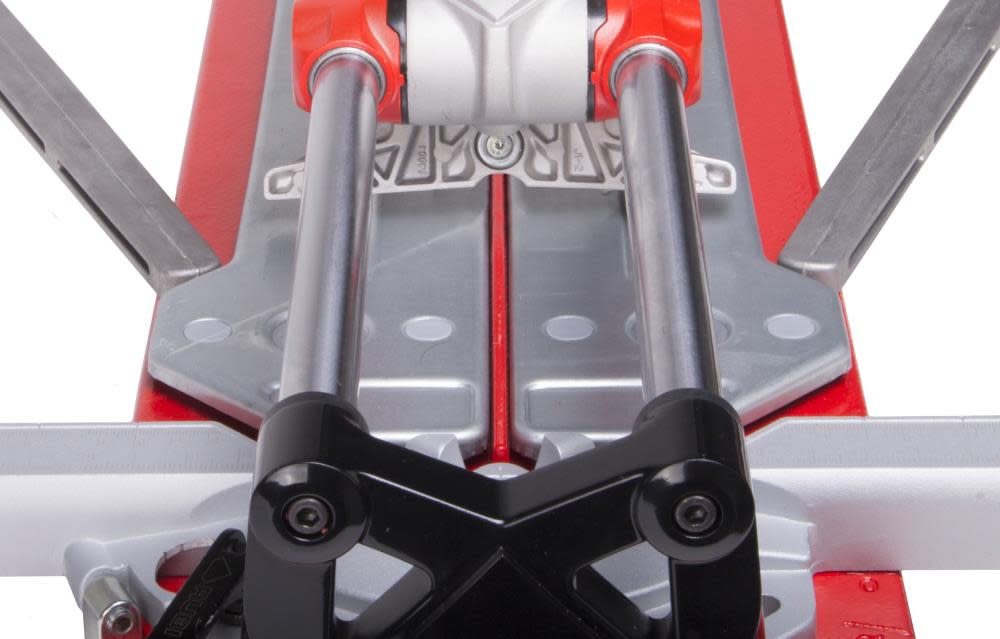

TR-700-S MAGNET is the ideal machine to cut porcelain tiles. Features 1764 lbs of breaking power and swivel square. This model will do a 28 In. straight cut & 20 In. diagonal cut. Multi point breaker for a perfect point to point diagonal cut. The magnet system locks the breaker, making it easier to score the ceramic tile and with better visibility. On the other hand, by simply moving the lever upwards, we set the breaker which will allow us to apply the maximum power and obtain a clean and precise cut.
Features
Fast cutting operation using a magnet, easy to use even with one hand.
Features a central pivot swivel square for quick and precise measurement of angular cuts in the -45º to 0° to 45° range.
High performance adjustable breaking system 1764 lb of breaking force.

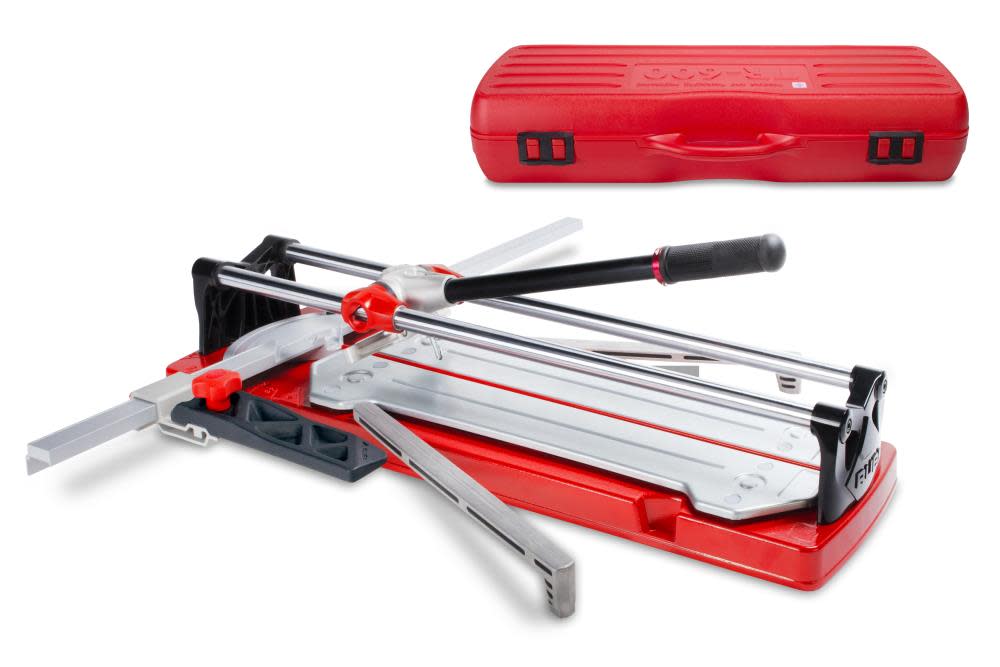

1/4 In. (6 mm) and 13/32 In. (10 mm) scoring wheels and transport case included.
New torsion-resistant base made of very light aluminum.
Spring loaded breaking pads allows for small tile debris to fall on the floor.
5 years warranty
Two-layer base with shock absorption effect
Lateral stop for straight and 45º repetitive cutting
High visibility during scratching.
Base supplement for large formats.
Specifications
Acme Tools Brand Name
RUBI TOOLS
Acme Tools Part Number
17908R
Assembled Weight (lbs)
35.274
Blade Diameter (in)
0.375
Blade Material
Carbide
Blade Thickness (in)
0.01
California Proposition 65 Warning Required
Yes
Commercial / Residential
Commercial
Country of Origin
Spain
Cuts Ceramic
Yes
Cuts Natural Stone
No
Cuts Porcelain
Yes
DIY or Professional
Professional
Handle Length (in)
14
Height (in)
5
Horsepower (hp)
Universal Motor
Internal Supplier Part #
17908
Internet Product Code (IPC)
6F754B6D971
Length (in)
34
Manufacturer Warranty
5 Years
Maximum Tile Cut Size Diagonal
17
Maximum Tile Cut Size Rip
24
Package Weight
37
Package Weight (lbs)
37
Replaceable Blades
Yes
Tile Accessory Category
Manual Tile Cutter
Weight (lbs)
32
Width (in)
11
