Description

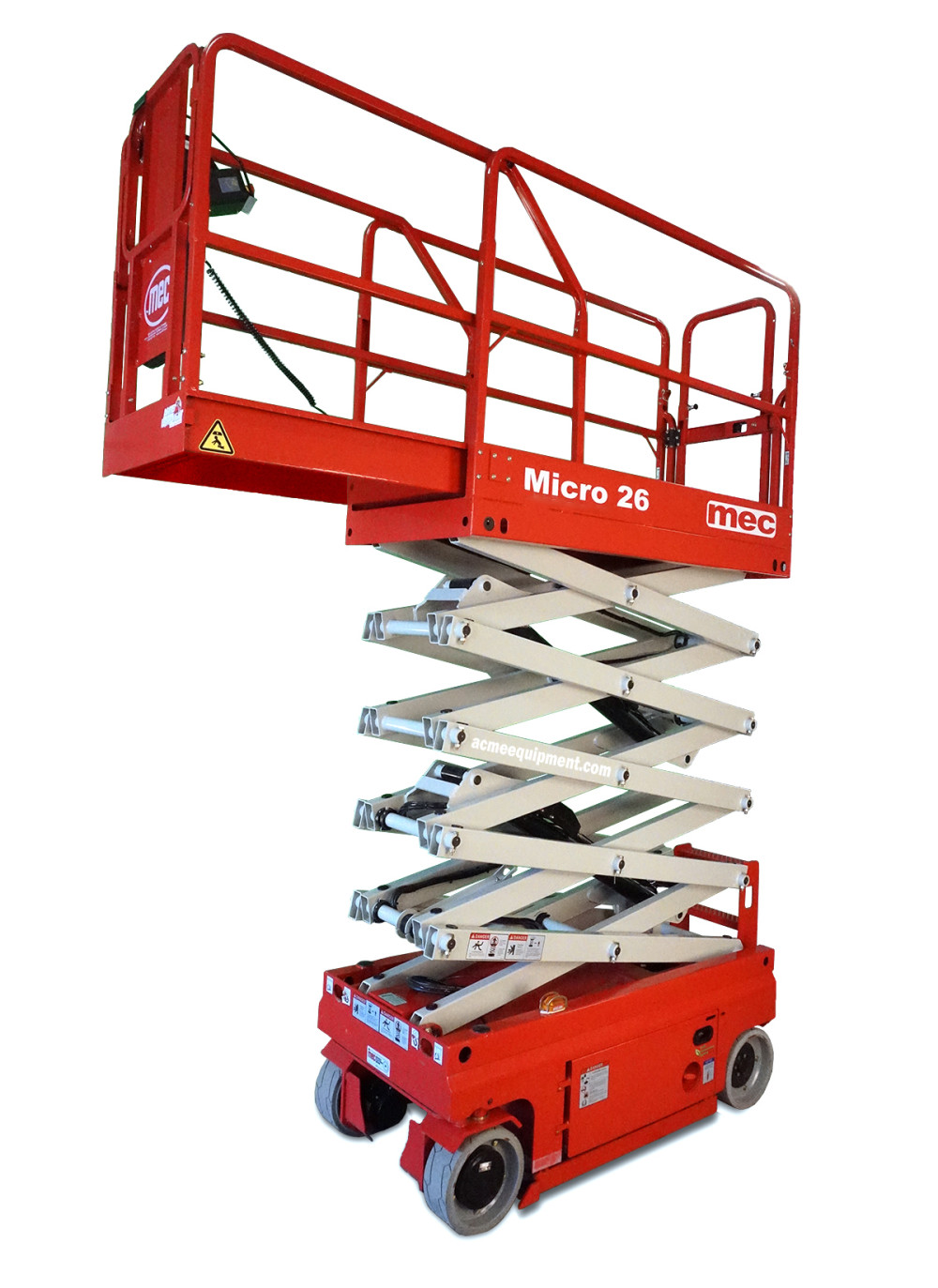

26 Ft. Micro Electric Scissor Lift
Micro 26’s ultra-compact design fits into small and tight work areas plus delivers all the benefits of extended duty cycles and faster drive speeds shared by the full direct electric drive line. A 26 foot class machine that can fit in elevators opens up many new opportunities.
Features
31.9″ overall width
36″ Roll-out deck extension

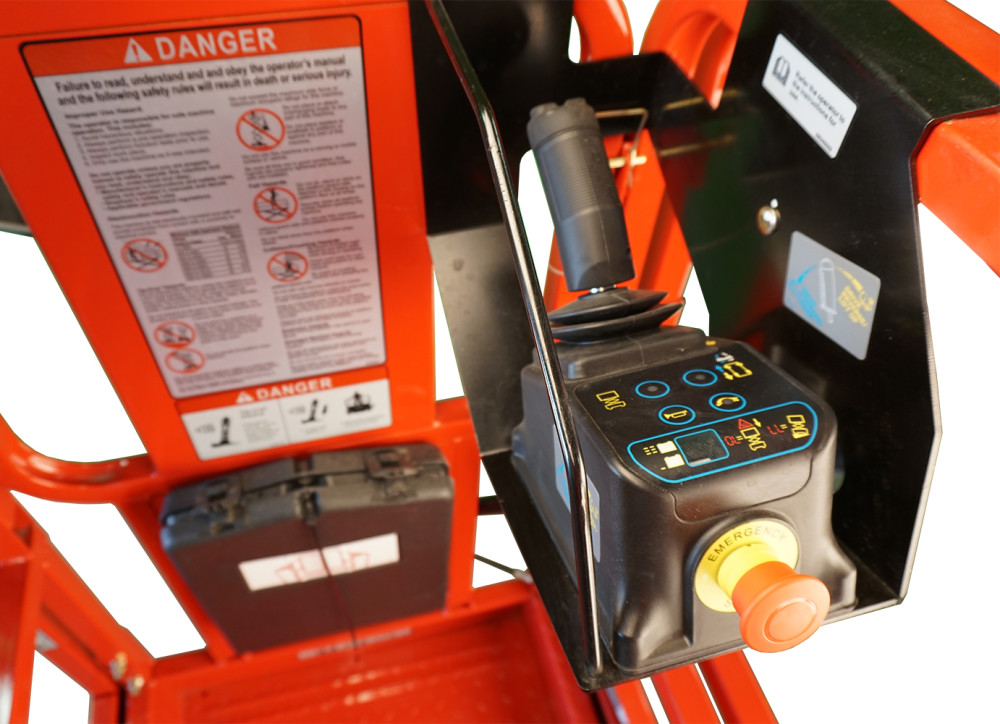

Fully proportional drive and lift controls
Up to 25% Gradeability

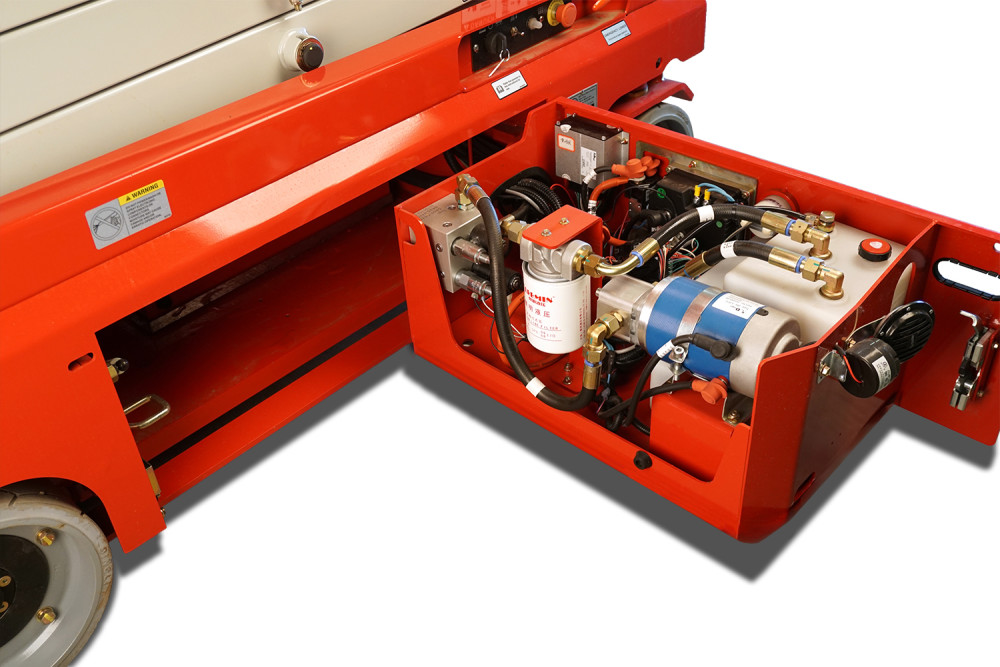

Direct electric drive
Lubrication-free scissor bearings

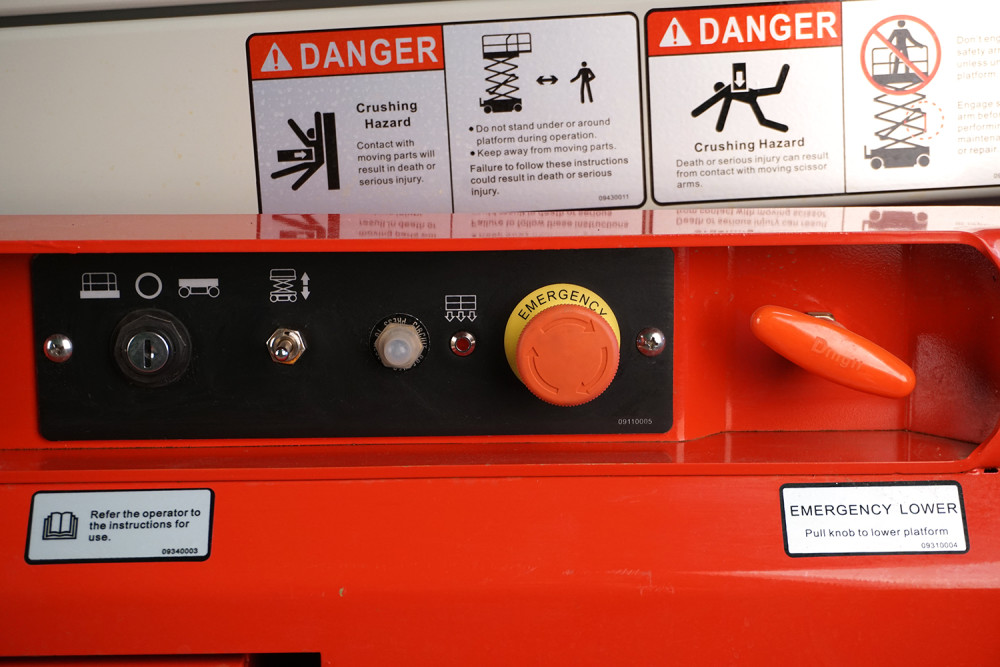

Emergency shut-off on platform & chassis

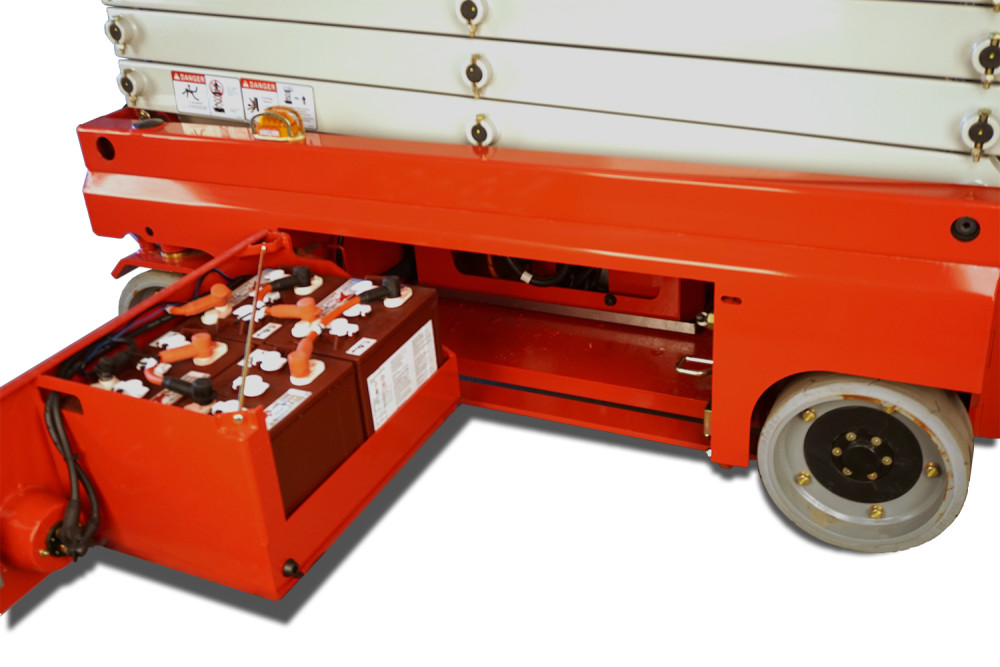

24v 240Ah DC electric power
Battery charge indicator
Specifications
Acme Tools Brand Name
MEC
Acme Tools Heavy Equipment
true
Acme Tools Part Number
MICRO 26
ANSI Approved
Yes
Assembled Depth (in)
74
Assembled Height (in)
89
Assembled Weight (lbs)
4190
Assembled Width (in)
31.9
Battery Ampere-hour (Ah)
225
Battery Voltage (V)
24
California Proposition 65 Warning Required
Yes
Country of Origin
United States
Drive Motor System
Electric
Ground Clearance (in)
3
Height (in)
89
Hour Meter
Yes
Package Contents
MICRO 26
Package Depth
74
Package Height
78.75
Package Weight
4191
Package Weight (lbs)
4191
Platform Width (in)
30
Tire Size
12″ x 5″
